Engine:Truck Engine Specs for G63B, G54B, G64B, 4G64, 6G72, 4D55

As you view this page, please check for possible mistakes that I could have made.
Mitsubishi's engine coding is by far a crazy number & lettering system that can be
very confusing to everyone. We have tried to organize to our best these codes.
Send a PM to Bradmph and be sure to describe the problem in full.
Click image for larger version.

Name:	MMotors.jpg
Views:	608
Size:	58.9 KB
ID:	13324


Click image for larger version.

Name:	G63B_diagram.gif
Views:	6669
Size:	78.1 KB
ID:	10580

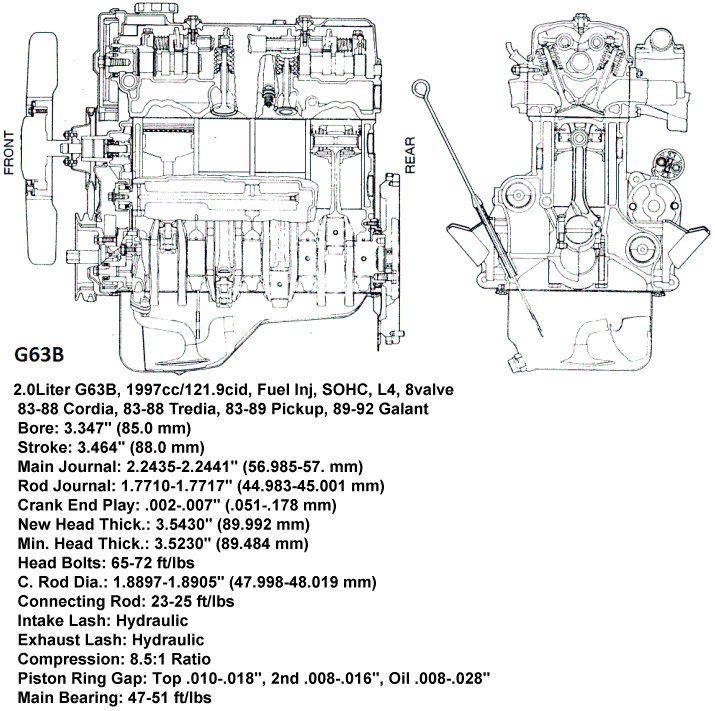

2.0Liter G63B, 1997cc/121.9cid, Fuel Inj, SOHC, L4, 8valve
83-88 Cordia, 83-88 Tredia, 83-89 Pickup, 89-92 Galant

Bore: 3.347" (85.0 mm)
Stroke: 3.464" (88.0 mm)
Main Journal: 2.2435-2.2441" (56.985-57. mm)
Rod Journal: 1.7710-1.7717" (44.983-45.001 mm)
Crank End Play: .002-.007" (.051-.178 mm)
New Head Thick.: 3.5430" (89.992 mm)
Min. Head Thick.: 3.5230" (89.484 mm)
Head Bolts: 65-72 ft/lbs
C. Rod Dia.: 1.8897-1.8905" (47.998-48.019 mm)
Connecting Rod: 23-25 ft/lbs
Intake Lash: Hydraulic
Exhaust Lash: Hydraulic
Compression: 8.5:1 Ratio
Piston Ring Gap: Top .010-.018", 2nd .008-.016", Oil .008-.028"
Main Bearing: 47-51 ft/lbs

Click image for larger version.

Name:	G54B_83-90.gif
Views:	5444
Size:	87.8 KB
ID:	10586
2.6Liter G54B, 2555cc/155.9cid, Carburated, SOHC, L4, 8valve
83-89 Montero, 83-89 Pickup, 83-89 Starion Turbo

Bore: 3.5875" (91.123 mm)
Stroke: 3.858" (97.993 mm)
Main Journal: 2.3614-2.3622" (59.98-60. mm)
Rod Journal: 2.0858-2.0866" (52.979-53. mm)
Crank End Play: .002-.007" (.051-.178 mm)
New Head Thick.: 3.5430" (89.992 mm)
Min. Head Thick.: 3.5230" (89.484 mm)
Head Bolts: 80 ft/lbs
C. Rod Dia.: 2.2047-2.2055" (55.999-56.02 mm)
Connecting Rod: 33-34 ft/lbs
Intake Lash: .015-.031" Dry
Exhaust Lash: .015-.031" Dry (.381-.787 mm)
Idle Oil Pressure: 7 psi
Max Oil Pressure: 57 psi
Compression: 8.7:1 Ratio
Piston Ring Gap: Top & 2nd .010-.018", Oil .008-.035"
Main Bearing: 55-61 ft/lbs

Click image for larger version.

Name:	4G64_2.4_carb.gif
Views:	2193
Size:	87.9 KB
ID:	10595
2.4Liter G64B, 2350cc/143.5cid, Carburated, SOHC, L4, valve
85-88 Galant, 85-90 Van, 88-92 Pickup, 92-92 Expo

Bore: 3.410" (86.614 mm)
Stroke: 3.940" (100.076 mm)
Main Journal: 2.2435-2.2441" (56.985-57. mm)
Rod Journal: 1.7710-1.7717" (44.983-45.001 mm)
Crank End Play: .002-.007" (.051-.178 mm)
New Head Thick.: 3.5430" (89.992 mm)
Min. Head Thick.: 3.5230" (89.484 mm)
Head Bolts: 80 ft/lbs
C. Rod Dia.: 1.8897-1.8905" (47.998-48.019 mm)
Connecting Rod: 23-25 ft/lbs
Intake Lash: Jet .010 Hot
Compression: 8.5:1 Ratio
Piston Ring Gap: Top .010-.018", 2nd .008-.016", Oil .008-.028"
Main Bearing: 36-39 ft/lbs

Click image for larger version.

Name:	4G64_2.4_90-92.gif
Views:	4835
Size:	93.9 KB
ID:	10596Click image for larger version.

Name:	4G64_2.4_93-95.gif
Views:	3330
Size:	105.6 KB
ID:	10597
2.4Liter 4G64, 2350cc/143.5cid, Fuel Inj, SOHC, L4, 8valve
93-96 Pick Up

Bore: 3.410" (86.614 mm)
Stroke: 3.940" (100.076 mm)
Main Journal: 2.2435-2.2441" (56.985-57. mm)
Rod Journal: 1.7710-1.7717" (44.983-45.001 mm)
Crank End Play: .002-.007" (.051-.178 mm)
New Head Thick.: 3.5430" (89.992 mm)
Min. Head Thick.: 3.5230" (89.484 mm)
Head Bolts: 80 ft/lbs
C. Rod Dia.: 1.8897-1.8905" (47.998-48.019 mm)
Connecting Rod: 23-25 ft/lbs
Intake Lash: Jet .010 Hot
Compression: 8.5:1 Ratio
Piston Ring Gap: Top .010-.018", 2nd .008-.016", Oil .008-.028"
Main Bearing: 36-39 ft/lbs

Click image for larger version.

Name:	G672_89-95.gif
Views:	1973
Size:	102.8 KB
ID:	10589
3.0Liter 6G72, 2972cc/181.4cid, Fuel Inj, SOHC, V6, 12valve
89-00 Montero V6, 90-00 Pickup V6, 88-90 Galant Sigma, 92-96 Diamante, 97-99 3000GT SOHC

Bore: 3.5866-3.5878" (91.1-91.13 mm)
Stroke: 2.992" (75.997 mm)
Main Journal: 2.3614-2.3622" (59.98-60. mm)
Rod Journal: 1.9677-1.9685" (49.98-50. mm)
Crank End Play: .002-.010" (.051-.254 mm)
New Head Thick.:3.3030-3.3110" (83.896-84.099 mm)
Min. Head Thick.: 3.2950" (83.693 mm)
Head Bolts: 80 ft/lbs
C. Rod Dia.: 2.0866-2.0868" (53.-53.005 mm)
Connecting Rod: 38 ft/lbs Nuts
Intake Lash: .015-.035" Dry
Exhaust Lash: .015-.035" Dry (.381-.889 mm)
Idle Oil Pressure: 6 psi Min Hot
Max Oil Pressure: 100# @ 3000 rpm
Compression: 8.9:1 Ratio
Piston Ring Gap: Top .012-.018", 2nd .018-.024", Oil .008-.024"
Main Bearing: 57 ft/lbs

Click image for larger version.

Name:	4D55 Deisel.jpg
Views:	1471
Size:	113.0 KB
ID:	10592

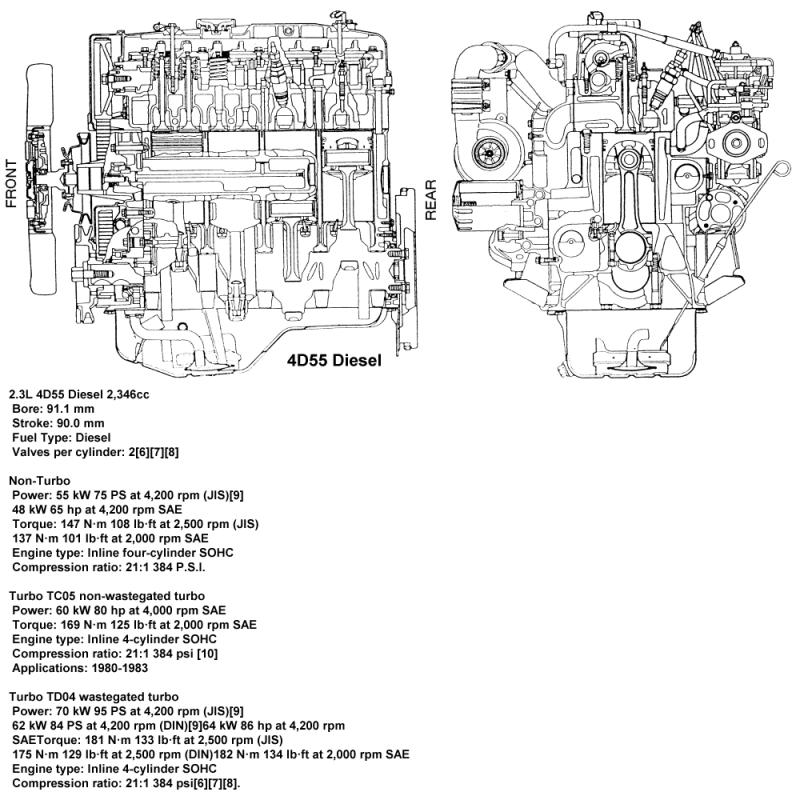

2.3L 4D55 Diesel 2,346cc
Bore: 91.1 mm
Stroke: 90.0 mm
Fuel Type: Diesel
Valves per cylinder: 2[6][7][8]

Non-Turbo

Power: 55 kW 75 PS at 4,200 rpm (JIS)[9]
48 kW 65 hp at 4,200 rpm SAE
Torque: 147 Nm 108 lbft at 2,500 rpm (JIS)
137 Nm 101 lbft at 2,000 rpm SAE
Engine type: Inline four-cylinder SOHC
Compression ratio: 21:1 384 P.S.I.
Applications 1980-1983 Mitsubishi Galant Σ/Eterna Σ
1982-1986 Mitsubishi Pajero
1982-1986 Mitsubishi Delica/L300
Mitsubishi L200/Forte (first generation)

Turbo TC05 non-wastegated turbo
Power: 60 kW 80 hp at 4,000 rpm SAE
Torque: 169 Nm 125 lbft at 2,000 rpm SAE
Engine type: Inline 4-cylinder SOHC
Compression ratio: 21:1 384 psi [10]
Applications: 1980-1983

Turbo TD04 wastegated turbo
Power: 70 kW 95 PS at 4,200 rpm (JIS)[9]
62 kW 84 PS at 4,200 rpm (DIN)[9]64 kW 86 hp at 4,200 rpm
SAETorque: 181 Nm 133 lbft at 2,500 rpm (JIS)
175 Nm 129 lbft at 2,500 rpm (DIN)182 Nm 134 lbft at 2,000 rpm SAE
Engine type: Inline 4-cylinder SOHC
Compression ratio: 21:1 384 psi[6][7][8]
