Engine:Mitsubishi Engines & Heads

"CLICK ON IMAGES TO EXPAND"

I have not posted every engine/head manufactured by Mitsubishi because only
the most common were posted to serve our purpose here at MightyRam50.net.
As you view this page, please check for possible mistakes that I could have made.
Mitsubishi's engine coding is by far a crazy number & lettering system that can be
very confusing to everyone. We have tried to organize to our best these codes.
Send a PM to Bradmph and be sure to describe the problem in full.
Click image for larger version.

Name:	MMotors.jpg
Views:	115
Size:	58.9 KB
ID:	13322
Further Mitsubishi engine information can be located here
http://www.mightyram50.net/vbulletin...rt&redirect=no
http://www.mightyram50.net/vbulletin...55&redirect=no

Mitsubishi Engine Code Information

Aspiration
T = Turbo

Piston & Cylinders
4 = four cylinder
6 = six cylinder
8 = eight cylinder

Fuel Type
G = Gas
D = Deisel

Engine Families - 4 cylinder Gas
4A3 = ? / 600cc to 1.1L
4A9 = ? / 1.3L to 1.5L
4B1 = ? / 2.0L to 2.4L
4G1 = Orion / 1.2L to 1.6L
4G3 = Saturn / 1.2L to 1.8L
4G4 = Neptune / 1.2L to 1.4L
4G5 = Astron / 1.85L to 2.6L
4G6 = Sirius / 1.6L to 2.4L
4G9 = ? / 1.5L to 2.0L
KE4 = ? / 997cc to 2.3L

Engine Families - 6 cylinder Gas & Diesel
KE6 = ? / 1,991cc to 3,520cc
6A1 = 1.2L to 2.0L Gas
6B3 = 3.0L
6G7 = Gas "Cyclone V6"
KE6 = Straight 6
Saturn 6 = 2.0L Straight 6 built to replace KE6

Engine Families - Diesel
4D5 = Astron Diesel
4M4 = Astron Replacement 2.8 to 3.2
4N1 = Clean Diesel

Numeric Code Descriptions of Litre Sizes
11 = 1.2 litre
12 = 1.4 litre
13 = 1.3 litre
15 = 1.5 litre
16 = 1.2 litre
18 = 1.6 litre
31 = 1.5 litre
32 = 3.6 litre
33 = 4.2 litre
34 = 3.9 litre
35 = 4.6 litre
36 = 2.0 litre
37 = 1.8 litre
54 = 2.3 litre
55 = 2.5 litre
56 = 2.6 litre
61 = 1.6 litre
62 = 1.8 litre
63 = 2.0 litre
64 = 2.4 litre
67 = 1.8 litre
69 = 2.4 litre
72 = 3.0 litre
73 = 2.5 litre
74 = 3.5 litre
91 = 1.5 litre
92 = 1.6 litre
93 = 1.8 litre
94 = 2.0 litre

MITSUBISHI HEADS - GAS

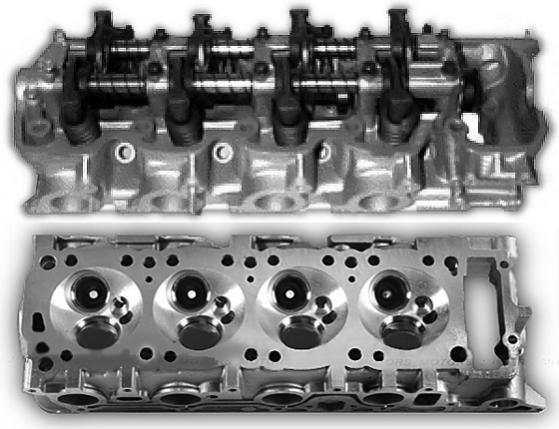

Mitsubishi 1.2 4G11
Click image for larger version.

Name:	4G12.jpg
Views:	242
Size:	69.5 KB
ID:	11587
Mitsubishi 1.4 G12B-H
Click image for larger version.

Name:	mit14_G12B-H.jpg
Views:	119
Size:	83.5 KB
ID:	9699

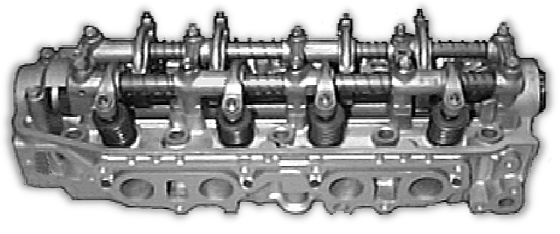

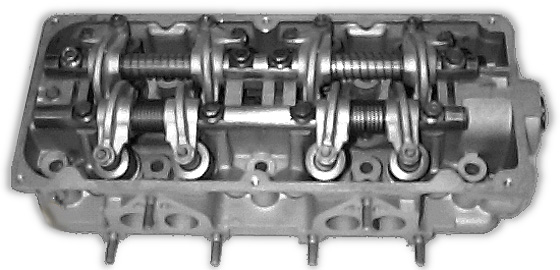

Mitsubishi 1.5 4G15 12v
Click image for larger version.

Name:	mit15_4G15_12v.jpg
Views:	361
Size:	88.4 KB
ID:	9700
Mitsubishi 1.5 4G15B Carb 1985 to 1995
Click image for larger version.

Name:	mit15_4G15B_carb_85to95.jpg
Views:	252
Size:	76.3 KB
ID:	9701
Mitsubishi 1.6 4G61 DOHC 16v 1989 to 1990
Click image for larger version.

Name:	mit16_4G61_DOHC16v_89to90.jpg
Views:	365
Size:	80.0 KB
ID:	9702

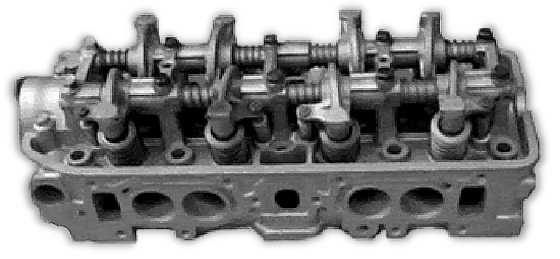

Mitsubishi 1.8 4G37 roller 1990 to 1994
Click image for larger version.

Name:	mit18_4G37_roller_90to94.jpg
Views:	156
Size:	66.0 KB
ID:	9703

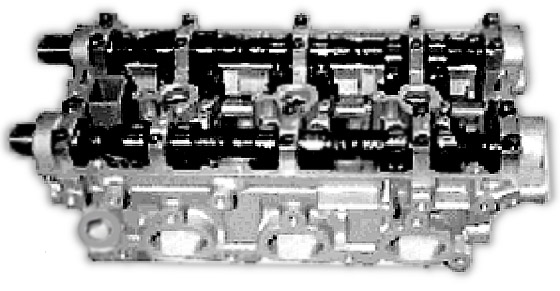

Mitsubishi 2.0 4G94 SOHC 16v
Click image for larger version.

Name:	mit18_G94_SOHC16v_93to00.jpg
Views:	602
Size:	57.1 KB
ID:	9704

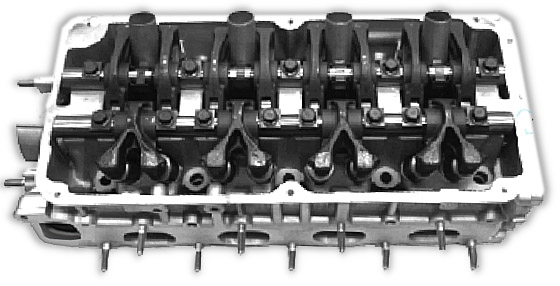

Mitsubishi 2.0 G63B SOHC 8v MCA jet
Click image for larger version.

Name:	mit20_G63B_SOHC8v_MCAjet.jpg
Views:	401
Size:	60.5 KB
ID:	9705
Mitsubishi 2.0 G63B SOHC 8v No MCA jet or Fuel Pump Hole
Click image for larger version.

Name:	G63B_nonMCA.jpg
Views:	716
Size:	91.4 KB
ID:	11181
Mitsubishi 2.0/2.4 4G94 SOHC 16v
Click image for larger version.

Name:	mit20-24_4G94_SOHC16v.jpg
Views:	89
Size:	69.3 KB
ID:	9706
Mitsubishi 2.0/2.4 086cast non-turbo DOHC 16v
Click image for larger version.

Name:	mit20-24nonturbo_086cast_DOHC.jpg
Views:	120
Size:	71.5 KB
ID:	9707
Mitsubishi 2.0 G63x non-turbo DOHC 16v
Click image for larger version.

Name:	mit20nonturbo_G63x_DOHC16v.jpg
Views:	173
Size:	76.5 KB
ID:	9708
Mitsubishi 2.0 G63T turbo DOHC 16v 1995 to 1999
Click image for larger version.

Name:	mit20turbo_G63Tgen2_DOHC16v_95-99.jpg
Views:	142
Size:	65.4 KB
ID:	9709
Mitsubishi 2.0 G63x DOHC 16v big port
Click image for larger version.

Name:	mit20turbo_G63x_DOHC16v_bigport.jpg
Views:	174
Size:	70.4 KB
ID:	9710
Mitsubishi 2.4 G6Kx DOHC 1994 to 1995
Click image for larger version.

Name:	mit24_G6K_DOHC_94to95.jpg
Views:	137
Size:	65.5 KB
ID:	9711
Mitsubishi 2.4 G64B SOHC 8v MCAjet no pump hole
Click image for larger version.

Name:	mit24_G64B_SOHChyd_MCAjet_nopumphole.jpg
Views:	243
Size:	67.1 KB
ID:	9712
Mitsubishi 2.4 4G64 SOHC LS Intake 1992 to 1995
Click image for larger version.

Name:	mits_sohc16_LS_intake-port_cast-G6K_G6N.jpg
Views:	39
Size:	242.7 KB
ID:	18138

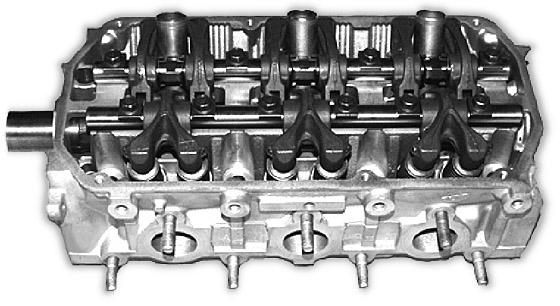

Mitsubishi 2.4 4G64 SOHC 16v 7bolt
Click image for larger version.

Name:	4G64_SOHC_16v_2.4.jpg
Views:	127
Size:	80.5 KB
ID:	12588
Mitsubishi 2.4 4G69 SOHC 16v 7bolt 2004 to 2008
Click image for larger version.

Name:	4G6916v7bolt.jpg
Views:	97
Size:	50.9 KB
ID:	13327
Mitsubishi 2.6 4G54 SOHC Turbo Adjust Rockers
Click image for larger version.

Name:	2.6Turbo_adjustable.jpg
Views:	88
Size:	41.4 KB
ID:	13588
Mitsubishi 2.6 4G54 SOHC Hemi short cam
Click image for larger version.

Name:	mit26_4G54_SOHC_shortcam.jpg
Views:	206
Size:	65.1 KB
ID:	9713
Mitsubishi 2.6 4G54 SOHC MCA Hemi
Click image for larger version.

Name:	4G54MCA.jpg
Views:	108
Size:	43.0 KB
ID:	13220
Mitsubishi 2.8 4M40
Click image for larger version.

Name:	4M40.jpg
Views:	89
Size:	50.6 KB
ID:	13573
Mitsubishi 3.0 6G7S V6 1995 to 2007
Click image for larger version.

Name:	mit30_6G7S_95to07.jpg
Views:	149
Size:	70.1 KB
ID:	9715
Mitsubishi 3.0 4G6x non-turbo DOHC 12v per head V6
Click image for larger version.

Name:	mit30nonturbo_4G6_DOHC12vperhead_V6.jpg
Views:	90
Size:	75.3 KB
ID:	9716
Mitsubishi 3.5 G7S4FR/FF SOHC V6
Click image for larger version.

Name:	mit35_G7S4FR-FF_SOHC_V6.jpg
Views:	98
Size:	81.2 KB
ID:	9717


MITSUBISHI HEADS - DIESEL

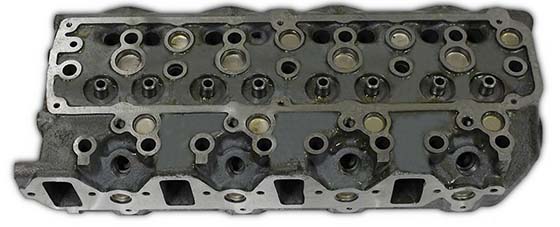

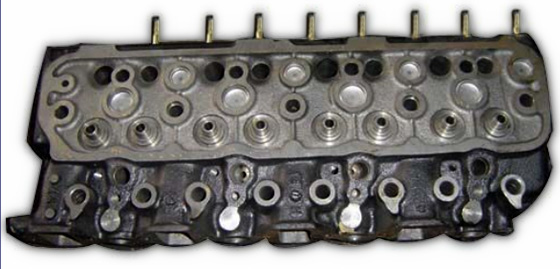

Mitsubishi 3.3 4D30 Diesel
Click image for larger version.

Name:	4D30.jpg
Views:	189
Size:	44.7 KB
ID:	11796
Mitsubishi 3.3 4D31 Diesel
Click image for larger version.

Name:	4D31_head.jpg
Views:	94
Size:	70.2 KB
ID:	11995
Mitsubishi 3.6 4D32 Diesel
Click image for larger version.

Name:	4D32.jpg
Views:	105
Size:	76.4 KB
ID:	13571
Mitsubishi 4.2 4D33 Diesel
Click image for larger version.

Name:	4D33.jpg
Views:	99
Size:	73.4 KB
ID:	13572
Mitsubishi 3.9 4D34 Diesel
Click image for larger version.

Name:	4D34.jpg
Views:	118
Size:	78.1 KB
ID:	11588
Mitsubishi 4.6 4D35 Diesel
Click image for larger version.

Name:	4D35.jpg
Views:	46
Size:	73.1 KB
ID:	16166
Mitsubishi 3.6 4D36 Diesel
Click image for larger version.

Name:	4D36.jpg
Views:	39
Size:	95.2 KB
ID:	16167
Mitsubishi 2.3 4D55 Diesel
Click image for larger version.

Name:	4D55.jpg
Views:	152
Size:	83.5 KB
ID:	11813

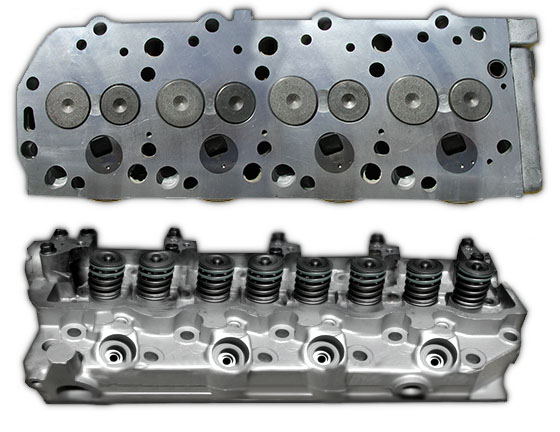

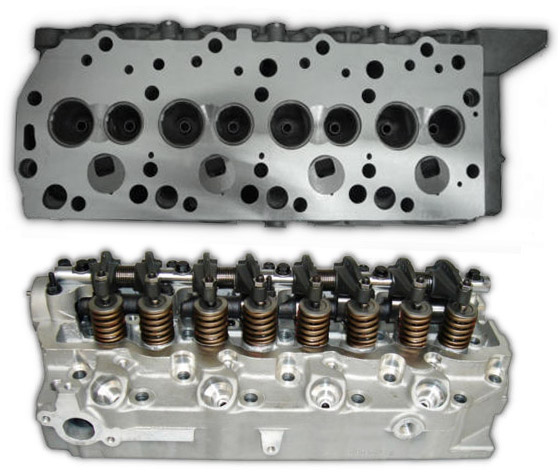

Mitsubishi 2.5 4D56T Diesel
Click image for larger version.

Name:	4D56T.jpg
Views:	158
Size:	90.0 KB
ID:	11814
(4D65, 4D68 - not shown)
Mitsubishi 7.5 6D16 Diesel
Click image for larger version.

Name:	6D16.jpg
Views:	117
Size:	91.9 KB
ID:	13219
MITSUBISHI MOTORS - Gas

Name:  mitsubishi_engines2.gif
Views: 2479
Size:  9.3 KB
Download a copy of engine comparisons
mitsubishi_engines.zip

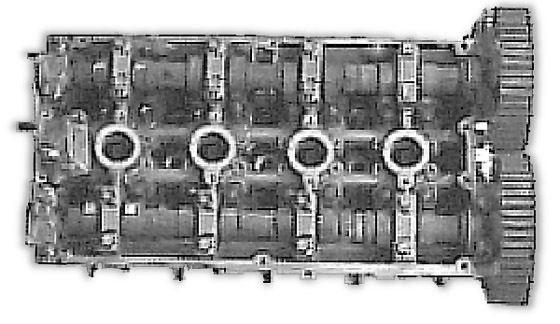

4G15 8v SOHC
Click image for larger version.

Name:	4G15-8v.jpg
Views:	1380
Size:	85.4 KB
ID:	10554
4G15 12v SOHC
Click image for larger version.

Name:	4G15-12v.jpg
Views:	1794
Size:	88.0 KB
ID:	10553
G54B 8v SOHC
Click image for larger version.

Name:	G54B.jpg
Views:	273
Size:	98.1 KB
ID:	9822
4G61 16v DOHC
Click image for larger version.

Name:	4G61-G4CR.jpg
Views:	686
Size:	87.7 KB
ID:	10555
G62B 8v SOHC
Click image for larger version.

Name:	G62B_1.8.jpg
Views:	203
Size:	85.7 KB
ID:	10837
G63B 8v SOHC
Click image for larger version.

Name:	G63B.jpg
Views:	292
Size:	93.1 KB
ID:	9820

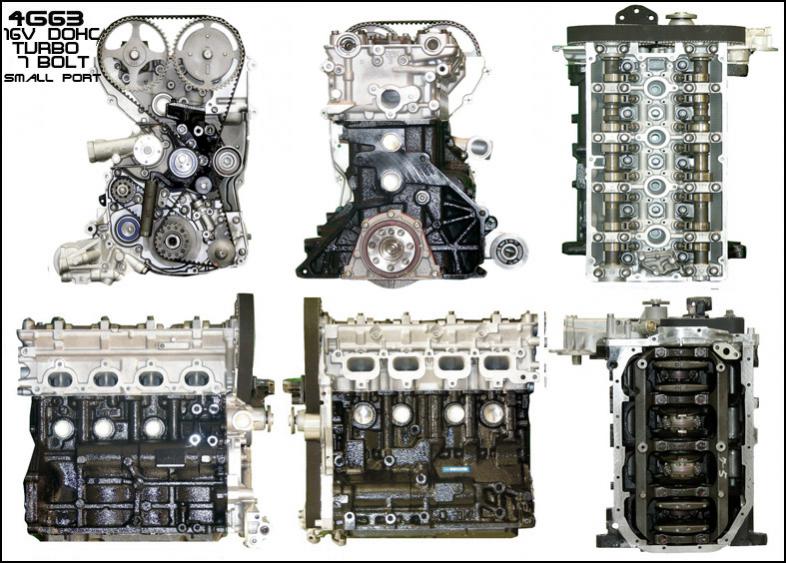

4G63 16v DOHC TURBO 7 BOLT SML PORT
Click image for larger version.

Name:	4G63_7B_TURBO_16Vdohc_smlprt.jpg
Views:	975
Size:	88.6 KB
ID:	10565
4G63 16v DOHC TURBO 6 BOLT
Click image for larger version.

Name:	4G63_6B_TURBO_16Vdohc.jpg
Views:	958
Size:	88.2 KB
ID:	10563
4G63 16v DOHC TURBO 7 BOLT
Click image for larger version.

Name:	4G63_7B_TURBO_16Vdohc.jpg
Views:	553
Size:	85.8 KB
ID:	10564

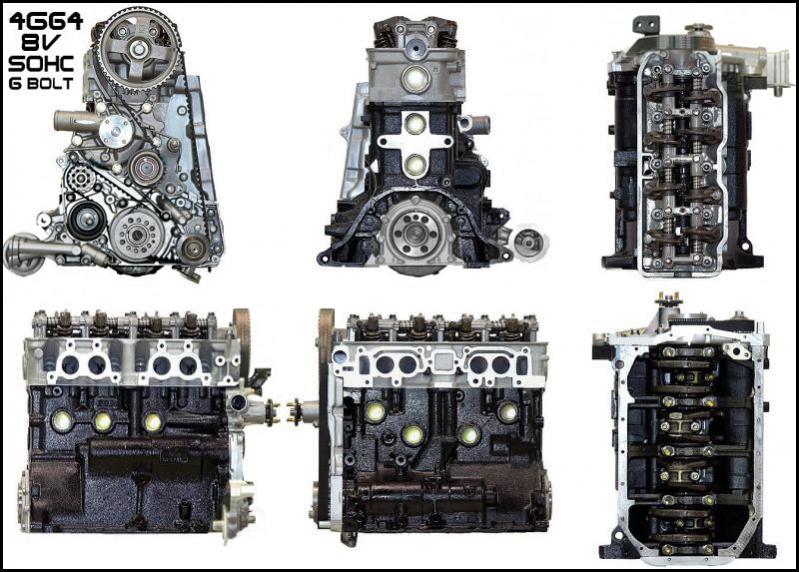

4G64 8v SOHC 6 BOLT
Click image for larger version.

Name:	4G64_8v_sohc_6bolt.jpg
Views:	239
Size:	88.1 KB
ID:	12010
4G64 8v SOHC 6 BOLT 2-Version + 16v SOHC
Click image for larger version.

Name:	4G64_16v_8v_SOHC.jpg
Views:	223
Size:	42.9 KB
ID:	12011
4G64 16v SOHC 7 BOLT
Click image for larger version.

Name:	4G64_16v_SOHC_7Bolt.jpg
Views:	1459
Size:	86.0 KB
ID:	10591
4G67 16v DOHC
Click image for larger version.

Name:	4G67.jpg
Views:	1710
Size:	96.4 KB
ID:	10559
4G69 16v SOHC 7 BOLT
Click image for larger version.

Name:	4G69.jpg
Views:	133
Size:	72.2 KB
ID:	13326
4G93 16v SOHC
Click image for larger version.

Name:	4G93.jpg
Views:	953
Size:	84.1 KB
ID:	10561
6G72 V6
Click image for larger version.

Name:	6G72.jpg
Views:	360
Size:	95.3 KB
ID:	10633
6G73 V6
Click image for larger version.

Name:	6G73.jpg
Views:	683
Size:	98.0 KB
ID:	10582
6G74 V6
Click image for larger version.

Name:	6G74.jpg
Views:	458
Size:	95.7 KB
ID:	10583

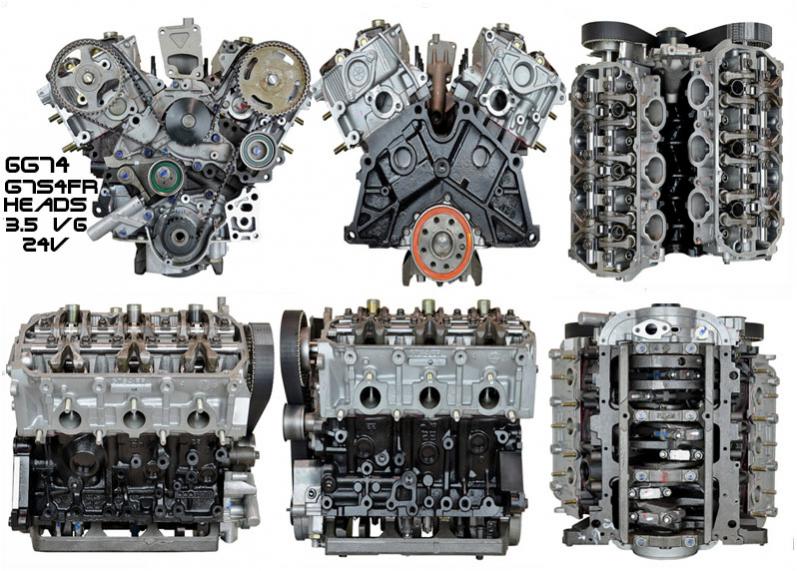

6G74 G7S45FR heads V6 3.5 24v
Click image for larger version.

Name:	G7S4FR.jpg
Views:	434
Size:	95.5 KB
ID:	10634

PARTS DIAGRAMS

2.0L SOHC
Click image for larger version.

Name:	2.0L_SOHC.gif
Views:	733
Size:	54.5 KB
ID:	13314

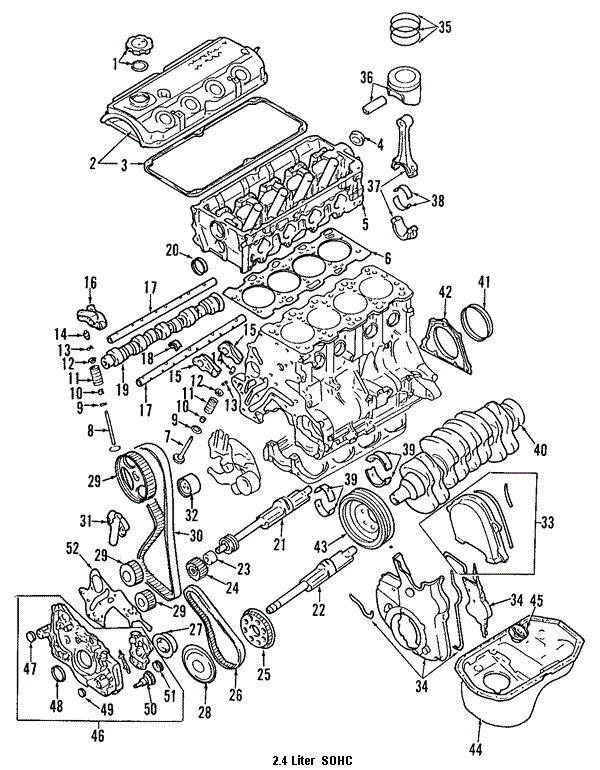

2.4L SOHC
Click image for larger version.

Name:	2.4L_SOHC.gif
Views:	317
Size:	58.8 KB
ID:	13315
2.6L SOHC
Click image for larger version.

Name:	2.6L_SOHC.gif
Views:	270
Size:	82.7 KB
ID:	13319
2.4L DOHC
Click image for larger version.

Name:	2.4L_DOHC.gif
Views:	164
Size:	92.9 KB
ID:	13320

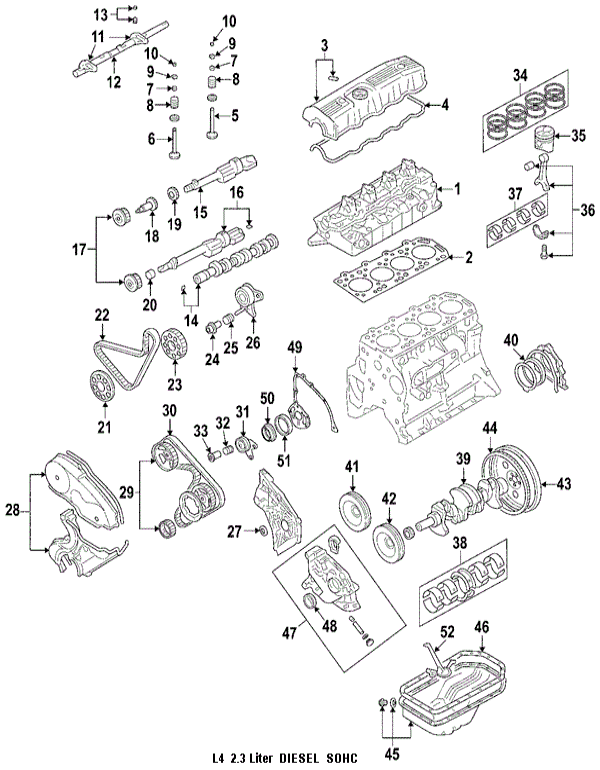

2.3L SOHC Diesel

Click image for larger version.

Name:	2.3L_SOHC_Diesel.gif
Views:	153
Size:	64.8 KB
ID:	13321
