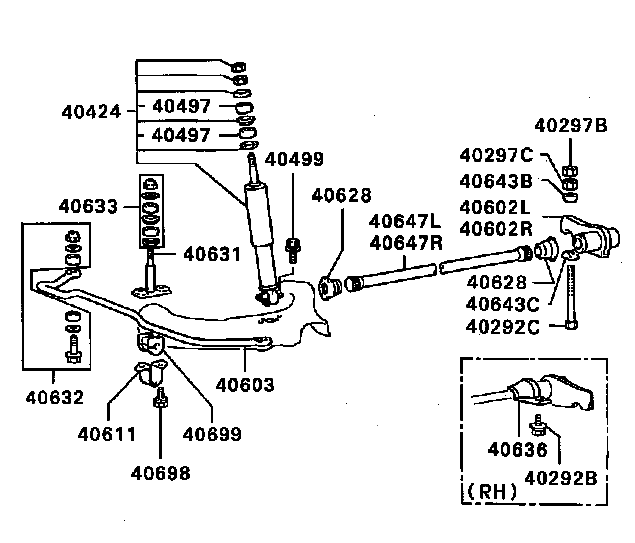

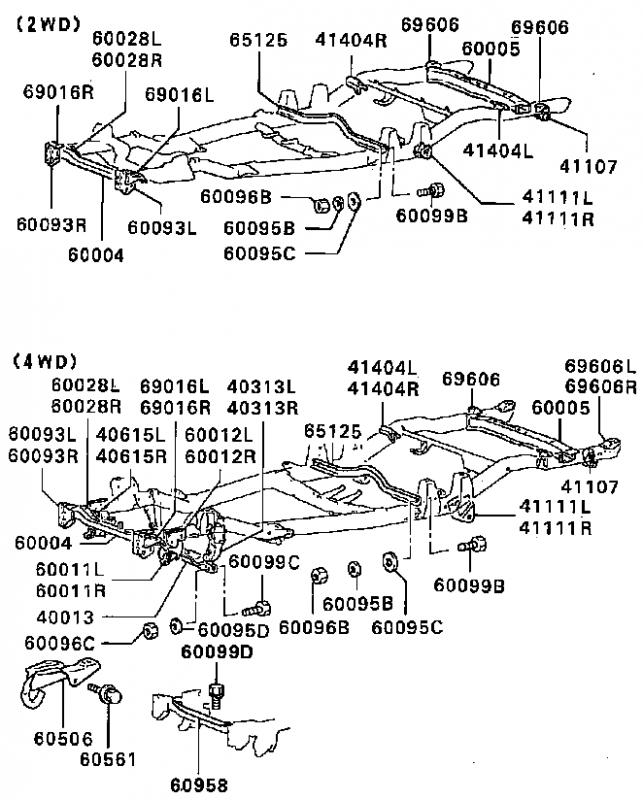

Front Suspension & Steering:Front Suspension - Diagrams

Front End Suspension Components & Related Connection Devices
