Body & frame:Wiper Arm Drive Assembly.

Wiper Arm Drive Assembles.
There is a difference between the First and Second generation wiper arm drive assembles, they are NOT interchangeable between generations.
First generation uses a single nut to hold the pivot arm to the cowling over the pivot it's self.
Where as the second generation uses 3 bolts to attach it to the body.

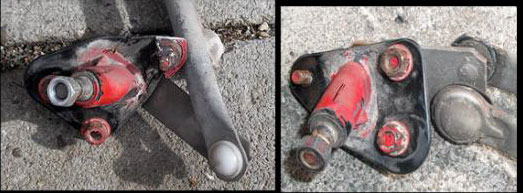

First GenerationClick image for larger version.

Name:	!cid__03-13-13_1450.jpg
Views:	111
Size:	31.2 KB
ID:	4918
Click image for larger version.

Name:	wipers.jpg
Views:	114
Size:	36.3 KB
ID:	4917

Credit given to BradMPH for the Second Gen Pictures.
Created by , 03-13-2013 at 03:02 PM
0 Comments, 933 Views
