Tell Me Why the Price Range is so wide on these 2 Identical carbs.

OK, I was exploring some duel carbs and came across an Ad for some 44IDF side draft air horn carbs. In fact, 2 Ads.
One carb is selling for about $134.00 shipped. The Other is a Genuine Weber selling for $469.00 shipped. The cheaper carb has the exact same parts as the weber. The Ad specifies this boldly.
As well, the weber carb is described as being a race carb and cold starting would be a little tough to maintain because of this feature. Apparently the choke on the weber isn't working as well as a 34/32 like we all have.

So, why is this price so low in compared to the high priced weber if the low priced carb has the exact same parts???

What could be expected if one was to buy a set of low priced carbs to play with. I am sure if one was to buy them, they damn sure better go through them and possibly do some flash removal and left over metal shavings from production, but hell...$335.00 less is low enough to do a micro-blueprint on the darn thing and still have a premium set of carb.

How is this possible? Is weber dry pumping customer's poop shoots for their carbs? Sure looks like it might be if the same parts are used in both.
Looks at these carbs, I see almost identical casting and parts on both. Even if the cheapy carb needed some replacement parts, you could buy from weber I imagine. Looks like someone has been stealing weber castings and rebranding them with lower quality casting material?

anyone have factual experience about this price variance?

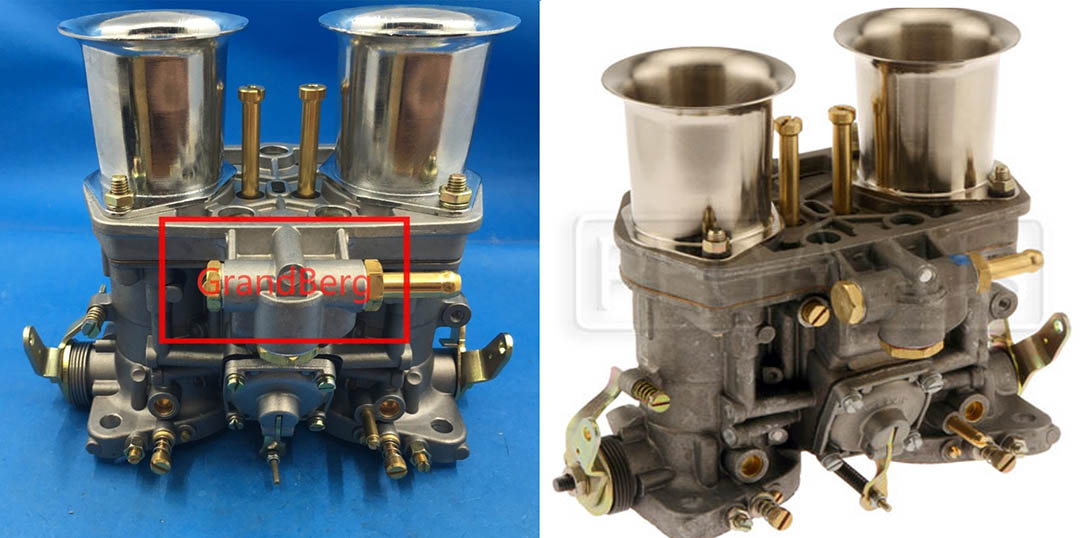

Attachment 17438

By the way, the weber is on the right.

I would think they are like the knock off webers that we hammer on all the time - no way they could be any good for that much of a price difference.

I would agree. Has to be brand. Is the cheaper brand been around awhile? I have always heard weber. It's also what I installed on my truck. Nothing like what your looking at but I would rather go quality.

I would go with a set off a motorcycle and just build a manifold for it. Zoom. 4 carbs is better then 1 or 2

The parts might be 'identical' but what about the quality of the castings internally? If they're junk there will be no amount of tweaking anyone could do to salvage it (which would explain the $300+ price difference). And +1 to camo's comment. Used bike carbs can be had for cheaps and if you're prepared to put the time into designing/modding a manifold for them and tuning them you will see an awesome all round improvement in power, torque and fuel economy - plus they are hell sexy to see hanging off the side of an engine and the induction noise is to die for! :grin:

I'm with Camoit on the carbs mod and agree that would be the way, if you could not get a decent weber price with a choke carb. I am getting more interested in a duel side draft after seeing one on a friends truck the other day. The guy is from Guam and his setup looks awesome. It sounds almost V8ish, but with a hush muffler. The acceleration he had was also very impressive. He kept up pretty good with my MR2. One thing I didn't like with his setup, he had no air filters in the horns which could be catastrophic if something sucked into one.
I am going to start gathering prices on parts for a transition. If it isn't too bad, I will probably start a build on them. I do want some type of a choke system for the weather up here, this is a must. I also have an intake manifold that I can cut for mounting. It pretty much would have to wait until a carb set was found before hand.
I'll probably be asking questions later on this something like this. Checking around on what others use.

One last thought, might maybe a 4 bl carb work possibly? like a Holley or Edelbrock, or would this config be robbing power that a motorcylce setup would give?

Here is the link for those cheaper carbs.
http://www.ebay.com/sch/i.html?_from...+carb&_sacat=0

Looking at these carbs, I think webers price was for duels if I am not mistaken. But still it had no choke system.

one of the issues with the IDF carbs are they are downdrafts, not sidedrafts. DCOE webers are what you want - 40's for a 2l, 45's for a 2.6, with a cam ground for the increase in fuel. As far as motorcycle carbs, hayabusa throttle bodies are cheap, and have fuel injection and throttle position sensors for hookup to a megasquirt ECM.

IMO DCOE's are severely overrated. A pair of them cost a bomb, if you look sideways at them they go out of tune, are absurdly hard on fuel economy and are hopeless on a road car. O.k. if you drive with your foot buried in the floor pan, but a set of 39mm bike carbs will flow the same as a pair of DCOE's and will run rings around them in performance and fuel efficiency. I REALLY want to R&D bike carbs and a custom manifold one day :grin:

tell us how you really feel about DCOEs Geezer... yes all those things are true, but they still look cool...

...you really want me to tell you what I think? :lmao:Yeah, the bike carbs take a bit of assing around - but I am an assing kind of guy and would rather invest my time into something that won't bankrupt me every time I drive it and punch like a train from the get go. I'm beginning to think using a 3D printer would be a feasible way to design a prototype manifold and then take reliefs from it to cast an actual alloy unit from it. The biggest hurdle in using bike carbs is manifold design and construction and 3D printing is a lot more affordable than conventional methods. One day...

Why is this "dead".... come on guys. Where's the prototype already? ;)
I'm planning my build now and need answers.

Geezer I assume you mean a set up like this? (forget price... just a search result)
http://www.ebay.com/itm/94-Honda-CBR...VX-6Mj&vxp=mtr

Or the Hyabusa set up which are indeed cheap.
http://www.ebay.com/itm/2006-Suzuki-...dYVFTf&vxp=mtr

The CBR900RR carbs on that listing are downdraft carbs (obviously not straight down - they mount on an angle) Those are hell expensive, sets of running carbs come up under $300. All of the injection throttle bodies are literally half that.

This is a good starting point for carbs - http://www.ebay.com/itm/98-99-HONDA-...3D172164257441

Or these which are cheaper again and all the trumpets are undamaged - http://www.ebay.com/itm/Used-1996-Ho...3D232190958949

Thanks! I would love to buy the manifold and carbs from Australia... but let's be honest, this is a beater/daily and not a show car. I can't justify spending $1400 just on the Carb set up. Especially if I can make these work.

http://www.ebay.com/itm/93-HONDA-CBR...3D232190958949

These look clean and priced right

They are clean but I'd be concerned about the sellers' notes about the carbs overflowing and the slides being sluggish. A quad carb rack isn't something Joe Average would want to tackle for a rebuild job. As it stands they would need the mains to be jetted up and the distributor will need advance restricting. Nobody would've said bike carbs are easy to set up, but if you talk to the guys who have put the time in they will tell you it is worth the effort.

Yeah - I read that afterwards. I found a bike parts place online with fully cleaned/rebuilt for $250. Bookmarked a few pages here and there as a reminder. Along with some build threads, etc.

Some good reading here: http://www.streetsource.com/threads/...rbs-carstrucks

Have a read of this as it directly relates to your model of truck and engine - http://www.sigma-galant.com/viewtopic.php?f=30&t=10169

This guy is all about numbers and efficiency (some of his work isn't pretty but it's solid) so he really goes into A/F ratios, jetting and how he has set up his ignition. There are a couple of YT videos of his carb development including a road test. Tasty :grin:

Appreciate the link. I will read this today as I plan to start piecing the parts together...
I also wonder if a small supercharger like a AMR500 could be used if a custom air box was made for the bike manifold or on a weber carb. They have a small footprint and it would be interesting to see if it would work with a low boost setup. Say 4-5psi
I see some VW guys using them albeit they have smaller displacement engines, but they run higher boost

AMR500 under rated for 2600cc engine wouldn't it. 500 SC usually works on up to a 1600cc. You be starving the engine or over working the SC.

AMR500 Info (copied)
Application: to increase performance on motorcycles, snowmobiles, ATVs, VW engines, Mini Coopers, Subarus, Nissans, Toyotas or any engine under 3.0L.
500cc/ revolution (30.5 cu.in.) With straight, 2 lobe rotors. It could be over-driven, and make good boost on a 650cc-1000cc drag bikes or larger if RPM is kept low. Or it could be under-driven for smaller engines.
Examples:
On a 500cc two stroke, with the blower being driven 1.5:1 with the crank, it would produce approximately 7 psi boost.
On a 750cc four stroke, with the blower being driven 1:1 with the crank, it would produce approximately 5 psi boost.
On a 750cc four stroke, with the blower being driven 1.5:1 with the crank, it would produce approximately 15 psi boost.
On a 1000cc four stroke, with the blower being driven 1.5:1 with the crank, it would produce approximately 9.5 psi boost.
On a 1600cc VW engine, with the blower being driven 2.1:1 with the crank, it would produce approximately 5 psi, but the engine RPM must be limited to 8000 rpm.

Additional Info:
Max blower continous speed is 16,000 RPM Before this, these were only available in Japan!
This would be a great blower for any small engine up to 1200cc ( depending on RPM ).
Over all length is 6.75", Width is 8", Height from inlet to outlet 5.5" The 4 bolt inlet & outlet flanges makes it easy to fabricate custom mounts for manifolds, and carbs. The drive pulley diameter is aprox. 3" but could be changed out to a cog belt drive quite easily. We have no info on what modifications are needed to mount this unit on your engine. You will need to be capable of doing custom fabrication.
It uses any OEM supercharger oil, such as Ford (a roots type supercharger was used on the Thunderbird), GM (the Bonneville SC uses a roots supercharger) and any of the aftermarket roots supercharger manufacturers such as B+M, Magnuson or Weiand.

2.1:1 = 5psi so I assume you could make it work as the truck will only hit about 6000rpm (if ever)

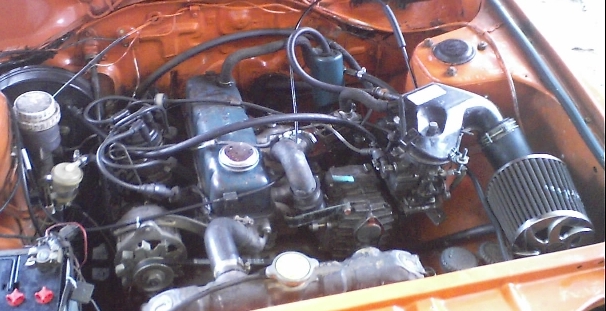

Here is a pic of one on a datsun B210 found online but no info on set up
Attachment 18682

Highlight my last post to read it... not sure why the font is the same color as background? I don't see an edit or delete option

Highlight my last post to read it... not sure why the font is the same color as background? I don't see an edit or delete option

OK - twin superchargers for the win!

Yaaaaaaaas!
Twin charged. Twin Carbed. What could go wrong

Sorry I'm late to this thread. A HS buddy of mine was the person that got me interested in Mitsubishi.
He had a 1981 Dodge Challenger with the 2.6 4G54 and he was running a twin two barrel Mikuni side draft carburetor set-up.

Quote:

---

Originally Posted by Lon Moer

Sorry I'm late to this thread. A HS buddy of mine was the person that got me interested in Mitsubishi.
He had a 1981 Dodge Challenger with the 2.6 4G54 and he was running a twin two barrel Mikuni side draft carburetor set-up.

---

This is what I am planning to run. Working out the details and price on a set now. Just trying to figure out the right camj to run for the best of performance and streetability.

I think you'll find only a few cam choices available. Obviously the best choice would be the cam Mikuni offered or one that John Baker later sold thru his catalog. I have one in my truck and have the cams specs around somewhere if you need them.

post those as I lost my copy somewhere and the install instructions, especially the valve adjustment.

I'm looking...

From the Baker catalog,the following are the specs:Lift is.351" and duration is listed as 262 degrees. As far as the install just follow the manual,tdc, remove rocker assy, lube etc...Think it would be wise to replace the rocker assy. A used set might cause improper wear issues on the new cam.

I've seen badly worn out rocker arms - the shaft through holes were like ovals on mine. Have a friend who bought a 4G52 turbo that had been kitted with a big cam and double valve springs. It ate the rockers and wore the faces off a couple of lobes (I think it hadn't been nitrided properly but the double springs probably didn't help either...)

Quote:

---

Originally Posted by Lon Moer

Sorry I'm late to this thread. A HS buddy of mine was the person that got me interested in Mitsubishi.
He had a 1981 Dodge Challenger with the 2.6 4G54 and he was running a twin two barrel Mikuni side draft carburetor set-up.

---

This set-up was very tight in the engine bay.
There were no air filter/cleaners, just short velocity stacks and we had to trim off some of the bell on #4 to clear the brake booster.

Quote:

---

Originally Posted by Lon Moer

This set-up was very tight in the engine bay.
There were no air filter/cleaners, just short velocity stacks and we had to trim off some of the bell on #4 to clear the brake booster.

---

It was probably from a RHD vehicle. The engine really needs a cool air charge from outside of the engine bay to make the most of torque and HP improvements the PPH carbs can produce. This is one of the grievances I have with side draft carbs is the sheer volume of engine bay room they take up (and the weight if you're using Weber DCOE's - and a whole litany of things that make me not a fan of them...)
