    Trailer wiring diagram

    Need wiring diagram/ color code for the 6 pin round plug that's on the rear frame rail passenger side for the tail lights.

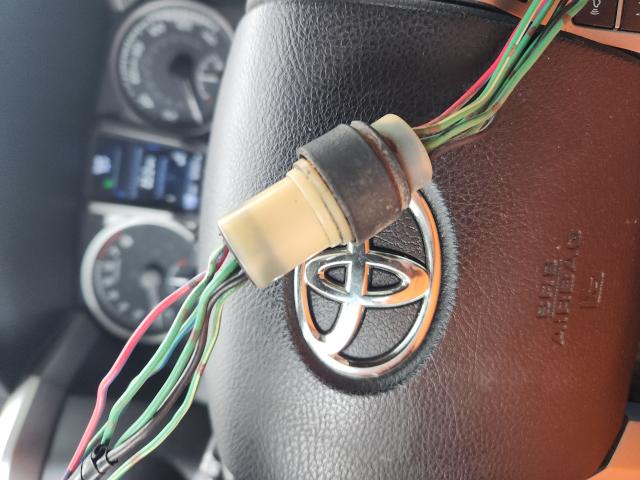

    I'm working out of town and grabbed 1 complete plug from a junkyard and now wanting to wire in a 5 to 4 converter without cutting my harness.
    Attached Images

  2. #2

    Array
    Status
    Offline
    Join Date
    07-29-2025
    Posts
    10
    Location

    Dekalb, Tx
    Vehicle

    1986 Dodge Ram 50
    Engine

    4G63
    To answer my own question if others need the answer...

    Brown = ground
    Grn/wht/rd dot = park
    Red/blue dot = reverse
    Grn/blue/rd dot= left blinker
    Grn/yw/rd dot = right blinker
    Grn/red dot = brake

    I used an extra plug from a ram 50 in a junkyard and made a wiring "T" to plug in a 5 to 4 converter, so I could return the truck to factory if ever needed.
