Bracket and spring on diff. 2nd gen

[tortron]

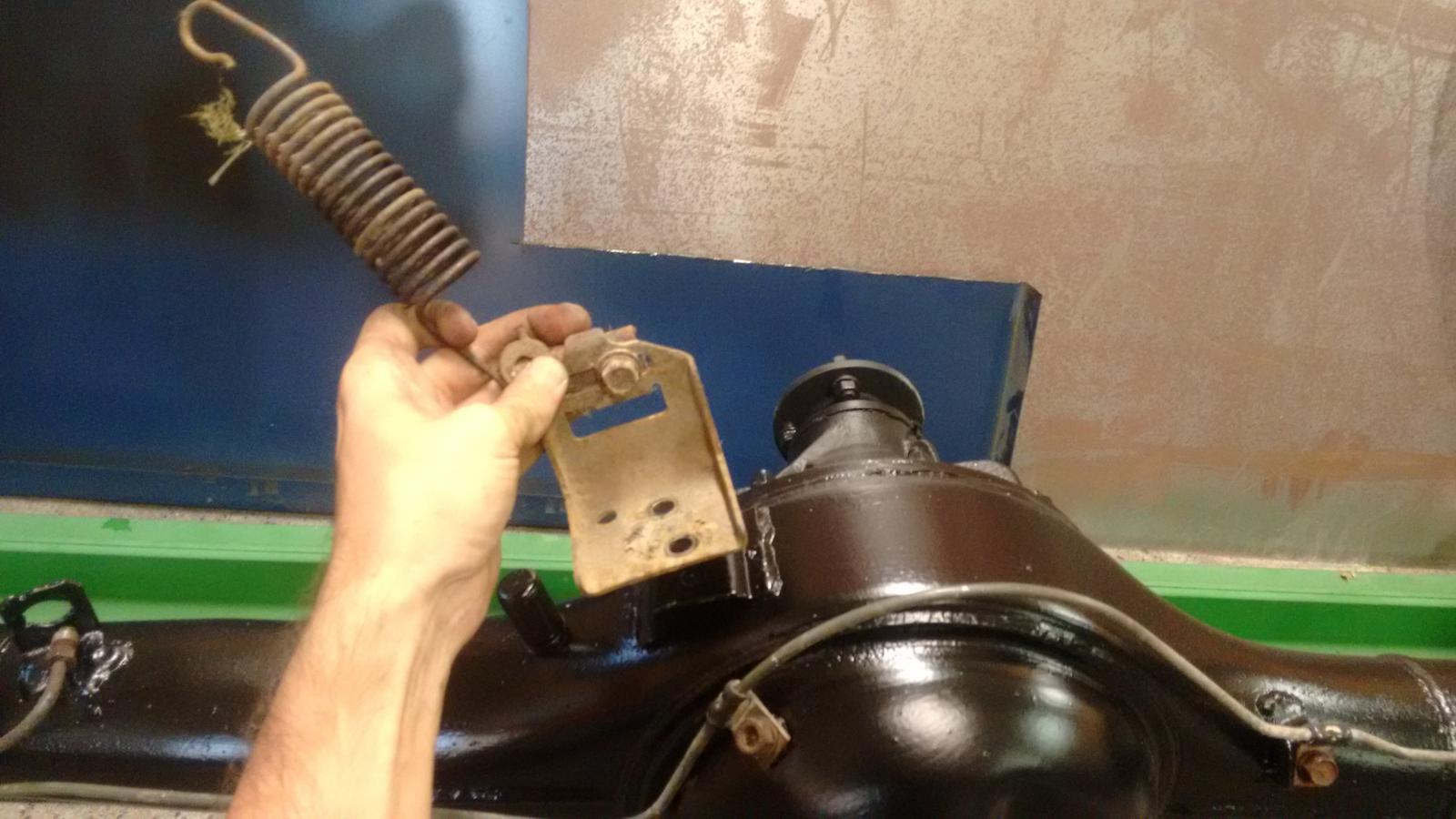

Just wondering what purpose the 2 bolt bracket and large spring on the 2nd gen diff housing has.
Located on the banjo next to the breather. Not present on my 1st gen.

I don't think it's important for me, just curious.


[pennyman1]

It is the rear brake proportioning valve connector. It modulates the pressure to the rear brakes based on load in the bed.

[tortron]

Ahh got it. Not found on 1st generation then*

*in that location, I have one up by the fuel tank

[tortron]

or is that just a pressure valve

[pennyman1]

I have an 86 1st gen 4wd with the adjustable proportioning valve.
