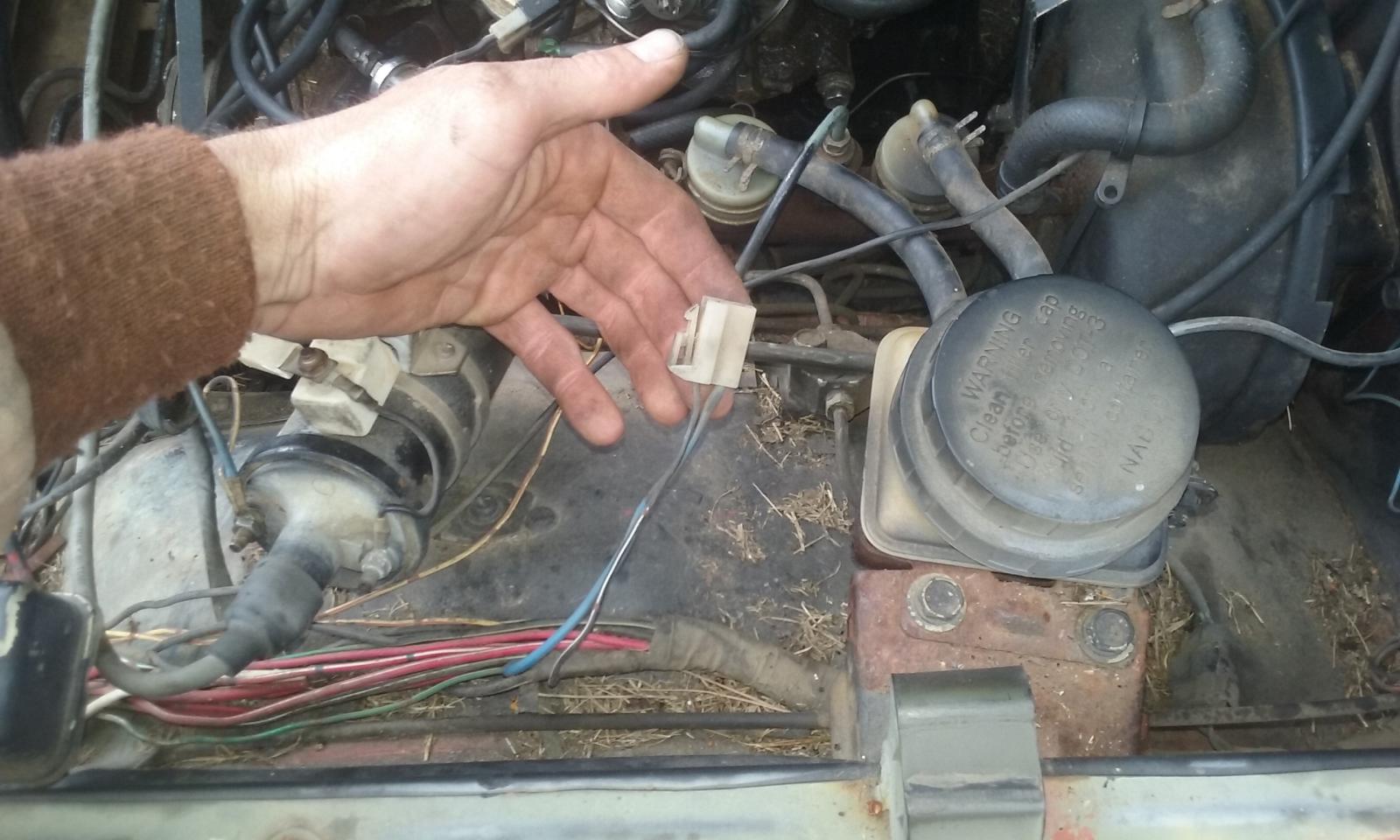

What's this and what does it hook too
Last edited by BradMph; 02-22-2017 at 03:47 AM.
-
Masters Degree
Array
i dont think it goes anywhere, mine isnt connected (the wires)
-
Doctorates Degree
Array
Can you hook up a multimeter to that 2 pin plug and see if it goes live on ACC or the engine running? A blue wire tends to be connected to the accessory circuit - this might have been for air con
-
I almost started to say that is was the connector for a 3 wire connector starter. Sure looks close to one. Depending on year of truck, the extra wire going to the starter was a great benefit for starting. It would increase the voltage and crank engine faster. But, I think Geezer may be correct. It looks like something AC related. You can check the electrical schematics we have on forum for the correct answer. I think they are located in the Wiki section if no one gives a definite answer between now and then.
Welcome to Forum.
-
Freshman
Array
I'll check it out.. power is a 1984..
-
Freshman
Array

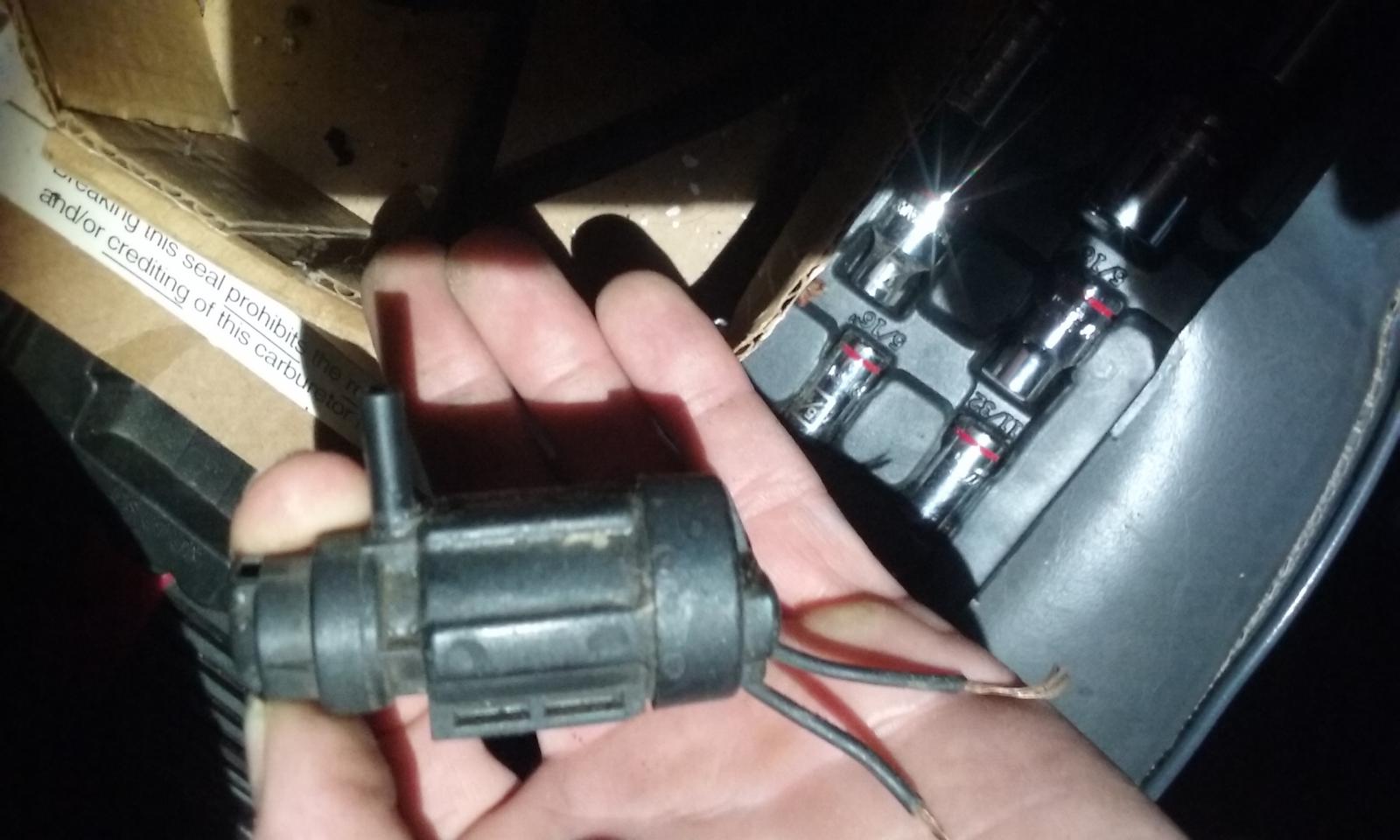

On wire i came acrossed in haynes it says I'm looking ing at a,solenoid I have this thing but don't know what it is..I'm also looking for a 83 and 84 emis sion digrams to the one one hood Mines not there
I have both Chilton n Haynes manuals and emission for 1984 down don't excist in them looking for more books or unles someone take pictures of theres first..1487810000624-273920130.jpg1487810000624-273920130.jpg
-
