    Dashboard out! What can I delete?

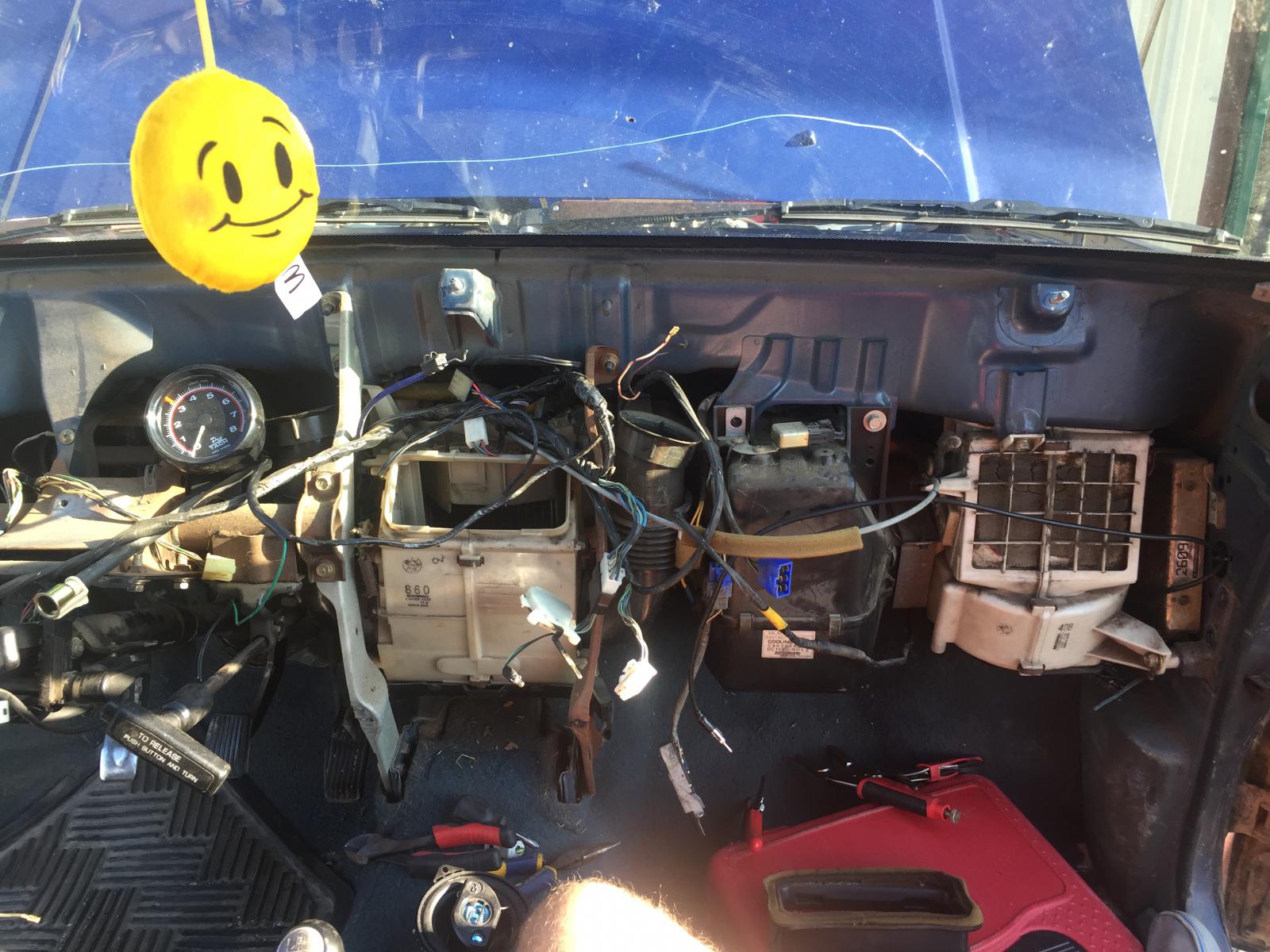

    I'm having a wiring issue, and I wanted to refinish my dashboard anyways so I pulled it out. Here's what I'm left with:
    Click image for larger version.

Name:	IMG_7216.jpg
Views:	36
Size:	233.7 KB
ID:	17653
    Trying to figure out what I can delete, just to clean things up.
    1. To the far left is the ECU, which obviously will stay in.
    2. To the left of the ECU, I'm not sure what that is. What is that white thing and do I need it?
    3. The black box to the left of the white thing is labeled "cooling unit". My a/c compressor was deleted by previous owner, so I'm going to delete that unless one of you knows a reason I shouldn't?
    4. To the left of the cooling unit we have a piece of the black plastic ductwork that delivers the a/c or heat to the cab. I live in texas and I'm not worried about heat, and my a/c is deleted like I said. So I'm thinking I'll take that piece out along with all the rest of it that I pulled out with the dash.
    5. To the left of that black pipe we have another white box. I'm assuming this one has something to do with the heater core? I have a feeling it is so I should leave this box in.

    If anything I said is incorrect, please let me know! Should I leave in some things that I plan to remove? Should I take out something that I thought I needed?

    Appreciate your time guys!

  2. #2

    Array
    Status
    Offline
    Join Date
    09-09-2016
    Posts
    10
    Location

    Sherman TX
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    *Edit to #1. I meant the ECU is on the far RIGHT.

  3. #3



    Array
    Status
    Offline
    Join Date
    03-26-2011
    Posts
    1,440
    Location

    Vacaville, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T
    #2 - big white thing is your blower motor for your heater/ac. So if you still want heat/ac/fan then it needs to stay.
    #3 - it is for ac, you can delete it but if you still want to run your heater/blower you are going to need to create a duct from the blower motor to the heater core unit.
    #4 - duct for dash vents and defrost vents
    #5 - heater core/unit

    Really, if you don't care about heat/ac/defrost then you can delete them all....
    Josh
    09 BMW 335i E92 Twin turbo
    89 Macrocab 4g63 Turbo swapped & Bagged: Build Thread

  4. #4


    Array
    Status
    Offline
    Join Date
    04-04-2011
    Posts
    637
    Location

    Columbus, OH
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    Other
    Just a heads up, when you remove the Heater box (big piece in the middle) there is a Nut, in the engine compartment that you have to remove.

    when I removed everything from under the dash, going racing, I found it after beating the thing into submission and finally a sawzall to get it out.
    that's when i found the stud going thru the firewall with the nut in the engine compartment, by the transmission tunnel on the passenger side. Just sayin'

    Oh yeah, basically everything can come out..this is the roll cage being put in...

    Click image for larger version.

Name:	Fire Bottle.jpg
Views:	20
Size:	229.7 KB
ID:	17668

    Then put the dash back in....

    Click image for larger version.

Name:	DS Interior.jpg
Views:	20
Size:	211.4 KB
ID:	17669

  5. #5

    Array
    Status
    Offline
    Join Date
    09-09-2016
    Posts
    10
    Location

    Sherman TX
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    Quote Originally Posted by DroppedMitsu View Post
    #2 - big white thing is your blower motor for your heater/ac. So if you still want heat/ac/fan then it needs to stay.
    #3 - it is for ac, you can delete it but if you still want to run your heater/blower you are going to need to create a duct from the blower motor to the heater core unit.
    #4 - duct for dash vents and defrost vents
    #5 - heater core/unit

    Really, if you don't care about heat/ac/defrost then you can delete them all....
    Very informative, thanks!

    Quote Originally Posted by LSR Mike View Post
    Just a heads up, when you remove the Heater box (big piece in the middle) there is a Nut, in the engine compartment that you have to remove.

    when I removed everything from under the dash, going racing, I found it after beating the thing into submission and finally a sawzall to get it out.
    that's when i found the stud going thru the firewall with the nut in the engine compartment, by the transmission tunnel on the passenger side. Just sayin'

    Oh yeah, basically everything can come out..this is the roll cage being put in...

    Click image for larger version.

Name:	Fire Bottle.jpg
Views:	20
Size:	229.7 KB
ID:	17668

    Then put the dash back in....

    Click image for larger version.

Name:	DS Interior.jpg
Views:	20
Size:	211.4 KB
ID:	17669
    Appreciate it! Roll cage is lookin good!
