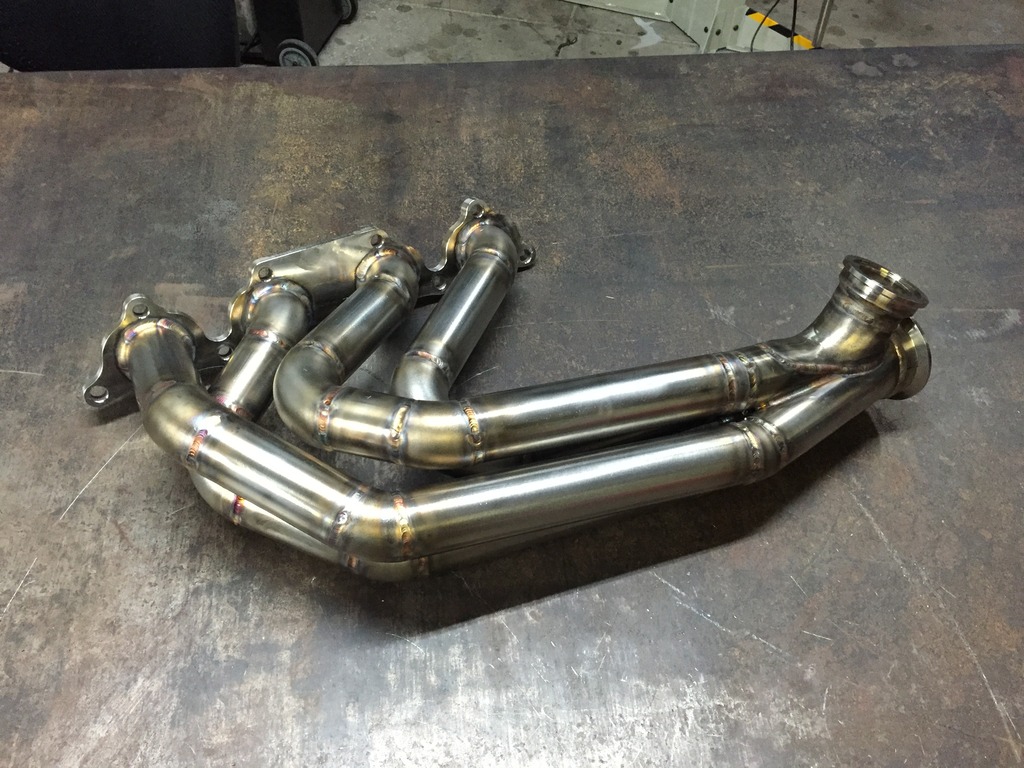

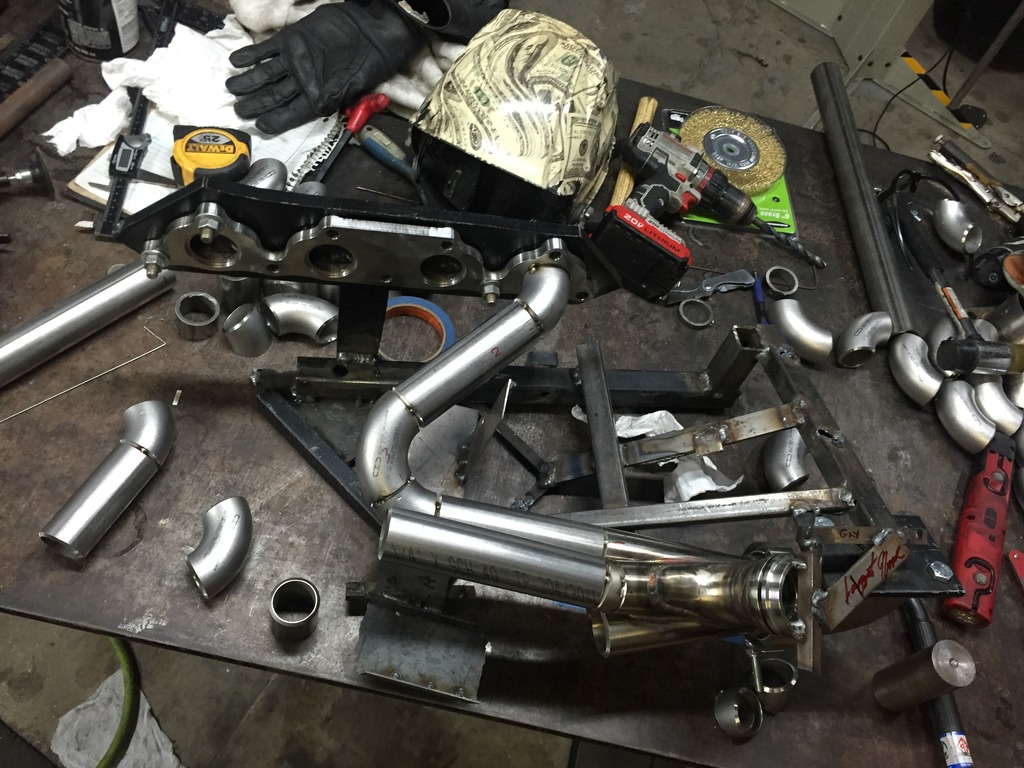

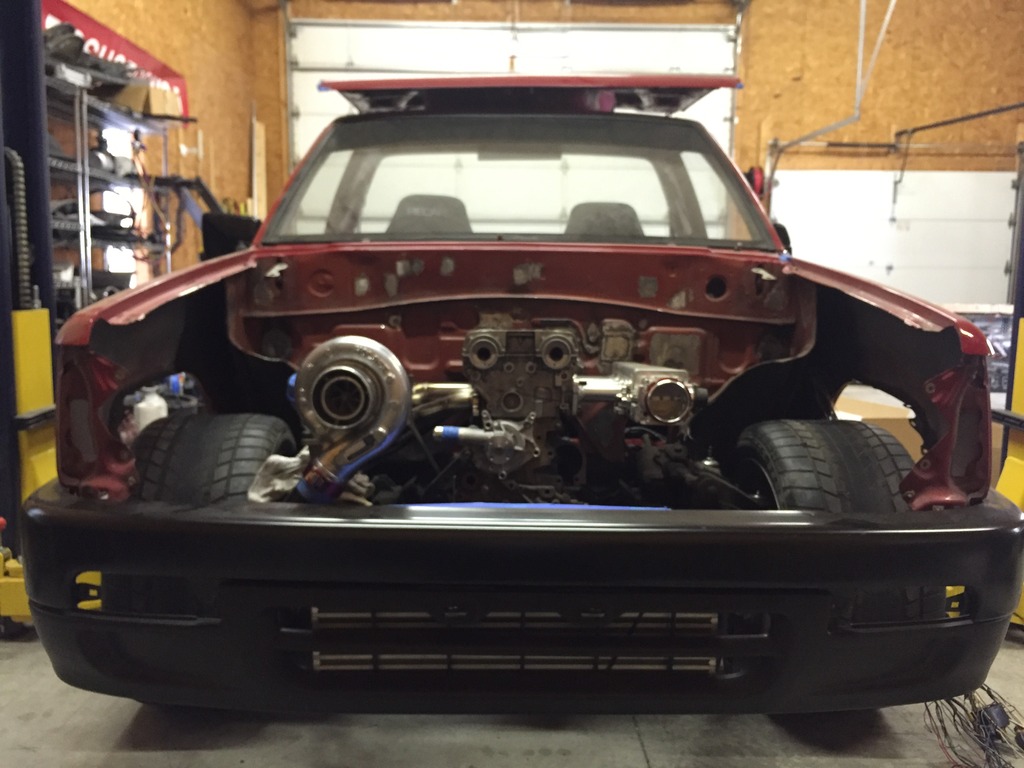

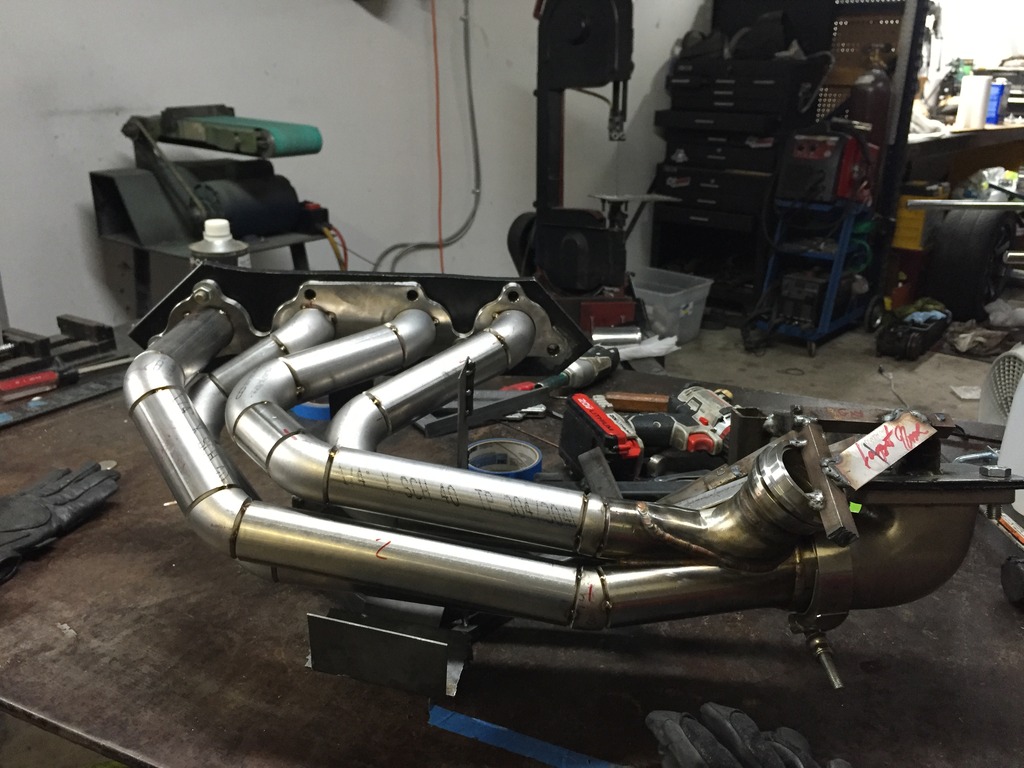

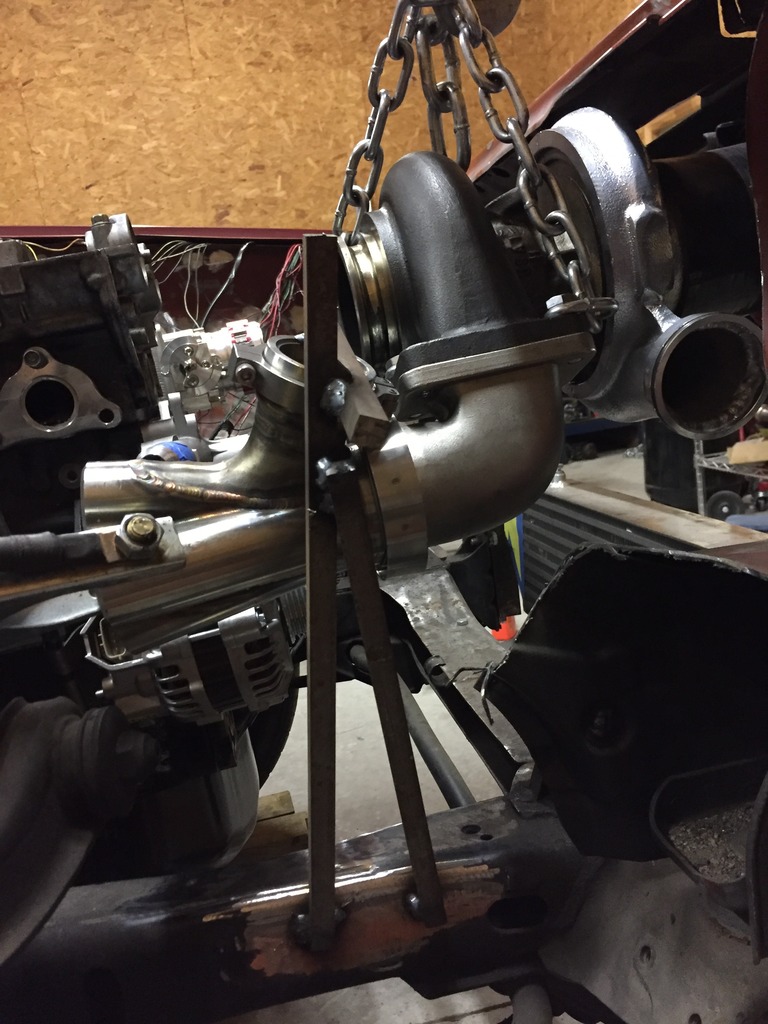

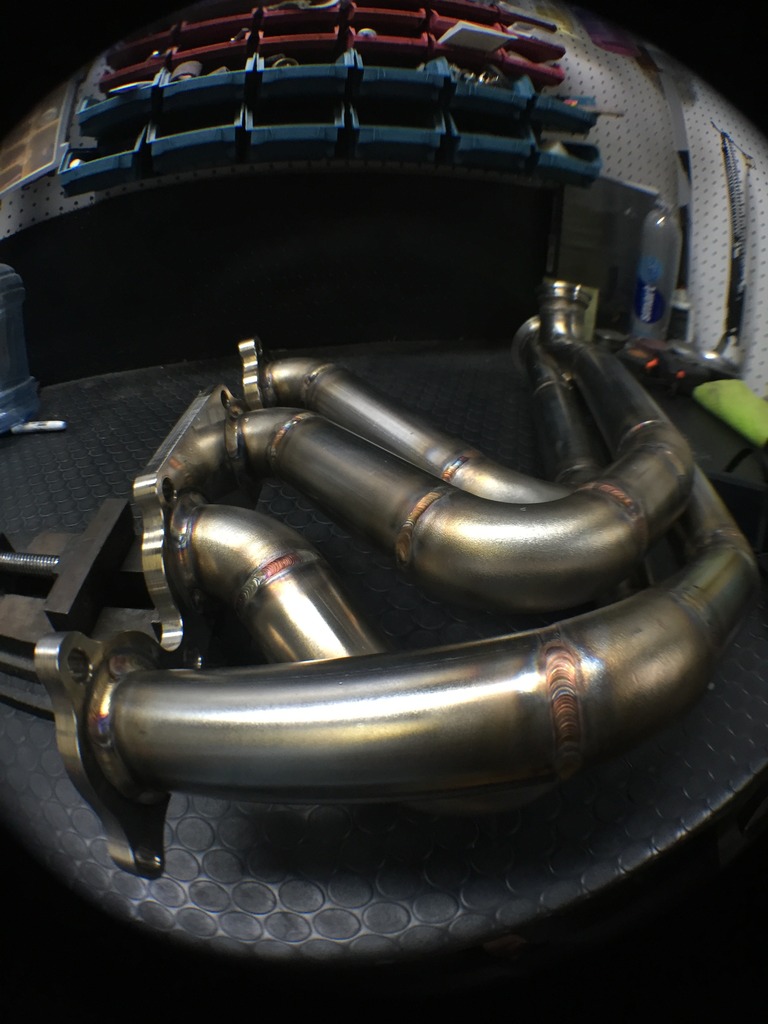

    my new forward facing exhaust manifold

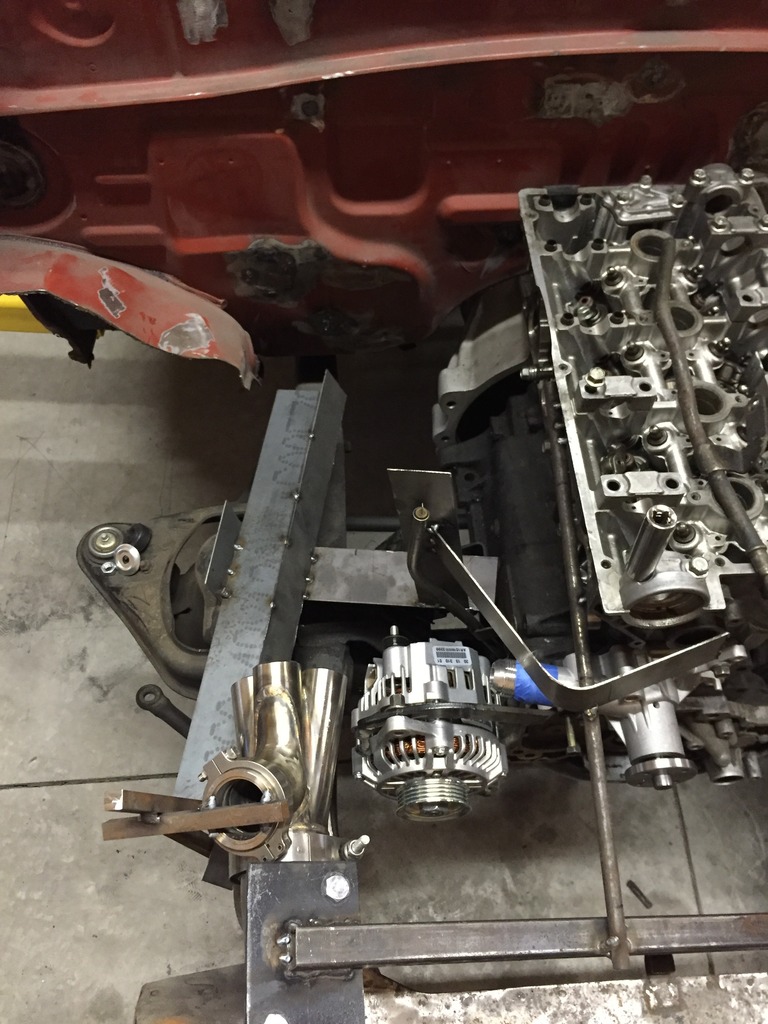

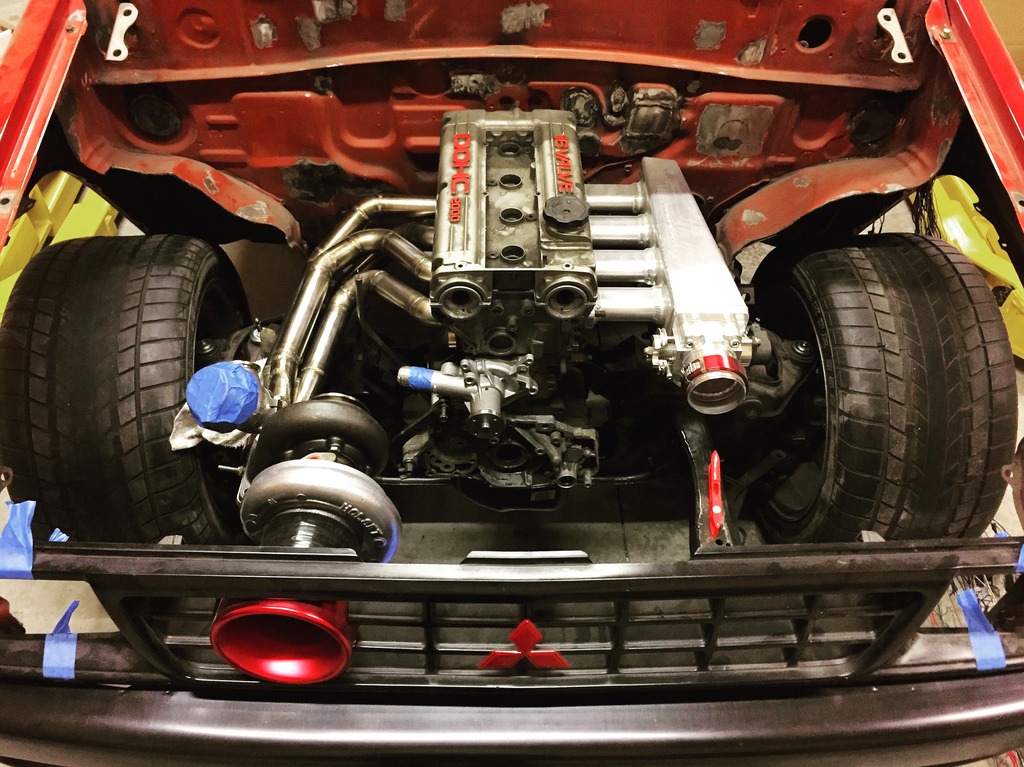

    I've still got a lot left to do on my build but I can finally check the main part of the turbo kit off the list. My buddy in Florida is a great fabricator and since I'm in NC I had to build my jig here and fly it down to him to build it. The turbo will be braced and the manifold is built with stainless flanges and sch 40 1.25" 304SS runners. Turbo is an hx35 with a t3 BEP exhaust housing, engine is a built 2 liter, trans is an r154, rear axle is a ford 8.8".

    Click image for larger version.

Name:	1BD4CAED-3233-4AC0-A203-52911BAC1EA9_zpszkovx7ye.jpg
Views:	126
Size:	260.0 KB
ID:	17139

    Click image for larger version.

Name:	BE1005EE-75E6-4C37-880B-795B512A8D06_zpsdpyl48ft.jpg
Views:	95
Size:	167.2 KB
ID:	17140

    Click image for larger version.

Name:	5DDD0C90-AAB5-48BE-9B71-94E58A1C5CF5_zpss1dgs8mc.jpg
Views:	102
Size:	223.8 KB
ID:	17141

    Click image for larger version.

Name:	5D545BD6-8BF1-4067-864C-373F1EF185CA_zpsgrmamzlu.jpg
Views:	98
Size:	195.1 KB
ID:	17142

    Click image for larger version.

Name:	3020A562-A2DD-489C-A784-72B12CFD3785_zpsehhnfoyt.jpg
Views:	78
Size:	200.0 KB
ID:	17147

    Click image for larger version.

Name:	1BA2C3EE-D419-48B8-A953-BE4263EF7715_zpsr4pbuukp.jpg
Views:	75
Size:	214.5 KB
ID:	17146

    Click image for larger version.

Name:	8BA368A6-2E46-4353-92BD-B8C244D848AA_zpsirhyprrd.jpg
Views:	83
Size:	250.4 KB
ID:	17143

    Click image for larger version.

Name:	52A466BC-3ACD-4B0C-BB86-B9DE7624DFA6_zpsj6rkk5tk.jpg
Views:	91
Size:	193.1 KB
ID:	17144

    Click image for larger version.

Name:	18F8E106-BB84-4349-85CE-431E2685080D_zpswkdj4svw.jpg
Views:	101
Size:	248.8 KB
ID:	17145

    Click image for larger version.

Name:	DF3B452B-B23B-4425-B396-2741634D3773_zpsfjlgcpmo.jpg
Views:	81
Size:	148.1 KB
ID:	17148

    Click image for larger version.

Name:	33AD785B-822C-43E1-8A07-3C15FF3FD505_zpsog8bsgcf.jpg
Views:	79
Size:	186.9 KB
ID:	17149

  2. #2

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    2,242
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B

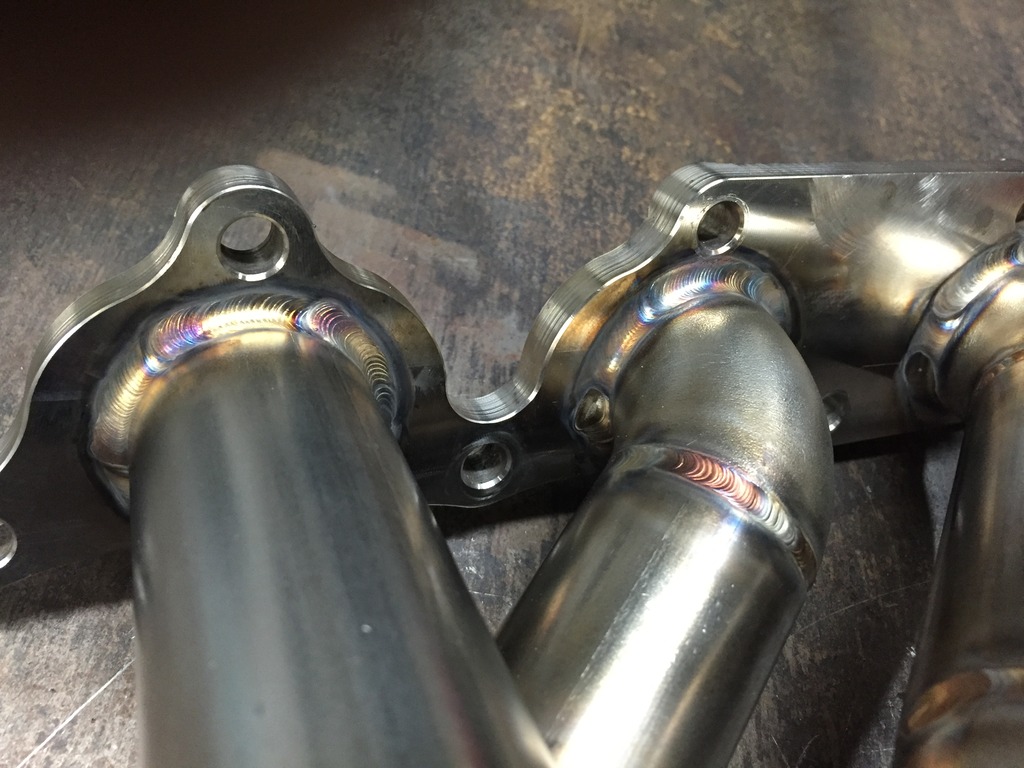

    Those are some awesome TIG welds and the manifolds look freakin' great. What have you got planned for the cooling system? It looks like it's going to be tight with all the turbo plumbing facing that far forward (but with all the sheet metal out of the way the engine bay looks cavernous!)

  3. #3

    Array
    Status
    Offline
    Join Date
    11-09-2013
    Posts
    56
    Location

    Raleigh, NC
    Vehicle

    1991 Mitsubishi Mighty Max
    Engine

    4G63-T

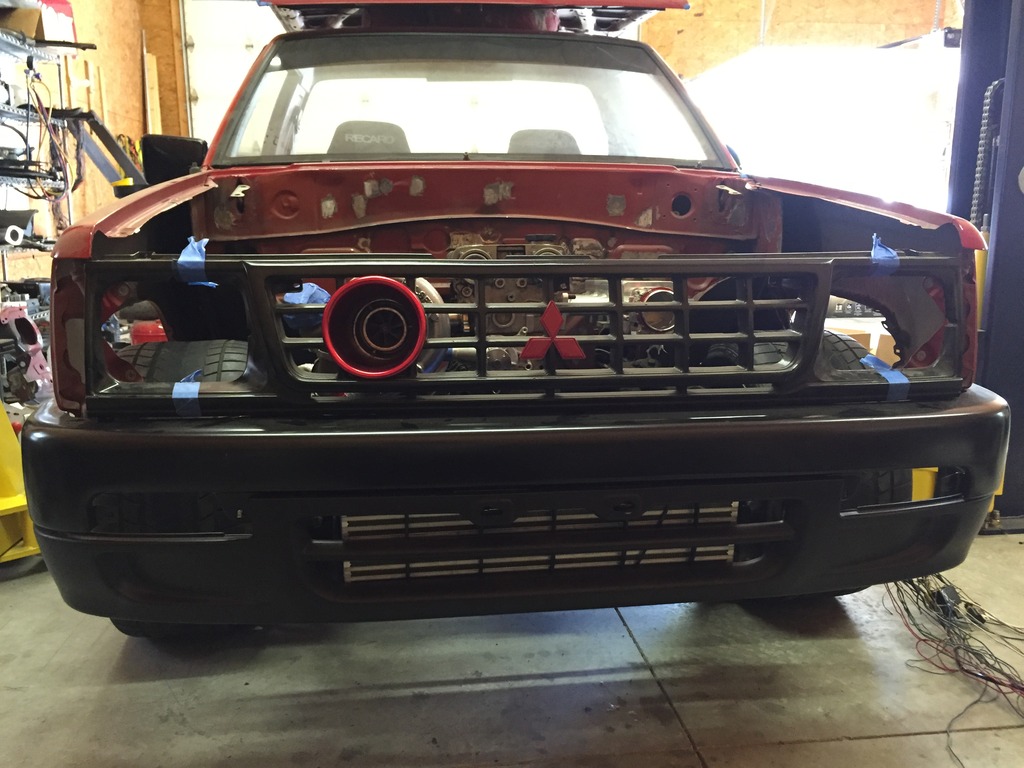

    Thanks! Radiator is actually sitting in there in the pics. It's a rywire 24"x9" tucked radiator, 3" thick and dual pass, rated at 1000hp. The intercooler and radiator will be mounted together so that they can be removed quickly and easily. New inner fenders will be made to keep the grime out of the bay, but I need to build the tube front/cage first
