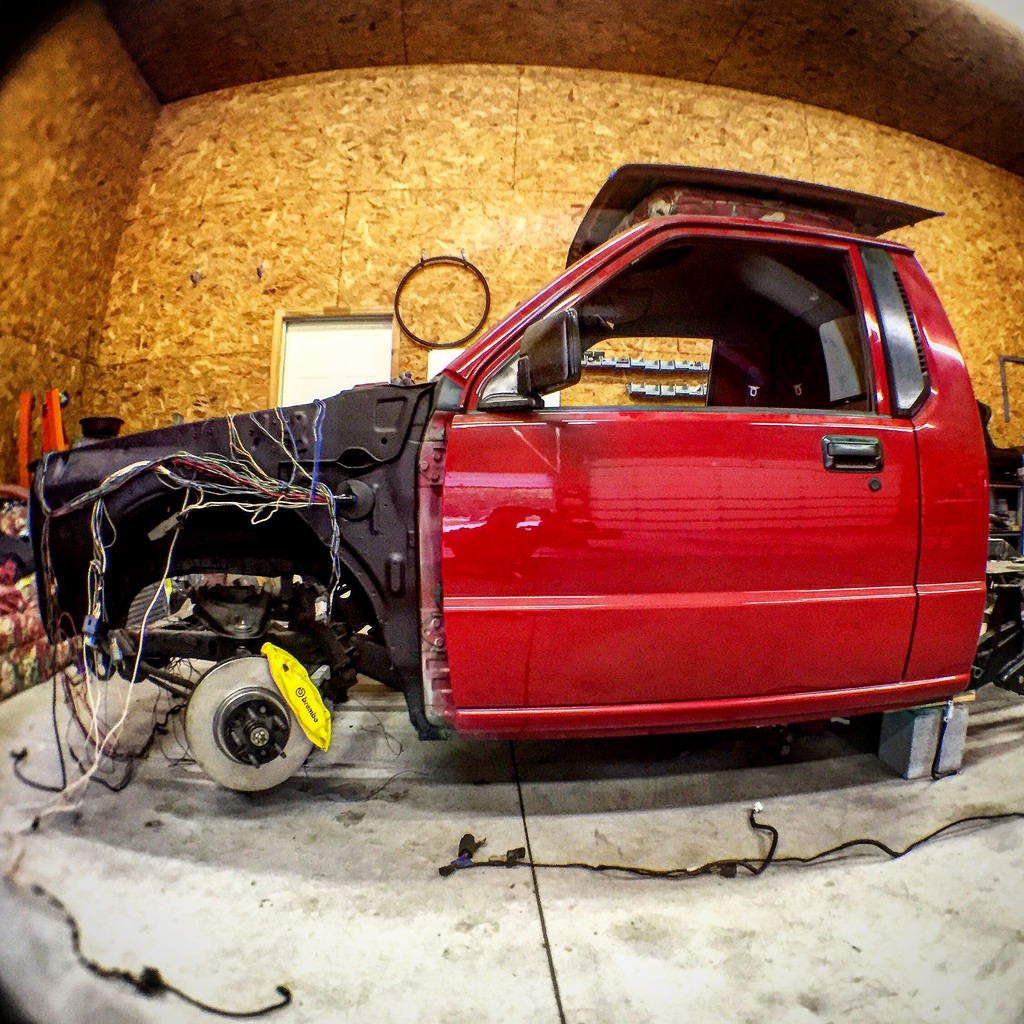

    Front brake upgrade (Brembo/Cobra/5 lug).....slight teaser of my build!

    Finished this brake setup over a year ago but never got around to sharing it as the truck is still not done and all. Calipers are Brembo 4 piston from a Cadillac CTS-V, rotors are aftermarket OE replacement Mustang Cobra 13" , hubs are toyota, and wheel studs are extended Ford fitment (to match rear 8.8" axle studs). Spindles are OEM but have been machined down (move the caliper inward) to get the correct caliper offset (center the pads around the rotor) and drilled out on one end to accept the caliper mounting bolt spacing. Rotors has to have the center bores increased/machined out a bit so that the toyota hub could fit through it as well. Thankfully these rotors are only $30 a piece from advance auto so its not a huge problem to replace/machine new ones when the time comes. Calipers came silver, yellow was a test color, Final color will be gold and wheels will be black. Figuring out wheel size was another battle, but these are 17x9 +30 and the tires pictured are much too narrow so those will be gone in favor of some 245s
    Click image for larger version.

Name:	AFBC57A1-2E7C-4229-9408-C7A5DB897291_zpsikh64jlf.jpg
Views:	233
Size:	357.2 KB
ID:	16619
    Click image for larger version.

Name:	0CFEC42A-FCA4-430C-A132-02680A8469CF_zps9dogptjj.jpg
Views:	133
Size:	131.9 KB
ID:	16617


    Everything used:
    Click image for larger version.

Name:	67FD9D32-B13A-4D22-ADBA-3C8307DAD2EE_zpsdlc7uxk2.jpg
Views:	133
Size:	132.0 KB
ID:	16618

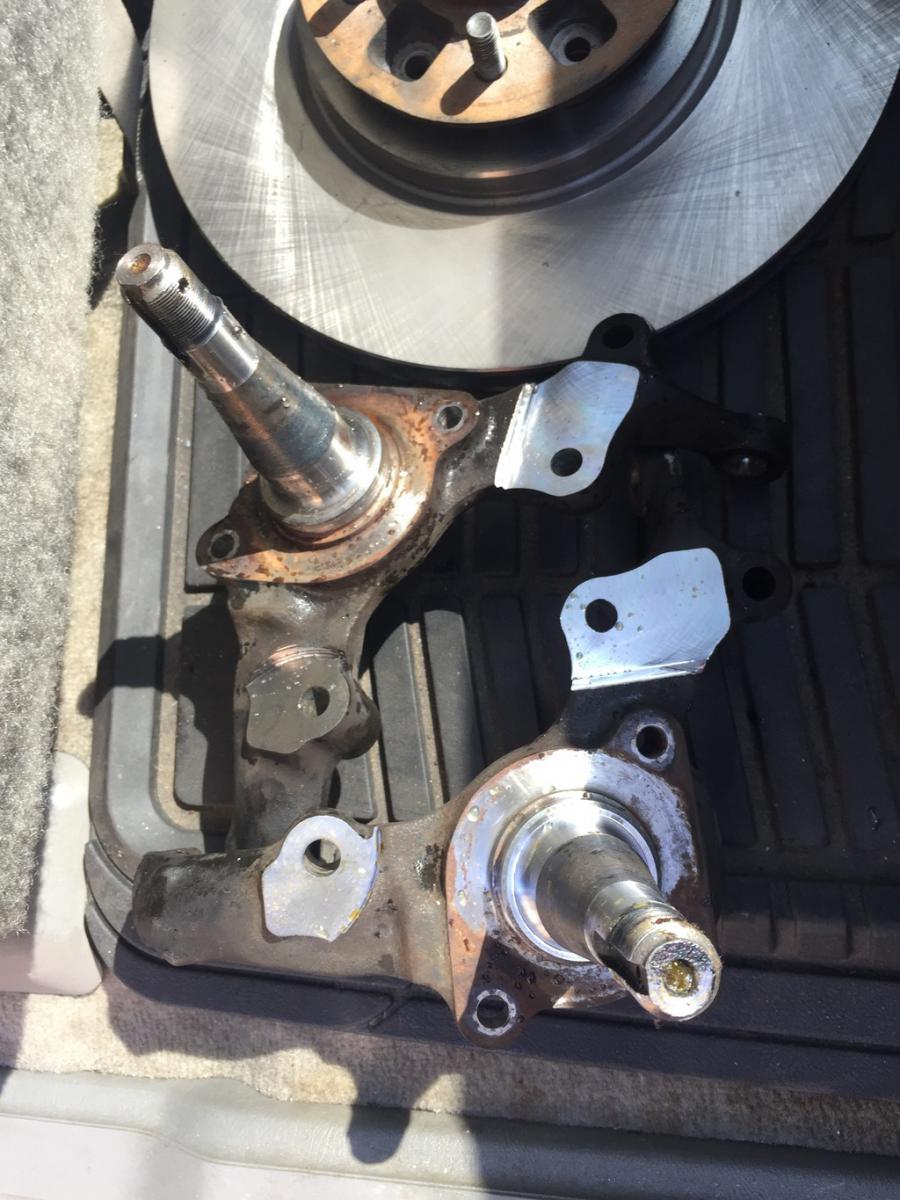

    Stock spindles after milling:
    Click image for larger version.

Name:	834F5B9B-7294-4CB5-97C4-3B88D33B1856_zpsb6qbsica.jpg
Views:	138
Size:	131.8 KB
ID:	16621

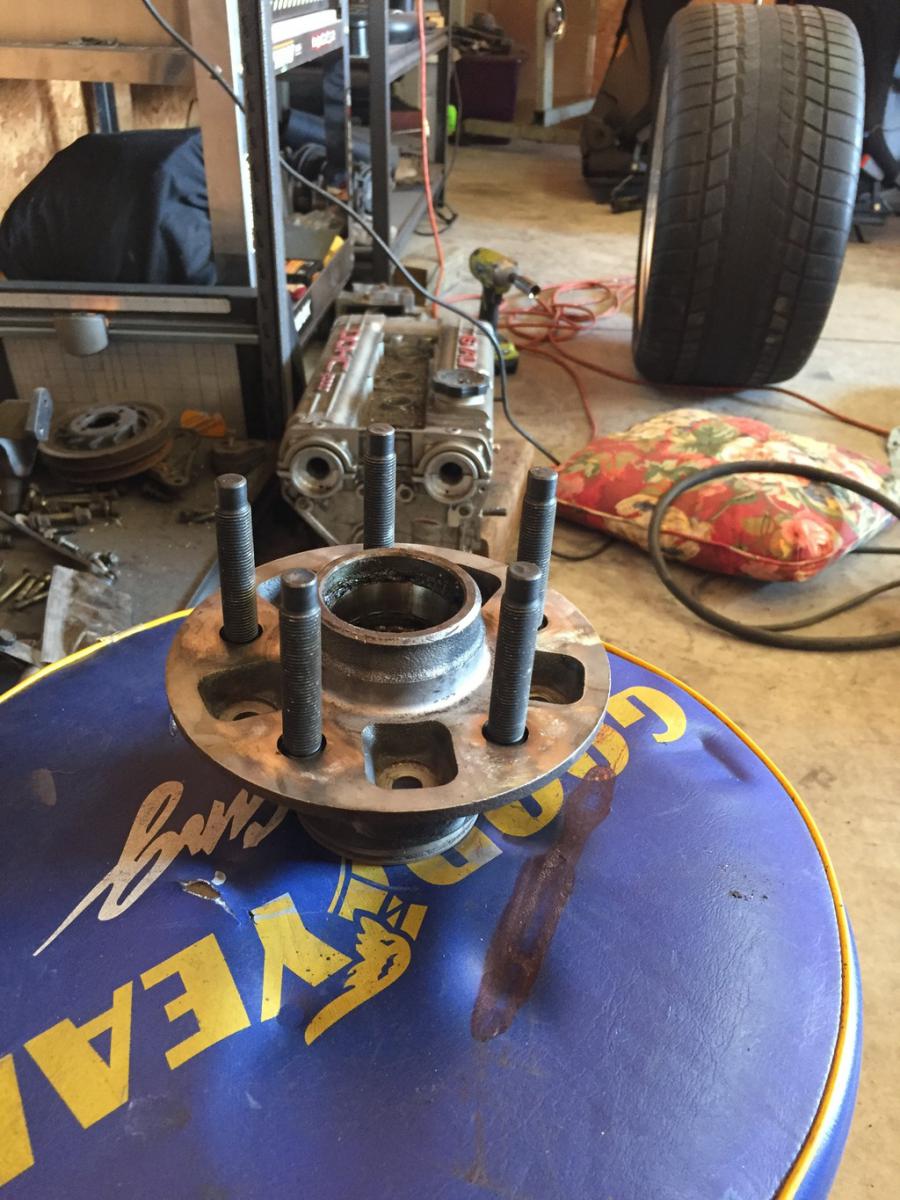

    Drilling hubs for 1/2 wheel studs:
    Click image for larger version.

Name:	CD97C383-9A66-442C-B63E-9A19C96B00C0_zpswxem16of.jpg
Views:	91
Size:	122.3 KB
ID:	16626
    Click image for larger version.

Name:	58A8F02B-18C1-4FD9-A9DA-81C07050D25F_zpsy7mzkty9.jpg
Views:	81
Size:	144.1 KB
ID:	16627

    and a Little preview of what I'm working with:
    Click image for larger version.

Name:	85A5FDEA-B34E-47D9-BB22-BB139D56C2C7_zps7lxdcmxi.jpg
Views:	96
Size:	166.4 KB
ID:	16620
    Click image for larger version.

Name:	372E3E76-43AC-4C15-BD49-7CC02C27DC98_zpschbgfbbv.jpg
Views:	82
Size:	170.6 KB
ID:	16624

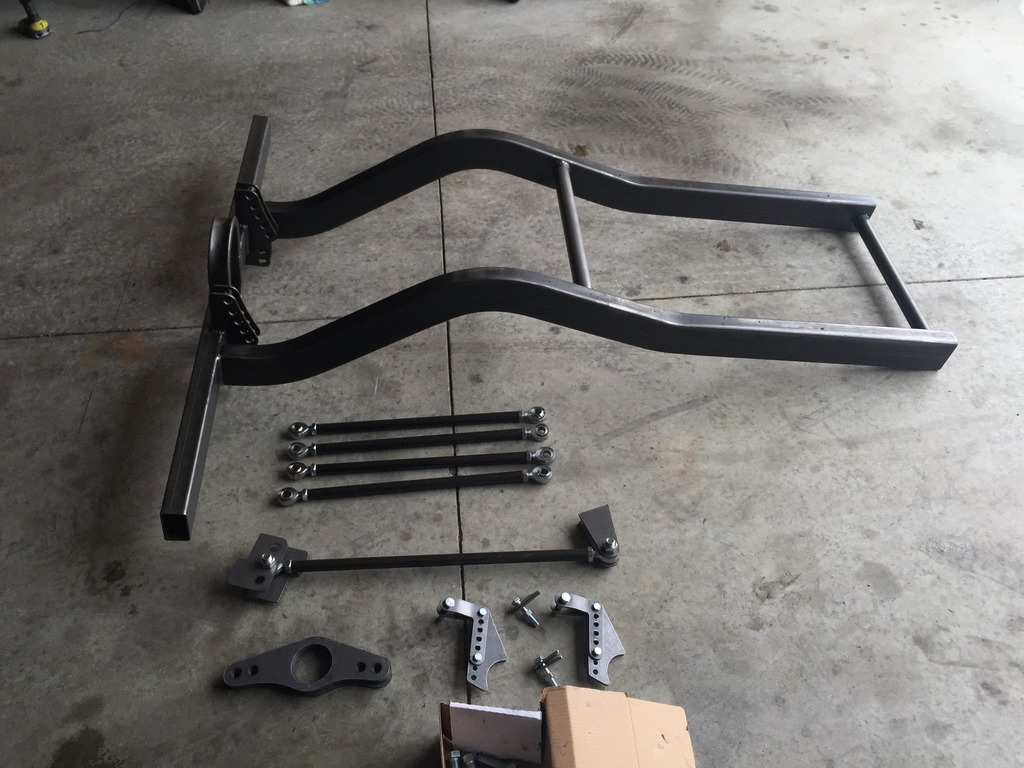

    4 Link rear fully adjustable with QA1 suspension
    Click image for larger version.

Name:	DB3E766F-DC58-4E6D-874C-34A570C413A2_zpsygxm1fc7.jpg
Views:	83
Size:	200.7 KB
ID:	16625

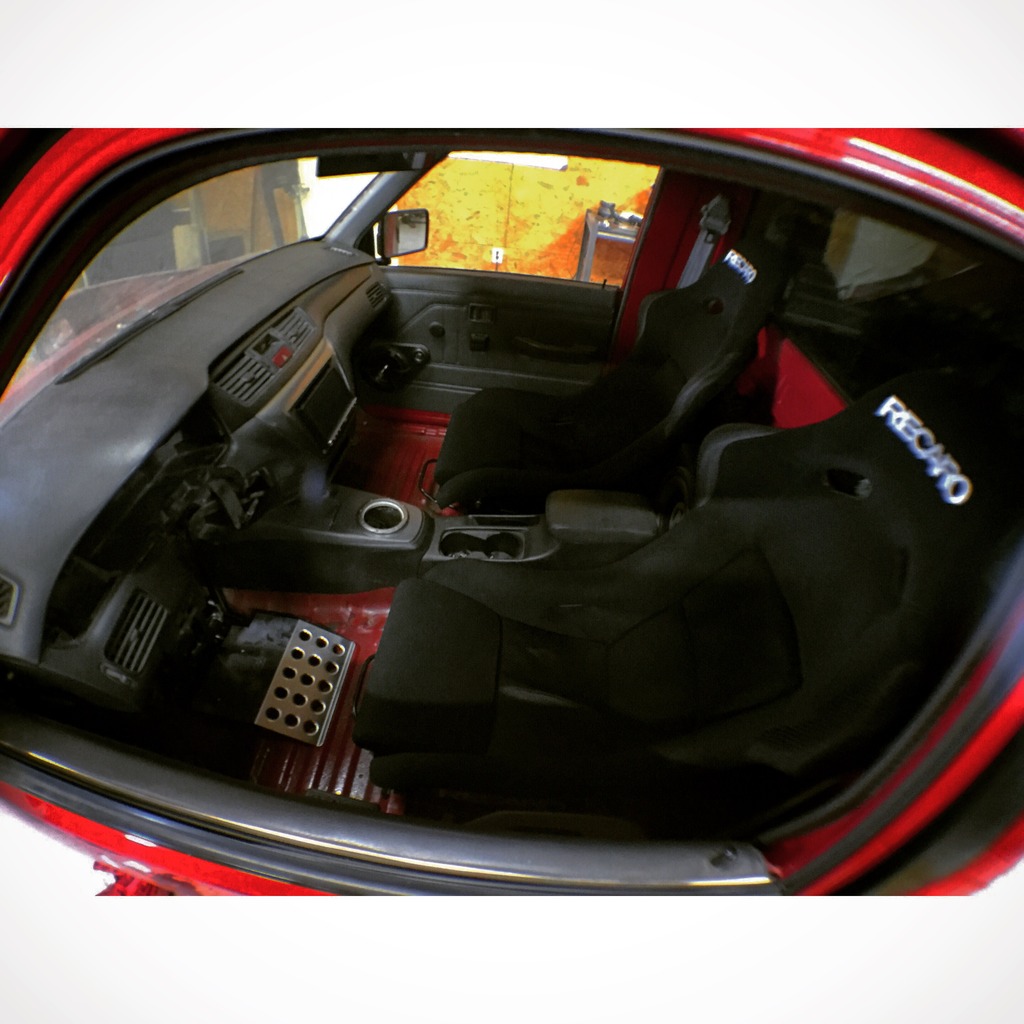

    Evo 9 Dash:
    Click image for larger version.

Name:	250DFDA3-9598-40CB-8784-D6514E648146_zpscnctrniu.jpg
Views:	110
Size:	176.9 KB
ID:	16622

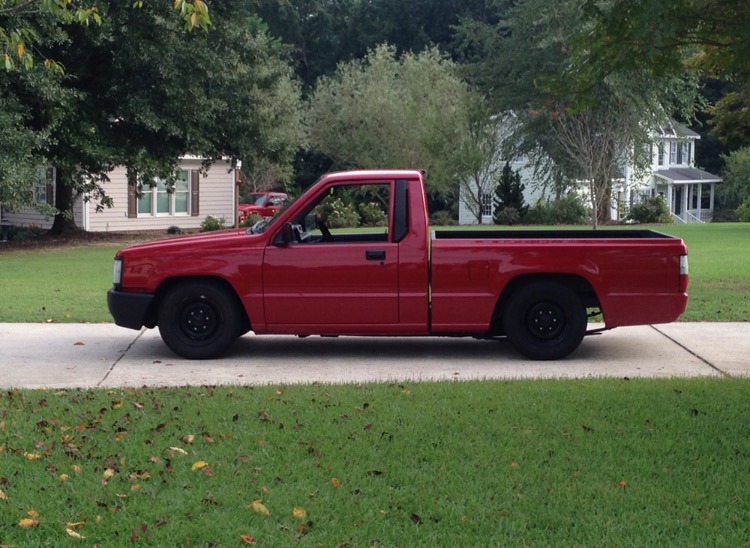

    truck before I started:
    Click image for larger version.

Name:	DAE41DC6-8AA5-4C85-9AD9-654835FE94C3.png_zpsd6cdf3as.jpeg
Views:	85
Size:	144.1 KB
ID:	16623

  2. #2

    Array
    Status
    Offline
    Join Date
    10-12-2012
    Posts
    50
    Location

    N*Y
    Vehicle

    1995 Mitsubishi Mighty Max
    Engine

    4G64
    i like

  3. #3

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    2,245
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B
    Impressive to say the least! An EVO IX dash? This must've been a challenge to get all the under dash ducting and A/C + heater connected. This thing is gonna be mean...

  4. #4

    Array
    Status
    Offline
    Join Date
    11-09-2013
    Posts
    56
    Location

    Raleigh, NC
    Vehicle

    1991 Mitsubishi Mighty Max
    Engine

    4G63-T
    Thanks guys! Yup evo dash was only an inch thinner than the MM one, however the lid needed to be cut back quite a bit. Originally planned to use the factory evo dash bar but with the roll cage I'll just be mounting it to that instead. AC/heat has definitely been a challenge, but I'm going with a vintage air aftermarket unit which allows me to run the ducting however needed. The condenser is mounted in the bed, so it further helps with running the hoses.

  5. #5

    Array
    Status
    Offline
    Join Date
    07-01-2015
    Posts
    17
    Location

    Inland Empire, CA
    Vehicle

    1995 Mitsubishi Mighty Max
    Engine

    4G64

  6. #6

    Array
    Status
    Offline
    Join Date
    07-01-2015
    Posts
    17
    Location

    Inland Empire, CA
    Vehicle

    1995 Mitsubishi Mighty Max
    Engine

    4G64
    What transmission will you be using?

  7. #7

    Array
    Status
    Offline
    Join Date
    11-09-2013
    Posts
    56
    Location

    Raleigh, NC
    Vehicle

    1991 Mitsubishi Mighty Max
    Engine

    4G63-T
    Quote Originally Posted by Far.Side View Post
    What transmission will you be using?
    I'm using a 5 spd Aisin AR5 from a 2006 Chevy Colorado. Its the same housing as a toyota r154 with some slight changes/upgrades internally and the shifter location is within an inch of the factory MM shifter. Coupled with one of Bill's adapter housings, it bolted right up.

  8. #8

    Array
    Status
    Offline
    Join Date
    07-01-2015
    Posts
    17
    Location

    Inland Empire, CA
    Vehicle

    1995 Mitsubishi Mighty Max
    Engine

    4G64
    Im looking into what transmission to run, would like to keep it Mitsu. BUT Bills housing/ r154 setup seems to be the best bet. And the R154 can be built up, no problem I bet.

    I might go that route, thank you.

  9. #9

    Array
    Status
    Offline
    Join Date
    01-07-2016
    Posts
    243
    Location

    Kansas City, MO
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    6G72
    Wow. Just....wow. That's impressive. I'm looking forward to seeing the final product.

  10. #10

    Array
    Status
    Offline
    Join Date
    11-09-2013
    Posts
    56
    Location

    Raleigh, NC
    Vehicle

    1991 Mitsubishi Mighty Max
    Engine

    4G63-T
    Quote Originally Posted by Far.Side View Post
    Im looking into what transmission to run, would like to keep it Mitsu. BUT Bills housing/ r154 setup seems to be the best bet. And the R154 can be built up, no problem I bet.

    I might go that route, thank you.
    no problem! if you're planning to make a good bit of power and plan to drive it hard, I'd go with an r154 or a T56 as these are both really solid options. There are also multiple places that can and will build either trans for you if necessary.

    Quote Originally Posted by Jeff V. View Post
    Wow. Just....wow. That's impressive. I'm looking forward to seeing the final product.
    Thanks a lot! I really appreciate it! cant wait to show everyone what I've been working on

  11. #11

    Array
    Status
    Offline
    Join Date
    01-07-2016
    Posts
    243
    Location

    Kansas City, MO
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    6G72
    I see you blocked off the window cranks. Looks like you added power windows? What'd you use for that, if you're ready to share?

  12. #12

    Array
    Status
    Offline
    Join Date
    11-09-2013
    Posts
    56
    Location

    Raleigh, NC
    Vehicle

    1991 Mitsubishi Mighty Max
    Engine

    4G63-T
    I'm planning to run lancer door panels if I can figure it out, but I did run the power window setup you see in the pic for a few months with no issues. It's just a universal eBay power window/lock kit. Very easy to install. I installed it all with an alarm as well, but you don't have to

  13. #13

    Array
    Status
    Offline
    Join Date
    11-09-2013
    Posts
    56
    Location

    Raleigh, NC
    Vehicle

    1991 Mitsubishi Mighty Max
    Engine

    4G63-T
    Kit was very similar to this one:
    https://www.ebay.com/itm/282028334540

  14. #14

    Array
    Status
    Offline
    Join Date
    01-07-2016
    Posts
    243
    Location

    Kansas City, MO
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    6G72
    Very cool. I just got extremely lucky and scored an OEM lock/window setup from the junkyard, but I'm always interested to see how other people tackle these problems.

  15. #15

    Array
    Status
    Offline
    Join Date
    10-22-2015
    Posts
    187
    Location

    Nevada
    Vehicle

    1990 Mitsubishi Mighty Max
    Engine

    Other
    Quote Originally Posted by Jeff V. View Post
    Very cool. I just got extremely lucky and scored an OEM lock/window setup from the junkyard, but I'm always interested to see how other people tackle these problems.
    Lucky indeed!




    Great work on the brakes. That is quite the project to take on. I did the Montero rotor/caliper swap and that was enough work.

  16. #16

    Array
    Status
    Offline
    Join Date
    11-09-2013
    Posts
    56
    Location

    Raleigh, NC
    Vehicle

    1991 Mitsubishi Mighty Max
    Engine

    4G63-T
    Quote Originally Posted by Jeff V. View Post
    Very cool. I just got extremely lucky and scored an OEM lock/window setup from the junkyard, but I'm always interested to see how other people tackle these problems.
    Wow thats cool, I didnt even know there were models that came with power options!?



    Quote Originally Posted by Chargerx3 View Post
    Lucky indeed!
    Great work on the brakes. That is quite the project to take on. I did the Montero rotor/caliper swap and that was enough work.
    thanks a lot! was definitely a challenge, and unfortunately I just got my drop spindles in the mail and now they HAVE to be machined too lol. I knew when I initially did it that I should have been working with drop spindles the entire time, but I was worried that it wasnt going to work and I'd end up wasting expensive spindles. Back to the machine shop haha

  17. #17

    Array
    Status
    Offline
    Join Date
    01-07-2016
    Posts
    243
    Location

    Kansas City, MO
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    6G72
    This isn't my truck. But it's the goal I set as far as options and overall cleanliness. I've got pretty much everything except the center console.



    Yours definitely wins on uniqueness. I'm really interested to see how you make the Lancer doors work.

  18. #18

    Array
    Status
    Offline
    Join Date
    11-09-2013
    Posts
    56
    Location

    Raleigh, NC
    Vehicle

    1991 Mitsubishi Mighty Max
    Engine

    4G63-T
    im not sure that the door panels are going to work just yet but I think they will. From what I've messed with thus far, they need to be cut down and plastic welded back together to fit the trucks shorter door lengths.
