    Micro-Vortex Generators

    I was checking out some things on Ebay and came across this AD for Micro Vortex Generators. They specified that NASA used and tested them to be true to fact that they benefit several things with the installation to airplanes. Though we do not reach the speeds of Gulfstream V Jet, but thought I would post this so members can have a look.

    There are a couple different styles on Ebay, but this particular version specifies that they are working versions of the idea itself. See what you think...

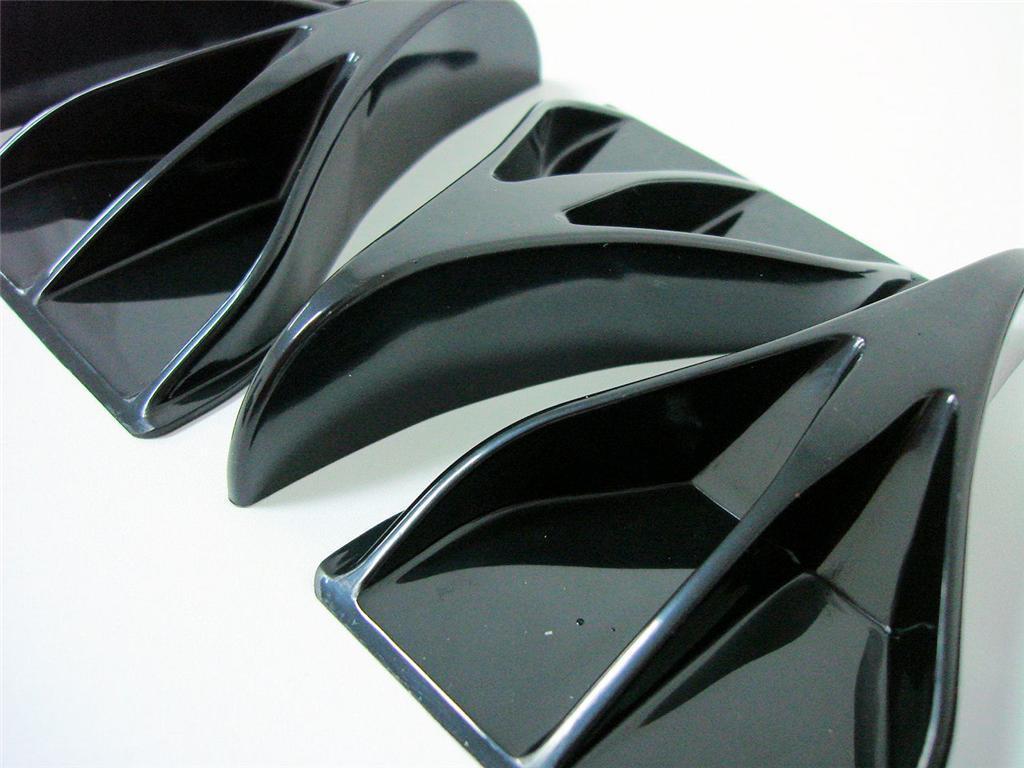

    This is the Ebay model of the product which is installed on the roof of vehicles.
    Click image for larger version.

Name:	vortex.jpg
Views:	34
Size:	77.9 KB
ID:	16554

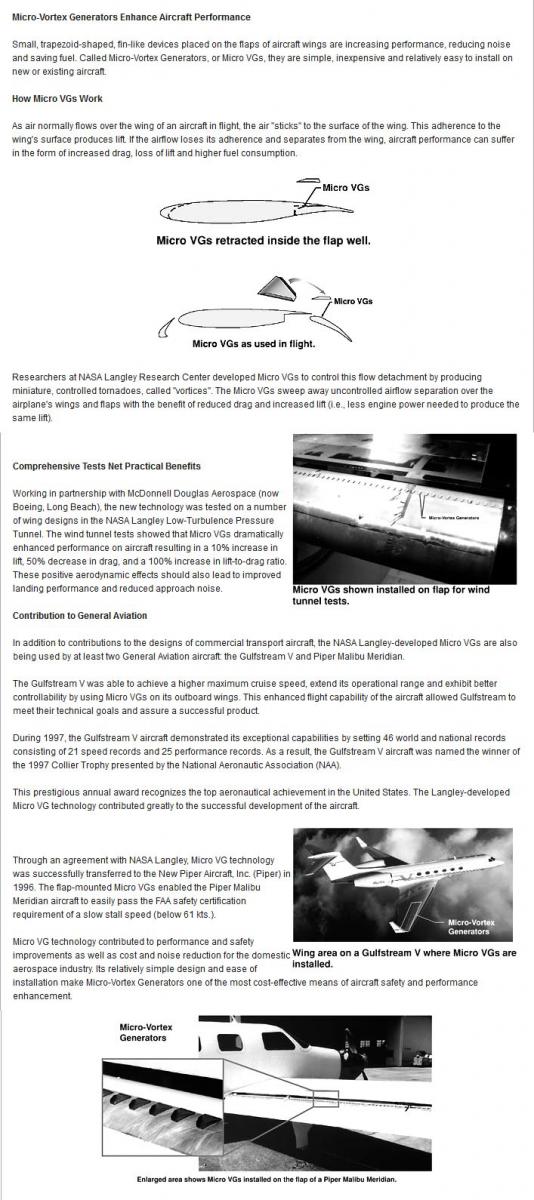

    This is the NASA sheet that explains the workings of these little items.
    Click image for larger version.

Name:	MicroVortex.jpg
Views:	45
Size:	114.6 KB
ID:	16555
    Also can be found here http://www.nasa.gov/centers/langley/.../Micro-VG.html if you cannot read it at full view.

  2. #2



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,112
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    they are used to decrease drag on Evos and some big rigs - it works by diverting air into the vacuum pocket that forms at the back of a vehicle - the smaller the pocket, the less the drag.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  3. #3

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    2,242
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B
    I think you'd need a hard bed cover to gain any aerodynamic improvement. And you would probably have to be travelling at sub warp speed before they work. Bit like the Lexus LFA. Take it onto a track and do 140 kph and it'll try to kill you - do it at 170 and it'll stick to the tarmac and actually be safer to drive...

  4. #4


    Array
    Status
    Offline
    Join Date
    04-04-2011
    Posts
    684
    Location

    Columbus, OH
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    Other
    Landspeed Racers love them, cleans up the air nicely. All the really fast stuff has them. Other than the cool factor, don't expect any real improvements in fuel economy etc...on a Mighty Max.
