Thread: Carburetor Troubleshooting

  1. #1



    Array
    Status
    Offline
    Join Date
    07-24-2012
    Posts
    2,357
    Location

    Washington State
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G63B

    Carburetor Troubleshooting

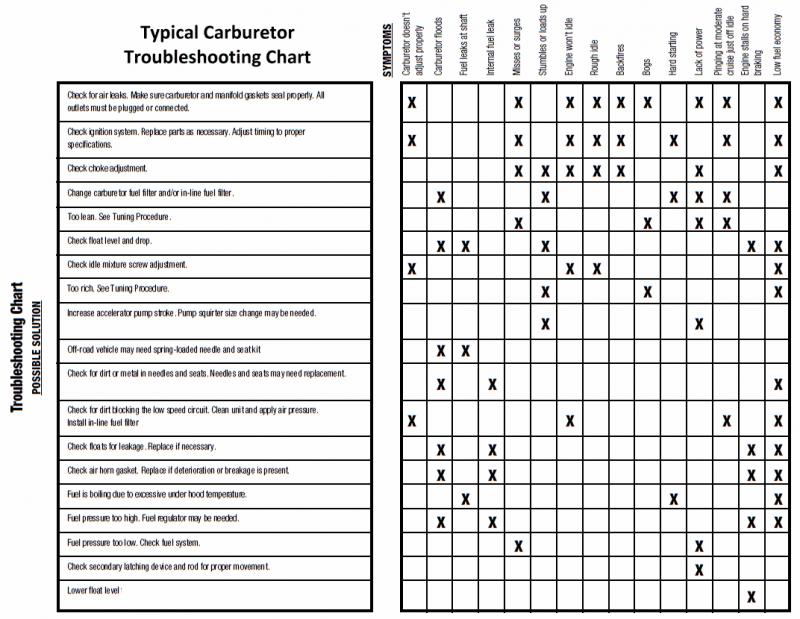

    This is a basic troubleshooter sheet for a Carburetor.
    Click image for larger version.

Name:	carb_troubleshoot.jpg
Views:	67
Size:	96.8 KB
ID:	16428
    (click image to expand)

  2. #2

    Array
    Status
    Offline
    Join Date
    11-23-2013
    Posts
    344
    Location

    pa
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    G63B
    Nice thanks ,
    Question for ya , My fuel pressure on the regulator jumps from 3 and 5 Back and forth while running is that normal? I stuck with using a mechanical fuel pump and holly fuel pressure regulator.

  3. #3



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,115
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    is that input or output pressure? Input can vary on motor speed, output should not vary unless the pump output is weak and can't keep up with demand.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  4. #4

    Array
    Status
    Offline
    Join Date
    11-23-2013
    Posts
    344
    Location

    pa
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    G63B
    Yes that would be input pressure . Thanks pennyman just checking to see if that is right.

  5. #5



    Array
    Status
    Offline
    Join Date
    07-24-2012
    Posts
    2,357
    Location

    Washington State
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G63B
    Hey Max why have regulator on a stock pump? Usually those are pretty much setup to run as is. Are you regulating a Weber with the mechanical pump?
    I also was going to say your pump is pulsating the gauge but as fast as it pumps, the gauge shouldn't fluctuate like that. Your gauge is prior the pump if I read your input pressure answer correctly. If regulating a Weber, I would think that the regulator and gauge would be after the mechanical pump or just before the carb so it will give a better reading on how much it is feeding the carb. I'm not sure if this will stress the pump diaphram either, by causing it to build up pressure behind a regulator.

  6. #6



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,115
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    it will stress the pump diaphragm and blow the pump sooner or later. It depends on how old the pump is.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980
