Thread: Dash swaps

  1. #1

    Array
    Status
    Offline
    Join Date
    11-11-2015
    Posts
    23
    Location

    CT
    Vehicle

    1991 Dodge Ram 50
    Engine

    4G64

    Dash swaps

    What do we have for dash swaps in here, I am gonna try and mess around with a 1g DSM dashboard this weekend and see what i can come up with, would make doing the turbo swap easier because I can use everything DSM.

  2. #2



    Array
    Status
    Offline
    Join Date
    03-26-2011
    Posts
    1,512
    Location

    Vacaville, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T
    I had fitted a 1g dsm dash in my truck when I first 4g63t swapped my last truck. It could be made to work a stock unmodified cab, but it wasn't going to work for me with my body dropped and cut up truck.
    Josh
    09 BMW 335i E92 Twin turbo
    89 Macrocab 4g63 Turbo swapped & Bagged: Build Thread

  3. #3

    Array
    Status
    Offline
    Join Date
    11-11-2015
    Posts
    23
    Location

    CT
    Vehicle

    1991 Dodge Ram 50
    Engine

    4G64
    Yeah I wont be bagging the truck, just modifying the suspension some where down the road to be a little better at handling. Its already dropped in the front and I hate it, rides like garbage. Good to know it will work.

    Did it require any modification width wise? That's my only concern.

  4. #4



    Array
    Status
    Offline
    Join Date
    03-26-2011
    Posts
    1,512
    Location

    Vacaville, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T
    No mods width wise I don't think, think it was pretty good fit that way. But I believe you might need to chop a little off of the front where it meets the firewall/windshield.
    Josh
    09 BMW 335i E92 Twin turbo
    89 Macrocab 4g63 Turbo swapped & Bagged: Build Thread

  5. #5

    Array
    Status
    Offline
    Join Date
    10-22-2015
    Posts
    187
    Location

    Nevada
    Vehicle

    1990 Mitsubishi Mighty Max
    Engine

    Other
    Someone put a 1st gen Montero dash in theirs. Almost was a direct swap.

  6. #6

    Array
    Status
    Offline
    Join Date
    11-11-2015
    Posts
    23
    Location

    CT
    Vehicle

    1991 Dodge Ram 50
    Engine

    4G64
    Yeah i saw that raider swap, not quite the look i want in my max, going for sportier, not offroadish lol. Although i did like the three gauges that I could change to boost, oil, wideband!

  7. #7



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    conquest dash could also be a good candidate for a dash swap.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  8. #8

    Array
    Status
    Offline
    Join Date
    05-01-2011
    Posts
    30
    Location

    Killingworth CT
    Vehicle

    1993 Mitsubishi Mighty Max
    Engine

    4G64
    I saw that as well, was tempted with it but it seems to old (not into the setup). I will post pictures of the Dsm dash this weekend.

  9. #9

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    2,257
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B
    Conquest dash is in the same era and Mitsubishi were in the habit of using the same base dimensions for corresponding vehicles. Might need custom mounts to mate the dash frame to the MM cab...

  10. #10

    Array
    Status
    Offline
    Join Date
    01-21-2014
    Posts
    28
    Location

    Brookings, OR
    Vehicle

    1988 Dodge Power Ram 50
    Engine

    6G72

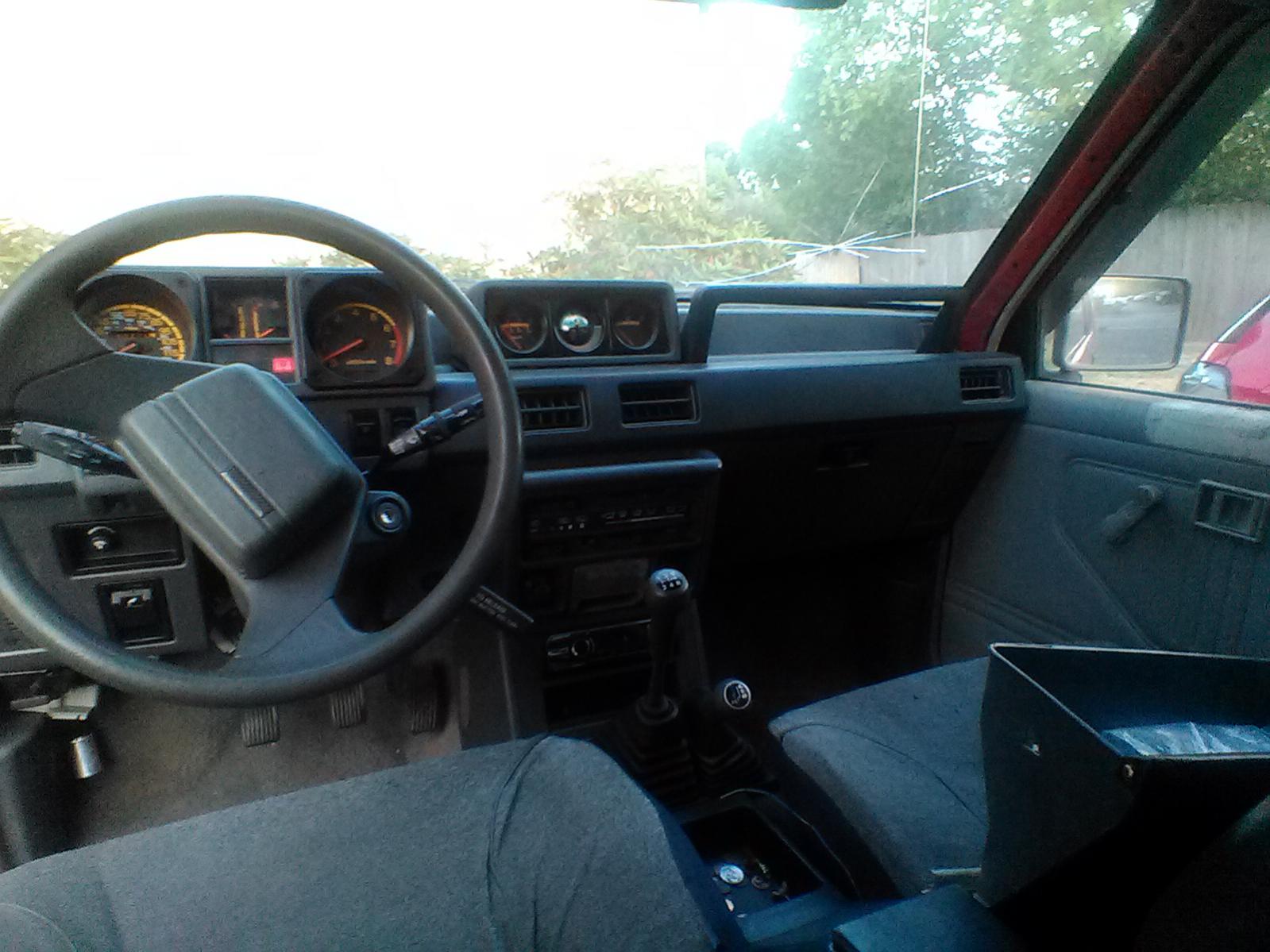

    Yeah that Montero dash is mine. I'll put a pic up for those who've never seen it. I'll agree that it's quite "80's offroad truck", but since I have a 4x4 that's what I was going for. I wouldn't want to put one in a 2wd, and that center gauge pack unfortunately looks a bit out of place on our dashes.
    Click image for larger version.

Name:	IMG_20150924_183138.jpg
Views:	115
Size:	184.8 KB
ID:	15962
    It was more or less the same size, but calling it a close to direct fit is a bit of an overstatement. The dash itself had to be modified in height, width, shape, and depth, and the steering column was moved over about an inch to fit in the correct spot. Ended up looking pretty much how I wanted, but it wasn't exactly a weekend job. The dash took as long as the entire drivetrain swap, mostly in trial and error. I still haven't hooked up the air ducts due to very tight clearances and a lack of time.

    Since I happen to own two of these rigs, I've been looking into what to do with the 2wd one. I'm either going to strip the interior entirely for a racing style ("all of what you need, none of what you don't"), spruce up the factory interior with all of the optional features, or go for a Starquest swap. I love the look of both of the gauge styles that the Starquests got, but I'd probably look for the digi-dash first. If I ever get a chance to measure one I'll let you guys know how it goes. At a glance it looks way too deep for our trucks, but sometimes that can be worked with.

    Word of warning, the wiring for these dashes is a nightmare. I used a complete montero harness for mine rather than fighting with adapting the original.

  11. #11

    Array
    Status
    Offline
    Join Date
    11-11-2015
    Posts
    23
    Location

    CT
    Vehicle

    1991 Dodge Ram 50
    Engine

    4G64
    Yeah im gonna be swapping in a DSM dash so when I do my 4g63 swap everything will connect right up like factory.

    I will be also have to figure out the dash vent routing because I will be driving this year round in New England summers and winters and will be adding A/C.

  12. #12

    Array
    Status
    Offline
    Join Date
    11-11-2015
    Posts
    23
    Location

    CT
    Vehicle

    1991 Dodge Ram 50
    Engine

    4G64
    Unfortunately the dash got put on hold this weekend as I was doing a major side job for my friends brother and will be finishing up next weekend, maybe next weekend I will have some time to attempt some measurements. On a side note I did get some small things done to my truck, like a new pitman arm and got the reverse lights working again (wire came loose near transmission).

  13. #13



    Array
    Status
    Offline
    Join Date
    03-26-2011
    Posts
    1,512
    Location

    Vacaville, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T
    Just FYI not much on the stock 4g63t engine harness even goes to the dash or gauges, all truck gauges and everything else work perfectly fine with a 4g63t swap. Only benefit I'd see is getting a working tachometer
    Josh
    09 BMW 335i E92 Twin turbo
    89 Macrocab 4g63 Turbo swapped & Bagged: Build Thread

  14. #14

    Array
    Status
    Offline
    Join Date
    11-11-2015
    Posts
    23
    Location

    CT
    Vehicle

    1991 Dodge Ram 50
    Engine

    4G64
    I have done 4g63 swaps before, just trying to make everything in this truck a plug and play situation, I'm talking straight down to stock ignition to everything engine bay related, will be doing cruise control, A/C, Intermittent wipers, everything from a factory DSM into a mighty max chassis.

    May even do a VR-4 3000gt steering wheel with factory radio button controls on it for a factory 93 3000gt radio!

  15. #15

    Array
    Status
    Offline
    Join Date
    11-11-2015
    Posts
    23
    Location

    CT
    Vehicle

    1991 Dodge Ram 50
    Engine

    4G64
    So I had about an hour and a half today to rip my old dash out and test fit the DSM dash, it is pretty far off in the corners, I will be trying a 2g dash next as a 2g dash is about an inch or maybe slightly bigger than a inch wider. I would love to get a hold of a 91 galant dash as that seems to be almost an identical match but I fell like ill never find one around here.





    Click image for larger version.

Name:	image1(1).jpg
Views:	85
Size:	212.9 KB
ID:	15996Click image for larger version.

Name:	image1.jpg
Views:	108
Size:	275.5 KB
ID:	15997Click image for larger version.

Name:	image2(1).jpg
Views:	75
Size:	300.9 KB
ID:	15998Click image for larger version.

Name:	image2.jpg
Views:	92
Size:	225.8 KB
ID:	15999Click image for larger version.

Name:	image3(1).jpg
Views:	67
Size:	208.7 KB
ID:	16000Click image for larger version.

Name:	image3.jpg
Views:	68
Size:	212.4 KB
ID:	16001Click image for larger version.

Name:	image4.jpg
Views:	89
Size:	196.7 KB
ID:	16002

  16. #16

    Array
    Status
    Offline
    Join Date
    01-21-2014
    Posts
    28
    Location

    Brookings, OR
    Vehicle

    1988 Dodge Power Ram 50
    Engine

    6G72
    Doing a plug-n-play dash swap is... not easy. I had to take the ENTIRE harness from the donor Montero, bumper to bumper. Things like int. wipers are not a simple swap, nor is cruise control, AC, the vent blower, or any of the gauge sensors. Your vent ducts will need some special engineering to make work, and the heater core itself is mechanical, meaning that you are going to have to come up with something real clever to adapt the DSM's vent/heater controls. As for the fitment, my dash was initially too large, making the swap a bit easier. We toyed with the idea of using pieces of the stock dash to ease fitment, but it didn't pan out. Maybe it could work well for you. Either way I wish you luck with your swap . I look forward to seeing the finished result.

  17. #17

    Array
    Status
    Offline
    Join Date
    11-11-2015
    Posts
    23
    Location

    CT
    Vehicle

    1991 Dodge Ram 50
    Engine

    4G64
    It's not my first time per say doing dash swaps, I can easily get everything to work but I'm looking to keep my defrost for the windshield, a 2g Dsm dash would be better because it is physically bigger, a galant vr4 dash is almost a direct swap. Heater core is t a problem, can always fill forewall holes and re drill for heater core lines. It's all fairly simple once you get the dash situated. Here's a pic of another project we are doing.


    Click image for larger version.

Name:	image.jpg
Views:	126
Size:	242.3 KB
ID:	16012

  18. #18

    Array
    Status
    Offline
    Join Date
    10-22-2015
    Posts
    187
    Location

    Nevada
    Vehicle

    1990 Mitsubishi Mighty Max
    Engine

    Other
    Looks nasty.

  19. #19

    Array
    Status
    Offline
    Join Date
    11-09-2013
    Posts
    56
    Location

    Raleigh, NC
    Vehicle

    1991 Mitsubishi Mighty Max
    Engine

    4G63-T
    Evo dash in mine, wasnt too bad and put the double din in a much better location than with the factory MM dash. Width wise it's an inch narrower, then you have to cut the top back quite a bit. Running a vintage air aftermarket ac/heat setup so fitment to stock stuff is unknown.
    Click image for larger version.

Name:	EvoDash.jpg
Views:	106
Size:	176.9 KB
ID:	16717

  20. #20

    Array
    Status
    Offline
    Join Date
    11-15-2012
    Posts
    11
    Location

    Copperas Cove, TX
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T
    Quote Originally Posted by alex_s817 View Post
    Evo dash in mine, wasnt too bad and put the double din in a much better location than with the factory MM dash. Width wise it's an inch narrower, then you have to cut the top back quite a bit. Running a vintage air aftermarket ac/heat setup so fitment to stock stuff is unknown.
    Click image for larger version.

Name:	EvoDash.jpg
Views:	106
Size:	176.9 KB
ID:	16717
    I would really like to see more photos of this Evo dash Swap.... There are a ton of Lancers at my local pick-n-pull, dashes go DIRT CHEAP!!!

  21. #21

    Array
    Status
    Offline
    Join Date
    06-23-2016
    Posts
    20
    Location

    So ILL
    Vehicle

    1995 Mitsubishi Mighty Max
    Engine

    I.D.K.?
    What about a Toyota pick up, colorado or s10 dash?

  22. #22

    Array
    Status
    Offline
    Join Date
    06-23-2016
    Posts
    20
    Location

    So ILL
    Vehicle

    1995 Mitsubishi Mighty Max
    Engine

    I.D.K.?

  23. #23

    Array
    Status
    Offline
    Join Date
    06-23-2016
    Posts
    20
    Location

    So ILL
    Vehicle

    1995 Mitsubishi Mighty Max
    Engine

    I.D.K.?
    Or a Lexus dash

  24. #24



    Array
    Status
    Offline
    Join Date
    03-26-2011
    Posts
    1,512
    Location

    Vacaville, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T
    All depends on the width and depth of them, as well as how much fab work you want to do.
    Josh
    09 BMW 335i E92 Twin turbo
    89 Macrocab 4g63 Turbo swapped & Bagged: Build Thread

  25. #25

    Array
    Status
    Offline
    Join Date
    11-23-2013
    Posts
    345
    Location

    pa
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    G63B
    Alex I have to admit .....that evo dash is
