Thread: Question On Stock Carb. Adjustment

  1. #1

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    190
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B

    Question On Stock Carb. Adjustment

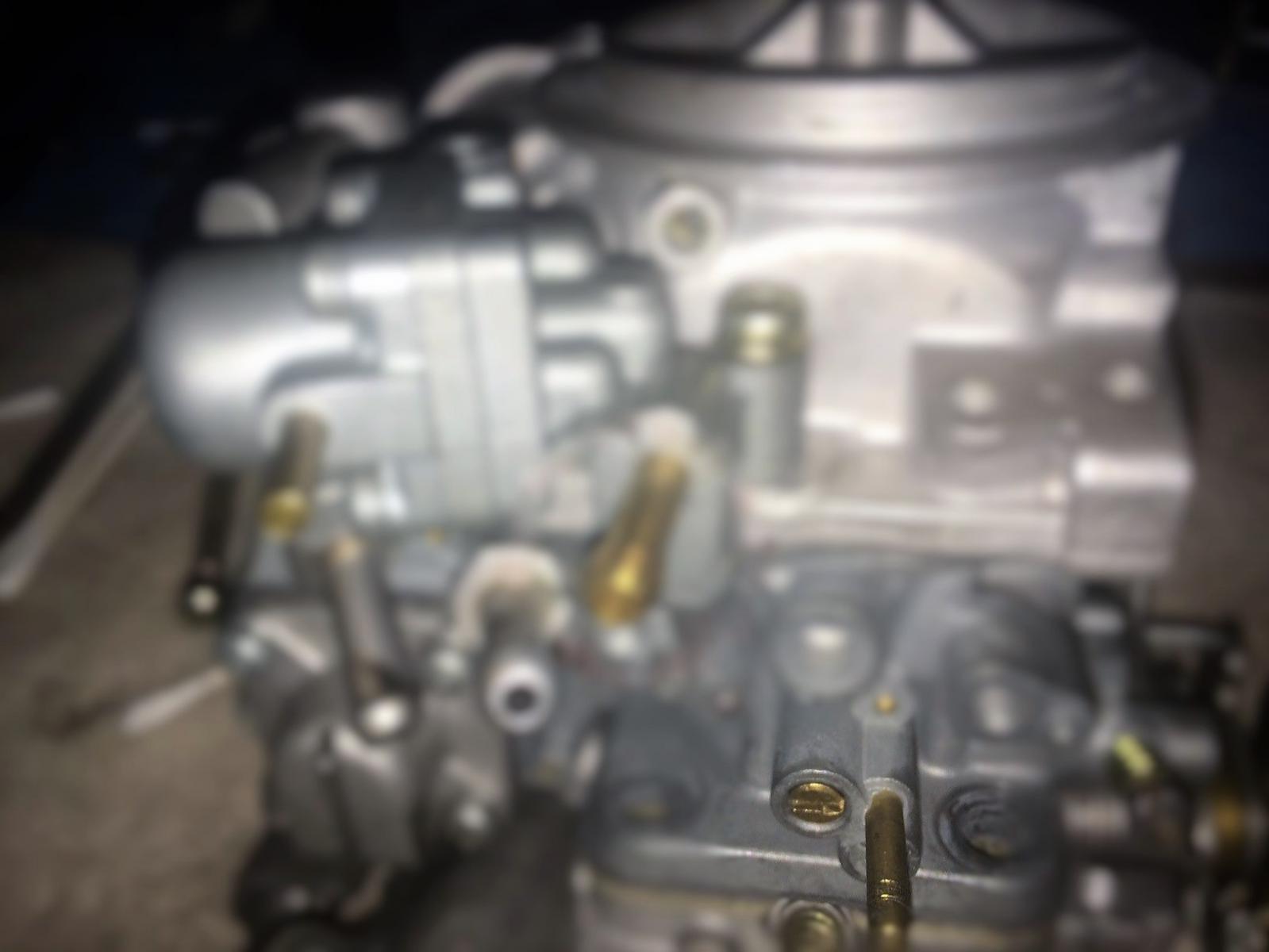

    Hi, guys. There are three adjustment screws looking viewed from the drivers side.

    The bottom one near the base mixture adjustment. No problem.
    The one above and to the left. No problem.

    The one above and to the right. It's the small one. How many turns out should I start with? The screw I speak of is just under
    the small brass pipe. IMG_0444 (3).jpgThanks for any help guys.

    Hutch

  2. #2



    Array
    Status
    Offline
    Join Date
    03-16-2011
    Posts
    3,803
    Location

    Sacramento, CA
    Vehicle

    1979 Dodge D-50
    Engine

    Chevy V6
    Check the first gen manual I think it covers all of them.
    One is mix another is like the metering and the other is bleed if I remember
    Members come and members go, But the board keeps track of them.
    Find me on FaceBook
    clicking HERE.

    Or look on YouTube Click Here.
    http://mobilemillwright.com

  3. #3

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    190
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B
    Quote Originally Posted by camoit View Post
    Check the first gen manual I think it covers all of them.
    One is mix another is like the metering and the other is bleed if I remember
    The manual says not to temper with. Too late. I lost my starting point.

  4. #4

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    6,059
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B
    I would try this - wind in the air/fuel needle in the throttle base til it bottoms out (gently, or you could damage the tip of the needle) then adjust it out 3/4 of a turn to start off with. Then try adjusting the air bleed screw above it next to that vac barb in your pic until it starts to make a difference. This only affects the idle mix but if you can get an improvement on the idle you stand a better chance of adjusting everything else. If the air/fuel needle is sealed so it can't be adjusted - I got nada
