    Running lights, and why dont they work...

    So what are the most common reasons for running lights not getting power on a second gen? I pulled the column and tried poking around looking for power but without a diagram it was kinda pointless. Relay I dont know about? turns, headlights low and high all work just not parking lights.

  2. #2

    Array
    Status
    Offline
    Join Date
    12-19-2013
    Posts
    23
    Location

    Portland
    Vehicle

    1990 Dodge Ram 50
    Engine

    6G72
    I think the haynes manual has a schematic in it for lights. Without a schematic, I would start by checking to see if there is power at the lights themselves, with a voltmeter, and then following the trail back up to the column.

  3. #3

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    2,243
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B
    Do you still have dash/instrument lights and rear parking lights? If they're all out I'd check the fuse box first. Good luck with hunting down the gremlin

  4. #4

    Array
    Status
    Offline
    Join Date
    01-28-2012
    Posts
    170
    Location

    North Greensboro, Nc
    Vehicle

    1987 Mitsubishi Mighty Max
    Engine

    G63B
    No dash lights, don't have the bed on right now but checked for power on rear harness and nada.

  5. #5

    Array
    Status
    Offline
    Join Date
    01-28-2012
    Posts
    170
    Location

    North Greensboro, Nc
    Vehicle

    1987 Mitsubishi Mighty Max
    Engine

    G63B
    Still fighting this, the Hayes manual is pretty vague when it comes to the Lighting diagrams. Gauges work, but not intrustment panel light or running lights. I cant find a break in the line and it is getting power to the switch. So safe to say it the combo switch i guess. 100 bucks later guess Ill find out.

  6. #6



    Array
    Status
    Offline
    Join Date
    03-26-2011
    Posts
    1,512
    Location

    Vacaville, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T
    I will try to get a scan of my 89 OEM sevice manual wiring schematics when I get home to see if that helps
    Josh
    09 BMW 335i E92 Twin turbo
    89 Macrocab 4g63 Turbo swapped & Bagged: Build Thread

  7. #7

    Array
    Status
    Offline
    Join Date
    01-28-2012
    Posts
    170
    Location

    North Greensboro, Nc
    Vehicle

    1987 Mitsubishi Mighty Max
    Engine

    G63B
    ^ you are the man.

  8. #8



    Array
    Status
    Offline
    Join Date
    03-26-2011
    Posts
    1,512
    Location

    Vacaville, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T

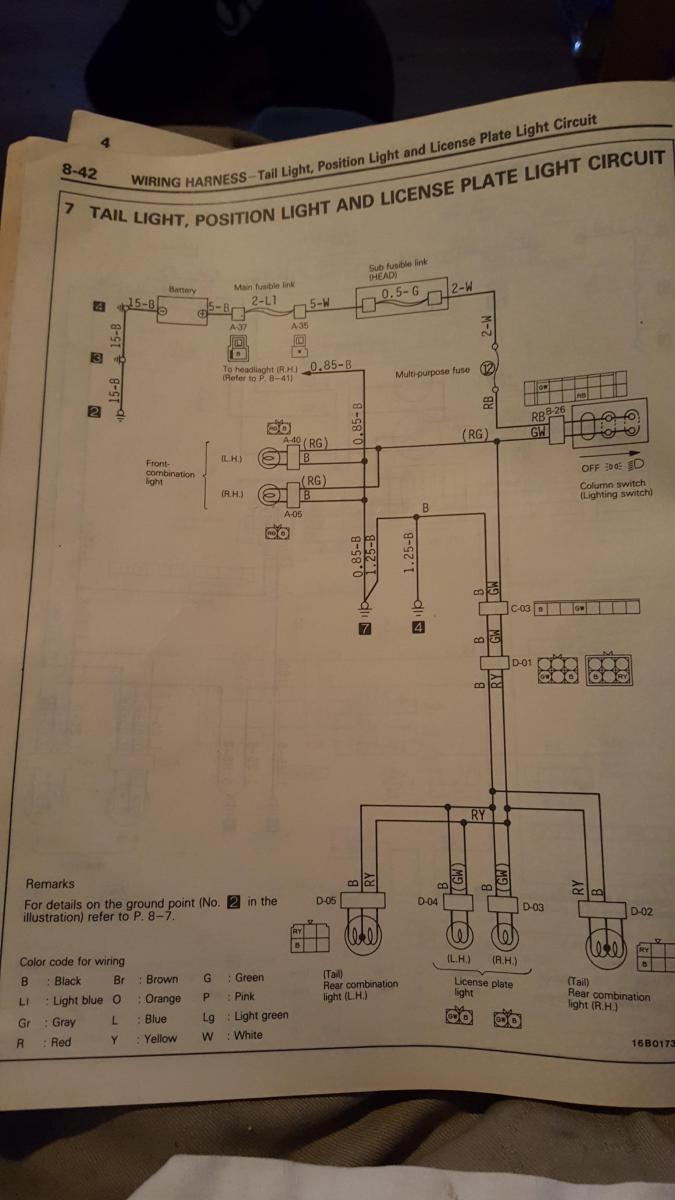

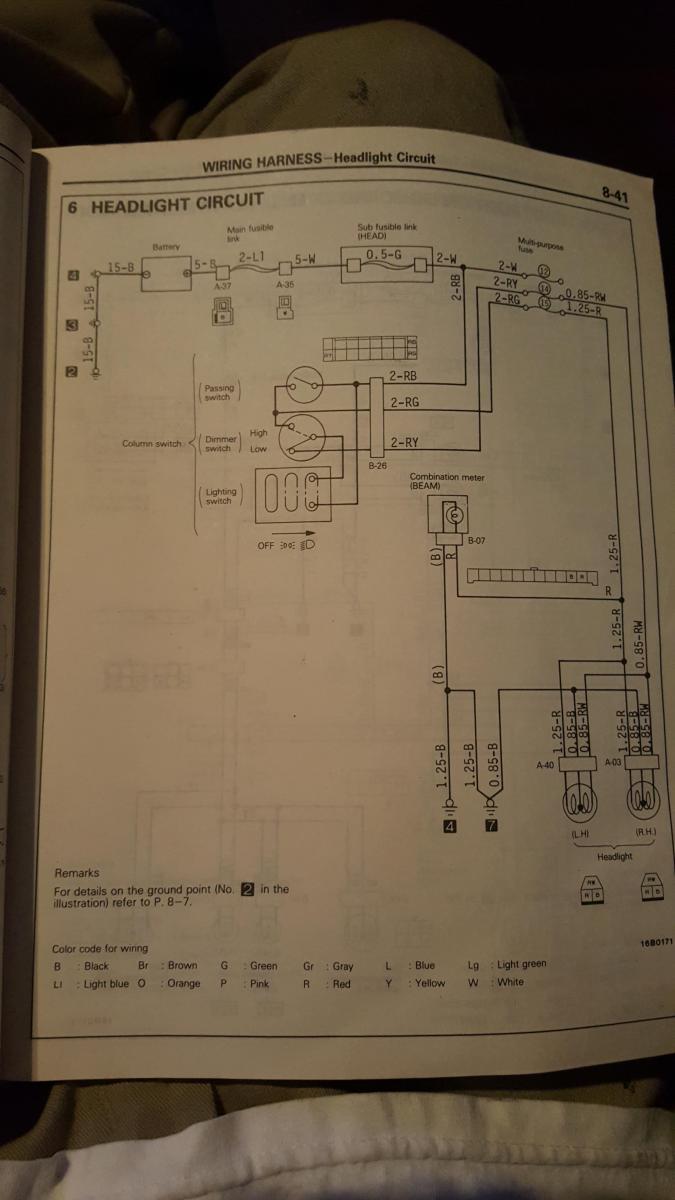

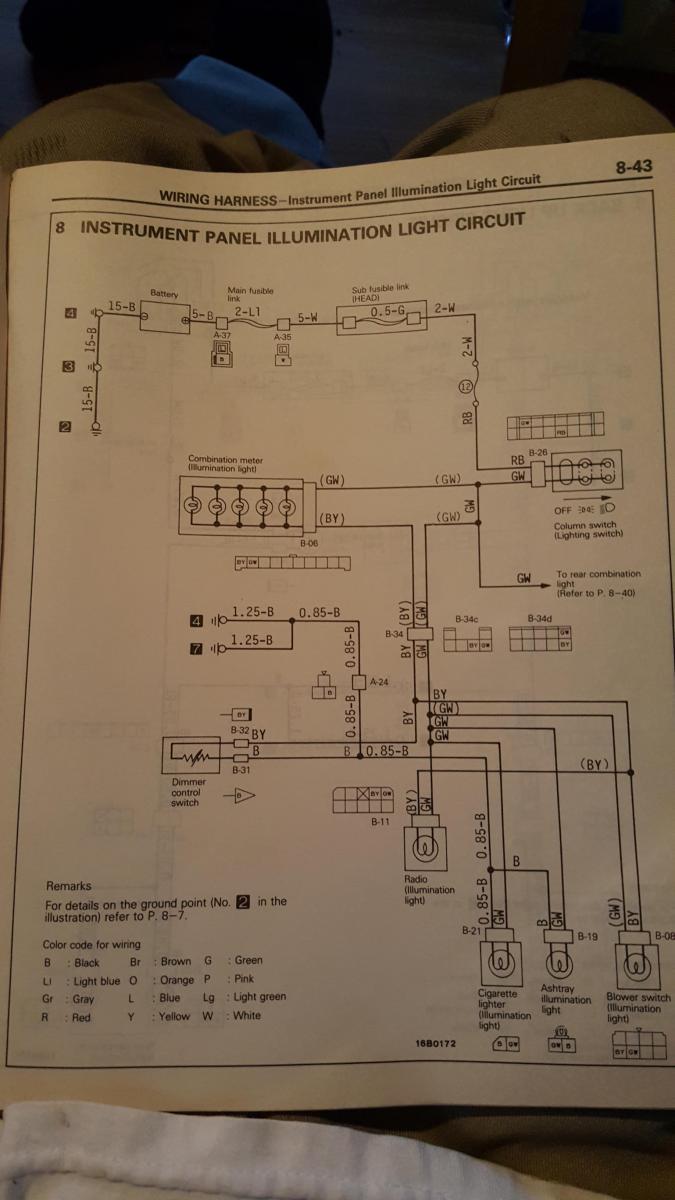

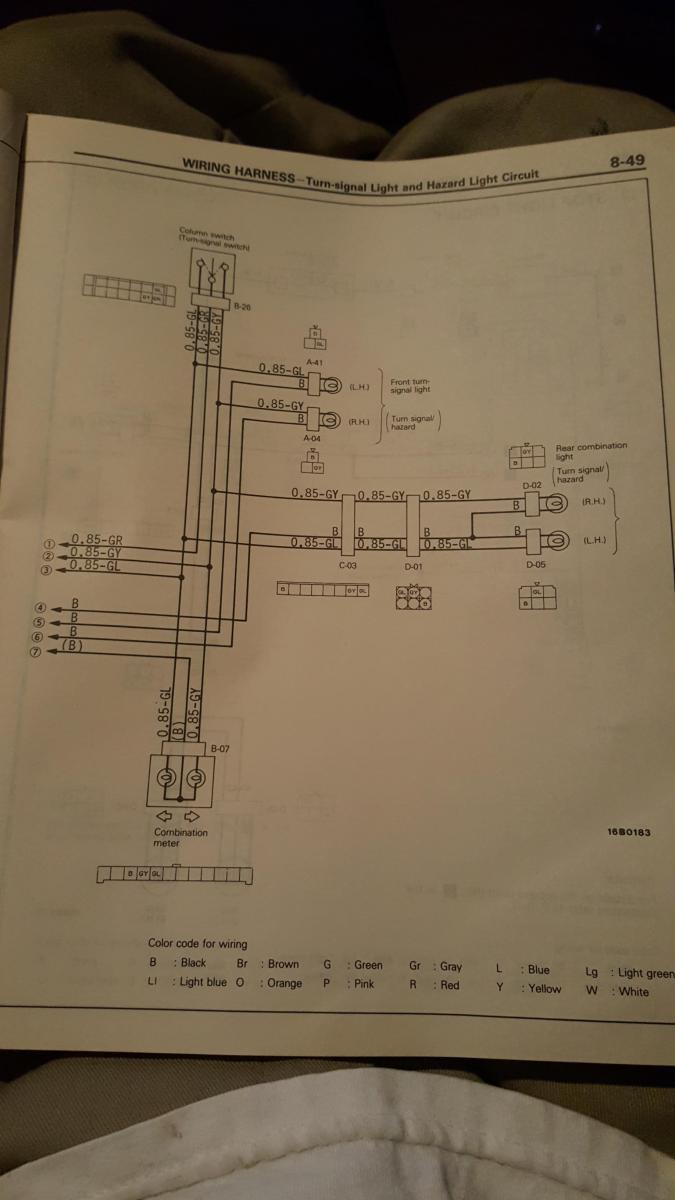

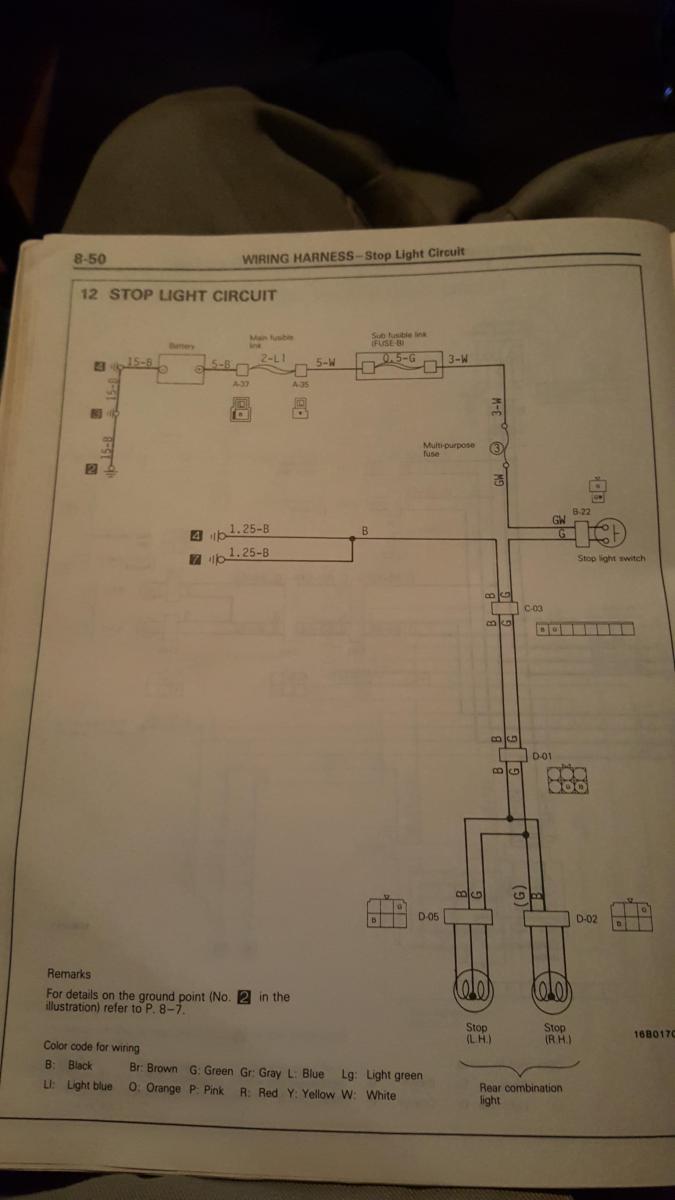

    These should have all you need, if not let me know I will upload more of the lighting schematics
    Click image for larger version.

Name:	head.jpg
Views:	29
Size:	67.9 KB
ID:	15967Click image for larger version.

Name:	tail.jpg
Views:	25
Size:	71.6 KB
ID:	15968Click image for larger version.

Name:	unnamed (2).jpg
Views:	24
Size:	49.9 KB
ID:	15970Click image for larger version.

Name:	unnamed1 (1).jpg
Views:	26
Size:	69.8 KB
ID:	15974Click image for larger version.

Name:	unnamed (3).jpg
Views:	24
Size:	61.4 KB
ID:	15971Click image for larger version.

Name:	unnamed (4).jpg
Views:	30
Size:	51.9 KB
ID:	15972Click image for larger version.

Name:	unnamed (1).jpg
Views:	26
Size:	96.6 KB
ID:	15969Click image for larger version.

Name:	unnamed.jpg
Views:	31
Size:	75.9 KB
ID:	15973
    Josh
    09 BMW 335i E92 Twin turbo
    89 Macrocab 4g63 Turbo swapped & Bagged: Build Thread

  9. #9

    Array
    Status
    Offline
    Join Date
    01-28-2012
    Posts
    170
    Location

    North Greensboro, Nc
    Vehicle

    1987 Mitsubishi Mighty Max
    Engine

    G63B
    Thanks buddy! Ended up being the combo switch. It was sending power, just not enough so it was very hard to track down the issue. Swapped out with one I found Junkyard diving yesterday and the instantly kicked on.
