Thread: Installing A/C Pics and Questions

  1. #1

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B

    Installing A/C Pics and Questions

    Click image for larger version.

Name:	IMG_0533.jpg
Views:	53
Size:	265.4 KB
ID:	15667Click image for larger version.

Name:	IMG_0534.jpg
Views:	51
Size:	281.0 KB
ID:	15668Click image for larger version.

Name:	IMG_0535.jpg
Views:	55
Size:	235.7 KB
ID:	15669Click image for larger version.

Name:	IMG_0536.jpg
Views:	52
Size:	302.8 KB
ID:	15670Click image for larger version.

Name:	IMG_0538.jpg
Views:	62
Size:	156.9 KB
ID:	15671

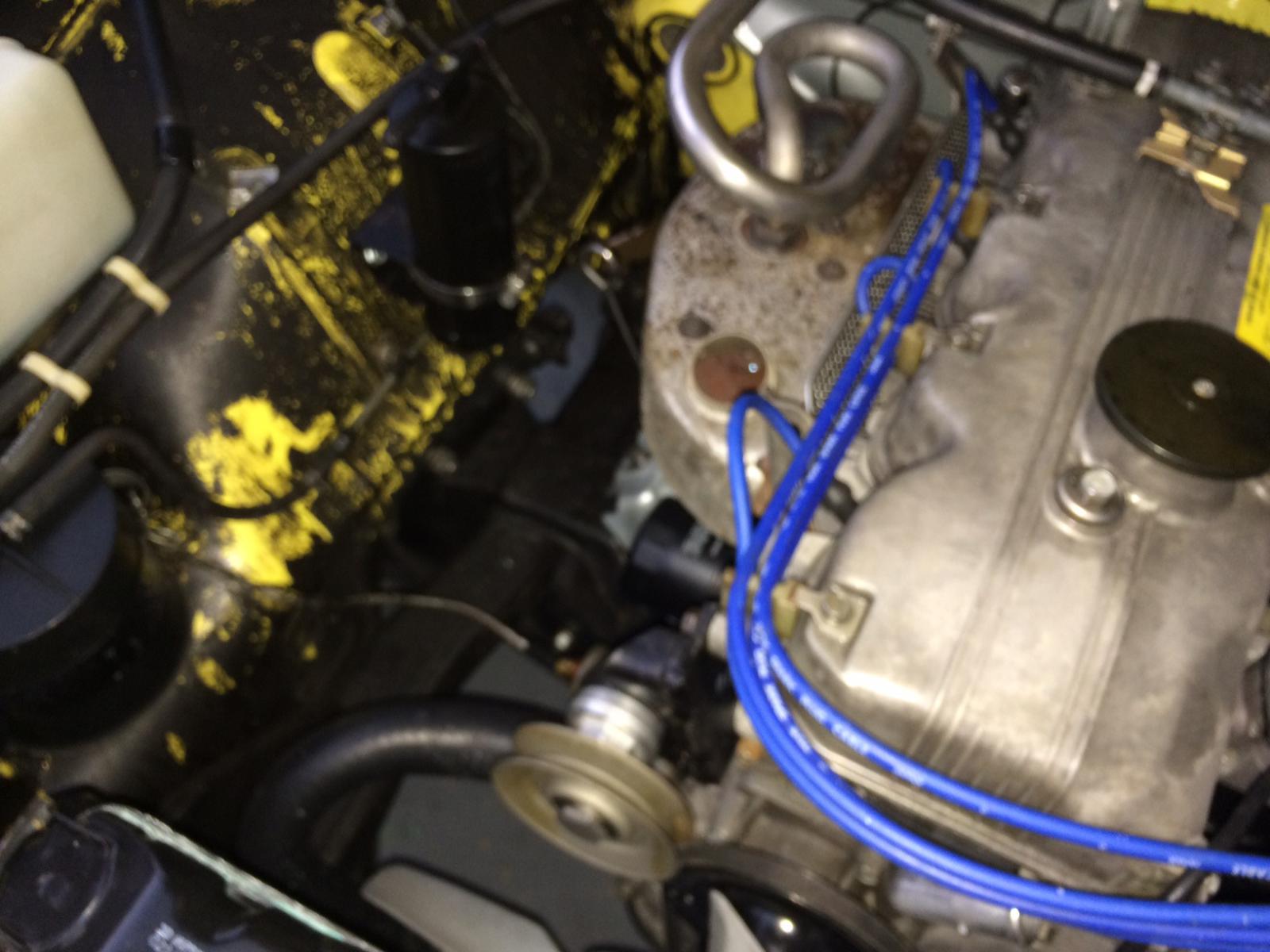

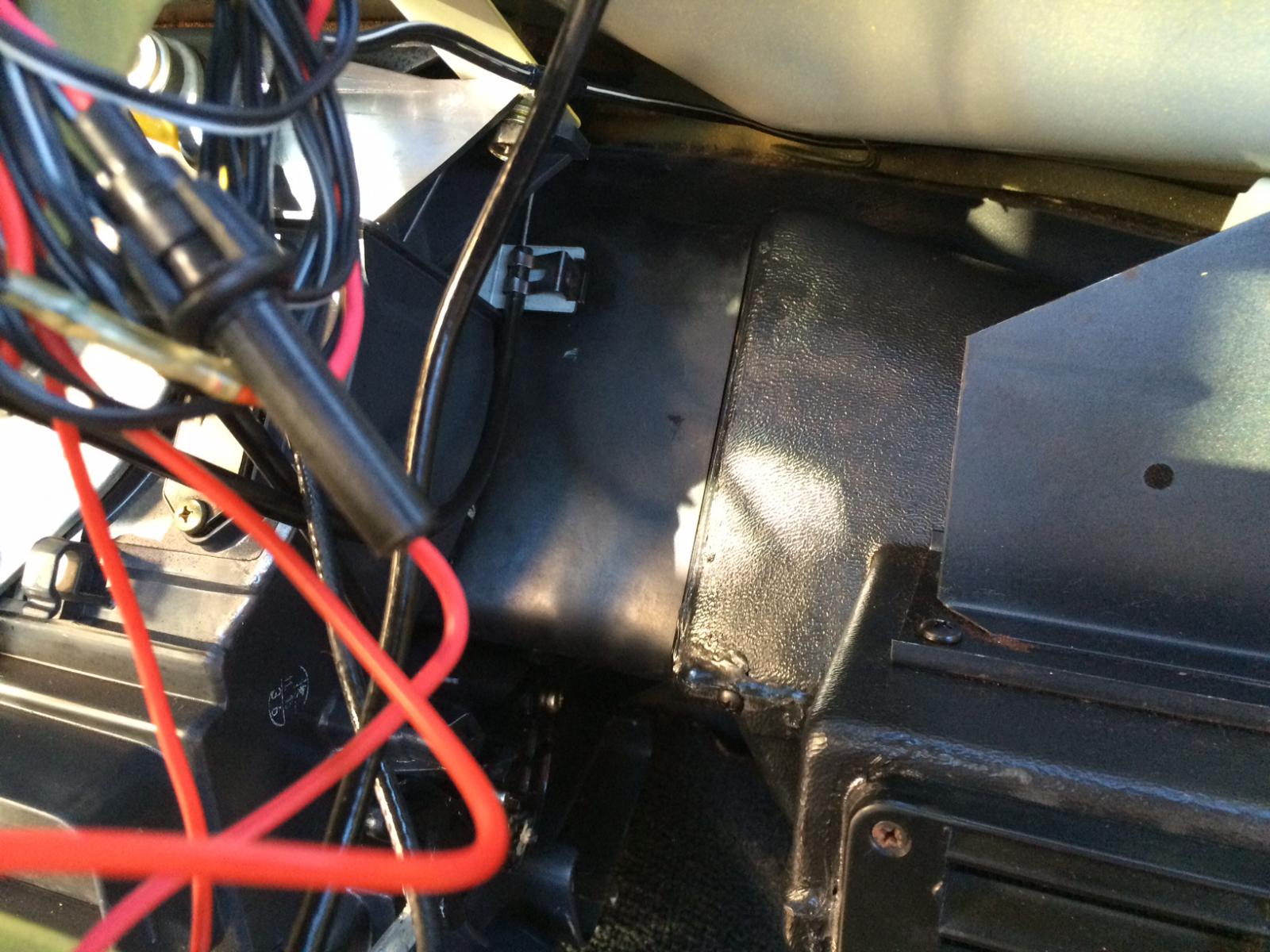

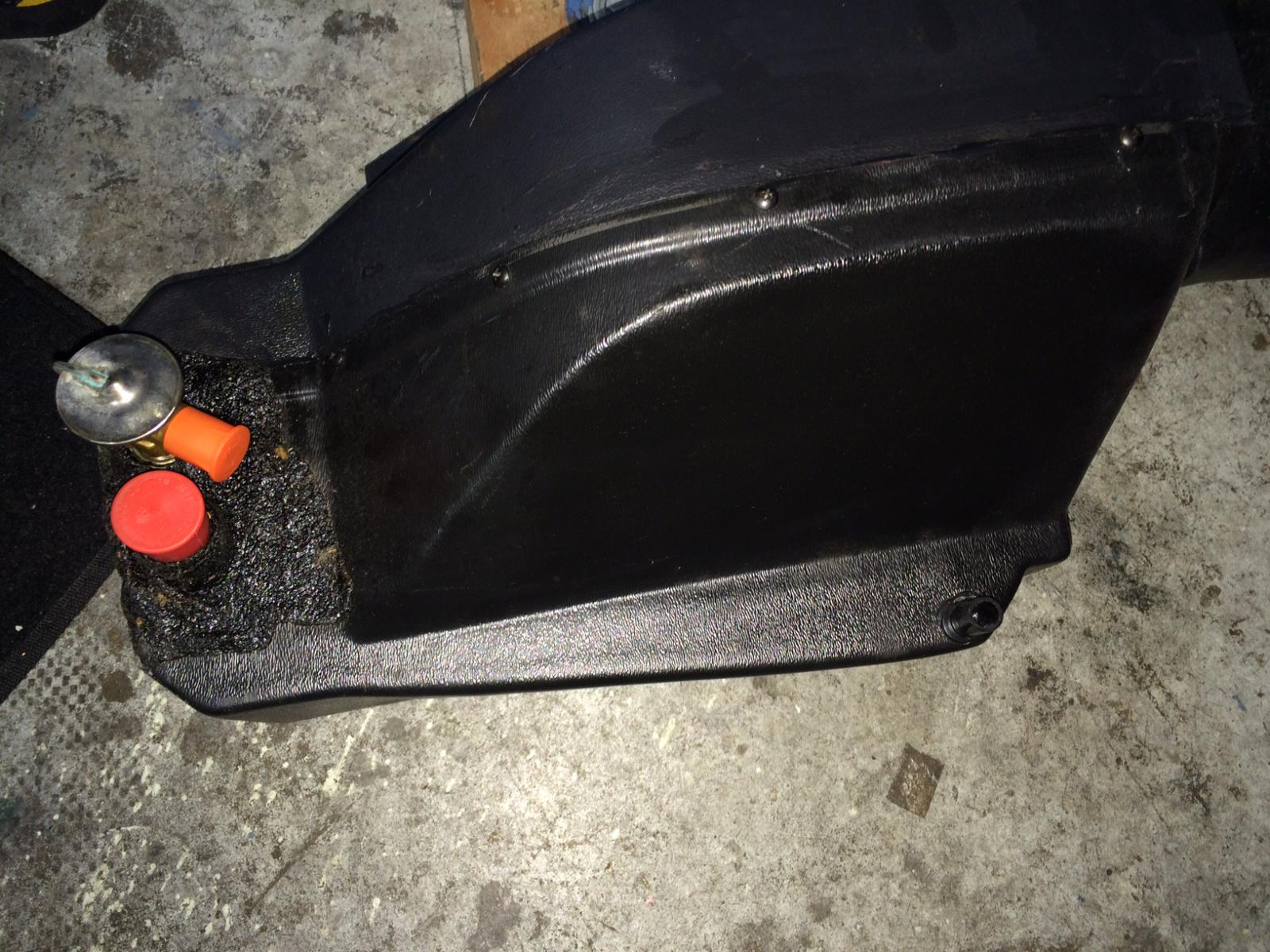

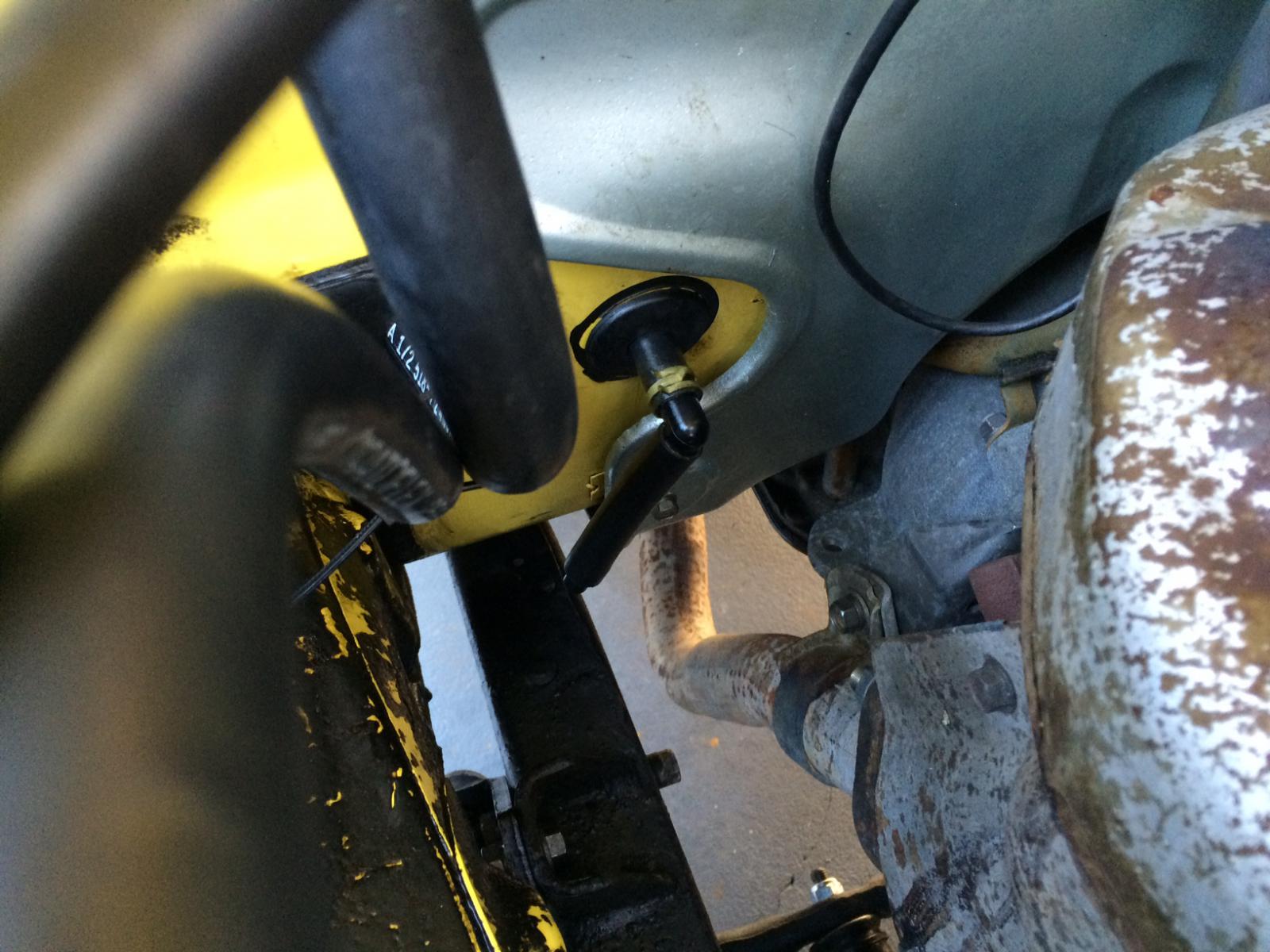

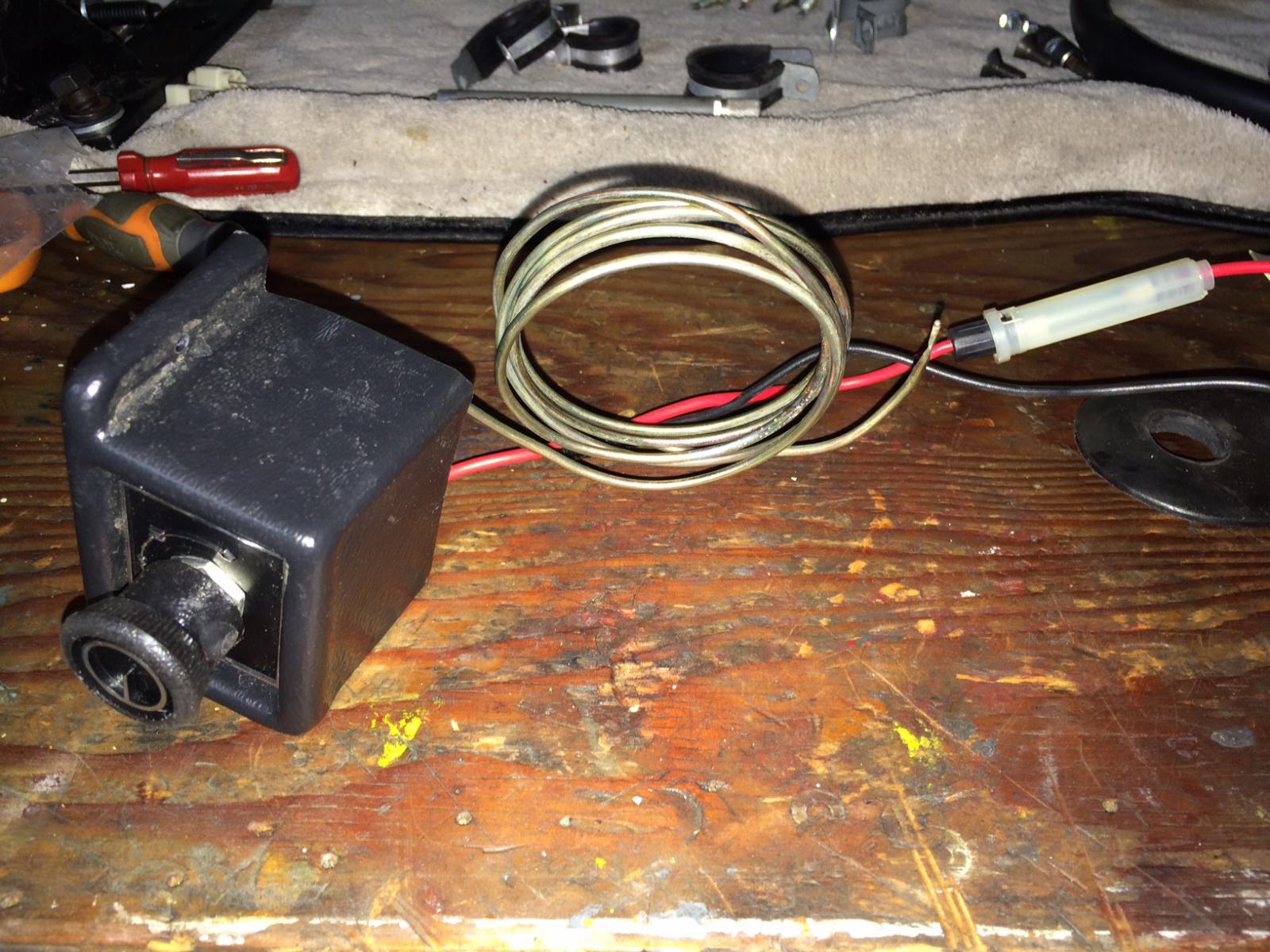

    The 1st. pic. That coiled wire? Do I just unwind it? The evaporator only has those two connections. Is that it?

    The install is going well.

    Hutch

  2. #2

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    2,244
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B
    O.k. That coiled wire is the thermal sensor - feed it into the cooler core in the cabin and tuck the end of it into the fins (closer to the centre of it the better). Depending on where you put the remote thermostat control, whatever isn't inside the A/C case will need to be covered in an insulated sleeve to protect it and prevent any heat from outside of the cooler case from messing with the temp signal. Try to keep the route between the thermostat control and the cooler case as short as possible. If it looks like you have miles of it I think it will be o.k. to keep some of it coiled up in the casing but maybe put a layer of sponge foam anywhere around where the thermostat wire may come in contact with another surface. This will safeguard the wire from getting damaged from constant vibration and movement.

  3. #3

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B
    Thank you for the detailed information.

    More pics to come.

  4. #4

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B

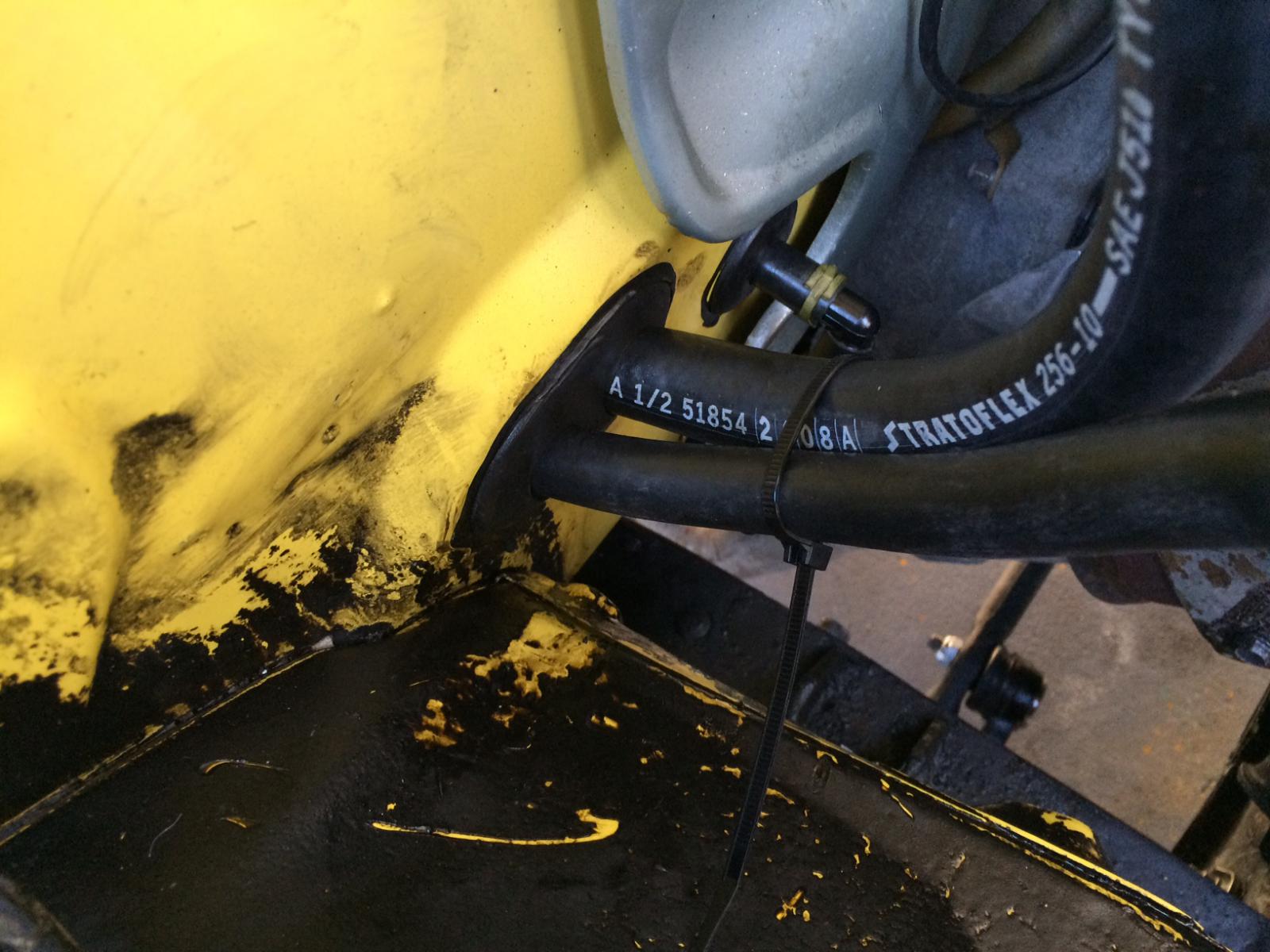

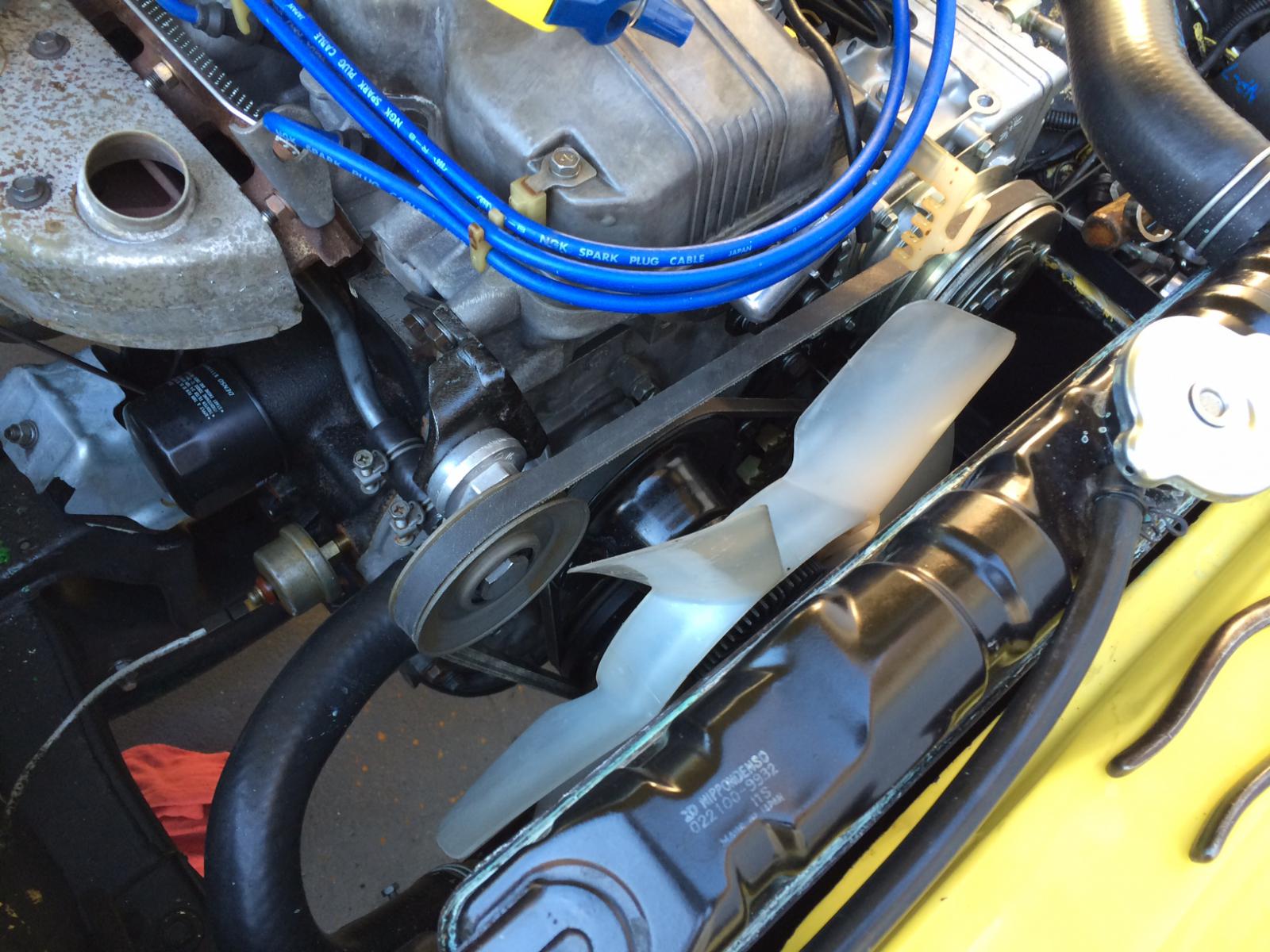

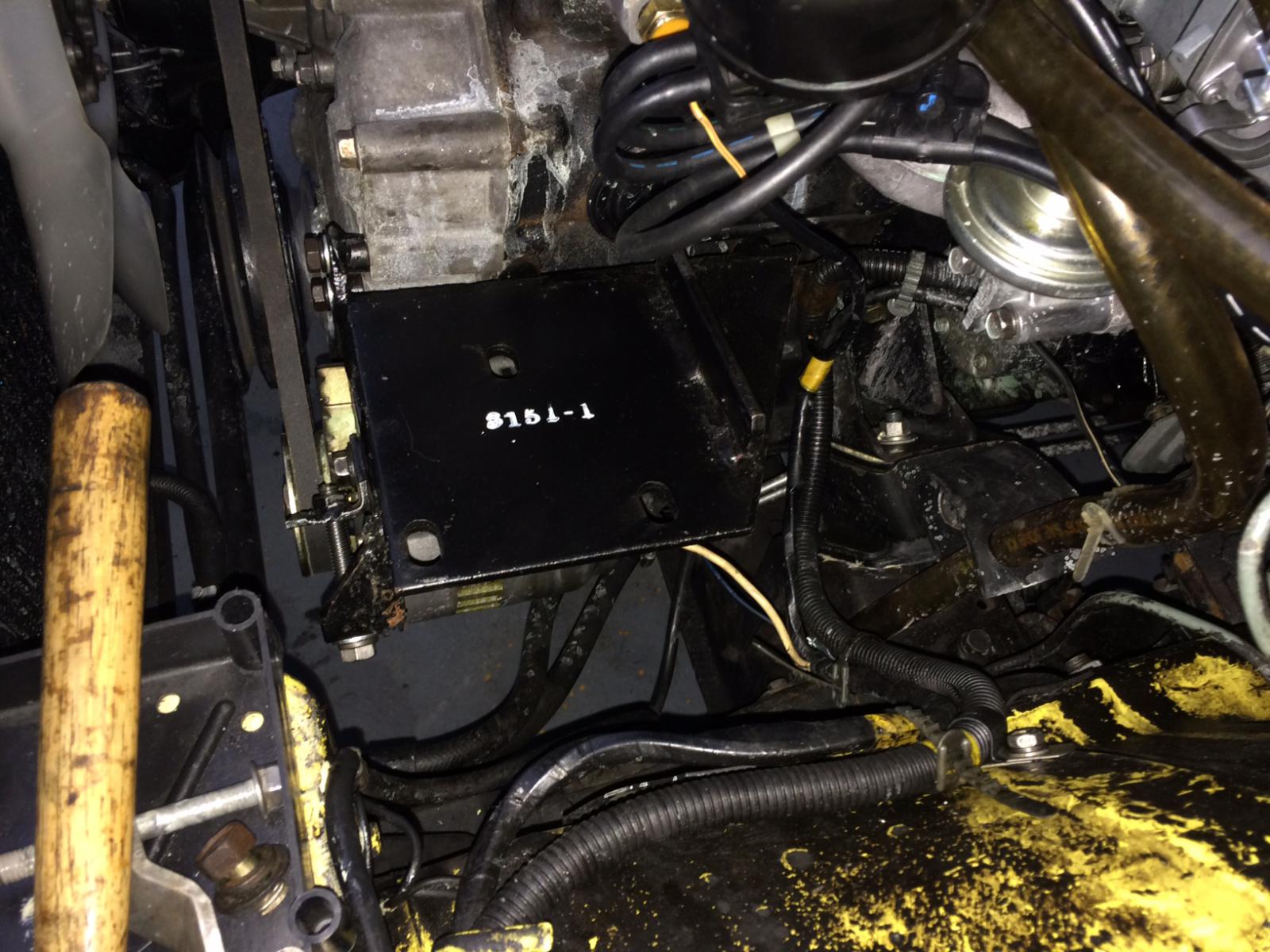

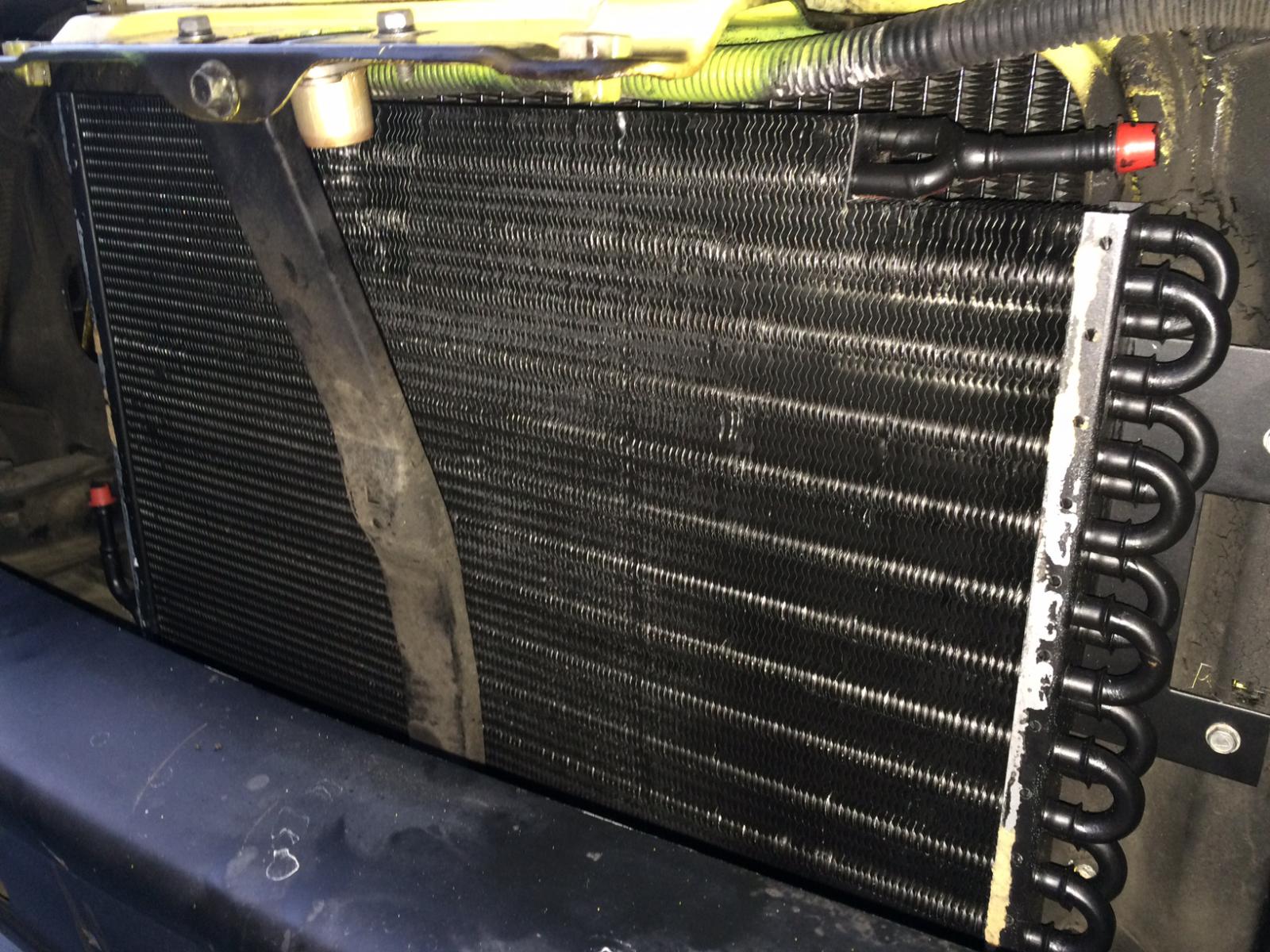

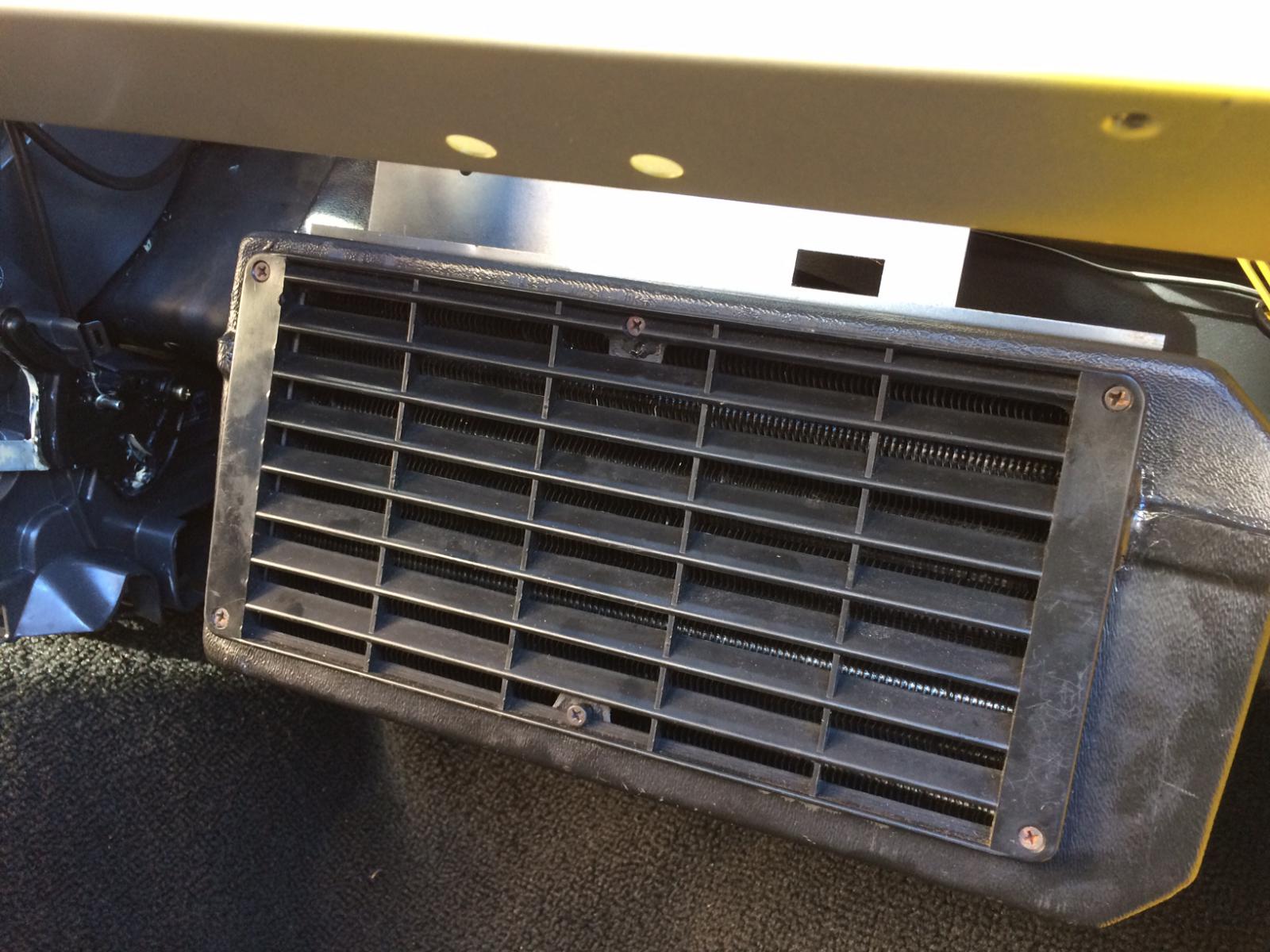

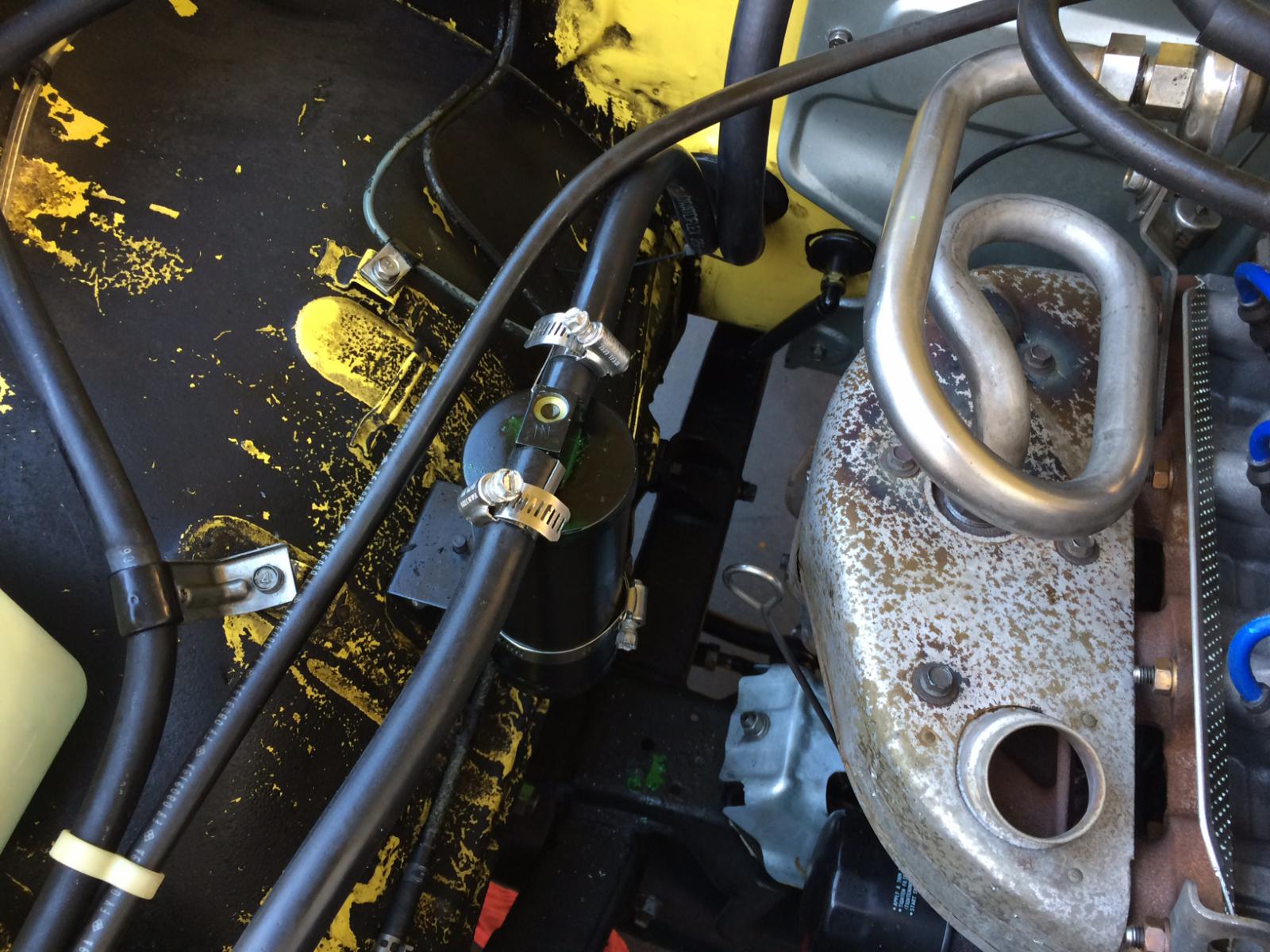

    Click image for larger version.

Name:	IMG_0539.jpg
Views:	41
Size:	203.4 KB
ID:	15683Click image for larger version.

Name:	IMG_0540.jpg
Views:	58
Size:	281.8 KB
ID:	15684Click image for larger version.

Name:	IMG_0541.jpg
Views:	46
Size:	232.6 KB
ID:	15685Click image for larger version.

Name:	IMG_0542.jpg
Views:	48
Size:	251.9 KB
ID:	15686Click image for larger version.

Name:	IMG_0543.jpg
Views:	46
Size:	234.2 KB
ID:	15687Click image for larger version.

Name:	IMG_0544.jpg
Views:	44
Size:	199.8 KB
ID:	15688Click image for larger version.

Name:	IMG_0545.jpg
Views:	43
Size:	187.3 KB
ID:	15689Click image for larger version.

Name:	IMG_0546.jpg
Views:	48
Size:	219.3 KB
ID:	15690Click image for larger version.

Name:	IMG_0547.jpg
Views:	43
Size:	226.4 KB
ID:	15691

  5. #5

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B

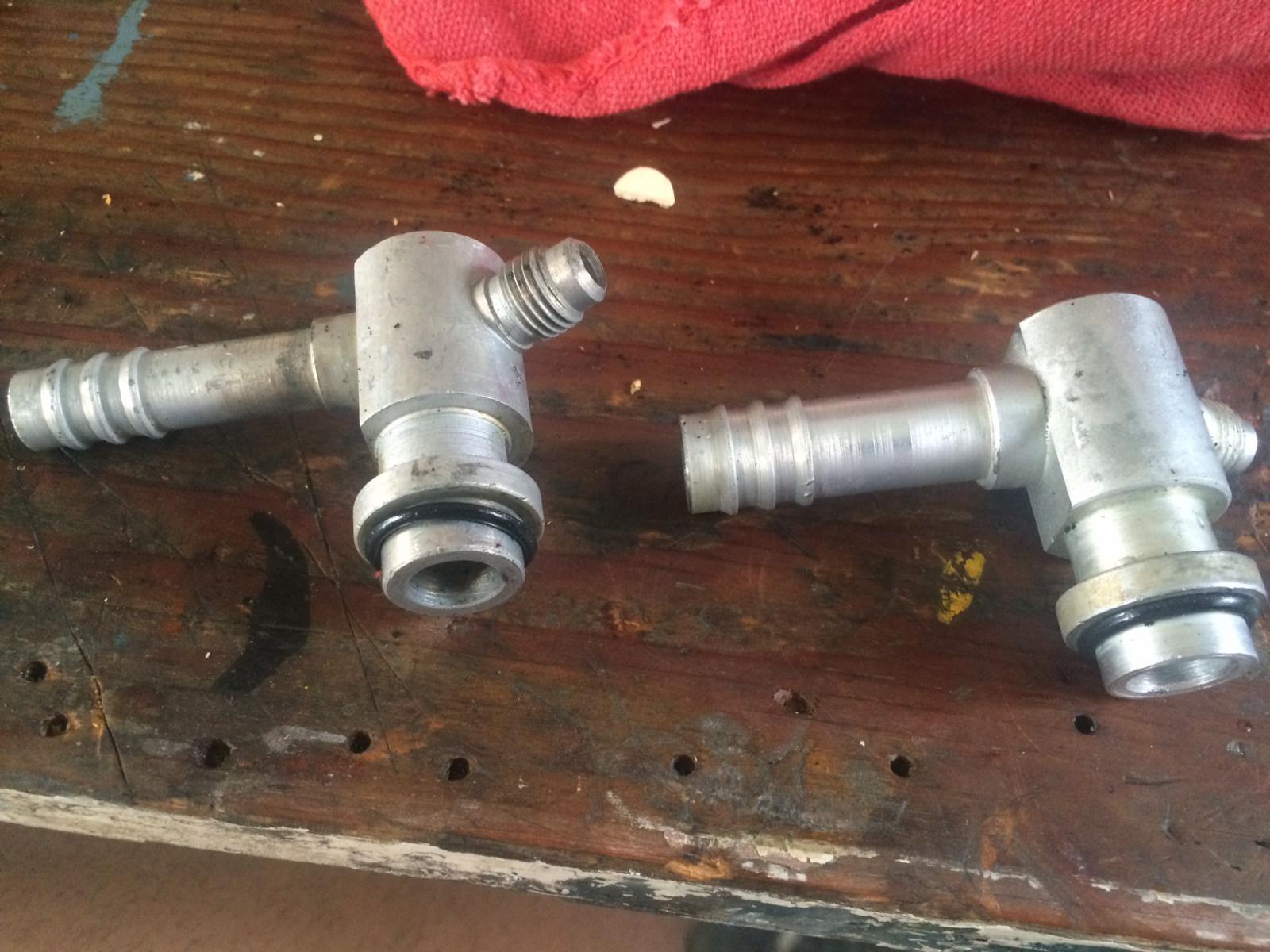

    The 1st. pic. Guys, does anyone have those fittings? I actually need the larger size one.
    Thanks.

  6. #6



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,113
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B

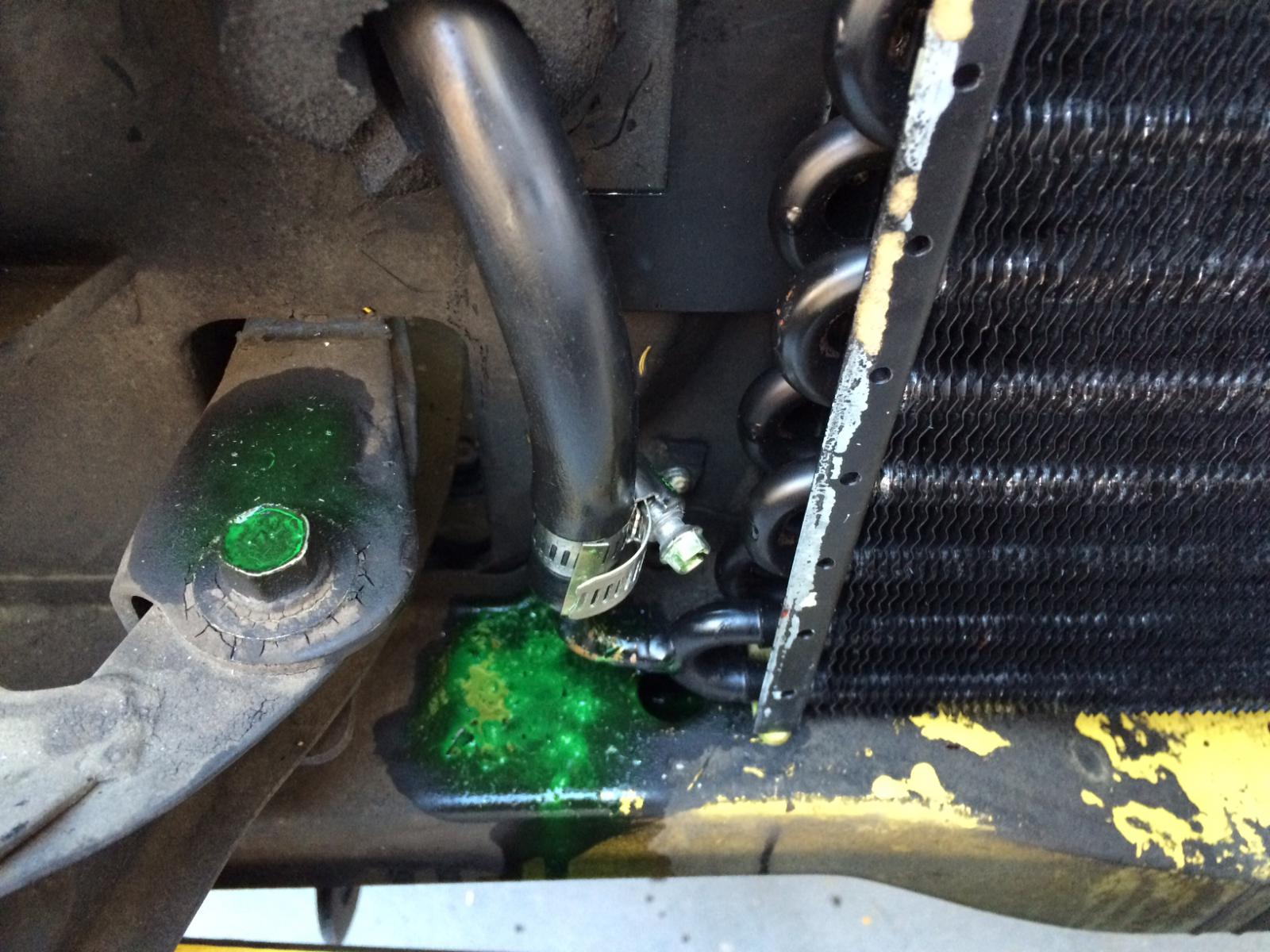

    Couple things - the hoses should be crimped to the fittings, not hose clamps on the high side especially. If you have to use hose clamps, get the fuel injection ones to prevent the hose from damage. You also should use the new style Teflon lined hose so that you can run 134A. The thermostat control gets spliced into the compressor clutch wire to turn the compressor on and off. You might also change out the drier for one that works with 134A. I have a couple of those style compressors laying around - I will see about getting that fitting off of one for you - it will probably have a hose on it, but I am not sure.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  7. #7

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B
    All the clamps came with the system. Are you saying those hoses will not work with 134a?
    It's not heater hose. I had to use a hacksaw to cut it to length. It is incredibly thick.
    Last edited by hutch; 02-10-2016 at 09:43 PM.

  8. #8

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    2,244
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B

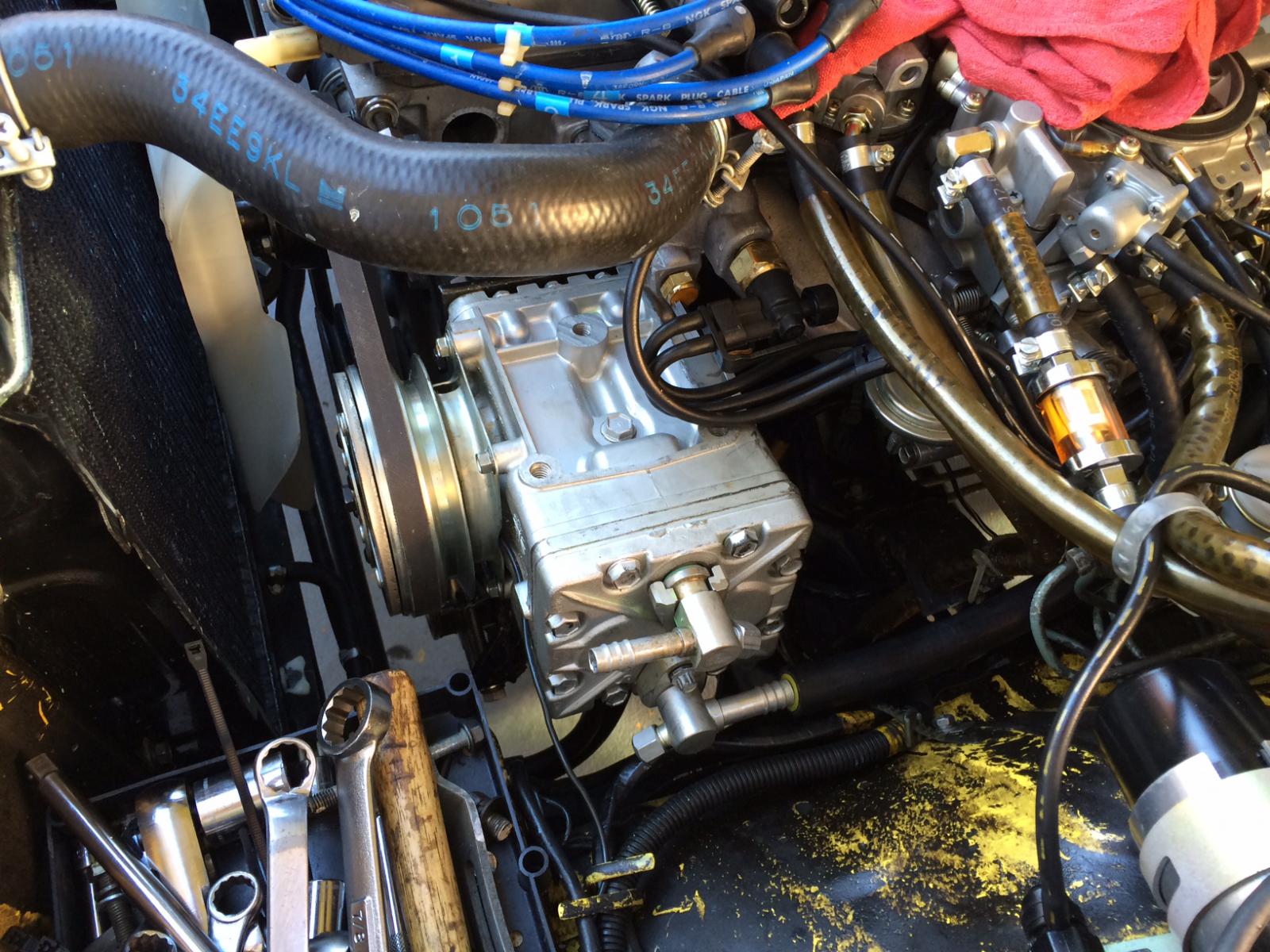

    Holy shite - that is a massive compressor. I'm gathering it is a piston type. Same with the cooler unit in the cab. It is overkill for a small cabin but there's nothing like having really cold A/C. If it's designed the same way as my Air International unit, it will only work on the recycling air vent control. After pulling mine apart and replacing all the case seals and cleaning out the dirt and dog hair () I figured out how the whole thing worked. I think if you set the vent controls to fresh with the A/C on, the core would ice up. Are you going to attempt to gas it yourself? I've seen DIY regas kits and they are quite cheap. I am considering trying one out if there aren't any regulations against it being freighted to Oz, but if anyone has tried out a kit I'd be interested in the what's and how's of using one.

  9. #9

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B
    Thanks for all the info guys. It is much appreciated.

  10. #10

    Array
    Status
    Offline
    Join Date
    09-26-2014
    Posts
    147
    Location

    Ca
    Vehicle

    1993 Dodge Ram 50
    Engine

    4G64
    & With respects,
    I would not worry about the clamps, as the kit is equipped with
    these..

    Those little hook tab looks simple enough, but if installed correctly (& I am sure they were ,
    On new (NOS) hoses & barbs, unless ' High Side' pressures exceed 275 PSI with '134 ( UNLIKELY ),
    Scratch the 'clamp/blowing line issue' off the worry list.
    ---Caveat's---
    1) Cooling system Upgrade, ... at the VERY least a fan shroud...
    2) High pressure 'clutch cutout' switch , did not see one in the kit?

    More to follow as Your install progresses

  11. #11

    Array
    Status
    Offline
    Join Date
    09-26-2014
    Posts
    147
    Location

    Ca
    Vehicle

    1993 Dodge Ram 50
    Engine

    4G64
    .......

    Last edited by claych; 02-11-2016 at 06:12 PM. Reason: can't resize pic, can't delete forum software iniated double post

  12. #12

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    2,244
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B
    What kind of thermo fan came with the kit for the A/C? The old style 4 blade units aren't terribly efficient and they're bulky.

  13. #13

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B
    No fan but I did just purchase the old style you speak of for $45.00. Can you recommend any?

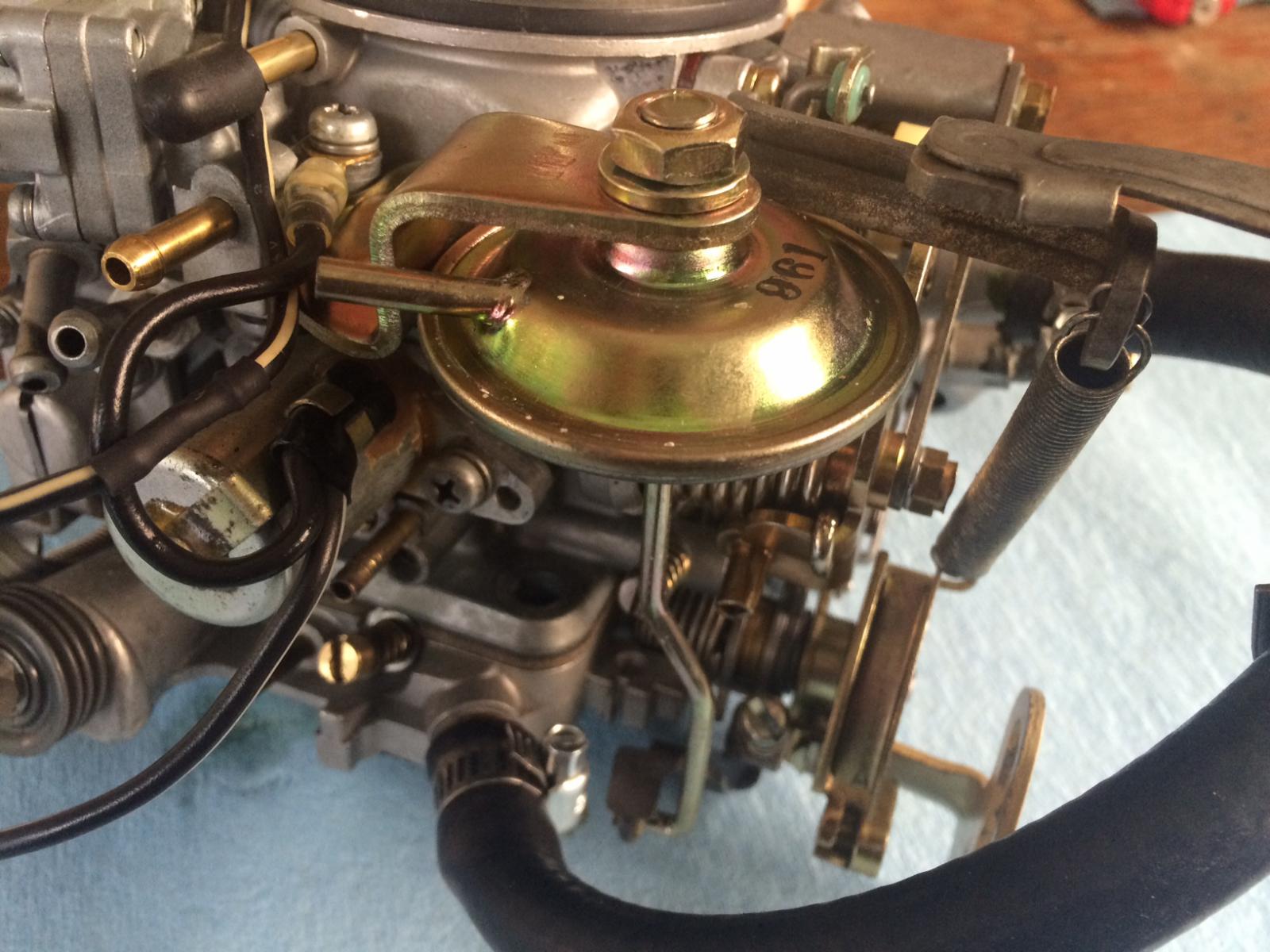

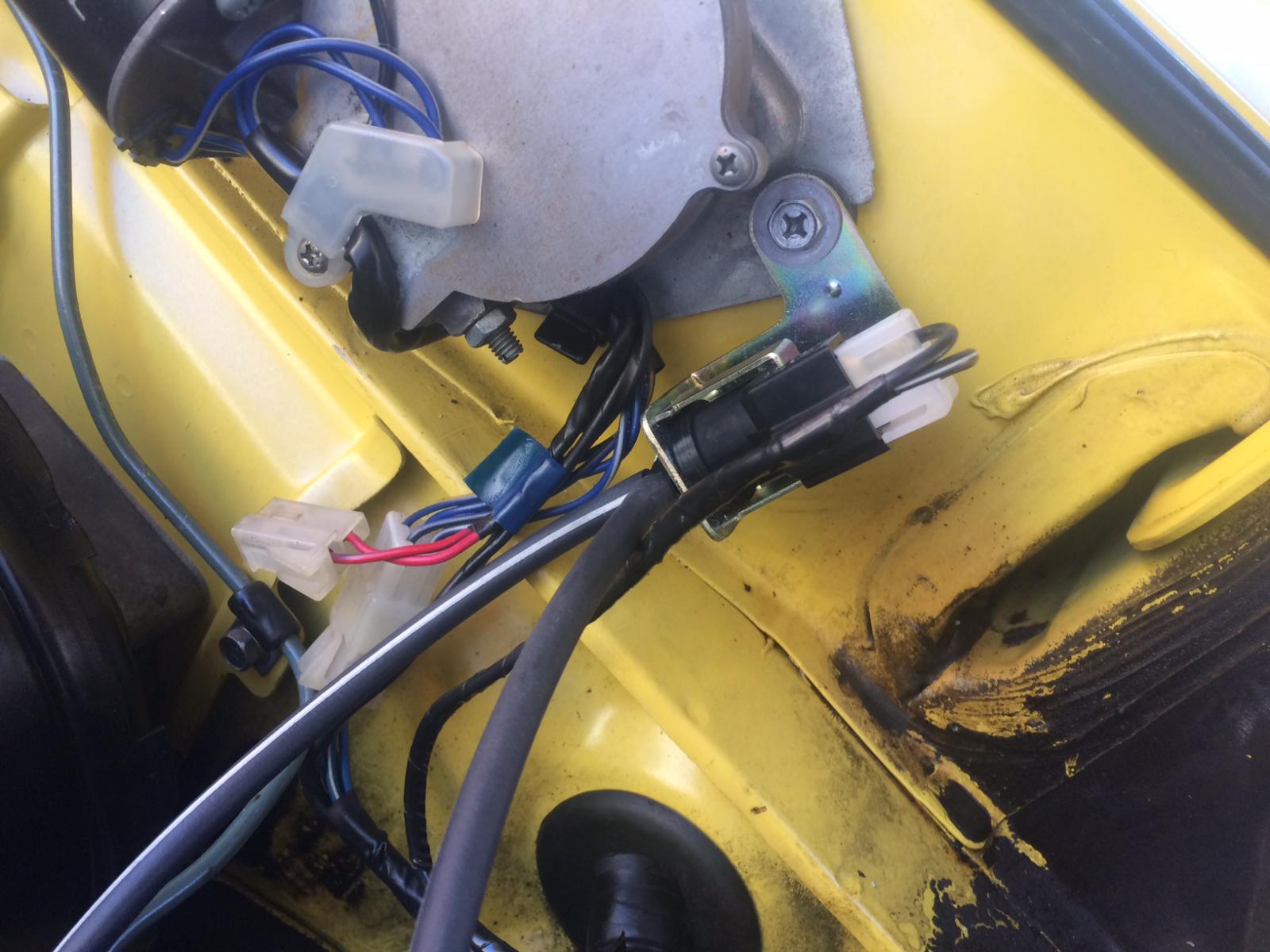

    Here are some more pics of the dash pot and switch. Hooked everything up and everything works great. Except I had to wire like it had
    for 1.6. Everything was there in the wiring harness that came with it. The switch is now touching the wiper motor body, I guess for a ground.

    Click image for larger version.

Name:	IMG_0548.jpg
Views:	41
Size:	196.0 KB
ID:	15703Click image for larger version.

Name:	IMG_0550.jpg
Views:	42
Size:	173.9 KB
ID:	15704

  14. #14

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    2,244
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B
    Use any slimline front mounted fan - bigger the better. You should be able to use an 11 or 12" fan. They're designed to work in both push and pull and they're pretty cheap. Something like this will be perfect - http://www.ebay.com/itm/2X-UNIVERSAL...3D400423612998

    2 for $40? - bargain! You can eliminate the factory pump driven fan and free up some engine bay space. Lots of advantages to using them - and these ones are pretty lol

  15. #15

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B
    Question: Does this kit come with a high pressure switch? This one did not. If so, which one can I use and where would I splice it in?

    Thanks,

  16. #16



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,113
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    Actually it would be a low pressure switch for the original system to prevent damage running the compressor without refrigerant. It would be located on the output fitting on the high side of the compressor. You can also get an inline switch that is both low and high pressure cutoff to prevent high pressure damage. You may also want to change out the expansion valve on the evaporator under the dash for one sized to R134A - the orifices are different sizes for R12 and R134a and will affect how the A/C cools.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  17. #17

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B
    Quote Originally Posted by pennyman1 View Post
    Actually it would be a low pressure switch for the original system to prevent damage running the compressor without refrigerant. It would be located on the output fitting on the high side of the compressor. You can also get an inline switch that is both low and high pressure cutoff to prevent high pressure damage. You may also want to change out the expansion valve on the evaporator under the dash for one sized to R134A - the orifices are different sizes for R12 and R134a and will affect how the A/C cools.
    Thanks for the info. Very helpful.

  18. #18

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B
    BTW. What fan shroud(s) would work on a 1st. gen? Anyone out there have one for sale?

  19. #19



    Array
    Status
    Offline
    Join Date
    03-16-2011
    Posts
    3,614
    Location

    Sacramento, CA
    Vehicle

    1979 Dodge D-50
    Engine

    Chevy V6
    Get one for a early Montero. There mettle and should bolt on.
    Members come and members go, But the board keeps track of them.
    Check out the Fear Monger by
    clicking HERE.

    The MightyRam50 site is sponsored in part by On Site Concrete Inc.

  20. #20

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B
    I picked up an electric fan. Please see photo. I'm not going to use the water temp control but want to wire it to the compressor. When the clutch engages it switches on the fan. Which wire where?Click image for larger version.

Name:	electric fan..jpg
Views:	53
Size:	41.6 KB
ID:	15776

  21. #21

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    2,244
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B
    I think you would need the fan to be constantly powered once you turn the A/C on. The compressor clutch is controlled separately to regulate the system. Running it from a water temp sender wouldn't make sense as the fan is trying to discharge heat from the A/C system not the engine.

  22. #22

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B
    Quote Originally Posted by geezer101 View Post
    I think you would need the fan to be constantly powered once you turn the A/C on. The compressor clutch is controlled separately to regulate the system. Running it from a water temp sender wouldn't make sense as the fan is trying to discharge heat from the A/C system not the engine.
    Well, when the clutch engages on the compressor, the air conditioning is operating. Pin 85 or 86 will need to be spliced to that wire but which one? I only want the fan running when the A/C is on.

  23. #23

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    2,244
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B

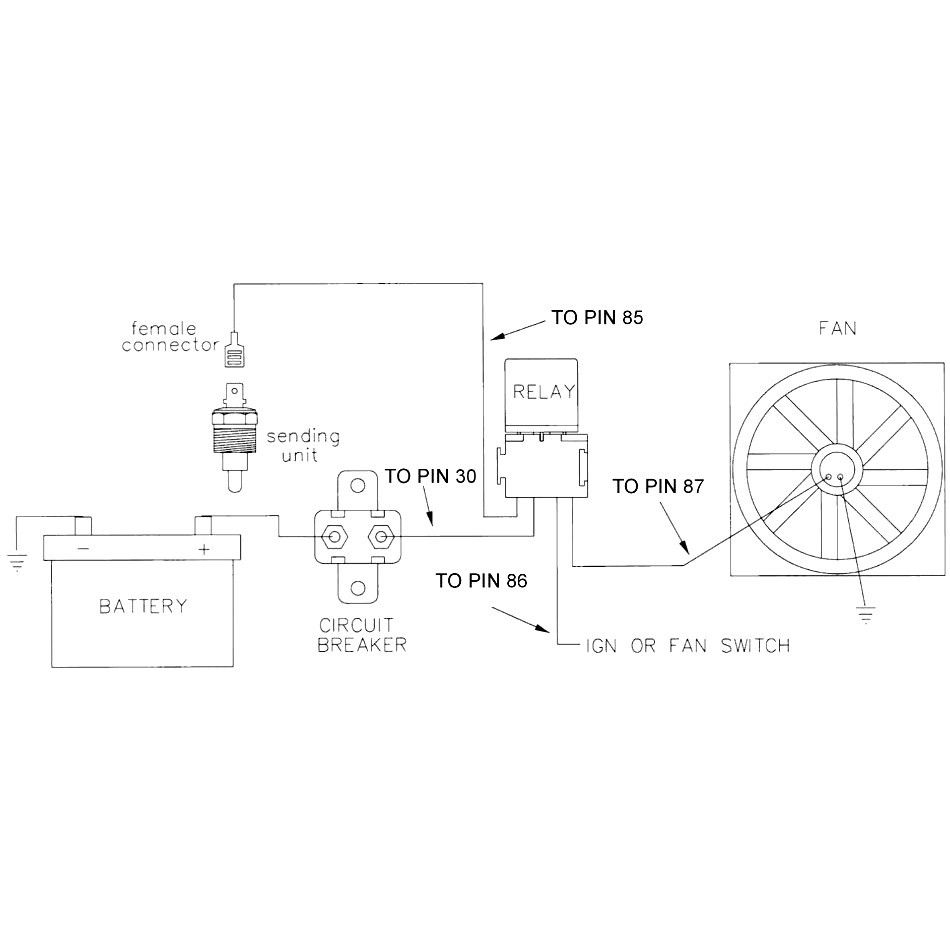

    Ground the wire running from pin 85 and locate power coming out of the A/C on switch. Run a wire from that point to pin 86 and you should be ready to go.

  24. #24

    Array
    Status
    Offline
    Join Date
    09-26-2014
    Posts
    147
    Location

    Ca
    Vehicle

    1993 Dodge Ram 50
    Engine

    4G64
    ^^^
    Agreed, that would be the simplest hook up.

  25. #25

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B
    Roger. Thank you guys.
