Thread: Need help hooking up tachometer

  1. #1

    Array
    Status
    Offline
    Join Date
    01-13-2016
    Posts
    36
    Location

    visalia,California
    Vehicle

    1991 Mitsubishi Mighty Max
    Engine

    4G64

    Need help hooking up tachometer

    I have an aftermartket tachometer that id like to hook up but i have no idea how to do so, i figured id watch some youtub videos but id rather have a direct answer for my vehicle. Also under the hood it says the rpm's at "curb idle" should be "750+100 rpm" and im not so sure what that means, i think im idling a little high probably 900-1000 but i also have yet to set ignition timing since replacing the head gasket so i have to do that next, anyways thanks in advanced for the help everything is much appreciated😃

  2. #2

    Array
    Status
    Offline
    Join Date
    01-13-2016
    Posts
    36
    Location

    visalia,California
    Vehicle

    1991 Mitsubishi Mighty Max
    Engine

    4G64

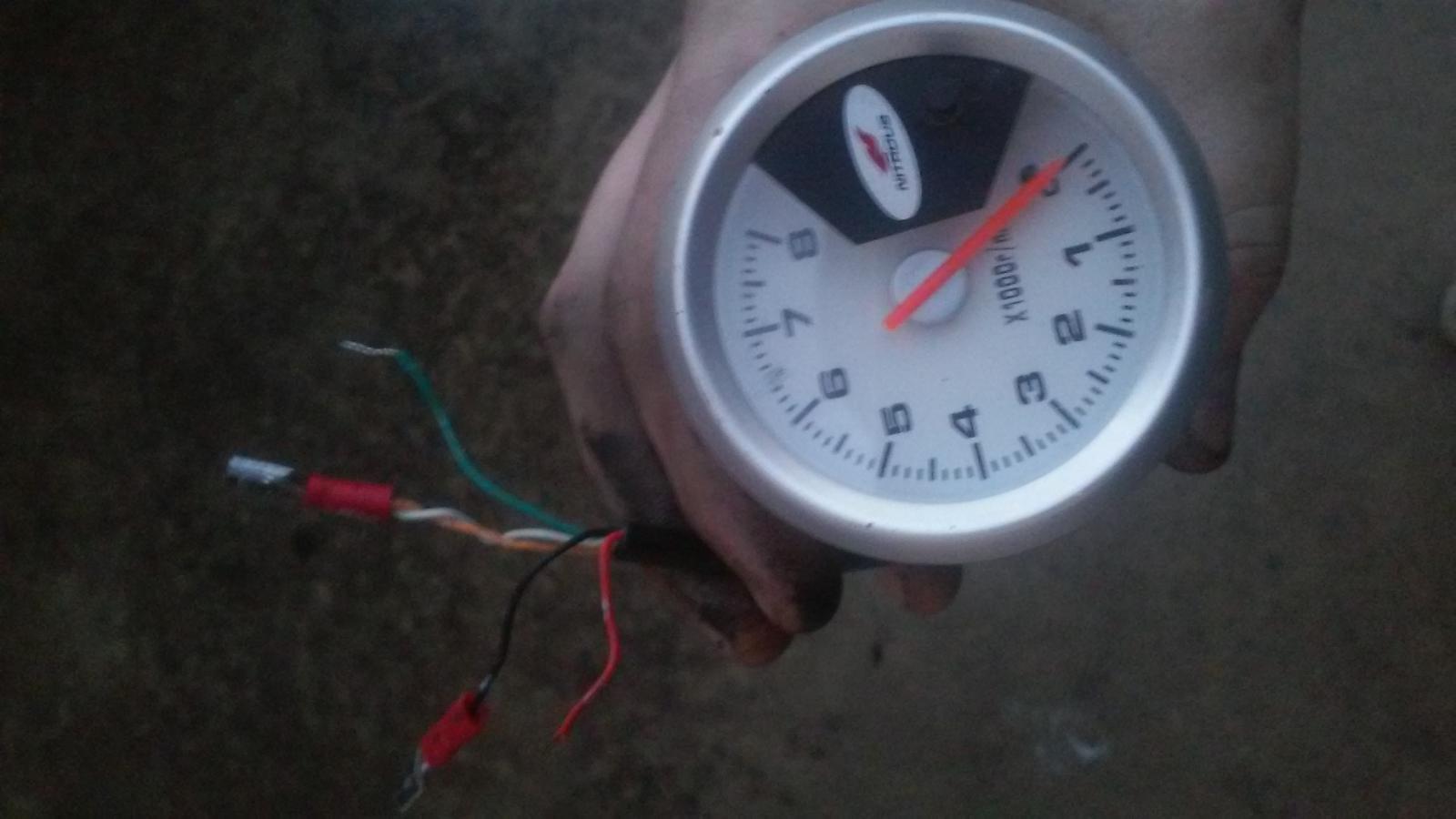

    Heres the tach, its nothing special but good thing i pulled it from my 87 civic EA before i sold it or else id be SOL because i dont have the funds for a new one haha
