    Wiring issues

    Basically on the passenger side engine bay there are two wire connectors that i cant find where they hook up at all, i plan on doing smog within the next 5 days so any help would be greatly appreciated, thanks in advance

  2. #2

    Array
    Status
    Offline
    Join Date
    01-13-2016
    Posts
    36
    Location

    visalia,California
    Vehicle

    1991 Mitsubishi Mighty Max
    Engine

    4G64

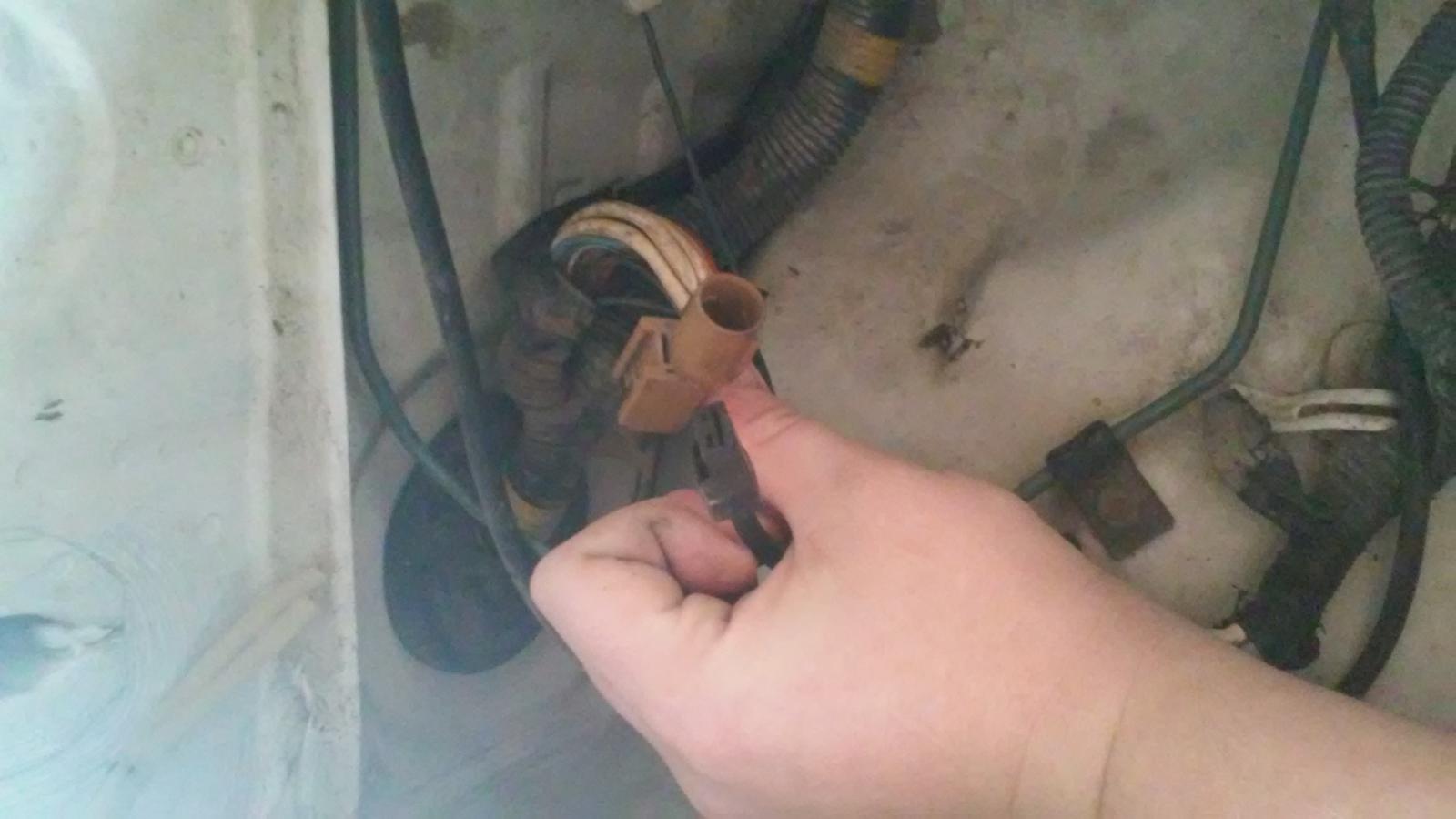

    Click image for larger version.

Name:	20160117_114557.jpg
Views:	27
Size:	94.0 KB
ID:	15457

  3. #3

    Array
    Status
    Offline
    Join Date
    01-13-2016
    Posts
    36
    Location

    visalia,California
    Vehicle

    1991 Mitsubishi Mighty Max
    Engine

    4G64

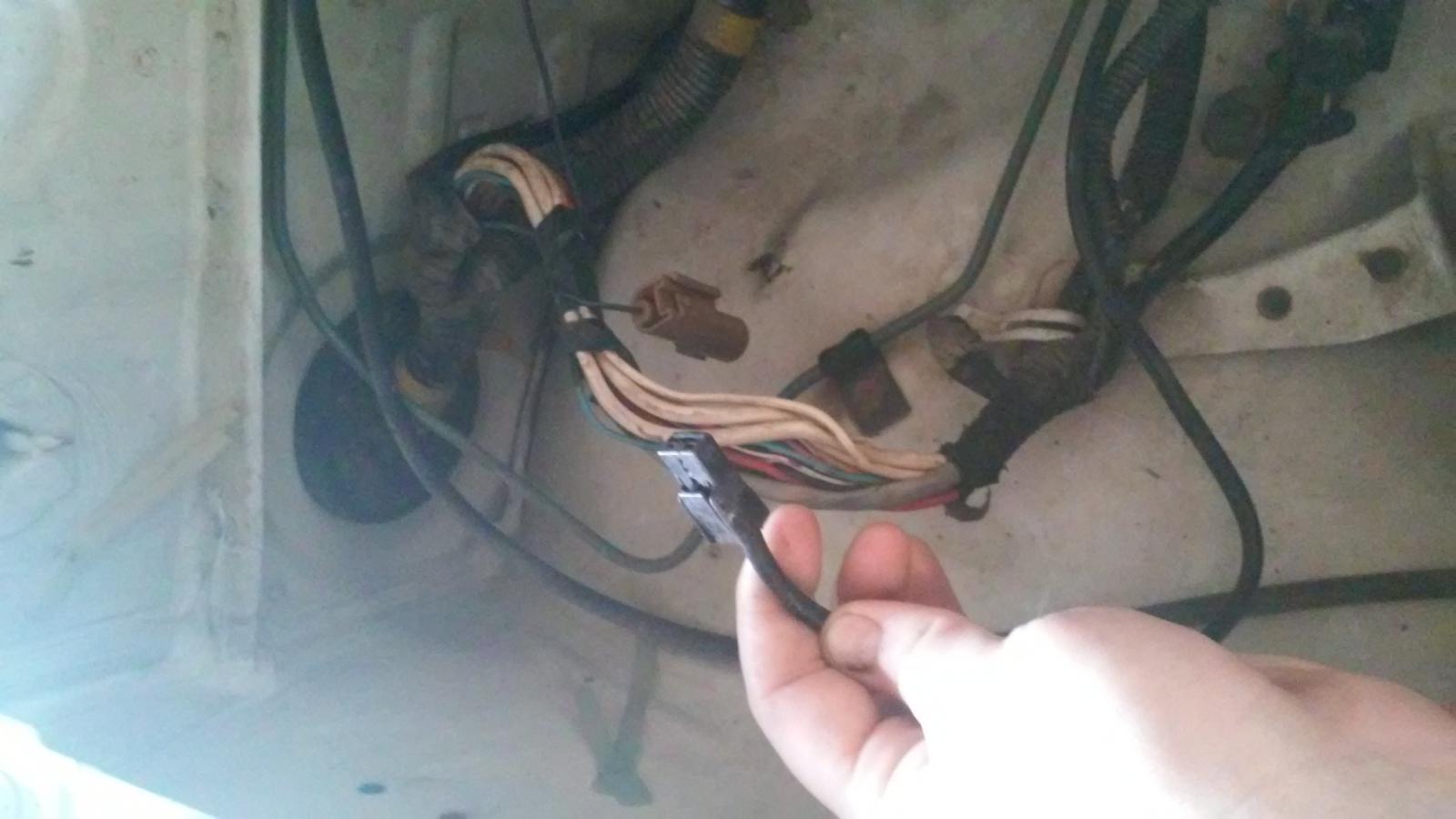

    Click image for larger version.

Name:	20160117_114542.jpg
Views:	44
Size:	99.4 KB
ID:	15460

  4. #4

    Array
    Status
    Offline
    Join Date
    01-13-2016
    Posts
    36
    Location

    visalia,California
    Vehicle

    1991 Mitsubishi Mighty Max
    Engine

    4G64

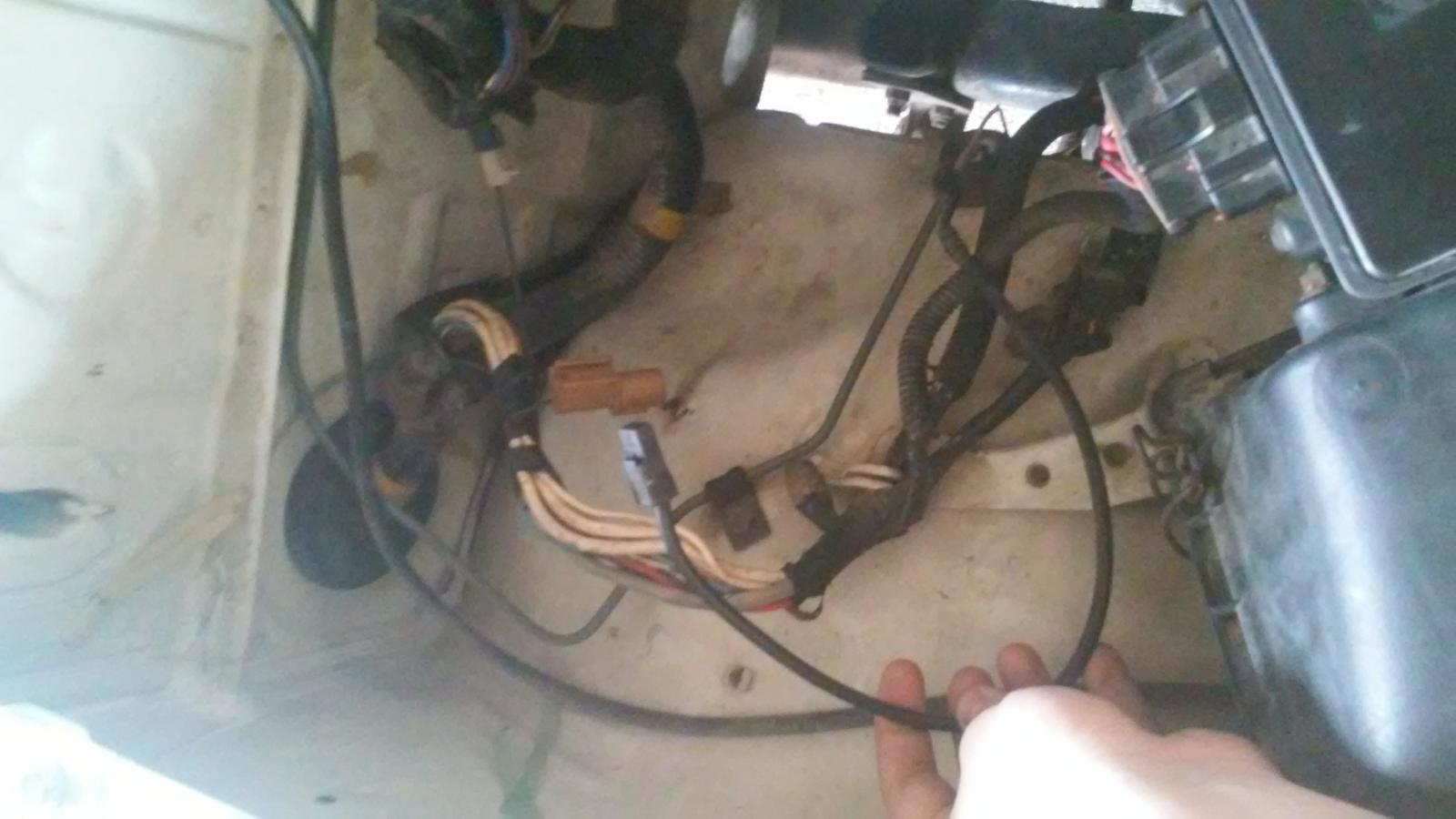

    Click image for larger version.

Name:	20160117_114659.jpg
Views:	43
Size:	106.1 KB
ID:	15463

  5. #5


    Array
    Status
    Offline
    Join Date
    04-04-2011
    Posts
    686
    Location

    Columbus, OH
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    Other
    The Brown one is the Timing Mode Wire that is grounded to put the ECU in "Timing Mode" so you can set the Base Timing at the distributor. It plugs into NOTHING, It should have a dust cap....The smog guy will use it to check your timing.

    The other one looks like the Oil Pressure?? Yep looking at it enlarged, single tang plug, Oil Pressure Sender.

    there are no 2 plugs alike under the hood, you can't mix anything up. however it's easier the first few times to use some light colored electrical tape and a sharpie to label everything. after a few times, you'll remember...
