Thread: dome and thurd brake light

  1. #1

    Array
    Status
    Offline
    Join Date
    09-10-2015
    Posts
    19
    Location

    San Jose, Costa Rica
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    Other

    dome and thurd brake light

    Hi everybody! I got a 1988 4wd Mighty max with D4BX hyundai porter engine swap non turbo, the dome light works, but later the floor was changed and then they cut the light wires, i need a fully diagram of the wires, from the battery to the light... All the sensor wires and light wires are ok but under the dashboard there's one yellow//white wire cutted... I dont know where's the other wire.... Anybody can help me?

  2. #2

    Array
    Status
    Offline
    Join Date
    09-30-2012
    Posts
    373
    Location

    Vanessa, Ontario
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    Here is a dome light diagram for a 1988 Dodge Ram 50 and a brake light diagram. Hope it helps you.Click image for larger version.

Name:	brake lights.jpg
Views:	89
Size:	65.9 KB
ID:	15402Click image for larger version.

Name:	Dome light.jpg
Views:	89
Size:	86.0 KB
ID:	15403

  3. #3

    Array
    Status
    Offline
    Join Date
    09-10-2015
    Posts
    19
    Location

    San Jose, Costa Rica
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    Other
    Andy thank you so much!!

  4. #4

    Array
    Status
    Offline
    Join Date
    09-10-2015
    Posts
    19
    Location

    San Jose, Costa Rica
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    Other
    But there's one yellow with white wire disconnected, these wire goes to the dome light and the fuel tank... The wire is cutted right behind the dash

  5. #5

    Array
    Status
    Offline
    Join Date
    09-30-2012
    Posts
    373
    Location

    Vanessa, Ontario
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    Are you sure? I think the wire from the fuel level float is yellow. I don't think the fuel tank and the dome light would be connected.

  6. #6

    Array
    Status
    Offline
    Join Date
    09-10-2015
    Posts
    19
    Location

    San Jose, Costa Rica
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    Other
    Yes 100℅ sure, under the driver seat the wire splits in 2 wires, and one goes to the dome light... Soon I post a picture

  7. #7

    Array
    Status
    Offline
    Join Date
    09-10-2015
    Posts
    19
    Location

    San Jose, Costa Rica
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    Other
    Click image for larger version.

Name:	1450049695003.jpg
Views:	29
Size:	157.6 KB
ID:	15409Click image for larger version.

Name:	1450049813226.jpg
Views:	48
Size:	202.8 KB

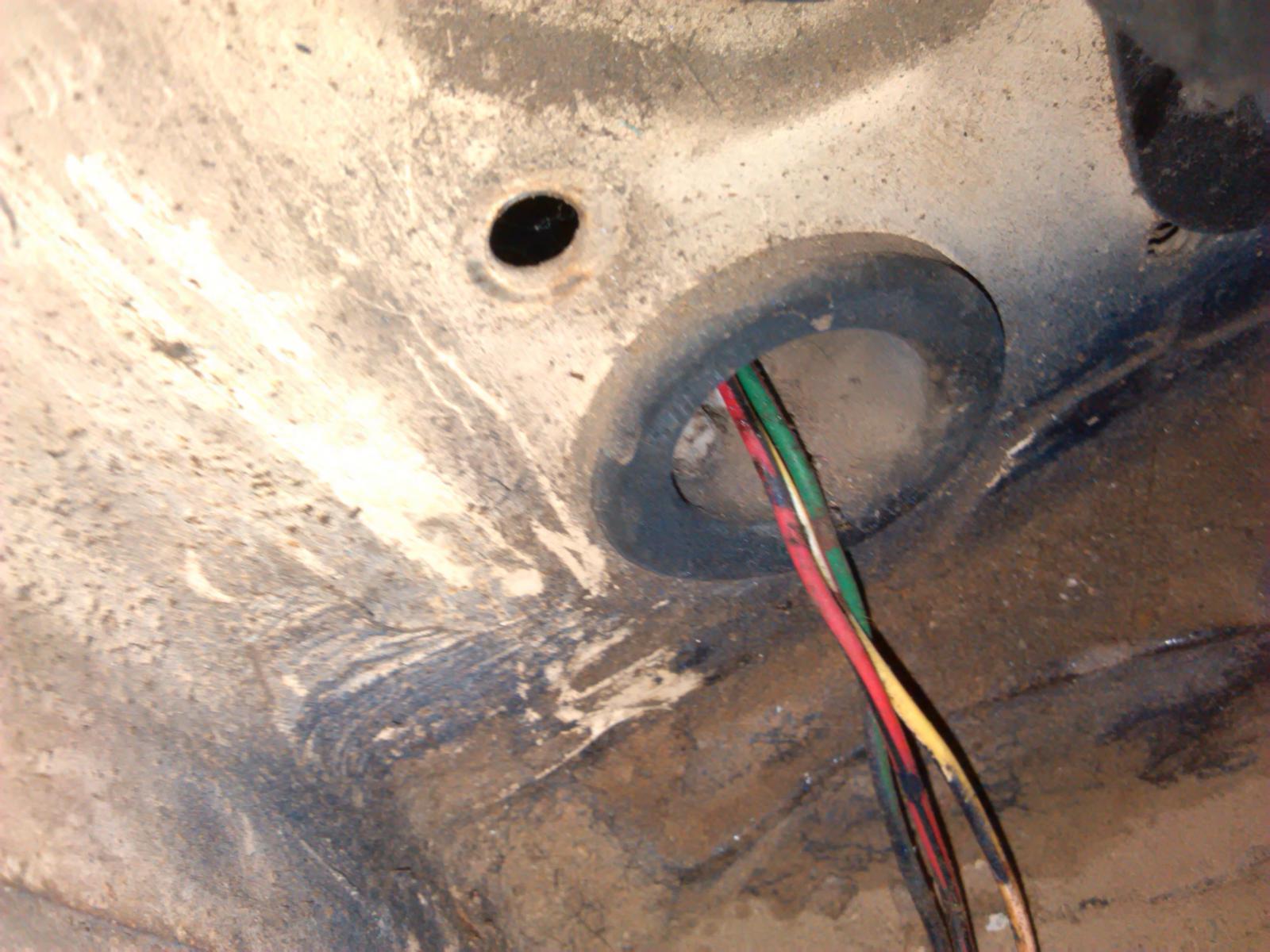

ID:	15410wires to the dome light
    right door sensor: green+red = ok
    left door sensor: green+red = ok
    power wire: red+black = ok
    yellow+white wire: ?

  8. #8



    Array
    Status
    Offline
    Join Date
    03-16-2011
    Posts
    3,615
    Location

    Sacramento, CA
    Vehicle

    1979 Dodge D-50
    Engine

    Chevy V6
    Put a volt ohm meter on them. The tank wire will be a variable ground so the ohm will change from the reading you take and wright down to when you check it again in 2 days after driving it around. The light will have 12V all the time. The turd brake light will only have 12V when hitting the brake. Unless it's a ground style.
    Members come and members go, But the board keeps track of them.
    Check out the Fear Monger by
    clicking HERE.

    The MightyRam50 site is sponsored in part by On Site Concrete Inc.

  9. #9

    Array
    Status
    Offline
    Join Date
    09-26-2014
    Posts
    147
    Location

    Ca
    Vehicle

    1993 Dodge Ram 50
    Engine

    4G64
    bryan8118,
    Your '88 has a third brake light ???
    Looks like the extra wire may be part of a CARGO LIGHT option.
    I do not see 3'rd brake light wiring in the diagrams posted.
    Just guessing, as I have no idea what was done to the cab? --- "floor change "??

  10. #10

    Array
    Status
    Offline
    Join Date
    09-10-2015
    Posts
    19
    Location

    San Jose, Costa Rica
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    Other
    Yes, my mm has a third brake light but my dad destroy the light :/ that was a long time ago... The dome light still works but for no reason stopped working :/ the dome light doesn't work after the truck's floor was changed, and the yellow with white wire is disconnected behind the dash, and i dont know where attach the wire.... And my truck only has the third brake light... Never a cargo light

  11. #11

    Array
    Status
    Offline
    Join Date
    09-26-2014
    Posts
    147
    Location

    Ca
    Vehicle

    1993 Dodge Ram 50
    Engine

    4G64
    Pics of cab ???

  12. #12

    Array
    Status
    Offline
    Join Date
    09-10-2015
    Posts
    19
    Location

    San Jose, Costa Rica
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    Other
    maybe tomorrow, i'm working

  13. #13



    Array
    Status
    Offline
    Join Date
    03-26-2011
    Posts
    1,512
    Location

    Vacaville, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T
    As far as I'm aware 89 and down, maybe even a few years newer also, never had a third brake light. Only a cargo light for the bed. Don't think these trucks got a third brake light until maybe 93?
    Josh
    09 BMW 335i E92 Twin turbo
    89 Macrocab 4g63 Turbo swapped & Bagged: Build Thread

  14. #14

    Array
    Status
    Offline
    Join Date
    09-10-2015
    Posts
    19
    Location

    San Jose, Costa Rica
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    Other
    @DroppedMitsu yes bro, my truck has a third brake. My truck is japanese (not RHD) and also there's no switch to on/off the cargo light. Because never has one

  15. #15



    Array
    Status
    Offline
    Join Date
    03-16-2011
    Posts
    3,615
    Location

    Sacramento, CA
    Vehicle

    1979 Dodge D-50
    Engine

    Chevy V6
    The cargo and drug light were the same switch inside the cab on the dome light itself. (first gen) They just fall apart from the sun. There one of the hardest parts to find in good working order. I would just delete the brake light because if it had one, good luck finding one. But you can try these guys. http://www.msrecycling.com
