Thread: Head Stud Kit

  1. #1

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B

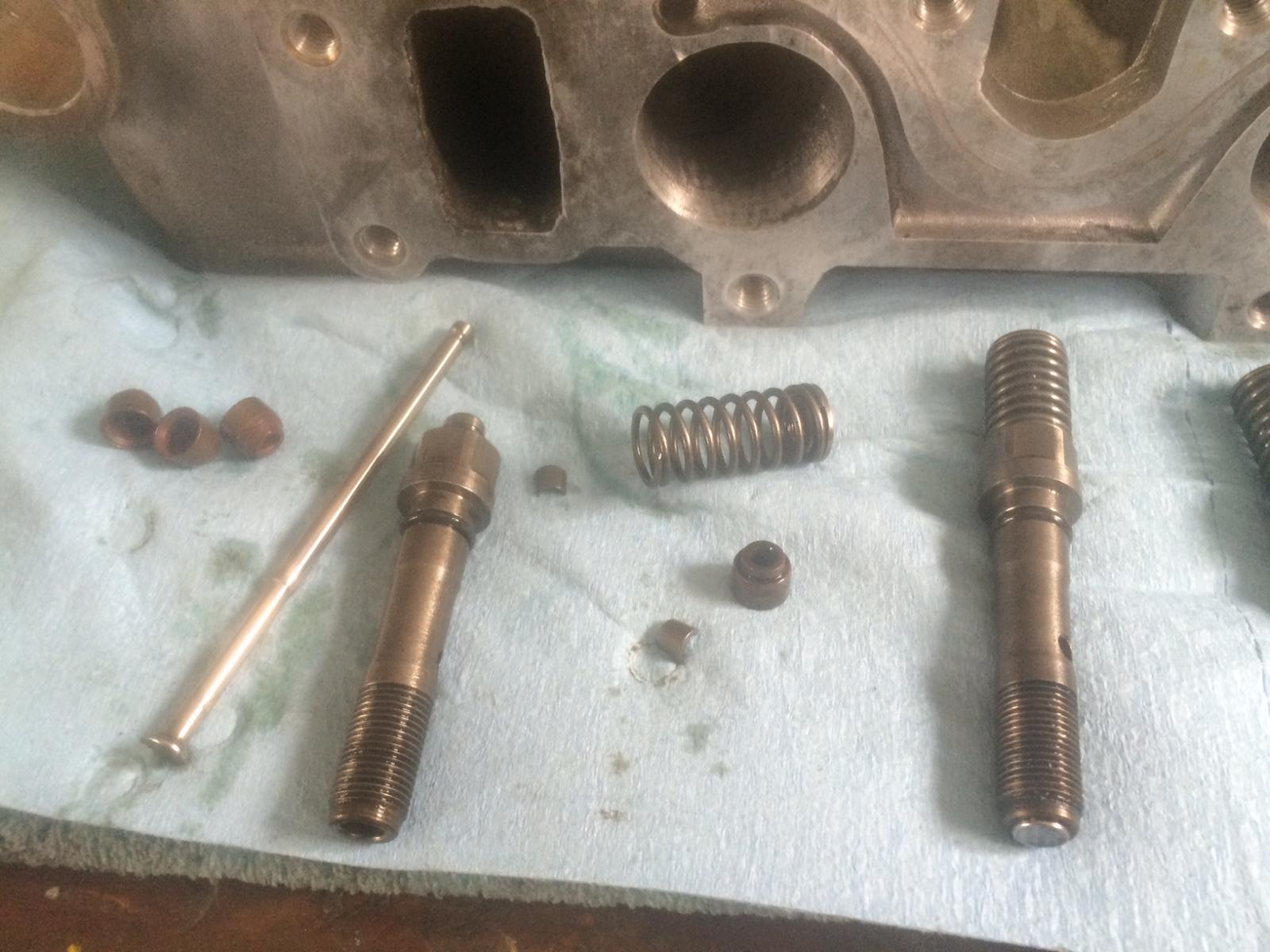

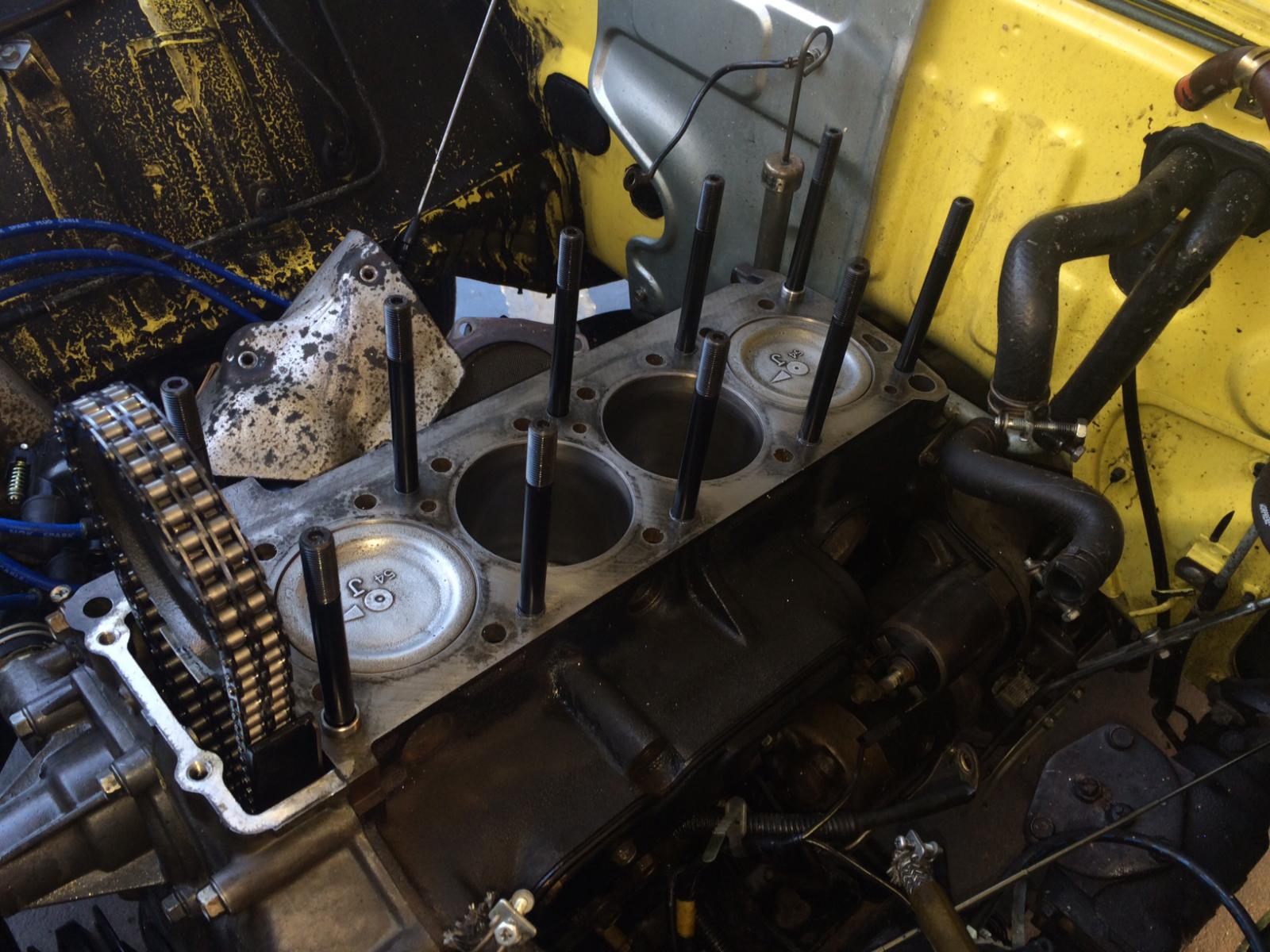

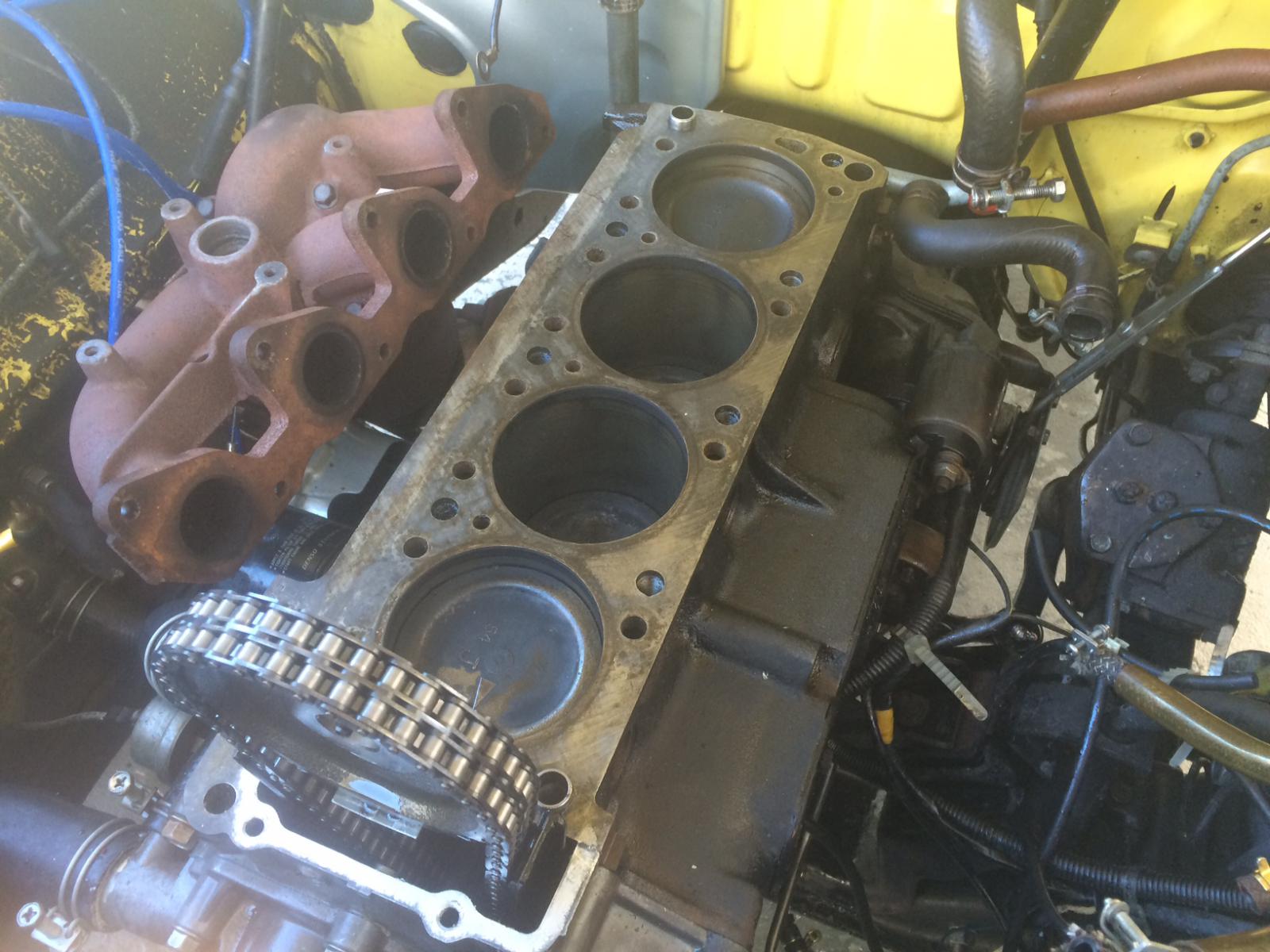

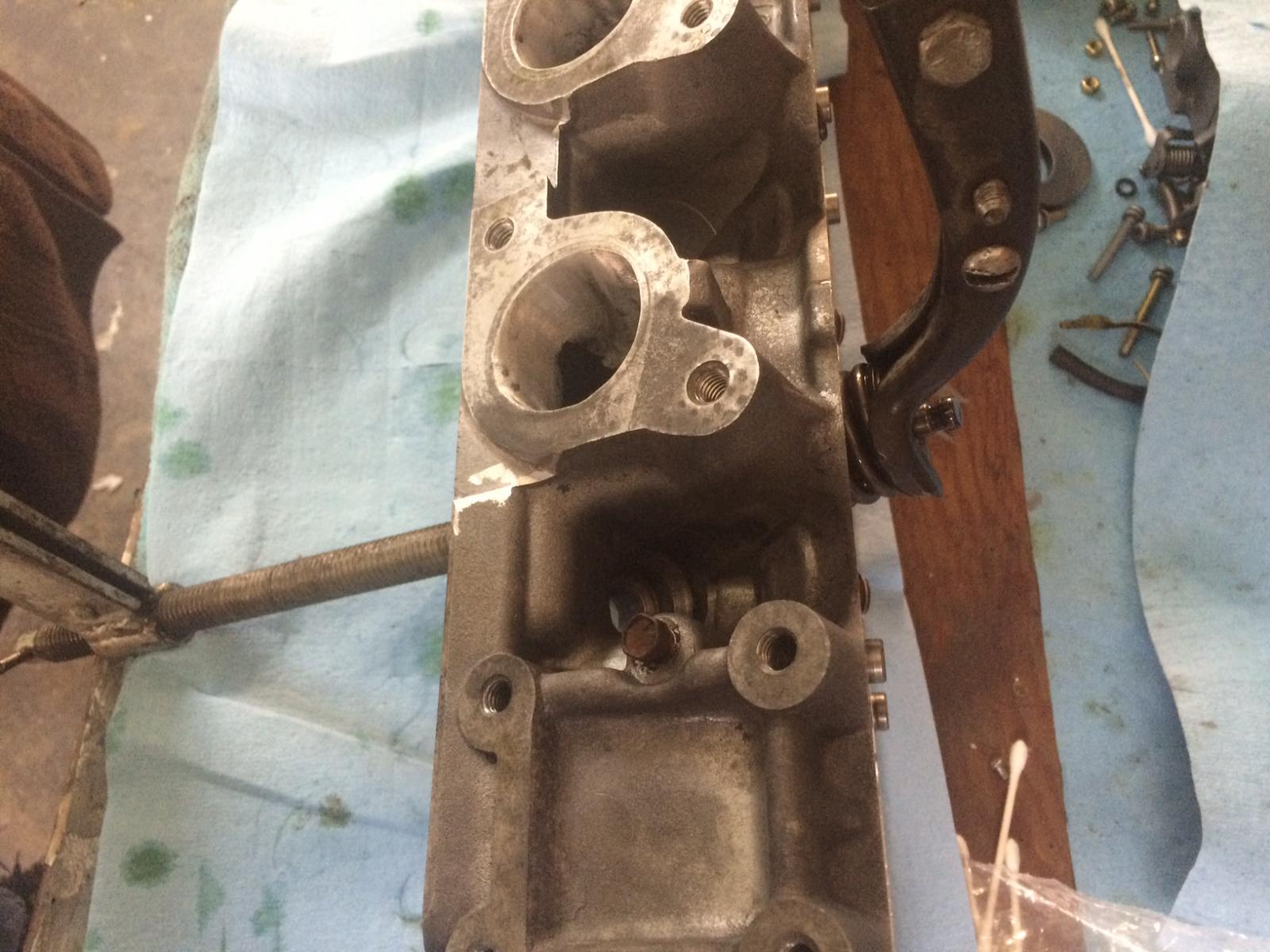

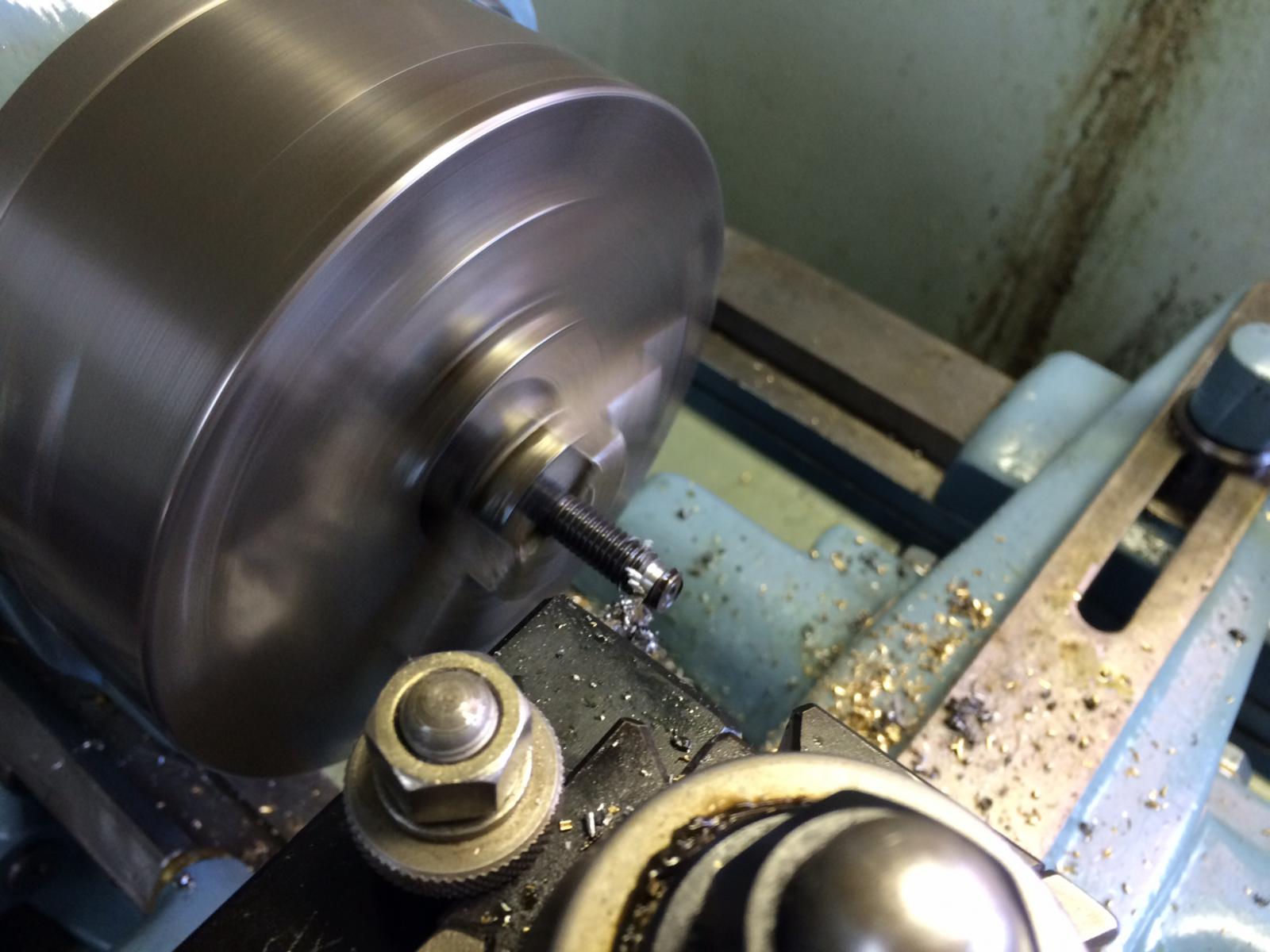

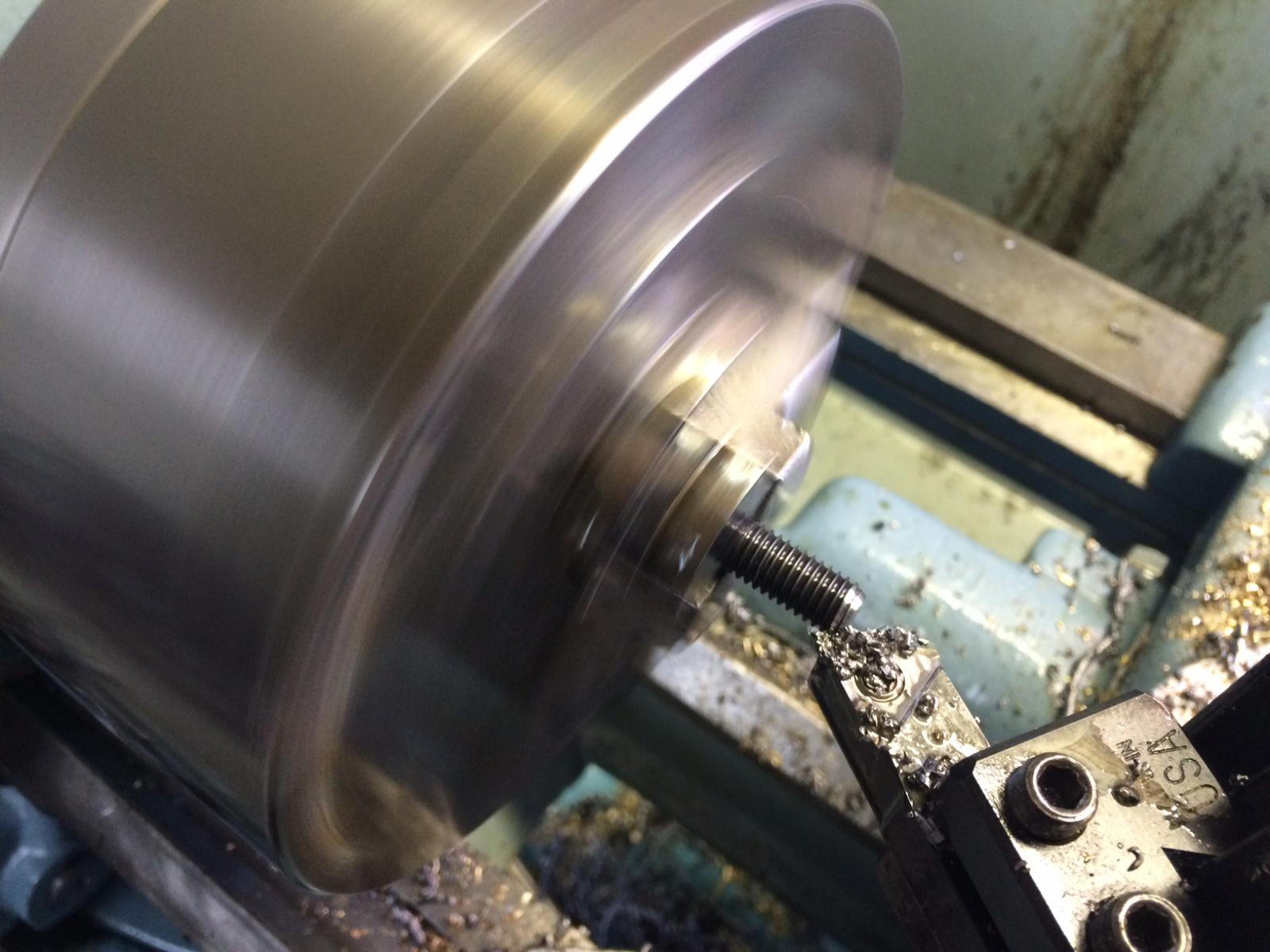

    Head Stud Kit

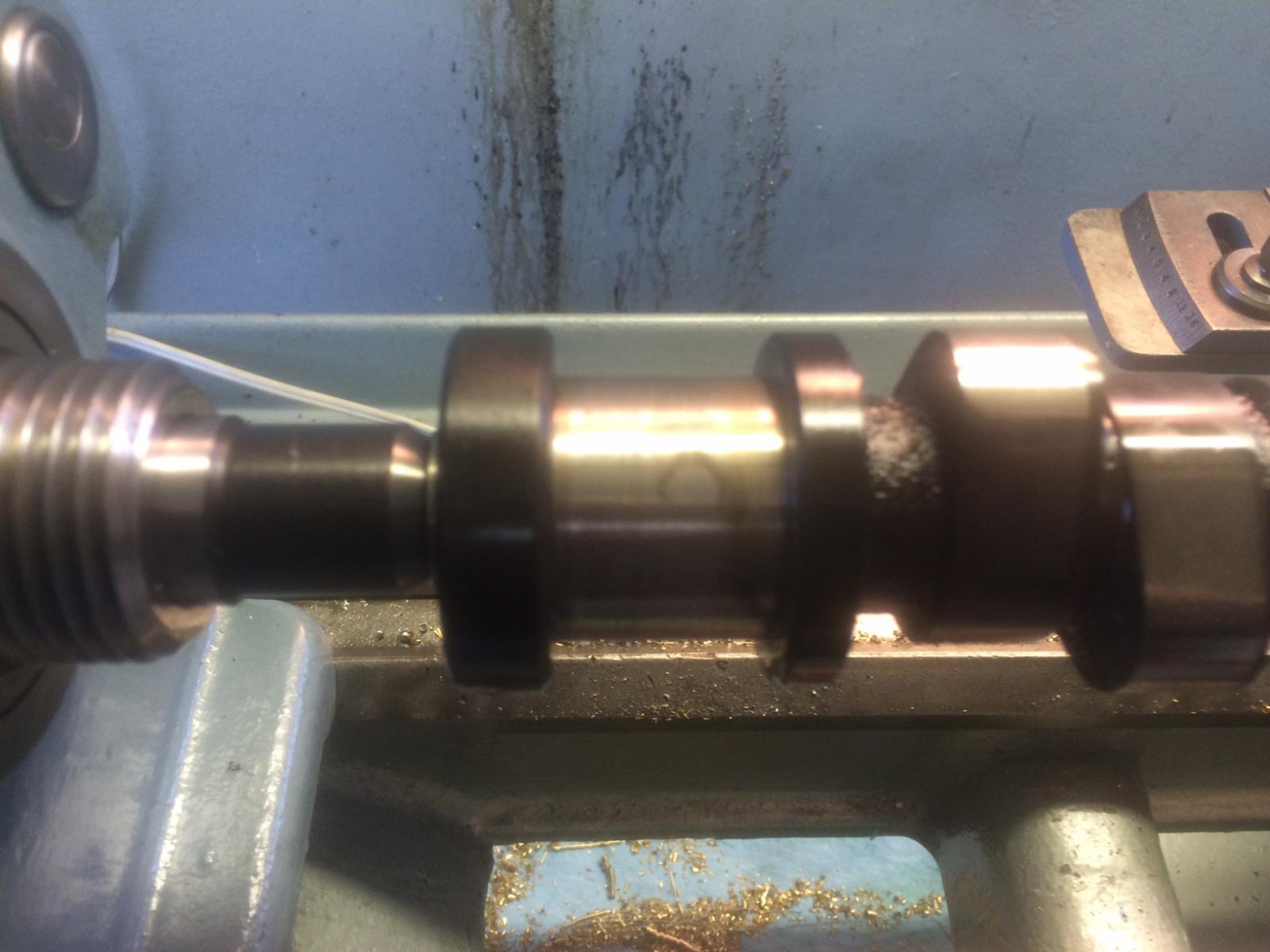

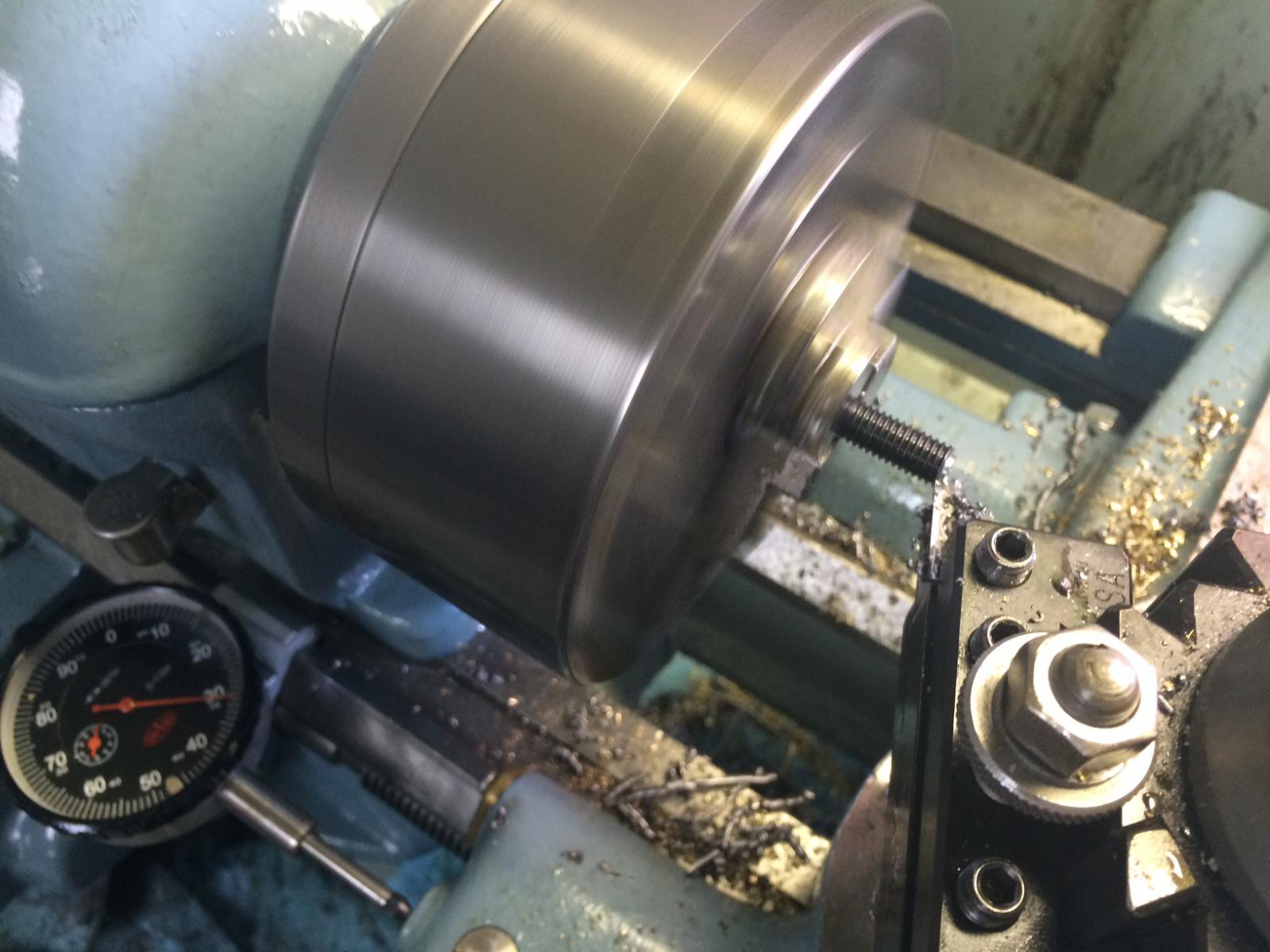

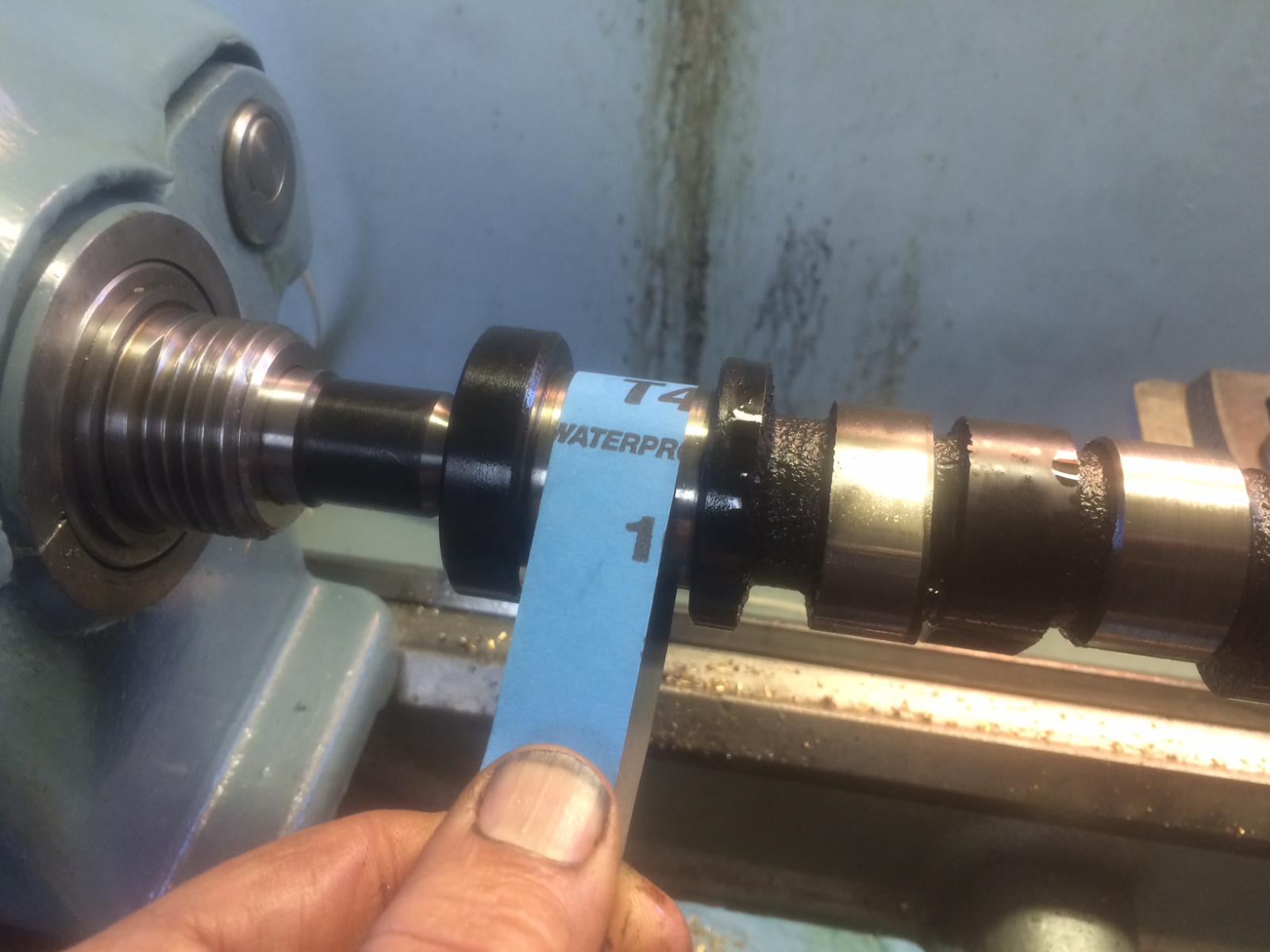

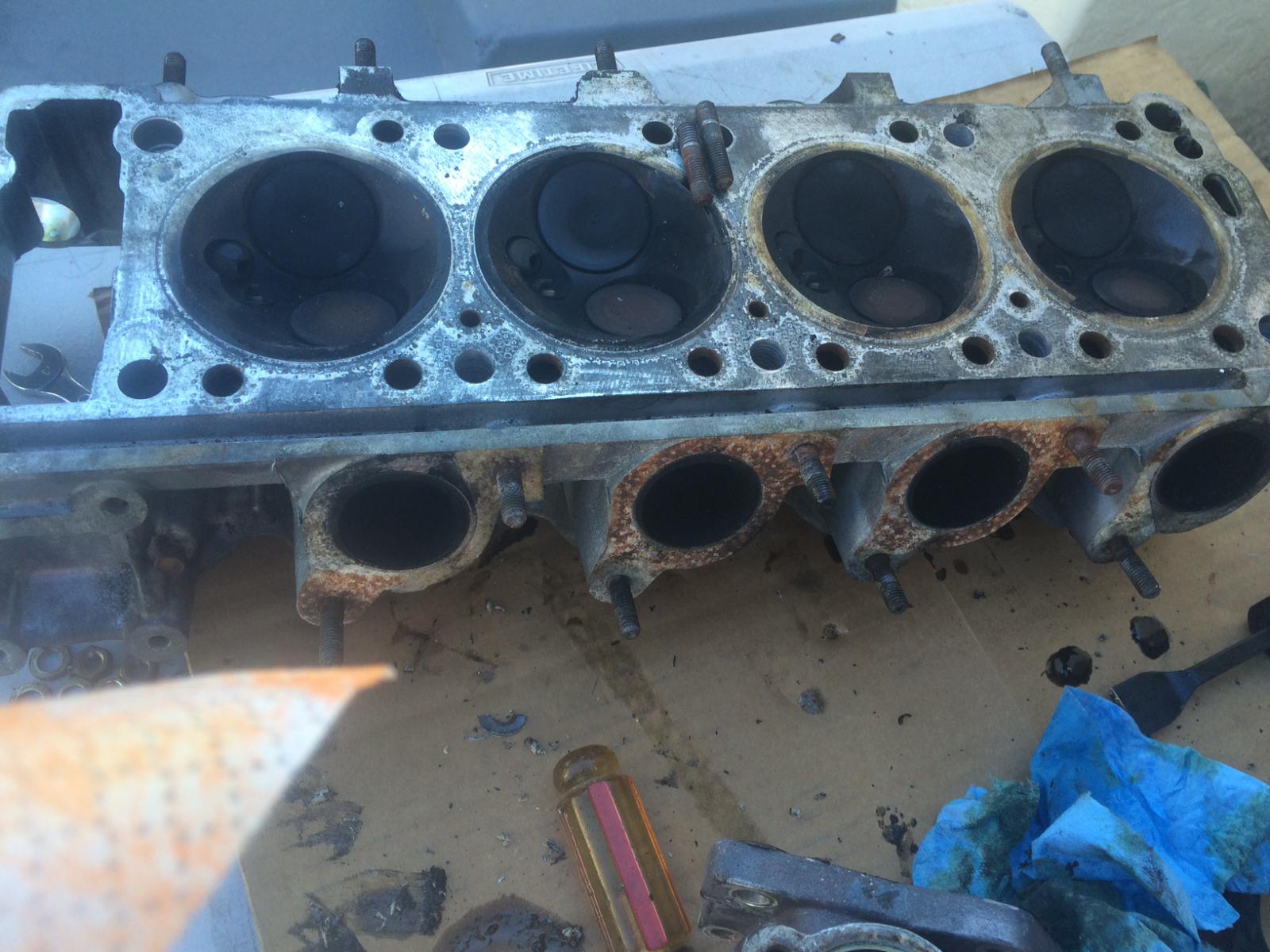

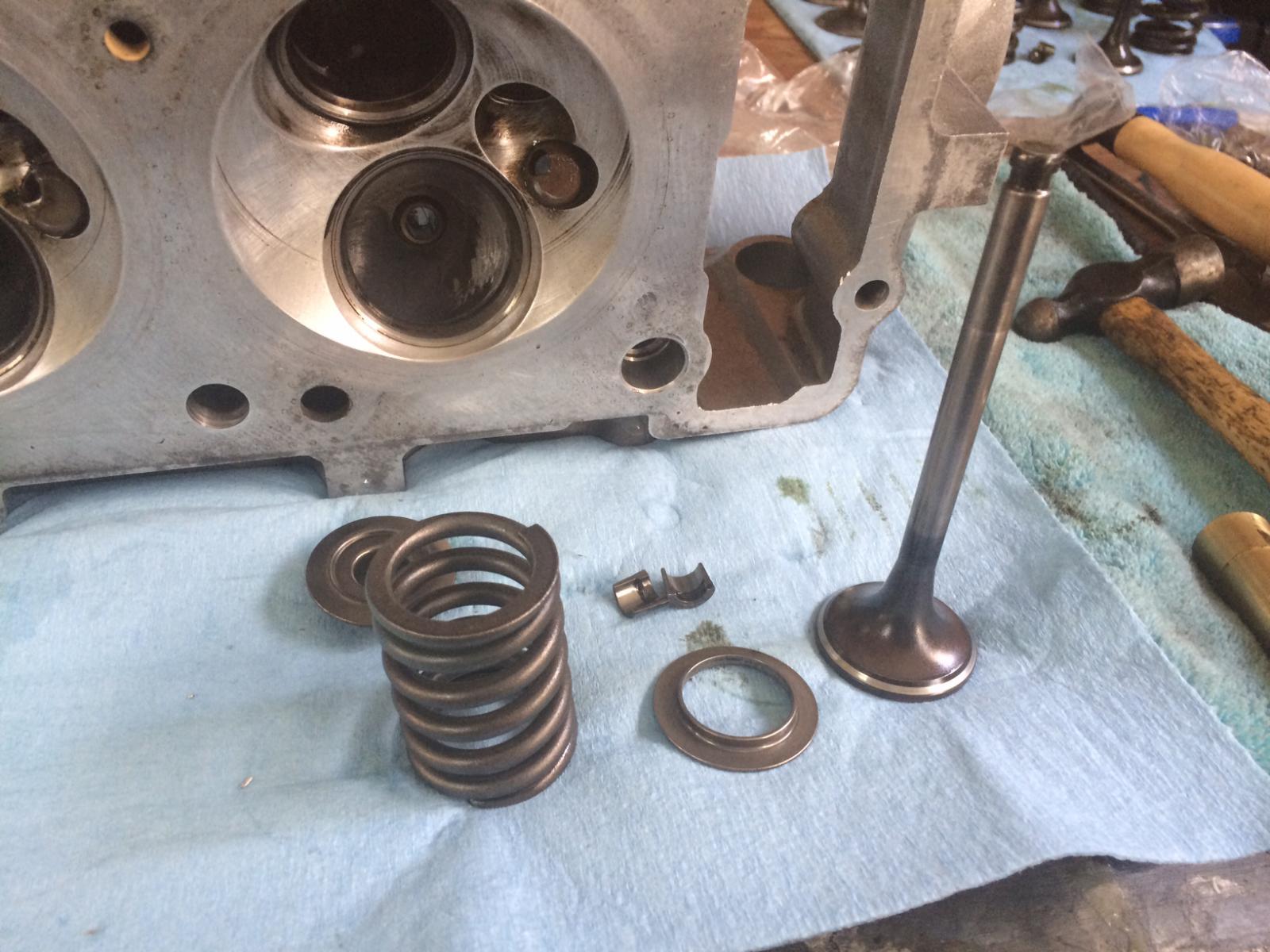

    and freshning up the head. Yes, I do own a lathe which I also restored.

    Click image for larger version.

Name:	IMG_0429.jpg
Views:	28
Size:	195.5 KB
ID:	15253Click image for larger version.

Name:	IMG_0431.jpg
Views:	26
Size:	213.7 KB
ID:	15254Click image for larger version.

Name:	IMG_0433.jpg
Views:	25
Size:	189.7 KB
ID:	15255Click image for larger version.

Name:	IMG_0435.jpg
Views:	25
Size:	159.2 KB
ID:	15256Click image for larger version.

Name:	IMG_0436.jpg
Views:	26
Size:	133.2 KB
ID:	15257Click image for larger version.

Name:	IMG_0437.jpg
Views:	25
Size:	136.9 KB
ID:	15258Click image for larger version.

Name:	IMG_0454.jpg
Views:	24
Size:	196.1 KB
ID:	15266Click image for larger version.

Name:	IMG_0453.jpg
Views:	29
Size:	211.0 KB
ID:	15265Click image for larger version.

Name:	IMG_0452.jpg
Views:	26
Size:	198.3 KB
ID:	15264Click image for larger version.

Name:	IMG_0451.jpg
Views:	25
Size:	176.1 KB
ID:	15263Click image for larger version.

Name:	IMG_0450.jpg
Views:	25
Size:	159.5 KB
ID:	15262Click image for larger version.

Name:	IMG_0449.jpg
Views:	24
Size:	161.4 KB
ID:	15261Click image for larger version.

Name:	IMG_0448.jpg
Views:	27
Size:	148.8 KB
ID:	15260Click image for larger version.

Name:	IMG_0456.jpg
Views:	31
Size:	183.4 KB
ID:	15267Click image for larger version.

Name:	IMG_0438.jpg
Views:	25
Size:	122.0 KB
ID:	15259

  2. #2

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    2,248
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B

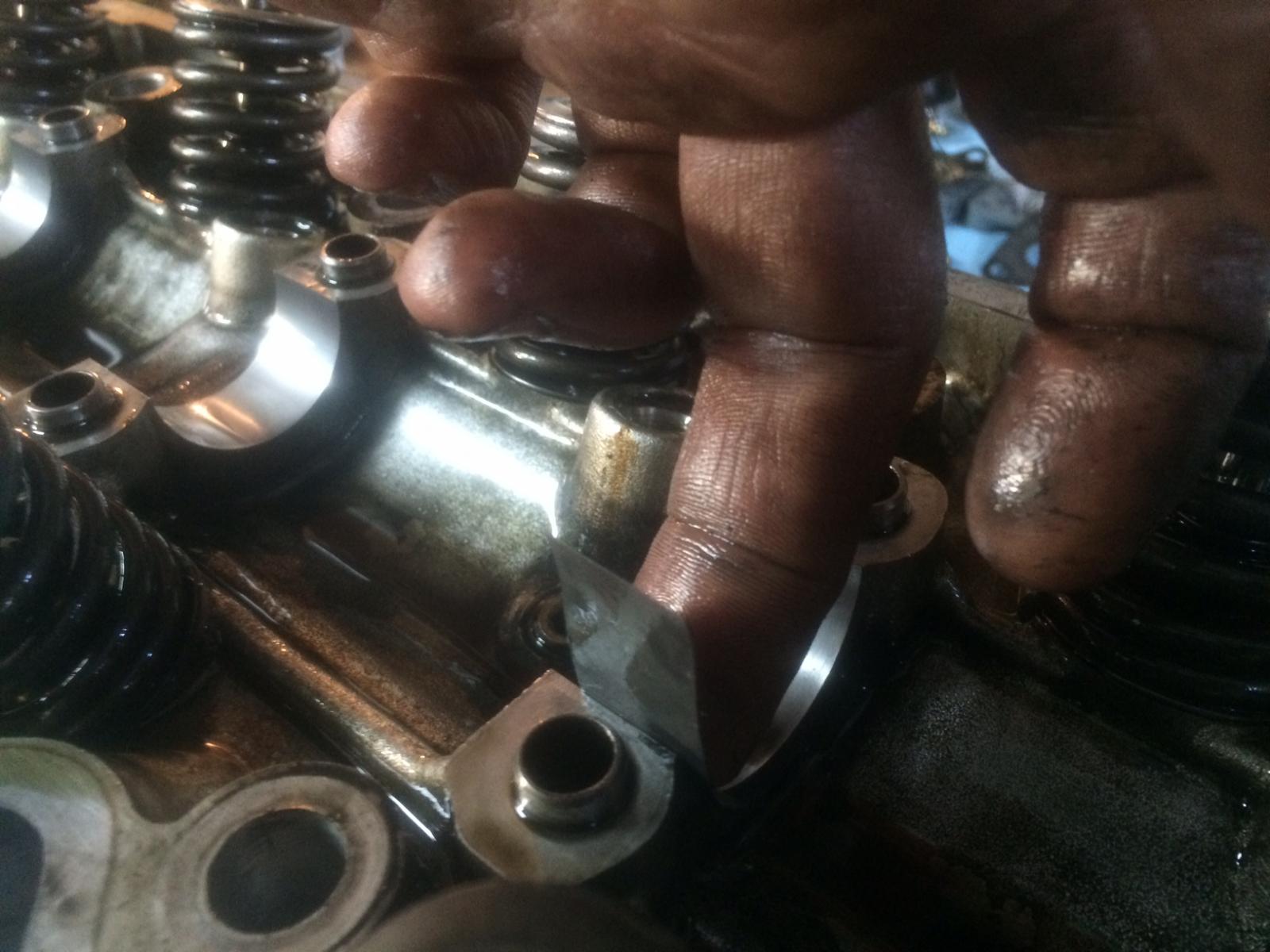

    These guys and their machine workshop toys I had to reface my cam journal surfaces to as they were severely chewed (the bed side of the journal was not anywhere near as bad as the journal caps - it was so bad I could jiggle the cam in the bed with the tappets completely backed off). I used a length of pvc pipe and wrapped it in 400 grit wet and dry, then soaked it in oil. I built up the diameter of the pipe until it was close, sat it in the journal and then gently rolled it to dress the bearing faces. Not text book but it was the best way I figured I could get an even finish. I'd also suggest to radius off all the sharp edges in the combustion chambers and polish them up as this will reduce the chance of pre-ignition from carbon build up and help gas charge flows.

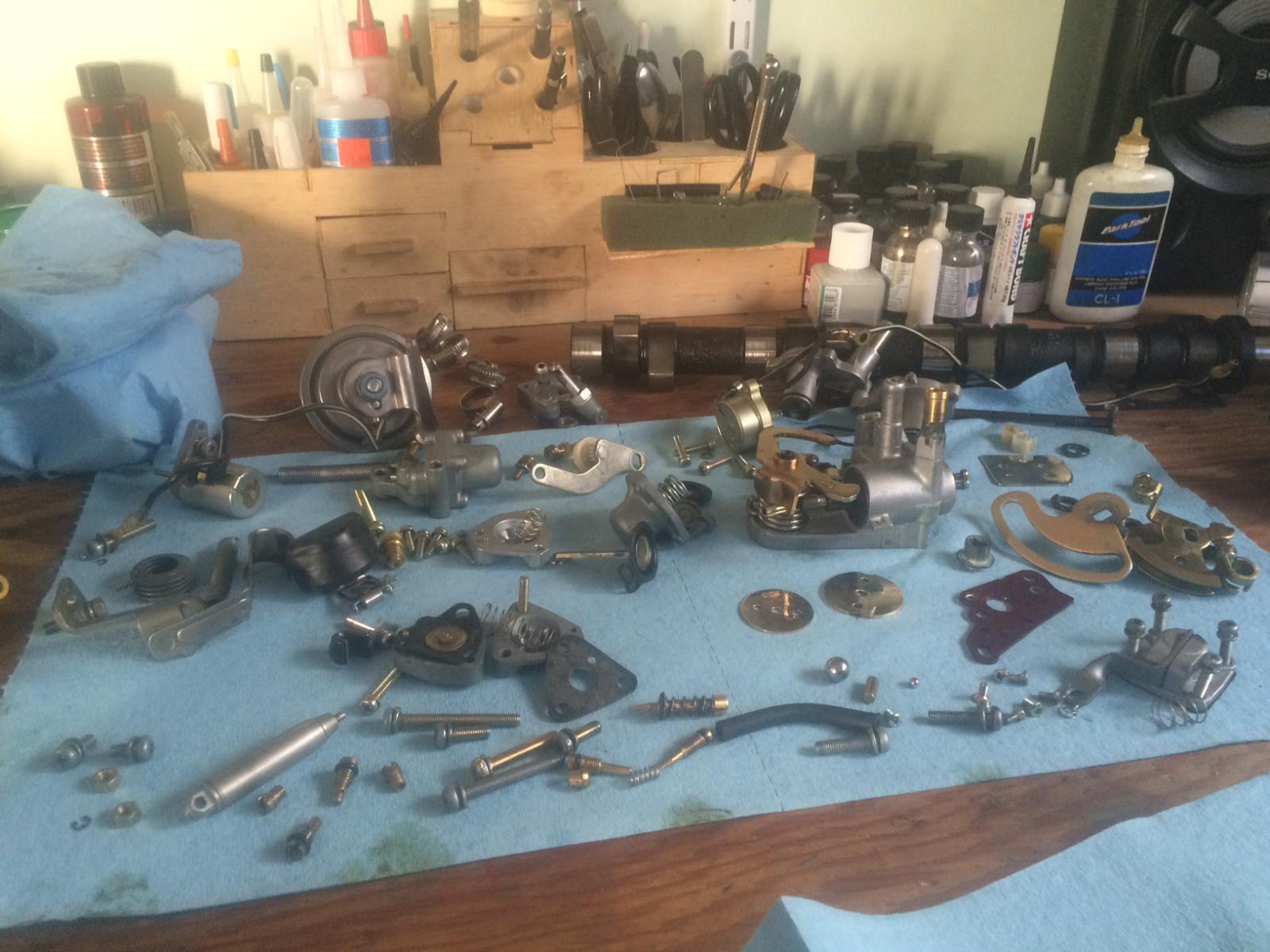

    p.s. love the carbie jigsaw puzzle, hope the dog didn't swallow the last piece

  3. #3

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B

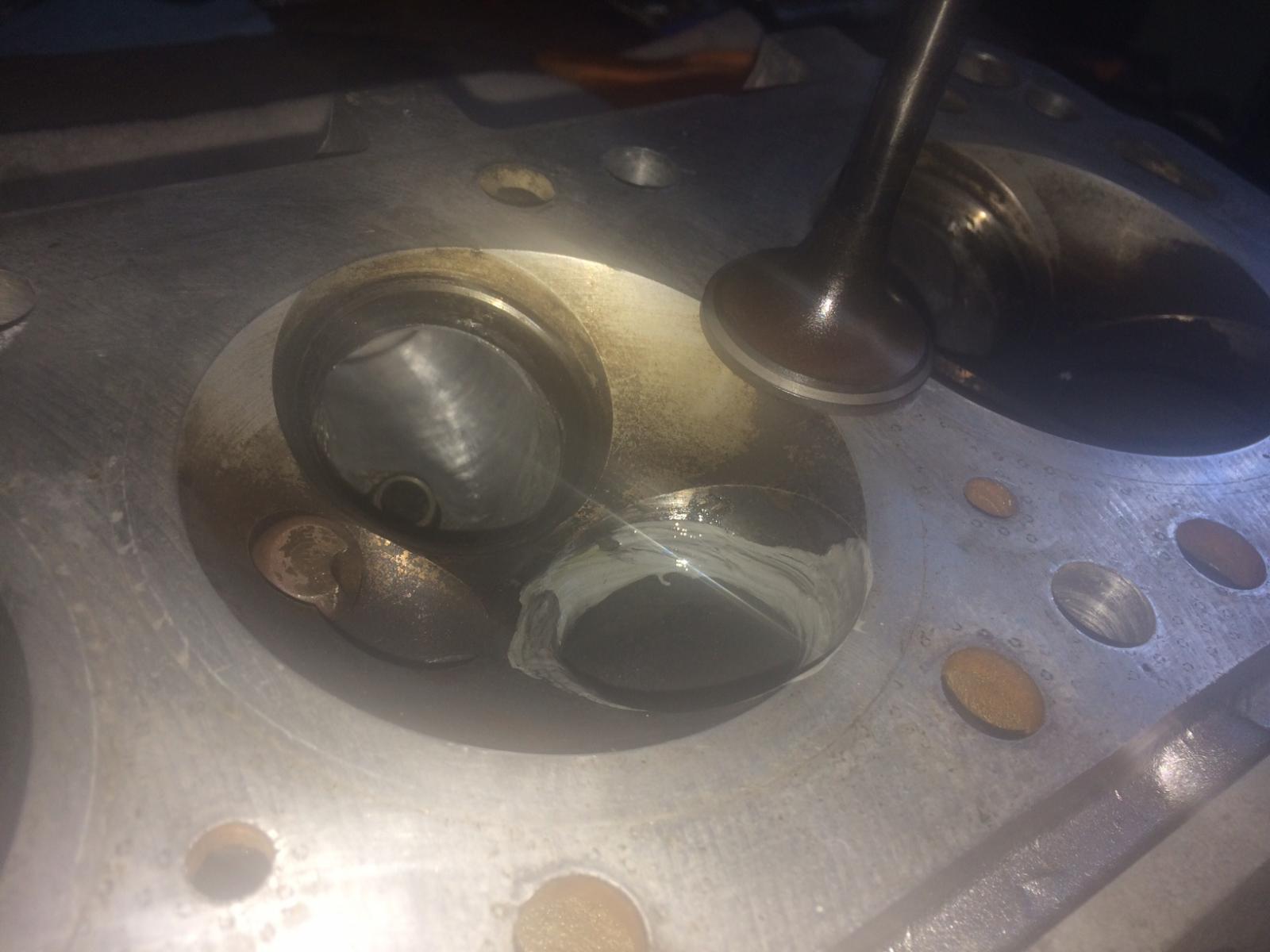

    radius off all the sharp edges in the combustion chambers and polish them up this has been done. Also, lapped the valves.

  4. #4

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B

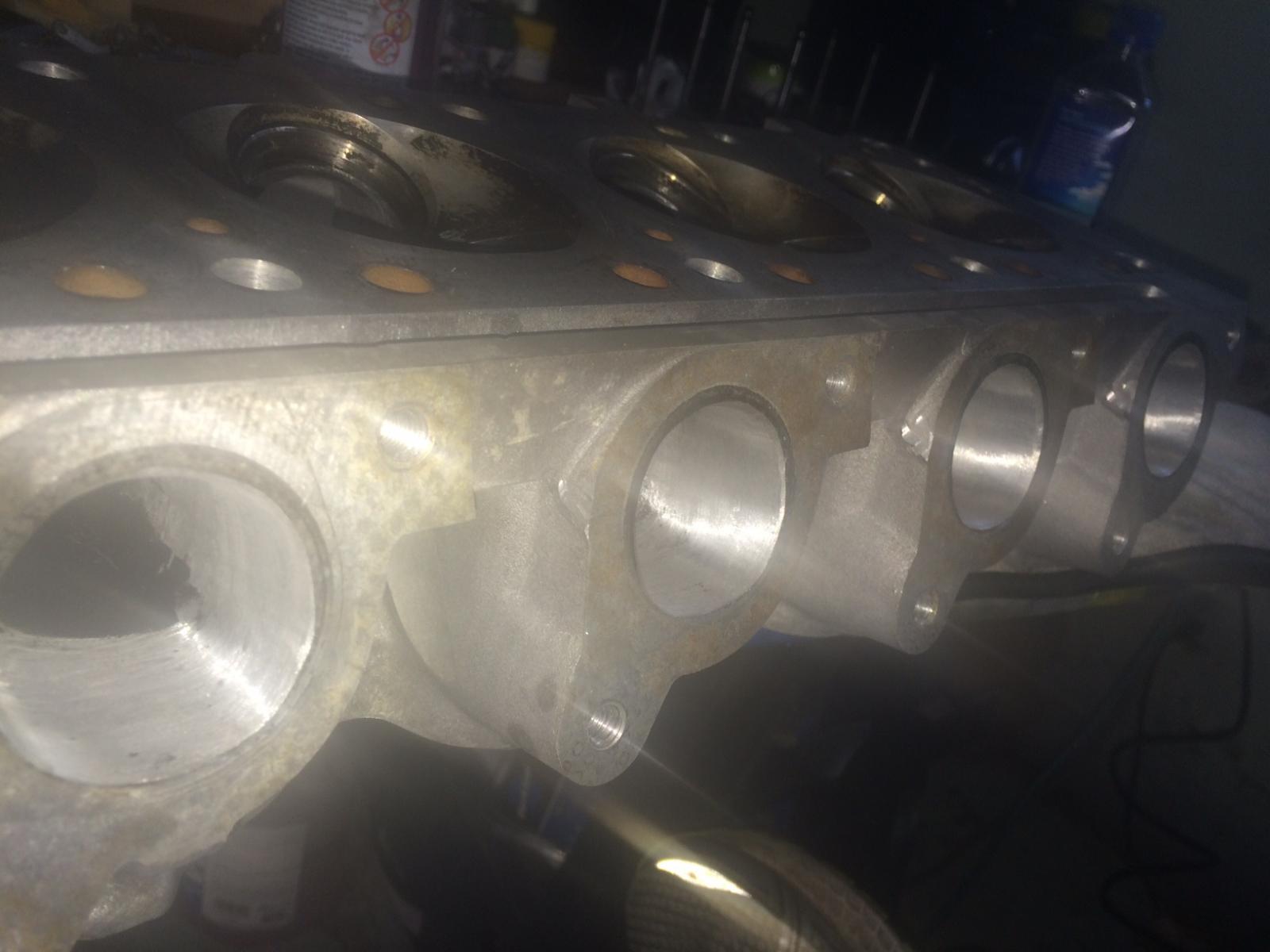

    Click image for larger version.

Name:	IMG_0439.jpg
Views:	25
Size:	169.3 KB
ID:	15268Click image for larger version.

Name:	IMG_0440.jpg
Views:	26
Size:	121.5 KB
ID:	15269Click image for larger version.

Name:	IMG_0441.jpg
Views:	24
Size:	105.6 KB
ID:	15270Click image for larger version.

Name:	IMG_0442.jpg
Views:	23
Size:	118.5 KB
ID:	15271Click image for larger version.

Name:	IMG_0443.jpg
Views:	28
Size:	229.4 KB
ID:	15272

  5. #5

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    2,248
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B

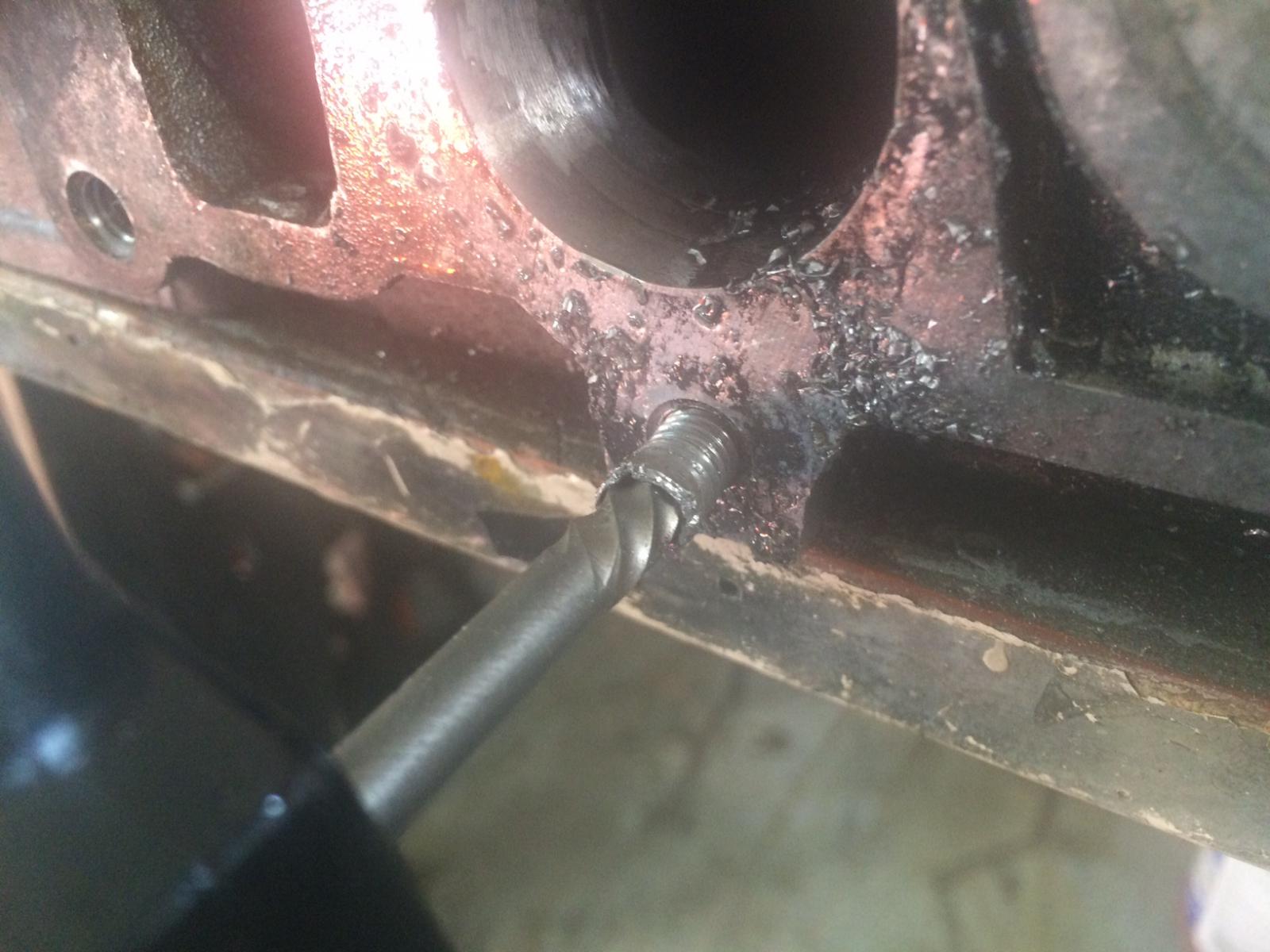

    Good save on getting that broken mounting stud out of the head. I think you're going to need a carb upgrade in the future as the port work will really get the head flowing. It looks like you've done this before hutch

  6. #6

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B
    Quote Originally Posted by geezer101 View Post
    Good save on getting that broken mounting stud out of the head. I think you're going to need a carb upgrade in the future as the port work will really get the head flowing. It looks like you've done this before hutch
    Many, many times.
    Last edited by hutch; 12-21-2015 at 06:08 AM.

  7. #7



    Array
    Status
    Offline
    Join Date
    03-16-2011
    Posts
    3,614
    Location

    Sacramento, CA
    Vehicle

    1979 Dodge D-50
    Engine

    Chevy V6
    Quote Originally Posted by geezer101 View Post
    I had to reface my cam journal surfaces to as they were severely chewed (the bed side of the journal was not anywhere near as bad as the journal caps -

    There all that way. The first gens don't have any oil to the cam journals. All it uses is splash and spray. The oil gets there from the timing chain.

    Hutch. Get rid of them jet valves...........................................
    Members come and members go, But the board keeps track of them.
    Check out the Fear Monger by
    clicking HERE.

    The MightyRam50 site is sponsored in part by On Site Concrete Inc.

  8. #8

    Array
    Status
    Offline
    Join Date
    08-08-2015
    Posts
    255
    Location

    Los Angeles
    Vehicle

    1980 Plymouth Arrow Truck
    Engine

    G54B
    Jet valves are nostalgic. lol

  9. #9



    Array
    Status
    Offline
    Join Date
    03-16-2011
    Posts
    3,614
    Location

    Sacramento, CA
    Vehicle

    1979 Dodge D-50
    Engine

    Chevy V6
    Quote Originally Posted by hutch View Post
    Jet valves are nostalgic. lol

    HAHAHAHA I guess your going to visit the nostalgic repair man in the white outfit. The only problem is he has been to the taxidermy shop. He might look good from a distance but I would not want to see him up close.
    Members come and members go, But the board keeps track of them.
    Check out the Fear Monger by
    clicking HERE.

    The MightyRam50 site is sponsored in part by On Site Concrete Inc.
