    Horn Repair

    When I started the project to repair my horn I did a search to see what other people had done to fix similar problems. I found out it's a fairly common problem but didn't find anything that showed a repair other than replace the horn pad.....if you could find a working one. I posted this in my build thread, but figured it might come in handy for some other folks and be easier to find here so I'm double posting it.



    When I was doing the under dash wiring on my truck, I noticed that the fuse for the horn was gone…….when I put a fuse in I found out why, the horn would not shut off. I decided to leave the fuse out and leave it for another day.



    The “another day” came yesterday when a non-driving, mouth breather of an old fart ran me in into oncoming traffic when he didn’t check his mirrors or use his turn signal before deciding to occupy the lane I was in. With no horn all I could do was grab a gear and go around him.



    So yesterday afternoon I decided to fix the horn. The first thing I did was check the wiring diagram. The D50 doesn’t use a horn relay, the horn has power anytime the key is on and the horn pad on the steering wheel is used to complete the circuit to ground. With no relay that left the wiring being shorted or the switch in the pad being bad. I figured the most likely culrprit was the horn pad, so I took that off first.

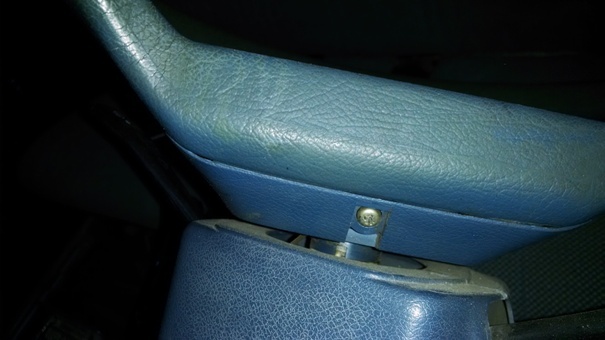

    To get the pad off the first step is turn the steering wheel upside down and removing the screw on the bottom.


    Click image for larger version.

Name:	IMG_20151108_065301736_zpsh4unt5sr.jpg
Views:	9
Size:	68.9 KB
ID:	19760

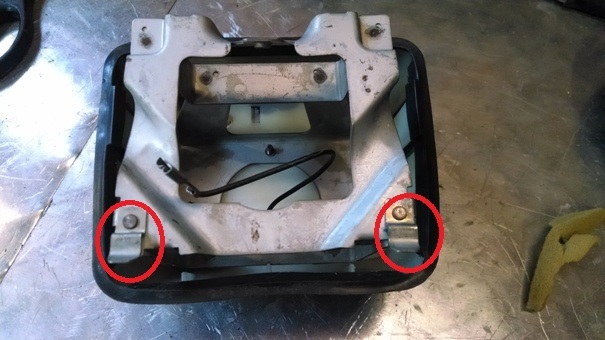

    With the screw out, you press in on the bottom of the pad and rotate the bottom away from the steering wheel slightly, then pull the pad toward you to release the clips that hold the top of the steering wheel. Unplug the wire and the pad is free.


    Click image for larger version.

Name:	Pad 1_zpsk08aqjtj.jpg
Views:	9
Size:	82.3 KB
ID:	19759

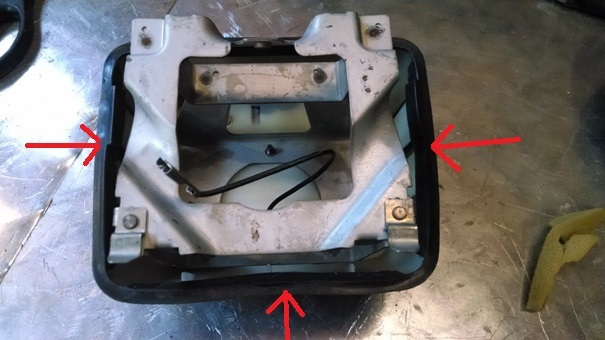

    Next I worked the vinyl cover over the nylon inner liner with a small screwdriver until the cover was able to be pulled off. If you decide to do this in cold weather, take horn pad indoors or set in the sun, the vinyl is a lot easier to work with when it’s warm.


    Click image for larger version.

Name:	Pad 2_zpsfrl7dr7h.jpg
Views:	8
Size:	81.3 KB
ID:	19758

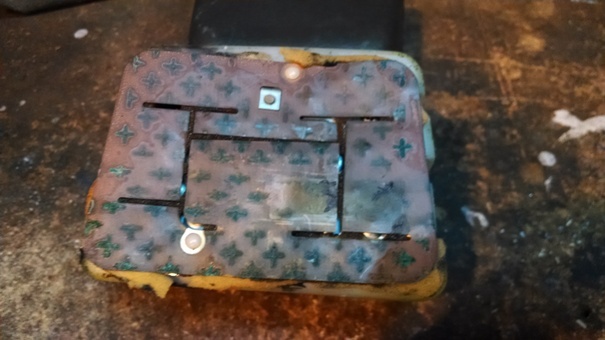

    With the cover off, I found the problem. There is a thin copper circuit board piece that is what makes contact to complete the ground circuit. It appears that originally there was a piece of thin foam with holes punched under each of the little crosses. Over the years the foam had deteriorated and allowed the plate to make contact all the time.


    Click image for larger version.

Name:	IMG_20151108_070301220_zpsbdiwoa2m.jpg
Views:	10
Size:	77.2 KB
ID:	19757

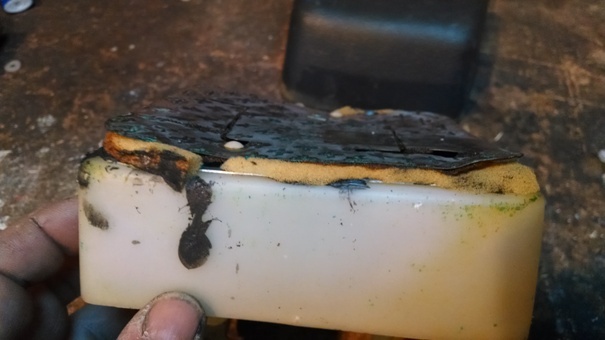

    In order to hold the plate away from the base that it was grounding against until you pressed on the horn pad, I cut some (1/4” wide) strips of old seat foam I had laying around and put them between the plate and nylon base. I used a thin bead of silicone to hold the foam in place.


    Click image for larger version.

Name:	IMG_20151108_070318728_zpslfa52bbz.jpg
Views:	11
Size:	65.5 KB
ID:	19756


    The last 2 steps were to reinstall the vinyl cover working the lip back over the nylon inner form, and check it with an ohm meter.

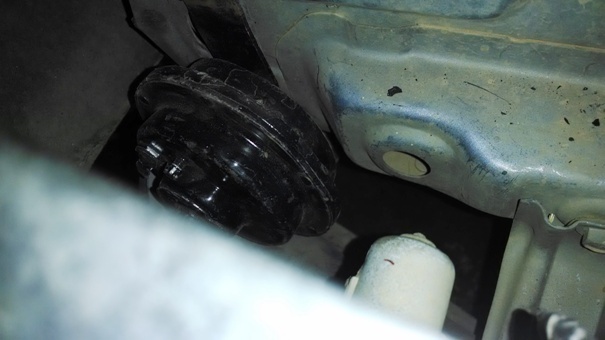

    The horn now works, but let’s face it the stock horn is pretty anemic and when I use it I want people to hear it. I happened to have a spare insulated horn (you can’t use one that grounds thru the mounting bracket, it has to have separate terminals for power and ground) in my parts stash, so out came the grill and the second horn was mounted on the left side of the radiator support.


    Click image for larger version.

Name:	IMG_20151108_071729022_zpspl38ftv1.jpg
Views:	8
Size:	65.7 KB
ID:	19755


    I unplugged the wired from the original horn so I could splice the new wiring for the second horn, hooked them both up and put the grill back in. It pretty much sounds like a small train now.
    Last edited by blindeyed; 10-23-2017 at 08:42 PM. Reason: Fixed broken images

  2. #2

    Array
    Status
    Offline
    Join Date
    04-09-2015
    Posts
    185
    Location

    College Station, TX
    Vehicle

    1984 Dodge Ram 50
    Engine

    4D55-T
    Nicely done Mike. I have a real nice two-tone air horn that I have yet to find the right place for it to fit. I've tried a bunch of different angles but still can't get it in there snug and still have room for everything else. Some day!

  3. #3

    Array
    Status
    Offline
    Join Date
    10-22-2015
    Posts
    187
    Location

    Nevada
    Vehicle

    1990 Mitsubishi Mighty Max
    Engine

    Other
    Nice write up.
    Thanks

  4. #4

    Array
    Status
    Offline
    Join Date
    06-15-2014
    Posts
    2,249
    Location

    Adelaide, South Australia
    Vehicle

    1985 Mitsubishi L200
    Engine

    G63B
    Kudos to you Mike. A horn seems like a fairly trivial thing to have malfunction and a lot of people just pull a wire or a fuse and live with it. But it being there when you need it can be the difference in a life and death situation (plus it is illegal to drive a vehicle without a working horn). This is a good little write up on a repair that anyone could tackle. Only thing that you could add to the repair is cleaning the copper contact plate for a good connection.

  5. #5

    Array
    Status
    Offline
    Join Date
    09-26-2014
    Posts
    147
    Location

    Ca
    Vehicle

    1993 Dodge Ram 50
    Engine

    4G64
    Kudo's x4, Well done!

  6. #6



    Array
    Status
    Offline
    Join Date
    07-24-2012
    Posts
    2,357
    Location

    Washington State
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G63B
    Quote Originally Posted by Uncle Spence View Post
    Nicely done Mike. I have a real nice two-tone air horn that I have yet to find the right place for it to fit. I've tried a bunch of different angles but still can't get it in there snug and still have room for everything else. Some day!
    Air horns are the ultimate fun toy I will never do without. The first time I hit mine at a sleeping motorist waiting for a pole to turn green and seeing how high they jump out of their seat, I was sold. Instant reaction.

  7. #7

    Array
    Status
    Offline
    Join Date
    05-03-2015
    Posts
    29
    Location

    NC
    Vehicle

    1993 Mitsubishi Mighty Max
    Engine

    4G64
    It's awesome when people document this stuff so others can benefit later!

    I went through this when I got my truck. Didn't realize it until I failed inspection because of it! Quick fix using foam I use in my aquarium filter.

  8. #8

    Array
    Status
    Offline
    Join Date
    04-25-2017
    Posts
    20
    Location

    DFW-TX
    Vehicle

    1994 Mitsubishi Mighty Max
    Engine

    4G64
    Any chance the photos can be retrieved? I need to repair my horn as well and well lets just say photos really help when it comes to me and repairs. ha!

  9. #9



    Array
    Status
    Offline
    Join Date
    04-09-2011
    Posts
    173
    Location

    Jacksonville, FL
    Vehicle

    1995 Mitsubishi Mighty Max
    Engine

    4G64
    Quote Originally Posted by GPD294 View Post
    Any chance the photos can be retrieved? I need to repair my horn as well and well lets just say photos really help when it comes to me and repairs. ha!
    Fixed for you
    - Jason
    1995 Mighty Max || FQuick | My Build Thread

  10. #10

    Array
    Status
    Offline
    Join Date
    04-25-2017
    Posts
    20
    Location

    DFW-TX
    Vehicle

    1994 Mitsubishi Mighty Max
    Engine

    4G64
    Quote Originally Posted by blindeyed View Post
    Fixed for you
    You are DA MAN!!!!!!!!!! Thank you very much!
