Thread: temp and fuel gauge doesn't work

  1. #1

    Array
    Status
    Offline
    Join Date
    09-10-2015
    Posts
    19
    Location

    San Jose, Costa Rica
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    Other

    temp and fuel gauge doesn't work

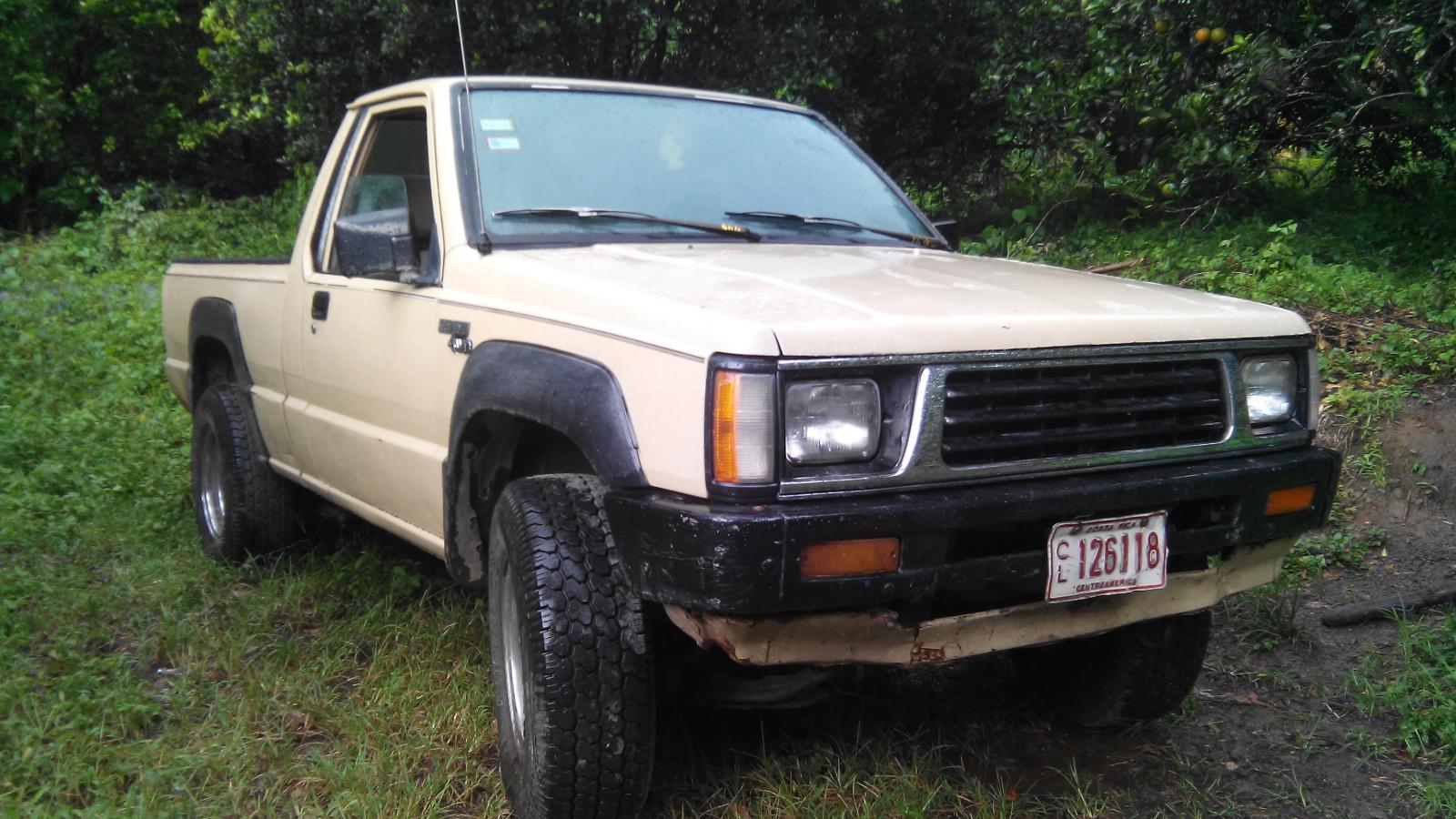

    hi... i have a 1988 mighty max.... i've dismounted the gauge panel, and for some reason the fuel and temp gauges doesn't work anymore... anybody has the wiring diagram of these components? please send me to my e-mail... thanks and greetings from costa rica
    PD: I haven't the stock engine (G54B)... my MM has a HYUNDAI D4BX DIESEL engineClick image for larger version.

Name:	DSC01483.jpg
Views:	102
Size:	198.0 KB
ID:	14729Click image for larger version.

Name:	DSC01484.jpg
Views:	157
Size:	119.6 KB
ID:	14730Click image for larger version.

Name:	FB_IMG_1408823160845.jpg
Views:	178
Size:	213.5 KB
ID:	14731Click image for larger version.

Name:	IMG_20140820_164527.jpg
Views:	123
Size:	136.1 KB
ID:	14732

  2. #2



    Array
    Status
    Offline
    Join Date
    07-24-2012
    Posts
    2,357
    Location

    Washington State
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G63B
    What did you do???

    Make sure your gauges are grounded and that you didn't disconnect the connector for those gauges. Sounds like you bumped something and pulled a wire out. These trucks can have wiring issues, but yours happened after you removed the cluster. I hope your also saying it doesn't work since you put it back in, because if it is out, there is an obvious reason for not working, lol.
    Need to be careful when working on items like this because the parts and electrical on your truck is 27 years old. I have done things like that before, biggest problem is taken it all apart again to diagnose a possible disconnection.

  3. #3


    Array
    Status
    Offline
    Join Date
    07-27-2011
    Posts
    255
    Location

    Nyssa, Or
    Vehicle

    1982 Dodge Power Ram 50
    Engine

    G54B
    Not an expert in electrical but since it is not the stock motor could be phased / frequency problem of electronics from new motor. This is where you / I typically throw some one under the proverbial bus I.E.. Pennyman not to mention any names of course to chime in (cough! cough!)

  4. #4



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,113
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    In this case, I would look for the obvious first - loose plug on back of cluster, cracked traces or cold solder joints, or loose ground to dash. Then check the plug itself for any wires coming out of the plug. Thanks for the tutb - I needed more tire tracks across my back...
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  5. #5



    Array
    Status
    Offline
    Join Date
    03-16-2011
    Posts
    3,614
    Location

    Sacramento, CA
    Vehicle

    1979 Dodge D-50
    Engine

    Chevy V6
    On the back side of the cluster there is a small metal box. Check for power going in on one side. On the other side it will be a lower voltage and it's pulsed. That is what makes the power for the temp and fuel gauge. Or at least that was on the back of mine.
    Members come and members go, But the board keeps track of them.
    Check out the Fear Monger by
    clicking HERE.

    The MightyRam50 site is sponsored in part by On Site Concrete Inc.

  6. #6


    Array
    Status
    Offline
    Join Date
    07-27-2011
    Posts
    255
    Location

    Nyssa, Or
    Vehicle

    1982 Dodge Power Ram 50
    Engine

    G54B
    Quote Originally Posted by pennyman1 View Post
    In this case, I would look for the obvious first - loose plug on back of cluster, cracked traces or cold solder joints, or loose ground to dash. Then check the plug itself for any wires coming out of the plug. Thanks for the tutb - I needed more tire tracks across my back...
    Its all love brother, besides it is easier to watch / cover your back when it has identifying marks.
    Last edited by mopar_ja; 10-18-2015 at 09:56 PM.

  7. #7

    Array
    Status
    Offline
    Join Date
    09-10-2015
    Posts
    19
    Location

    San Jose, Costa Rica
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    Other
    Fixed guys, the resistance (7 Volts converter) are broken.

    Diy fix with a new voltage converter.

    Thanks guys.
