Thread: Billet Works' 1987 Dodge Ram 50 2.0 Auto, Shop Truck Build

  1. #1

    Array
    Status
    Offline
    Join Date
    12-12-2014
    Posts
    16
    Location

    United States
    Vehicle

    1987 Dodge Ram 50
    Engine

    G63B

    Billet Works' 1987 Dodge Ram 50 2.0 Auto, Shop Truck Build

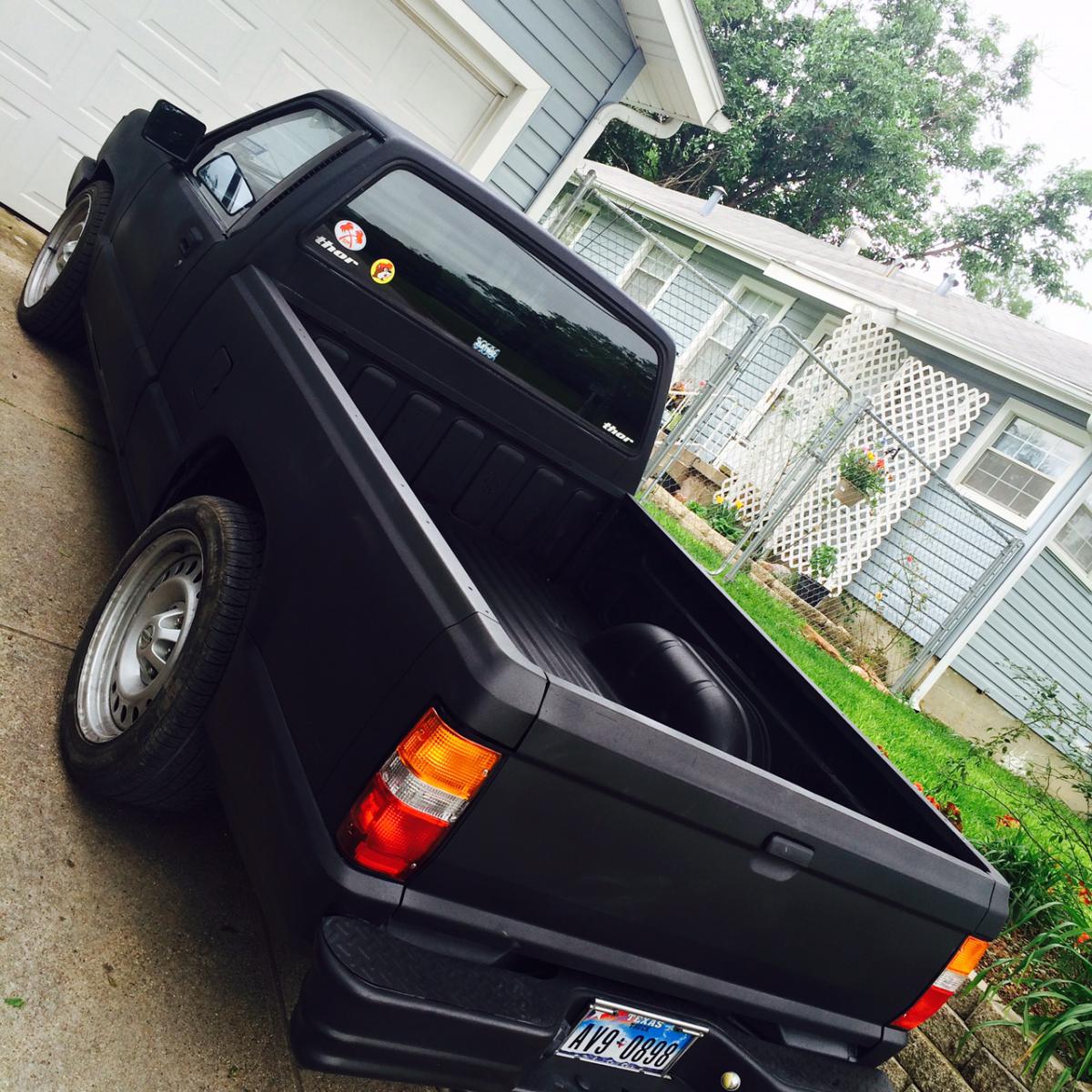

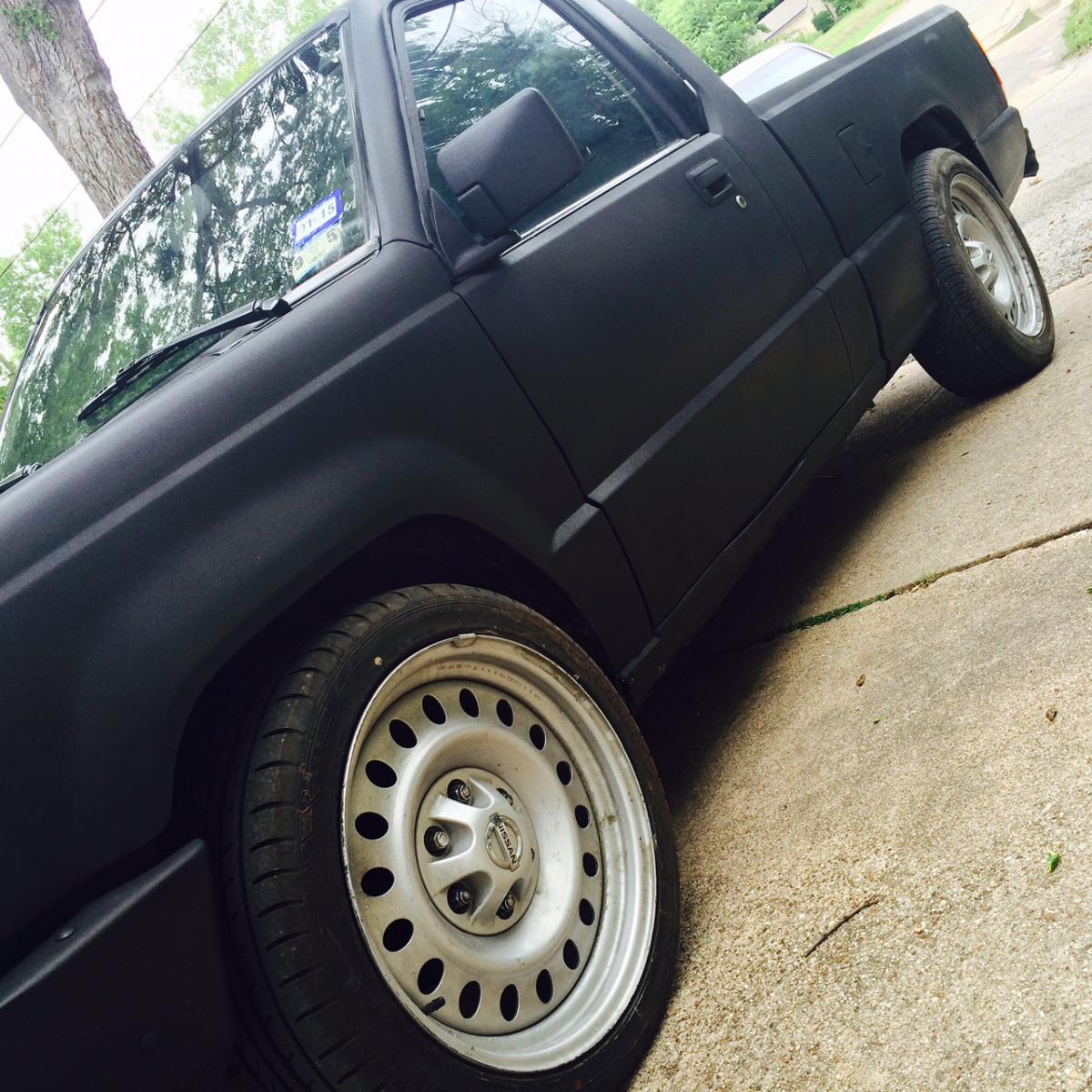

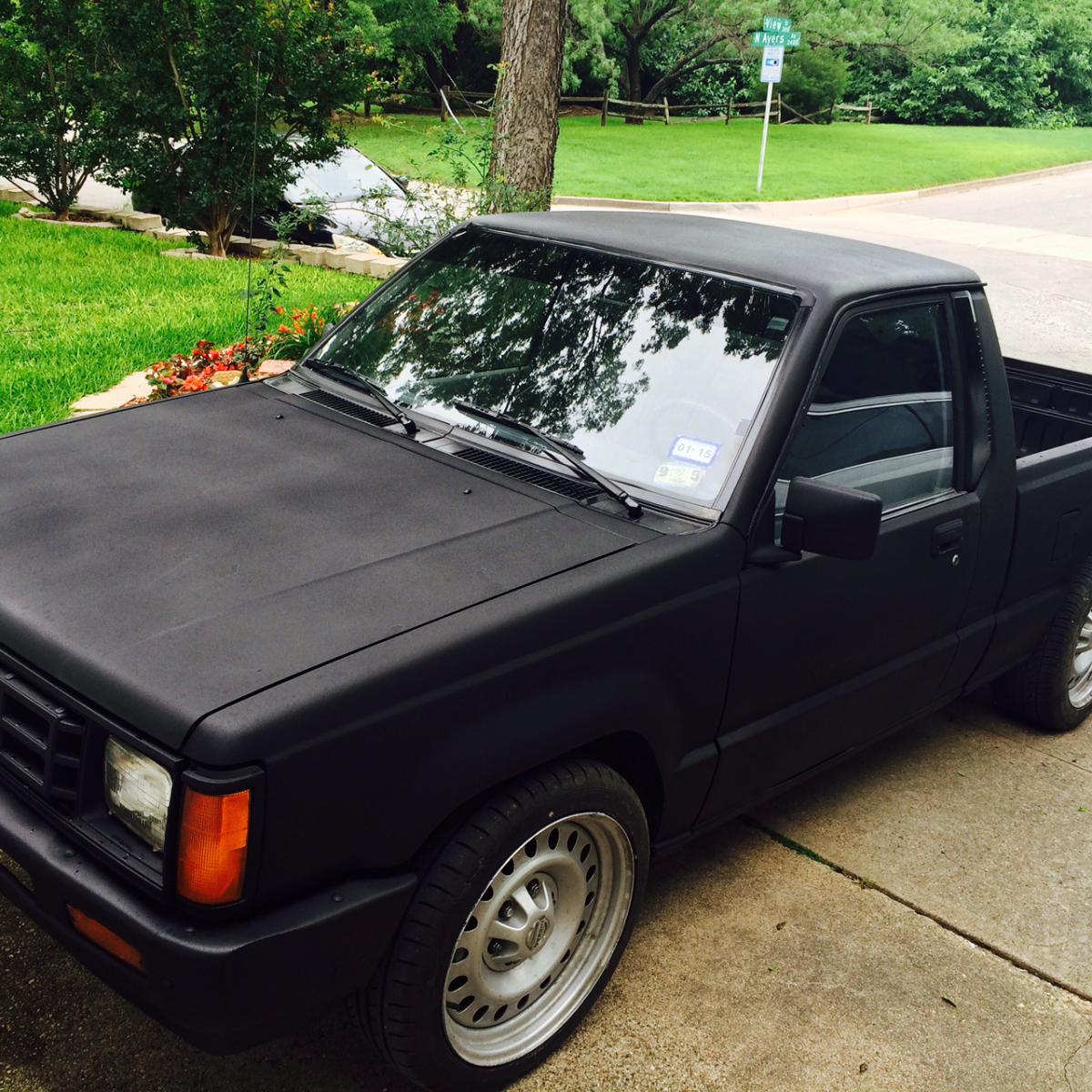

    So I did an intro a while back but finally have enough going on with the truck to start compiling a thread. I picked up this Ram 50 back in December for $900 bucks "road ready". After bringing it home, it became obvious it had the worst lowering job ever done to it...so I put on new coils and 1.5" drop blocks...that way I could clear the Titan wheels/tires. I went ahead and replaced all the tie rod ends, shocks, and ball joints right away. Then I dropped the truck off at an x-buddies paint shop in January...where it was held hostage for 4 months, and ended up having the center dash piece broken when some tool stole the stereo...hoping to find that piece somewhere so I can replace the stereo. At least the body work and liner paint job turned out descent enough for my needs.

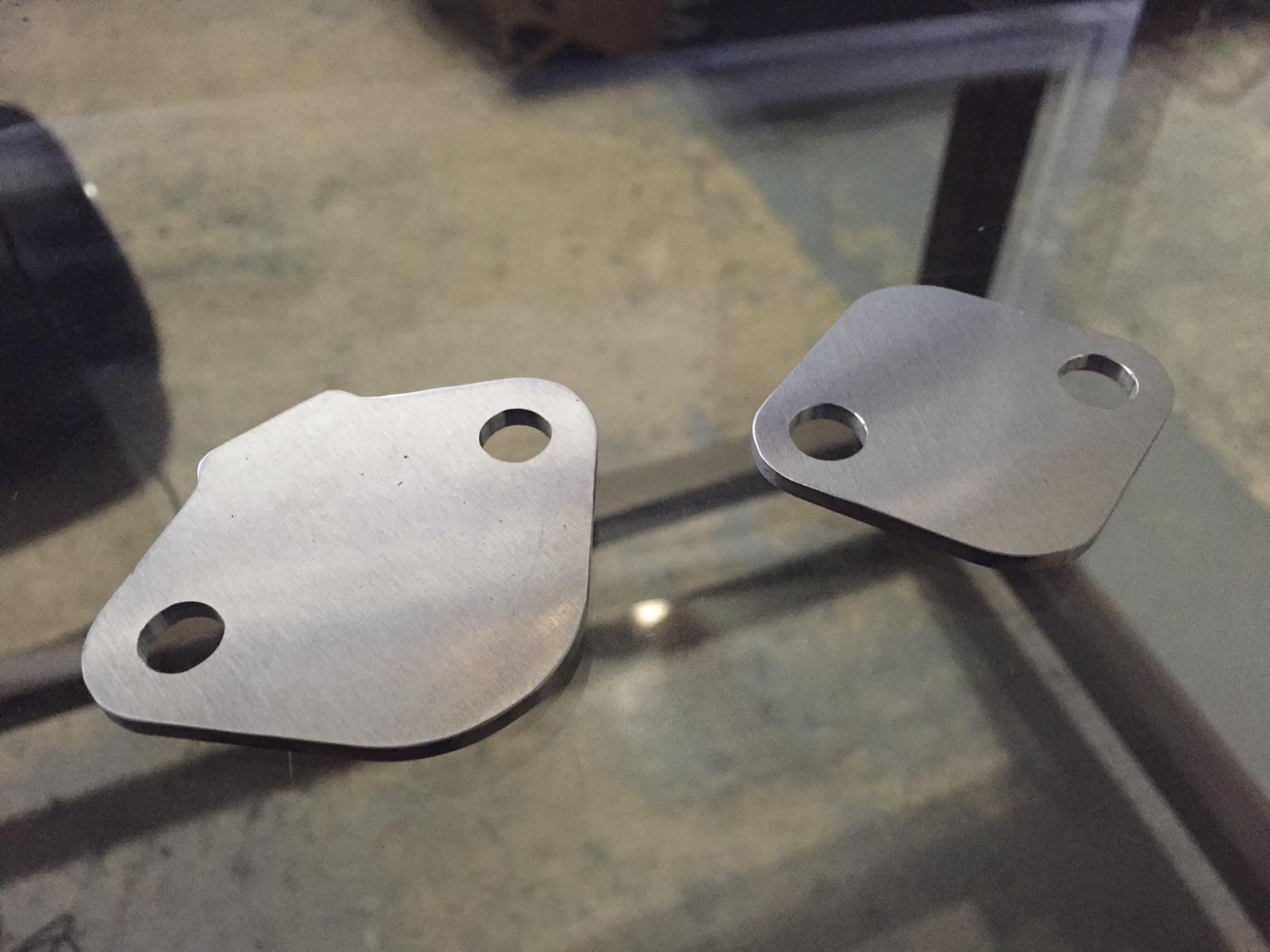

    Since having it back, I went ahead and replaced the plugs, wires, cap, rotor, and tossed in a Blaster ignition coil and a new battery. I also picked up an EGR gasket and threw it in CAD so I could CNC an aluminum block off plate (see pic)...I also did a fuel pump block off at the same time as I've got a new Weber and electric fuel pump here ready to go in with a unique cold air setup.

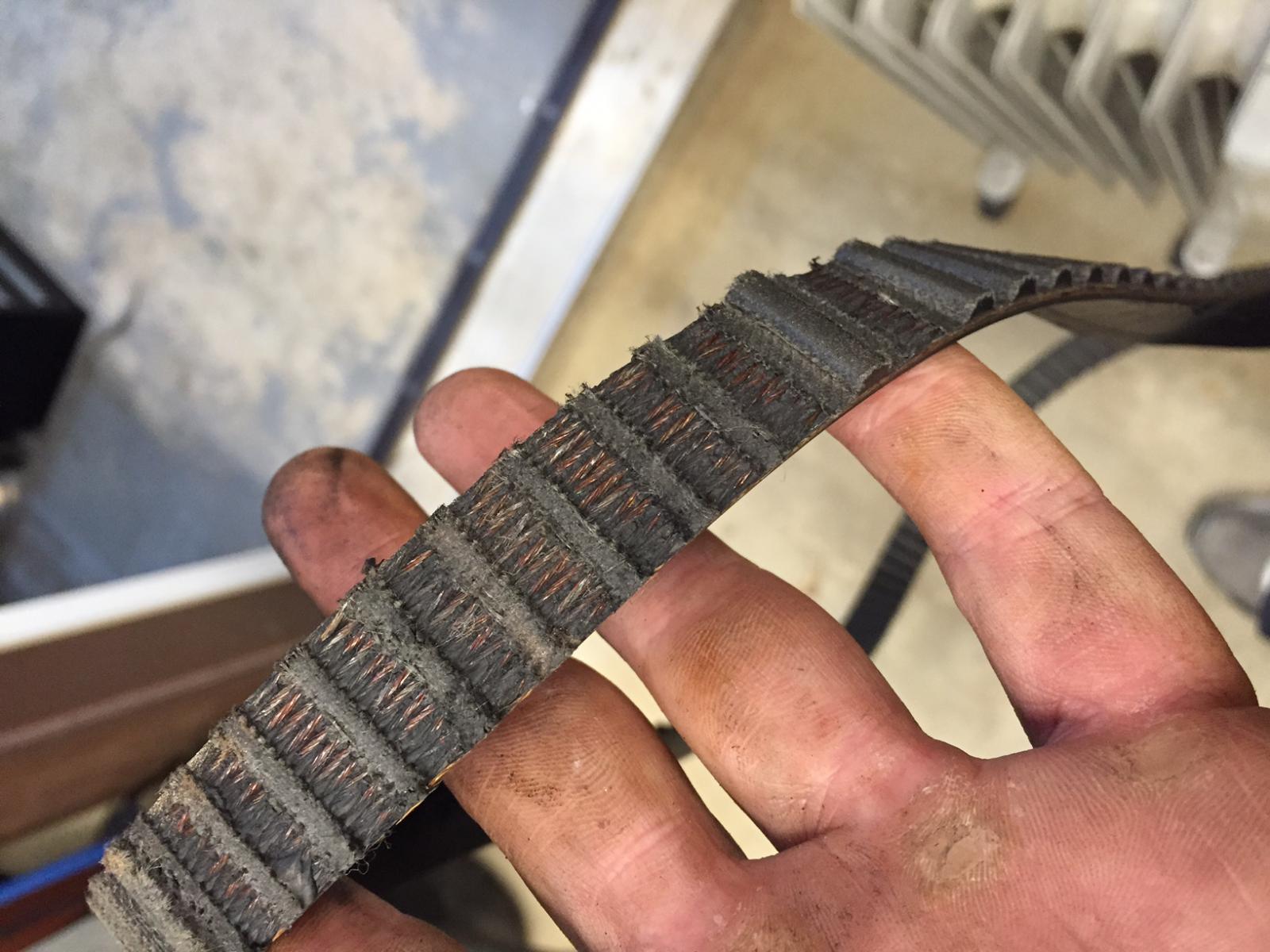

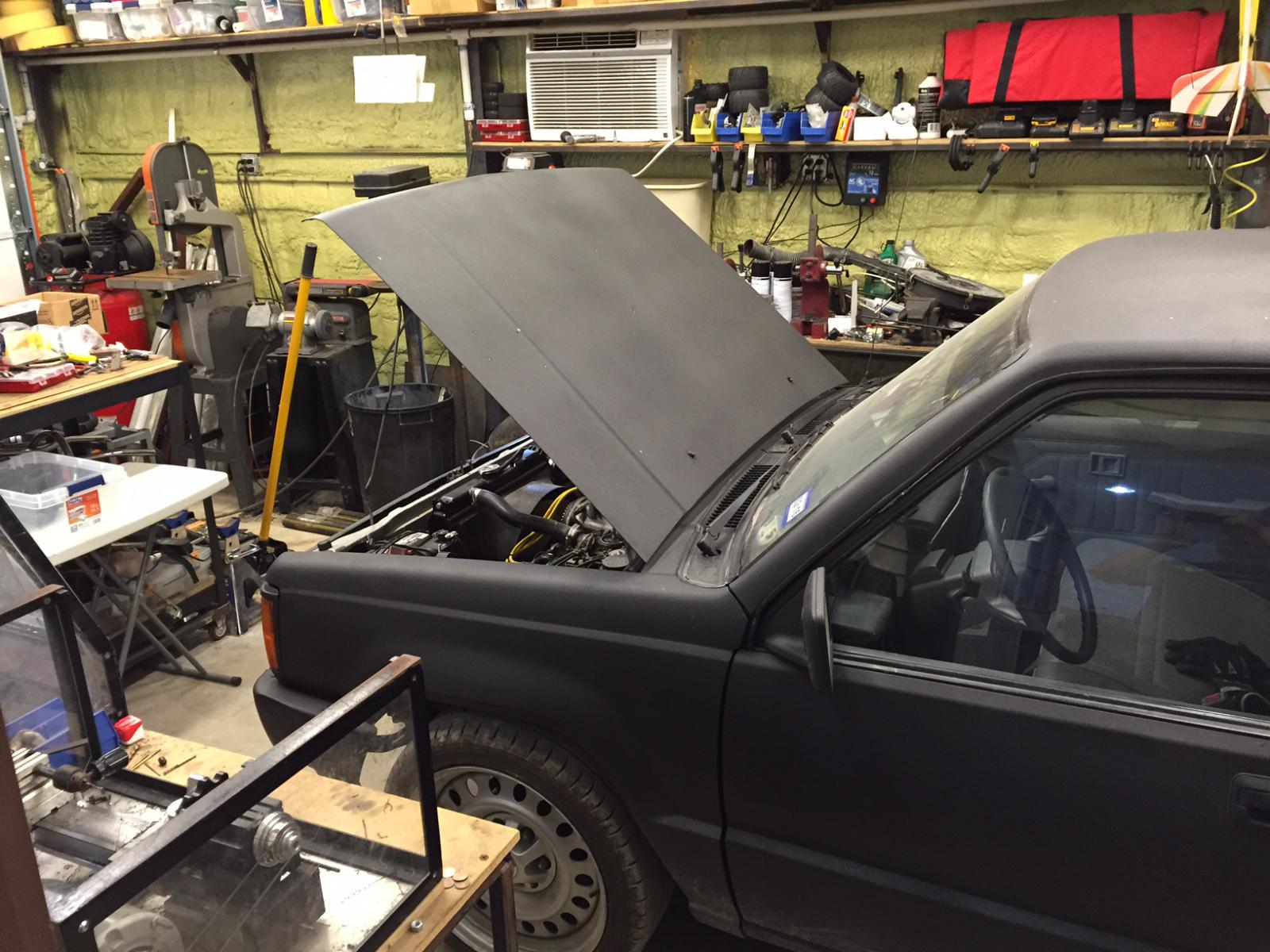

    Fast forward to this week...I was driving down the road at 50 mph when all got quiet. Knocked out my work this week and pulled her in the shop tonight to find teeth missing from the timing belt at the crank. Guessing I'm gonna need to pull the head and go have it checked and maybe freshened up while it's apart. The motor is likely original and the truck has 130k on it...not sure if I should go ahead and pull the motor to do rings and bearings at the same time...as I need my shop truck reliable. Researching now to see if there's any other options I should consider while I am this far into swapping stuff, without adding a ton of down time to the mix.

    Other parts here ready to go on include a new brake master cylinder (current one is quite leaky), flex brake lines for both front wheels (current are dry rotted), and a use power steering pump (it's setup for power steering but came with no pump installed).

    Click image for larger version.

Name:	image3.jpg
Views:	890
Size:	210.4 KB
ID:	14274Click image for larger version.

Name:	image1.jpg
Views:	439
Size:	231.8 KB
ID:	14272Click image for larger version.

Name:	image2.jpg
Views:	1428
Size:	234.3 KB
ID:	14273Click image for larger version.

Name:	image4.jpg
Views:	136
Size:	234.3 KB
ID:	14275Click image for larger version.

Name:	image5.jpg
Views:	221
Size:	267.4 KB
ID:	14276Click image for larger version.

Name:	image6.jpg
Views:	129
Size:	188.6 KB
ID:	14277Click image for larger version.

Name:	IMG_8414.jpg
Views:	107
Size:	155.4 KB
ID:	14278

    Will post more soon...but here's a few pics to get started.

    Don

  2. #2

    Array
    Status
    Offline
    Join Date
    12-12-2014
    Posts
    16
    Location

    United States
    Vehicle

    1987 Dodge Ram 50
    Engine

    G63B
    Title may be misleading...should read "Auto, shop truck build"...as it's a 2.0 with an auto trans...I'm not an auto shop

  3. #3



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,112
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    Glad to see you found the issue with the belt - the bad news is you may have bent valves when the teeth came off the belt - the 2.0 is an interference engine. I like the custom egr block off plate - others may want those if you can make them easily. Check the weber thread for info on the oil pressure safety switch to use with the electric fuel pump to prevent the pump from running with a loss of oil pressure for any reason. You will also need to fabricate a kickdown linkage for the auto tranny cable - there is a thread for that as well. Keep the build pics coming!
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  4. #4

    Array
    Status
    Offline
    Join Date
    12-12-2014
    Posts
    16
    Location

    United States
    Vehicle

    1987 Dodge Ram 50
    Engine

    G63B
    Thanks for the replay Pennyman, I already assumed bent valves are likely and am pulling the head off now to get to the machine shop Monday morning.

    I actually made spare EGR and Fuel Pump block off plates...I can easily make them here for about 15 bucks each shipped first class, cut from 1/8" 6061 T6 Alum.

    I picked up a oil pressure safety switch and a fuel pump relay to set it up right from the get go. I should be able to handle making the kickdown linkage as well.

  5. #5

    Array
    Status
    Offline
    Join Date
    12-12-2014
    Posts
    16
    Location

    United States
    Vehicle

    1987 Dodge Ram 50
    Engine

    G63B

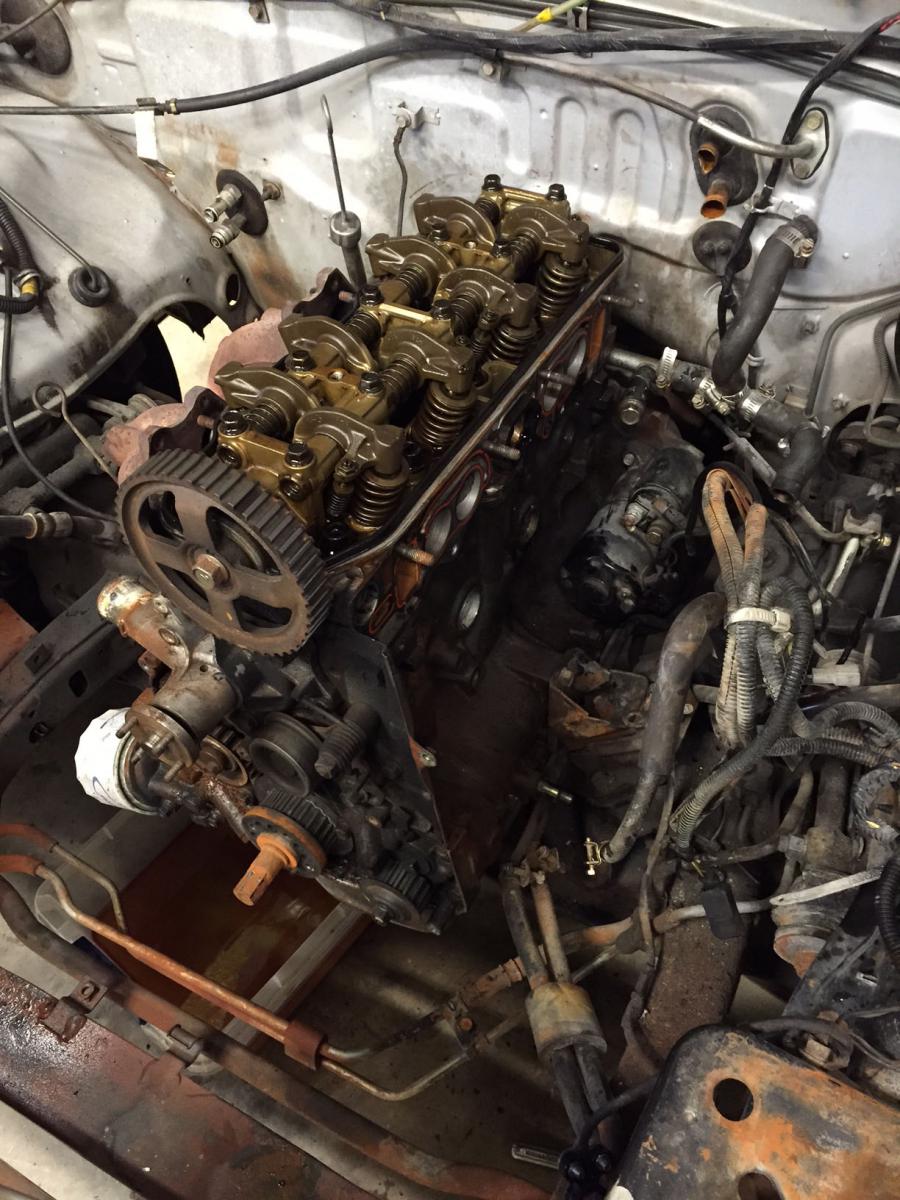

    Got a lil further on tear down. Went ahead and pulled the AC parts as the compressor has been out and I don't plan on replacing at this point. Still searching for my 10mm 1/2" drive allen key. Hoping the cylinders don't look too bad when I get the head off.
    Click image for larger version.

Name:	image1.jpg
Views:	115
Size:	163.0 KB
ID:	14279

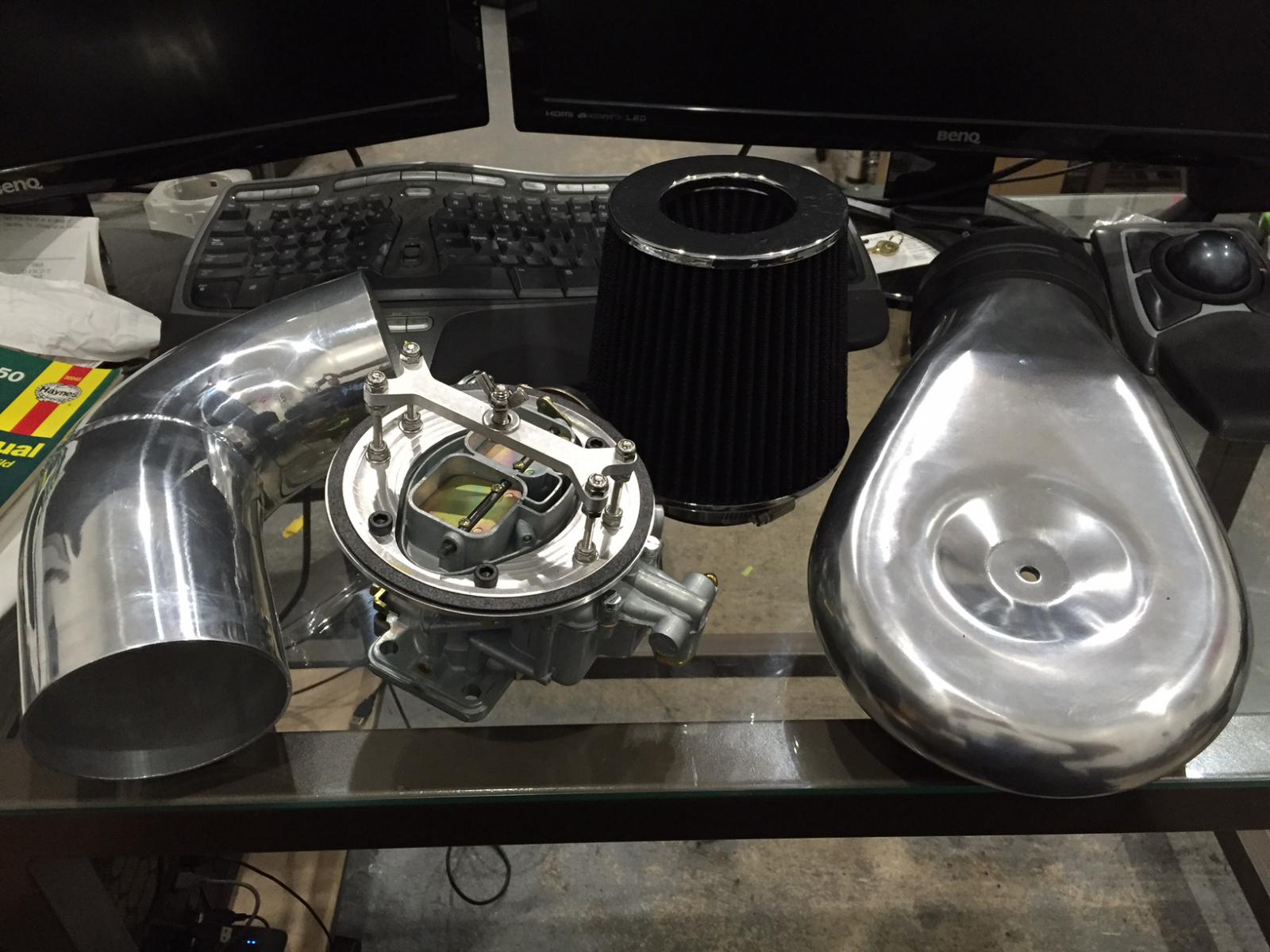

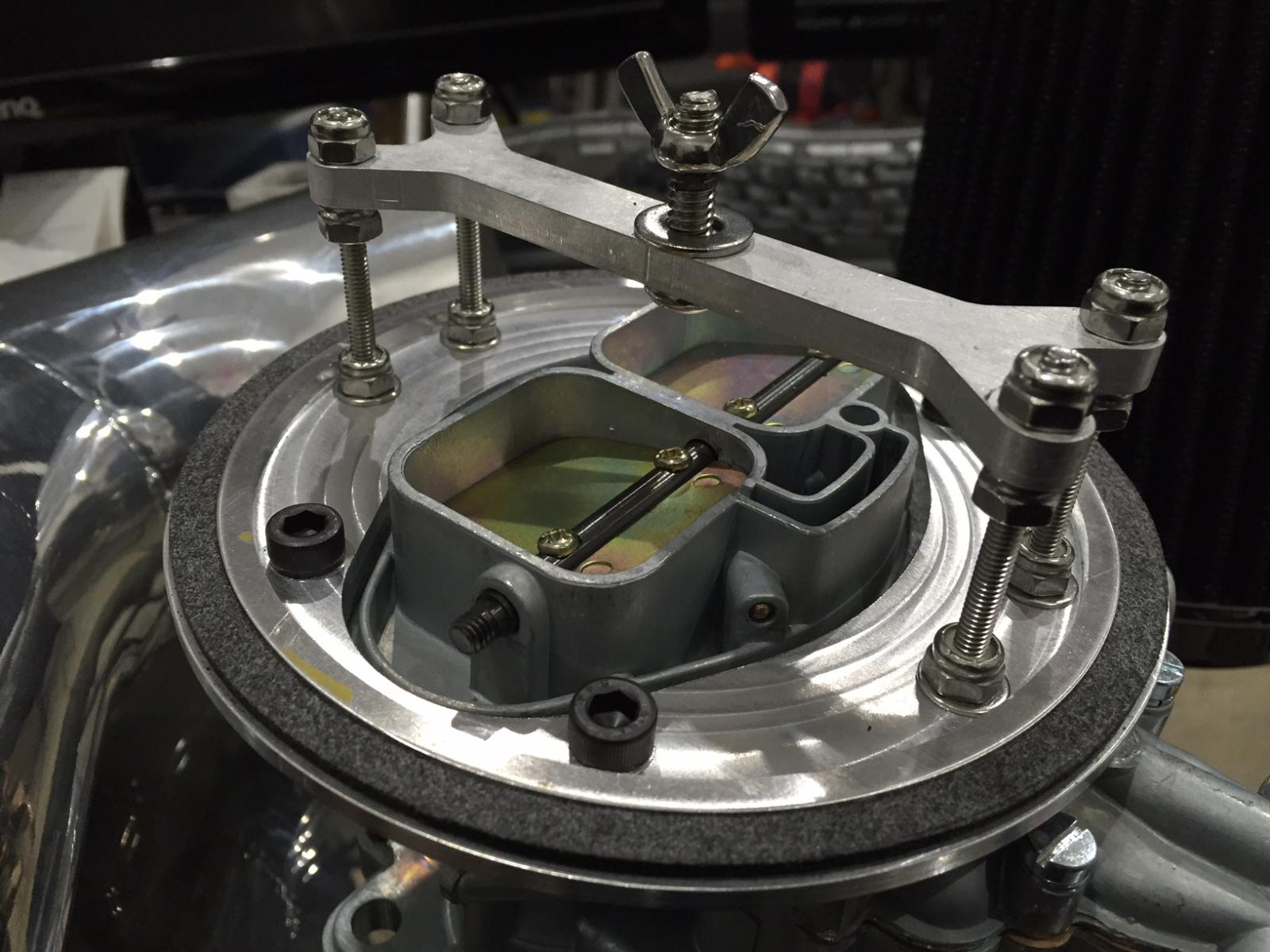

    Here's 2 pics of what I'm doing for my cold air...with my own adapter plate.
    Click image for larger version.

Name:	image3.jpg
Views:	111
Size:	186.9 KB
ID:	14280Click image for larger version.

Name:	image4.jpg
Views:	103
Size:	188.7 KB
ID:	14281

  6. #6

    Array
    Status
    Offline
    Join Date
    12-12-2014
    Posts
    16
    Location

    United States
    Vehicle

    1987 Dodge Ram 50
    Engine

    G63B

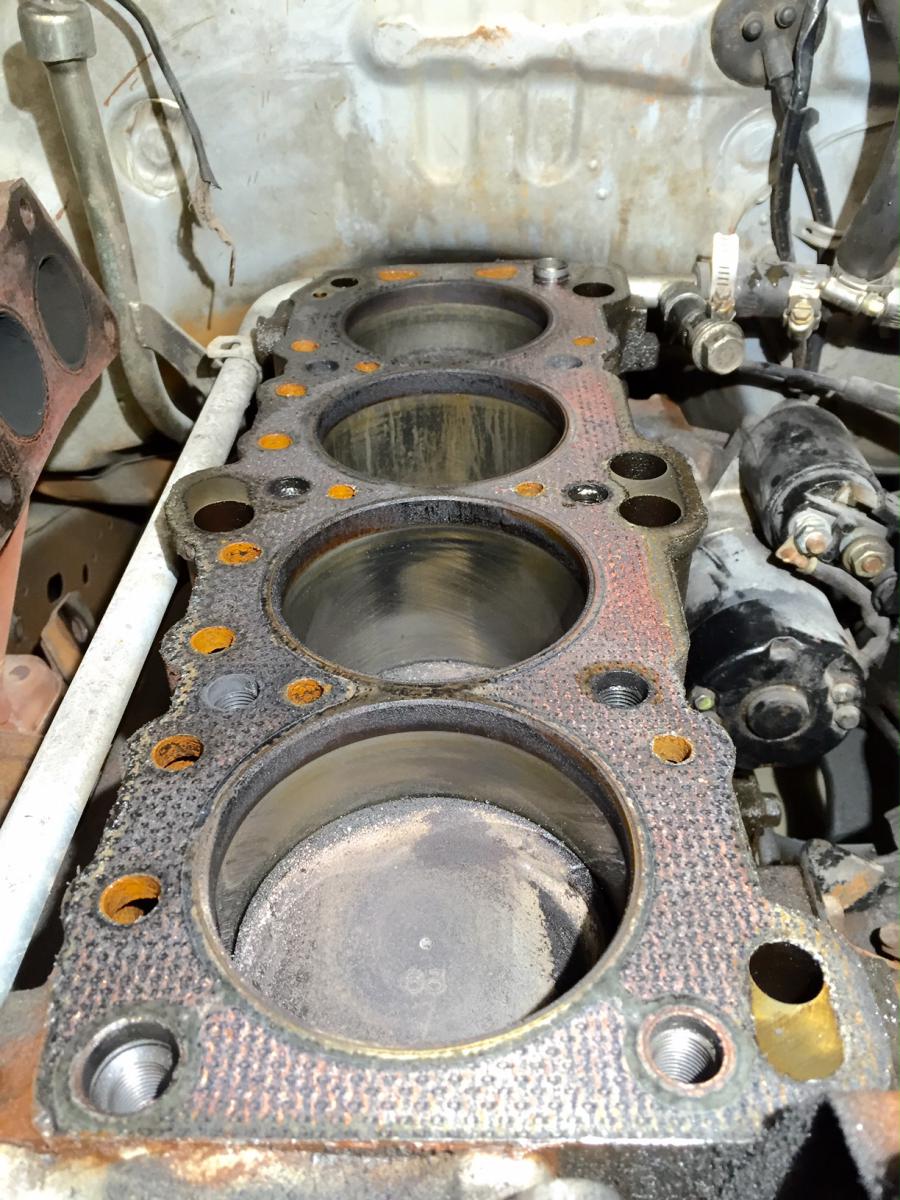

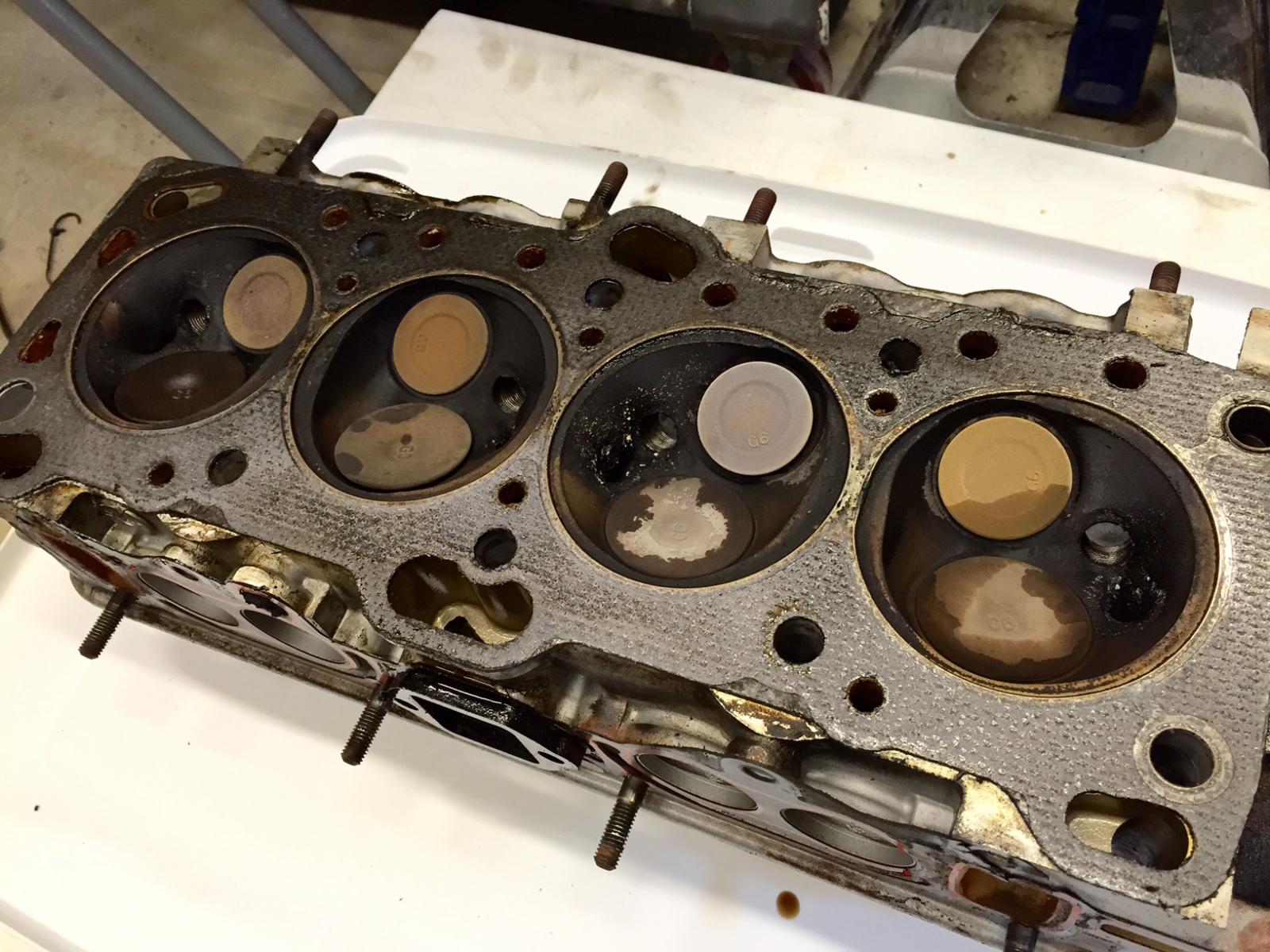

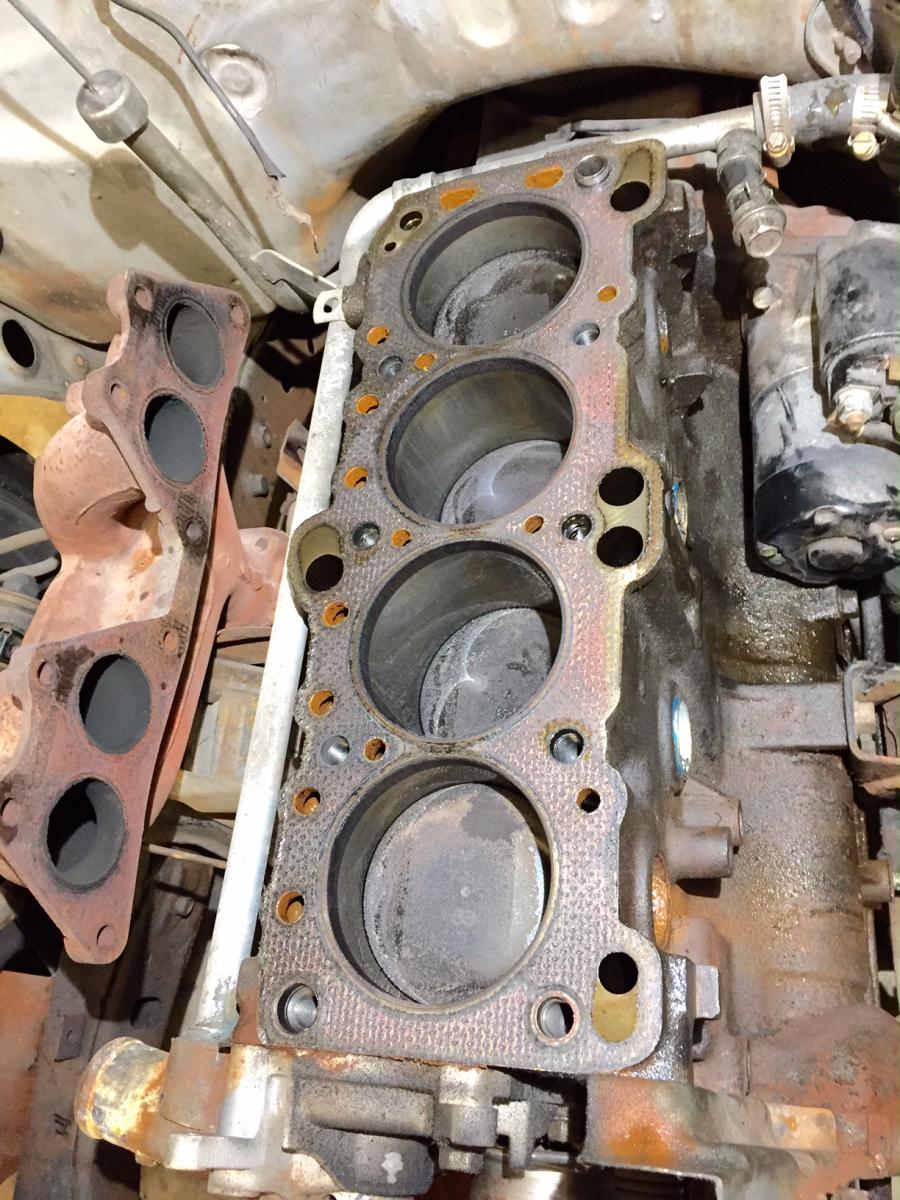

    Hoping you pros can chime in on what I discovered after removing the head. Seems to me it's necessary to yank the block and freshen it up now...but would like opinions.
    Click image for larger version.

Name:	FullSizeRender.jpg
Views:	113
Size:	179.6 KB
ID:	14283Click image for larger version.

Name:	FullSizeRender-1.jpg
Views:	105
Size:	252.6 KB
ID:	14284Click image for larger version.

Name:	FullSizeRender-2.jpg
Views:	165
Size:	189.0 KB
ID:	14285

  7. #7

    Array
    Status
    Offline
    Join Date
    12-12-2014
    Posts
    16
    Location

    United States
    Vehicle

    1987 Dodge Ram 50
    Engine

    G63B

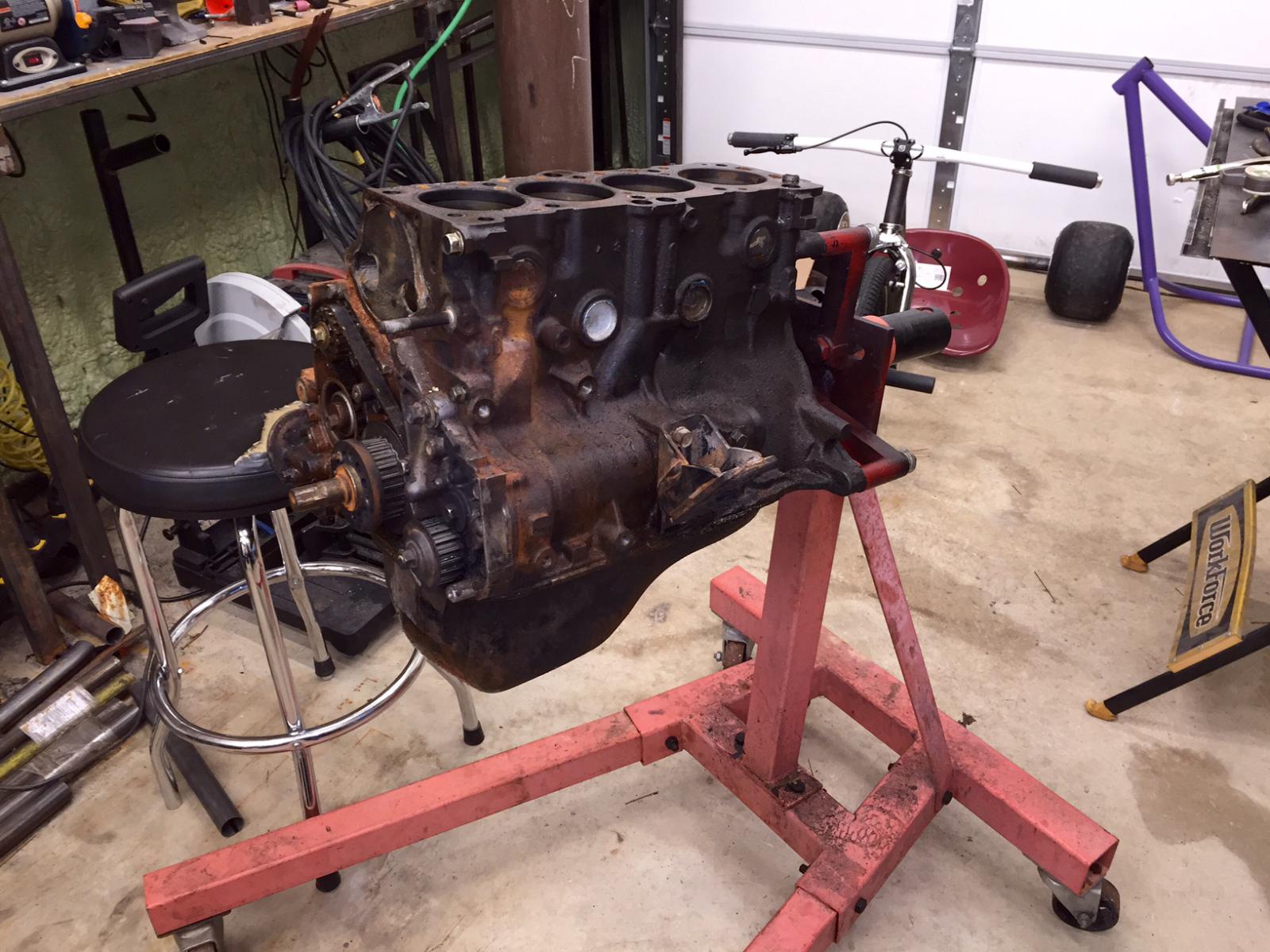

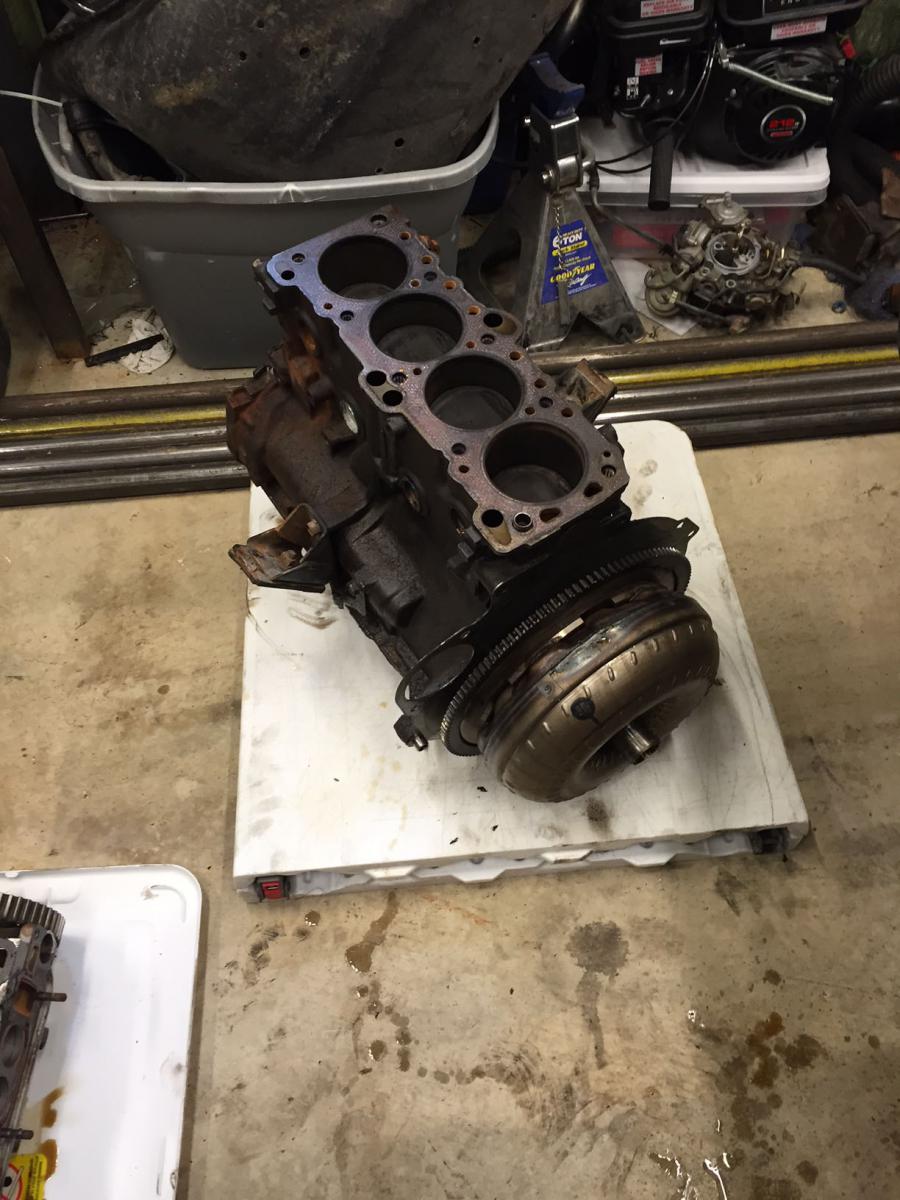

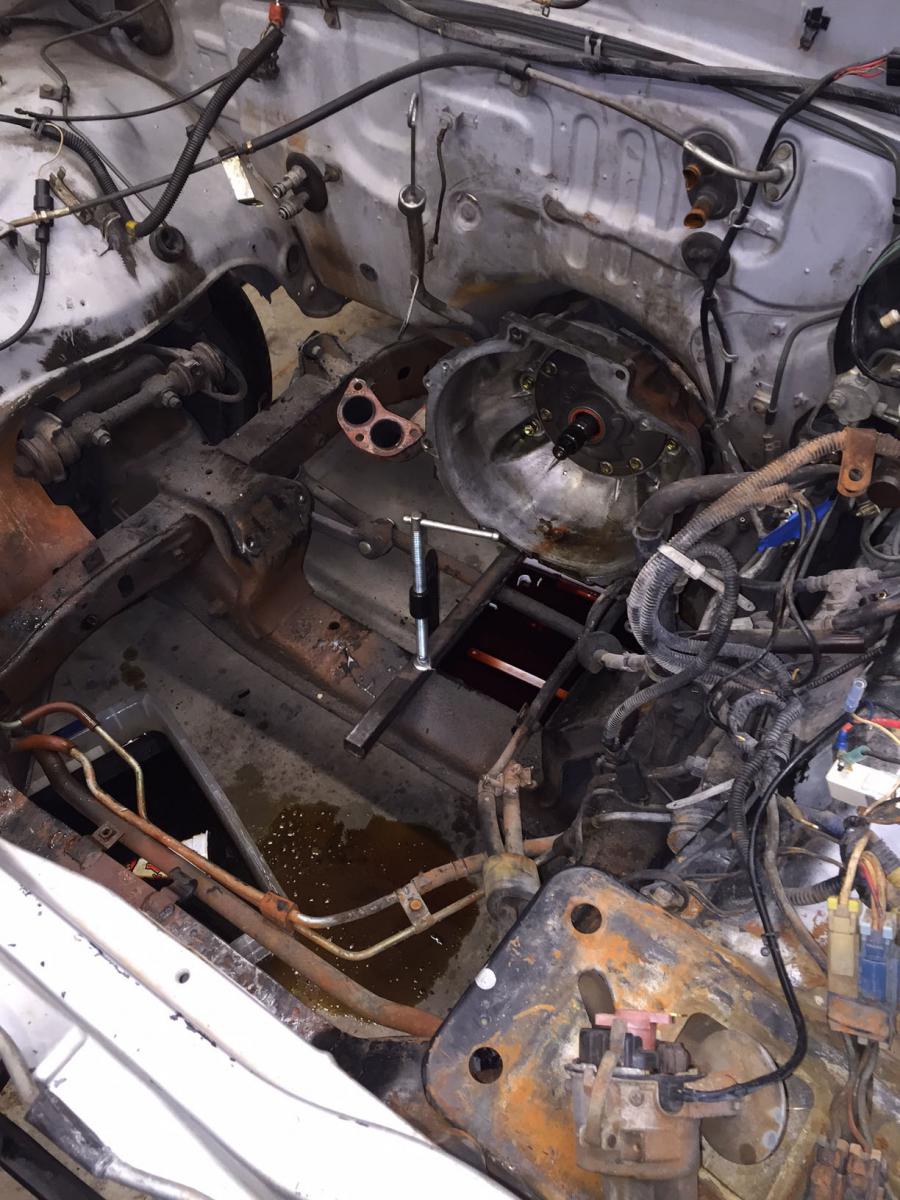

    Wow...I forgot how much fun it is pulling an engine without a hoist. Engine stand is on it's way so I can start tearing into it.
    Click image for larger version.

Name:	IMG_8468.jpg
Views:	106
Size:	129.2 KB
ID:	14291Click image for larger version.

Name:	IMG_8470.jpg
Views:	109
Size:	158.0 KB
ID:	14292

  8. #8

    Array
    Status
    Offline
    Join Date
    12-12-2014
    Posts
    16
    Location

    United States
    Vehicle

    1987 Dodge Ram 50
    Engine

    G63B

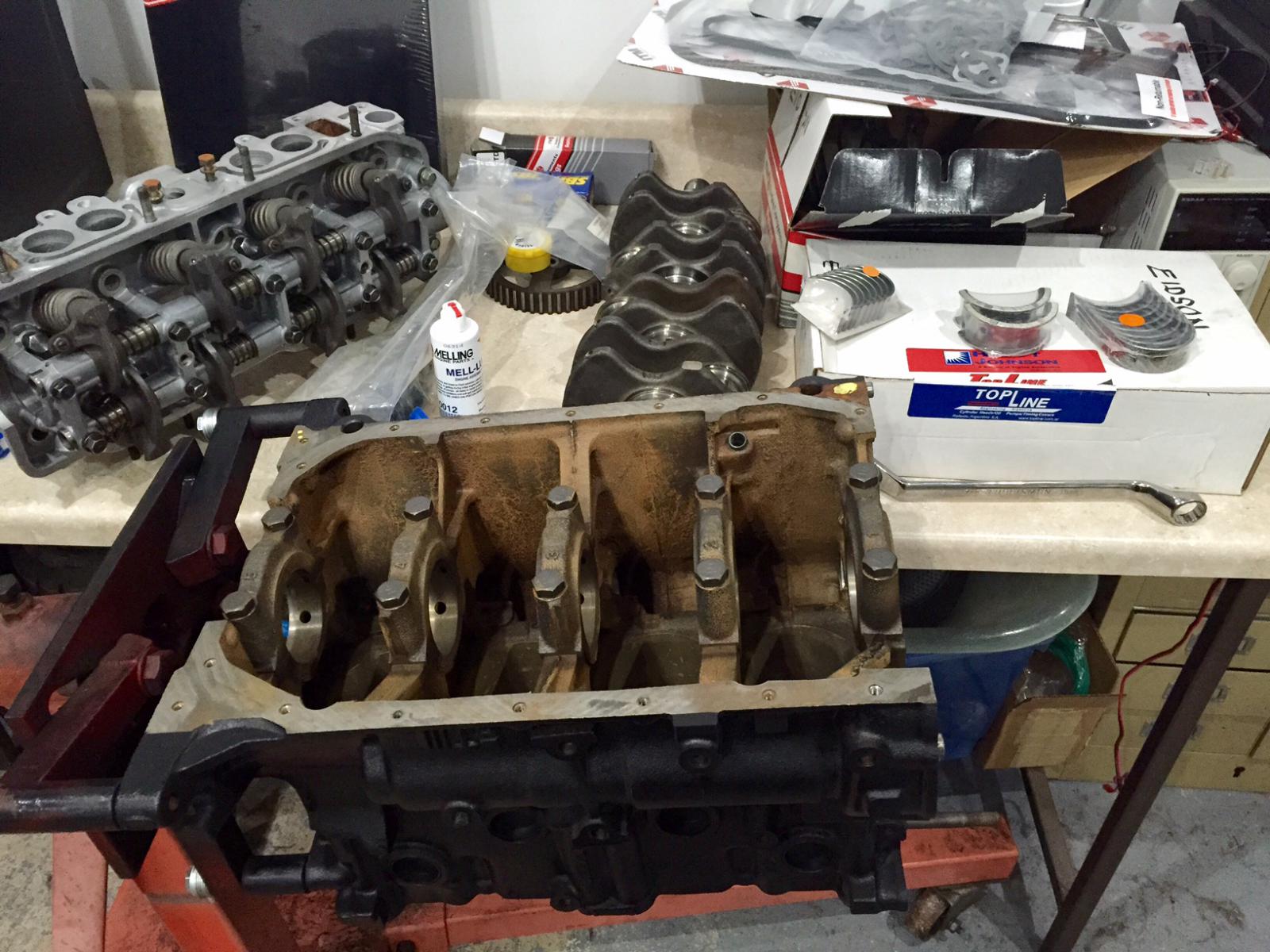

    Let the fun begin...after looking through BradMph's thread http://www.mightyram50.net/vbulletin...ebuild-Replace ...I'm leaning towards staying with a simple carb G63B SOHC build with similar mods (must find a header)...unless I figure out a simple enough DOHC head swap I can swing on the G63B bottom, while staying on the weber.
    Click image for larger version.

Name:	image1 (1).jpg
Views:	146
Size:	234.8 KB
ID:	14305

  9. #9

    Array
    Status
    Offline
    Join Date
    12-12-2014
    Posts
    16
    Location

    United States
    Vehicle

    1987 Dodge Ram 50
    Engine

    G63B
    Got the block all torn completely down to have the block, crank, and rods examined...I do know 2 of the crank journals had some light grooves, and the wrist pins on pistons 1 and 4 aren't smooth moving at all. Bearings were all begging to be replaced. Now that it's down, I have no intention of stuffing those balance shafts back in.

  10. #10

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    2nd the exact fit EGR block offs.
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  11. #11

    Array
    Status
    Offline
    Join Date
    12-12-2014
    Posts
    16
    Location

    United States
    Vehicle

    1987 Dodge Ram 50
    Engine

    G63B
    Finally working on the rebuild...took several weeks to get my cam back from Schneider. Crank was cleaned up, cylinders bored .020 over, 3 angle valve job and jet valve elim on the head, going back together with ARP head studs.

    So, the machine shop "misplaced" 2 of my connecting rod nuts. I'm at a loss of where to find more of them or am wondering if there is an ARP rod bolt kit I should opt for. I'm also contemplating getting a fresh stud kit for the intake and exhaust manifolds. Thoughts/info on both??? I need to get this thing wrapped up and back on the road asap.

    Thanks for the help,

    Don
    Click image for larger version.

Name:	FullSizeRender.jpg
Views:	85
Size:	242.1 KB
ID:	14554

  12. #12

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    They're not paying for them?
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  13. #13

    Array
    Status
    Offline
    Join Date
    12-12-2014
    Posts
    16
    Location

    United States
    Vehicle

    1987 Dodge Ram 50
    Engine

    G63B
    Correct, they claim two were missing when I dropped off parts. I don't have time to argue with them over it, so I need to find some.

  14. #14



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,112
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    Try Dad (Randy) at engine machine services - he is a 2.6 engine guru and should have what you need.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  15. #15

    Array
    Status
    Offline
    Join Date
    12-12-2014
    Posts
    16
    Location

    United States
    Vehicle

    1987 Dodge Ram 50
    Engine

    G63B
    Perfect my friend...will call him tomorrow but a quick glance on his site shows he seems to have everything I need in one place!

  16. #16



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,112
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    Glad I could help.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980
