Thread: wheel woes... ground hubs vs bored wheels

  1. #1

    Array
    Status
    Offline
    Join Date
    04-20-2015
    Posts
    8
    Location

    United States
    Vehicle

    1989 Dodge Ram 50
    Engine

    I.D.K.?

    wheel woes... ground hubs vs bored wheels

    I picked up an 89 extended cab ram50, been trying to buy the truck from a co-worker for years and he finally let her go. It sat for 4 years and the tires have began to rot. I can get a set of 14" tires for the same price as 17/18" tires.

    I would like some titan steelies or even some other aftermarket choices. After searching I've found a bunch on boring wheels but nothing on grinding hubs other than people say it isn't that bad to do. So I'm searching for some more info and hopefully pictures?

    Thanks
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	20150416_145247.jpg
Views:	68
Size:	307.0 KB
ID:	13874

  2. #2

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    Hubcentric wheels. Don't grind the hubs down, that's beyond ghetto and dangerous. Don't hog out the bores with a drill. Take the wheels to a machine shop to get them bored out. Titans are 100mm, ours are 108mm. Just few bucks and minutes at the machine shop and the ride quality will be smooth and you won't be forever chasing weird shakes and vibrations if you Dremeled it.

    Titan steelies are awesome and you have a nice truck. Do it right, do it safe.
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  3. #3

    Array
    Status
    Offline
    Join Date
    04-20-2015
    Posts
    8
    Location

    United States
    Vehicle

    1989 Dodge Ram 50
    Engine

    I.D.K.?
    Thanks, took quite a bit of cleaning. It sat under a tree all those years collecting junk all over it. But I can't complain, only paid $100 for it.

    Click image for larger version.

Name:	20150421_133541.jpg
Views:	74
Size:	127.5 KB
ID:	13878

    Looks like I'll be going the bore route, picked up some gmc 17s today. Might try it myself with a router. Then just need to order some tires. Thinking 215/45r17s

  4. #4

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    Nice score for $100.
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  5. #5



    Array
    Status
    Offline
    Join Date
    03-16-2011
    Posts
    3,614
    Location

    Sacramento, CA
    Vehicle

    1979 Dodge D-50
    Engine

    Chevy V6

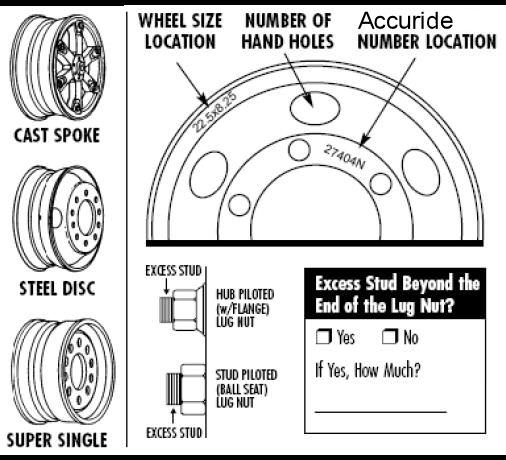

    The wheels are stud piloted, not hub piloted. That means the wheel is centered by the lug nuts not the hub. If you look at the lug nuts they have a point that is what centers the wheel or pilots them. A car that has the big flat lug nuts are hub piloted.




    Click image for larger version.

Name:	RWC-Wheel-Diagrams.jpg
Views:	186
Size:	46.2 KB
ID:	13890





    Hub pilot below.

    Name:  Hub-Pilot-Wheel-nuts.jpg
Views: 367
Size:  8.5 KB
    Members come and members go, But the board keeps track of them.
    Check out the Fear Monger by
    clicking HERE.

    The MightyRam50 site is sponsored in part by On Site Concrete Inc.

  6. #6

    Array
    Status
    Offline
    Join Date
    04-09-2014
    Posts
    595
    Location

    sheffield, vt
    Vehicle

    1978 Dodge D-50
    Engine

    G63B
    if possible (same thread style) use the same nuts that came with the "new" rims. some nuts don't "seat" correctly & will cause wobble...just fixed that issue on the 1983 that had aftermarket rims (yeah they only "look" stock) by using the aftermarket nuts from the 1986

  7. #7

    Array
    Status
    Offline
    Join Date
    04-20-2015
    Posts
    8
    Location

    United States
    Vehicle

    1989 Dodge Ram 50
    Engine

    I.D.K.?
    I didn't get the lugs with the wheels, but I'll pretty sure they would be the wrong thread pitch anyways. I'll order some bulge acorns and hope they work.

  8. #8

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    Quote Originally Posted by camoit View Post
    The wheels are stud piloted, not hub piloted.
    I don't know about the GMs and I didn't think the old MM were hubcentric but my understanding was all of the new Titan wheels are hubcentric. Even the steel wheels.
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  9. #9

    Array
    Status
    Offline
    Join Date
    04-24-2011
    Posts
    305
    Location

    Orlando, FL
    Vehicle

    1990 Mitsubishi Mighty Max
    Engine

    G64B
    nice looking truck, keep the pictures coming,
