Thread: Is it true tranny tunnels are different sizes between auto and manual?

  1. #1

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B

    Is it true tranny tunnels are different sizes between auto and manual?

    Please tell me it's not true and I won't have to expand the tranny tunnel going from a KM145 to an AW372...
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  2. #2



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    the auto tranny tunnels are larger than manual tranny tunnels, and requires offset pedals for gas and brake. It is true, sorry...
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  3. #3



    Array
    Status
    Offline
    Join Date
    07-24-2012
    Posts
    2,357
    Location

    Washington State
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G63B
    What generation truck are you doing this to Noah

    AW372 Transmission
    Click image for larger version.

Name:	AW372.jpg
Views:	807
Size:	87.4 KB
ID:	13294

    Looks like the manual transmission except for the big box oil tray




    KM145 are terrible transmissions, glad your looking to get rid of it. They usually get rid of themselves by self destucting

  4. #4

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    Thanks guys.

    2nd Generation. Excuse me, it's the KM132, not the KM145. Narrow block 2.0 5 speed. I'm getting so burnt out on all of the acronyms and numbers to remember. I thought I had everything lined up for the conversion, pedalset, steering column and linkage, 3.54 rear diff. But then someone made an offhand comment about this today on Facebook group. I guess it's better to find out now rather than when it's on the tranny jack. New crossmember, too, eh?

    I wanted to hook this up to the diesel. Which needs to be totally rebuilt.

    Getting so discouraged. I'm considering throwing in the towel. It sucks not having a car buddy who can help out. All of my old car buds moved to different cities. Overwhelmed with the to-do list that keeps getting longer.

    Maybe I should step away from all of this for a while.
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  5. #5



    Array
    Status
    Offline
    Join Date
    07-24-2012
    Posts
    2,357
    Location

    Washington State
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G63B
    I do things all myself also. Your right too, it is hard. I have found ways to do things that would usually take 2 people to do and do it myself. I probably would finish things a little quicker also if I had that extra person.
    Just do a little at a time each day and try to not add to the list until you have moved through your prior list. You'll find that some days your motivated and others are spent thinking about it which also is accomplishing.

  6. #6

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    Would the wideblock 5 speed from a 2.4 fit without modifications?
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  7. #7

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    I guess it's time for Plan B.

    R5M21 (1990+ wideblock 5 speed 2.4L)
    1 3.967/4.330
    2 2.136/2.356
    3 1.360/1.509
    4 1.000/1.000
    5 0.856/0.834

    This is about 2650 RPM at 65 MPH on a 195/65/15 tire with the 3.54 rear end. The rev limit for the 4D56 is about 4000. Too high to cruise at.

    AW372 (1989 and older wideblock automatic)
    1 2.826
    2 1.493
    3 1.000
    4 0.688

    That's about 2130 RPM.

    Maybe I can swap out an overdrive gear and use the manual.

    Or man up, stop crying about it, punch the floorpan out and get one of these things.

    http://chassisengineering.com/index....&product_id=23

    Not like I'm the first to encounter this kind of problem.
    Last edited by noahwins; 03-03-2015 at 03:32 PM.
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  8. #8



    Array
    Status
    Offline
    Join Date
    03-26-2011
    Posts
    1,512
    Location

    Vacaville, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T
    the auto are WAY bigger than a KM132. I know because I have had both and put one in the other. There is SOOO much room around my KM132 thats sitting where the 2.6 auto was. And my buddies 2.4 auto is even bigger than my 2.6 auto was.
    Josh
    09 BMW 335i E92 Twin turbo
    89 Macrocab 4g63 Turbo swapped & Bagged: Build Thread

  9. #9

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    I always assumed the floor pan was the same form factor from Mitsubishi since everything else is like Legos. If I do the custom tranny hump thing, I could do one of those nice Lokar double bend floor shifters instead of column mount and clean up the firewall a bit. Maybe this isn't such a bad thing after all. My biggest fear is blowing a million holes through the pan with my novice welding skills. But I guess you have to learn how to do it somehow.
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  10. #10



    Array
    Status
    Offline
    Join Date
    07-24-2012
    Posts
    2,357
    Location

    Washington State
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G63B
    When I got a doner truck, '87 with an automatic, I never notice the hump any larger then normal and I had to remove the trany and engine. Shipped the trany to Texas and truthfully the part that seemed larger then the manual was below the top half of the trany. Yes it was larger and that is a fact, but it all connected up to a wideblock engine just like a manual trany do also. I find it hard to think they put 2 floor pans in trucks, one for Auto and one for manual. Though they did create a block that was 1 inch wider, so who knows on that. Wonder if the humps were wider only and not deeper into the truck cab area.


    Click image for larger version.

Name:	trany_pans.jpg
Views:	142
Size:	46.5 KB
ID:	13306

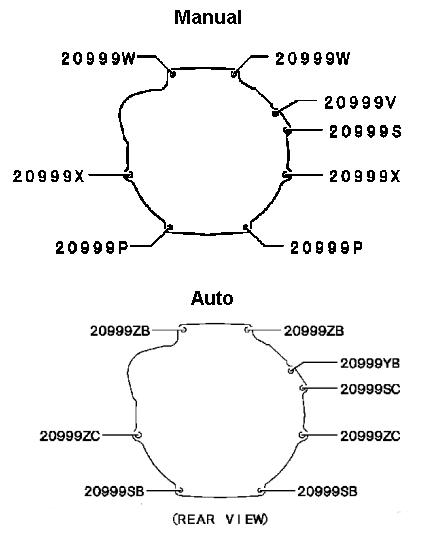

    The bellhousing diagrams are not compared in size in this illustration. The proportion of the auto trany was shown larger in the ASA program and that's why it appears larger in the image. They are both the same size for mounting to engine blocks. From that point back, the size is unknown in compared to the manual.


    Click image for larger version.

Name:	tranyhousing.gif
Views:	97
Size:	9.4 KB
ID:	13309Click image for larger version.

Name:	floorpans.gif
Views:	121
Size:	9.1 KB
ID:	13311

    Here they are in correct proportion. Found additional floor pans styles for possible comparing.

  11. #11



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    The 1st gen trucks definitely have different tunnels for manual vs auto - when I changed out Geronimo's cab for a cab from an auto truck, I had to bend the gas pedal to the left, and shift the clutch and brake pedals over so I could get to the gas pedal. I am still not happy with that setup, so I am going to mod the tunnel so I can put the pedal back where it belongs. If you have the 2 gas pedals side by side, one goes to the left of the pivot(auto) and the other goes to the right (manual), a difference of 2 inches. If the 2nd gen are different, I am not sure, but knowing mitsu, they don't change much over the years in the body department.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  12. #12

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    A guy on Facebook said he measured the tunnel on his automatic truck (which he converted to manual) and said it was 13" at its widest point by the shifter and 7" tall at its tallest point.

    Click image for larger version.

Name:	auto tunnel 2.jpg
Views:	92
Size:	69.2 KB
ID:	13307

    Click image for larger version.

Name:	auto tunnel.jpg
Views:	86
Size:	72.8 KB
ID:	13308
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  13. #13



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    how does it compare to yours?
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  14. #14

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    I was going to measure as soon as I got home and then I saw my place got burglarized today...

    About that revolver I wanted...
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  15. #15



    Array
    Status
    Offline
    Join Date
    03-26-2011
    Posts
    1,512
    Location

    Vacaville, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T
    They are FOR SURE 100% different on 2nd gen trucks, like I said I have had both. When putting the manual into my auto tranny tunnel truck I had to bang the tunnel in closer to the tranny to be able to fit all the pedals in there and not have the gas pedal pushing into the side of the tunnel. There is also no cut out for where the shifter goes in the auto tranny tunnel trucks, another reason I am sure they come with two different floor pans.
    Josh
    09 BMW 335i E92 Twin turbo
    89 Macrocab 4g63 Turbo swapped & Bagged: Build Thread

  16. #16

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    Mitsu switched over from AW372 to A500 (I think) in 1990. So there might be yet another kind of floor pan.
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  17. #17



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    that confirms the 2 different floor pans for auto and manual trucks...
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  18. #18

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    Hey Pennyman, what was this mysterious old school narrow block automatic transmission you mentioned in another thread? I thought all autos were wideblock.
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  19. #19



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    3 spd autos from 79 - 86 are all narrow blocks - 2.0 (both astron and sirius) and 2.6 motors. They are even interchangeable 2.0 to 2.6 - unlike the manuals in the same timeframe.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  20. #20

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    That 3 speed being the A904 "Baby Torqueflite" right?
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  21. #21



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    that is correct - a aisin warner built baby 904 under license from mopar - not interchangeable with an american 904. So what did the thiefs get out of your place?
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  22. #22

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    The AW gears or case is not interchangeable with Mopar? Because I started emailing around about re-gearing the overdrives in the AW372 and R5M21 to make them more diesel friendly. But the gear guys said there are no on the shelf parts for those trannies anymore. And custom cut OD is probably way too expensive for me.

    I used an online calculator and running fat boy 29" tires would get 65 MPH revs down to about 2100. But I don't know if those would fit under a RWD truck with a 2/3 drop.

    Local methheads got two heirloom rings, my poker bankroll and a jump drive with Bitcoins. BTC were a bad idea. I was too embarrassed to tell the insurance adjuster how much I actually bought them for when I told her the market price today. They did not take my sweet fixed gear bike or computer for some reason. And thank God they did not find the garage clicker and take my tools or parts or damage my vehicle.

    I feel so foolish for not putting the stuff in a safety deposit box at the bank but I wanted to have cash ready if I wanted to play cards or the zombie apocolypse started or whatever. I told you guys earlier that quality of life type crime was getting pretty bad in this neighborhood so I bought renter's insurance when I got new auto insurance this year. So I'll be able to recoup at least some of the losses, I hope. Enough to get out of my lease and GTFO of here. I'm kinda sick of Cali to be honest.

    Getting more jaded as I get older. I hope I don't become cynical.
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  23. #23



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    whats BTC?
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  24. #24

    Array
    Status
    Offline
    Join Date
    04-24-2011
    Posts
    305
    Location

    Orlando, FL
    Vehicle

    1990 Mitsubishi Mighty Max
    Engine

    G64B
    Here are some options for for a manual transmission http://www.billsautofab.com/recent_mit.asp for automatic https://www.gearvendors.com/hrdodge3s.html there are more option to try but i would look at these first.

  25. #25

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    Bitcoin.
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

Page 1 of 2 12 LastLast

Tags for this Thread

Bookmarks

Bookmarks

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
