Thread: 1992 Mitsubishi Mighty Max Build AKA Mighty Ruckus Carrier!

  1. #1

    Array
    Status
    Offline
    Join Date
    01-12-2015
    Posts
    36
    Location

    Washington, MI
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    4G64

    1992 Mitsubishi Mighty Max Build AKA Mighty Ruckus Carrier!

    Recently I pick up a 92 Mitsubishi Mighty Max ,with the 2.4l and automatic transmission, for $500. I bought it not running and trailered it to my shop to begin the build / get it running. I was told that the crank timing sprocket was worn out, keyway wore a notch, and it just needed a new gear and it was good to go. Well lets just say I found a little more than just that wrong. Pics Below are when I got it and what I was told was wrong with the new part! Also Posted is what the truck will be transporting! (warning pic heavy!!)Click image for larger version.

Name:	P_20150106_200643[1].jpg
Views:	555
Size:	35.2 KB
ID:	12655Click image for larger version.

Name:	P_20150109_190445[1].jpg
Views:	465
Size:	57.1 KB
ID:	12656Click image for larger version.

Name:	P_20150108_112726[1].jpg
Views:	147
Size:	48.3 KB
ID:	12657Click image for larger version.

Name:	FB_IMG_1420925353852[1].jpg
Views:	161
Size:	66.6 KB
ID:	12658Click image for larger version.

Name:	FB_IMG_1420925344749[1].jpg
Views:	160
Size:	79.7 KB
ID:	12659

  2. #2

    Array
    Status
    Offline
    Join Date
    01-12-2015
    Posts
    36
    Location

    Washington, MI
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    4G64
    Here is Progress on day one (Currently on day 4 or 3...I'll just say 3..but I finally have time to get the thread going) got the Illusive crank timing sprocket in at the dealership and finally have it installed in the truck and retimed the engine. Got the truck started after a quick shot of starting fluid in the intake. It runs ok but it runs very very rich and all 4 spark plugs are black and smell like gas pics below, also found a leaking water pump! Click image for larger version.

Name:	P_20150108_121235[1].jpg
Views:	110
Size:	59.9 KB
ID:	12663Click image for larger version.

Name:	P_20150109_174726_1[1].jpg
Views:	98
Size:	32.7 KB
ID:	12664

  3. #3

    Array
    Status
    Offline
    Join Date
    01-12-2015
    Posts
    36
    Location

    Washington, MI
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    4G64

    Day 2/3! Holy Progress

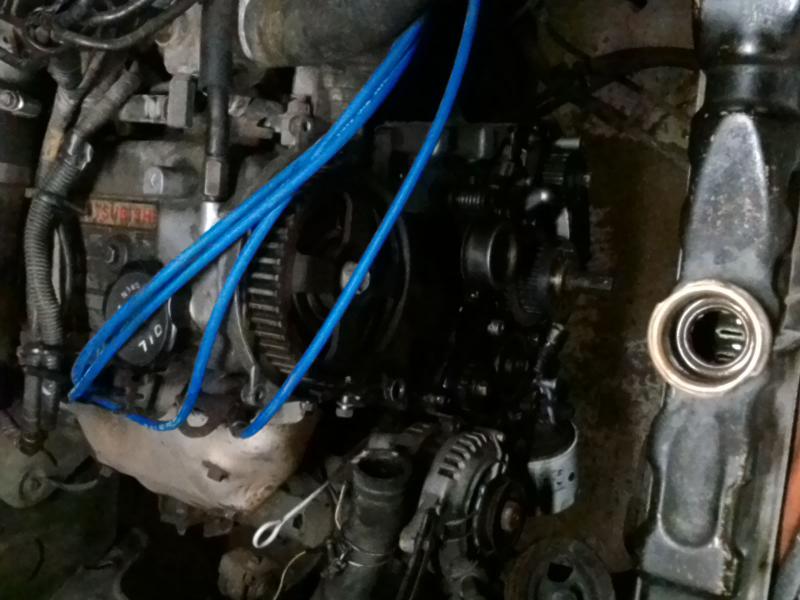

    Picked up a lot of parts and my amazon order came in! Full tune-up (wires, plugs, fuel filter, coil, rotor, water pump, rad hoses), and tail light assemblies. All that got done today was Removed old water pump, removed and install new plugs, wires, and coil. On day 3 New water pump installed, upper and lower rad hoses installed, tps checked and reading properly, retimed engine (again lol), new battery installed. Got the vehicle running but still running rich. Pulled ecu and opened it up and found this. (see last pics) Going to have to see if I can repair this and clean the board up quite a bit! Click image for larger version.

Name:	P_20150113_221642[1].jpg
Views:	397
Size:	59.1 KB
ID:	12665Click image for larger version.

Name:	P_20150113_221722[1].jpg
Views:	416
Size:	66.9 KB
ID:	12666Click image for larger version.

Name:	P_20150114_140745[1].jpg
Views:	406
Size:	55.0 KB
ID:	12667Click image for larger version.

Name:	P_20150114_142007[1].jpg
Views:	475
Size:	51.1 KB
ID:	12668Click image for larger version.

Name:	P_20150114_231139[1].jpg
Views:	402
Size:	55.1 KB
ID:	12669Click image for larger version.

Name:	P_20150115_001133[1].jpg
Views:	484
Size:	71.0 KB
ID:	12670Click image for larger version.

Name:	P_20150114_223617[1].jpg
Views:	521
Size:	83.0 KB
ID:	12671

  4. #4

    Array
    Status
    Offline
    Join Date
    01-12-2015
    Posts
    36
    Location

    Washington, MI
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    4G64

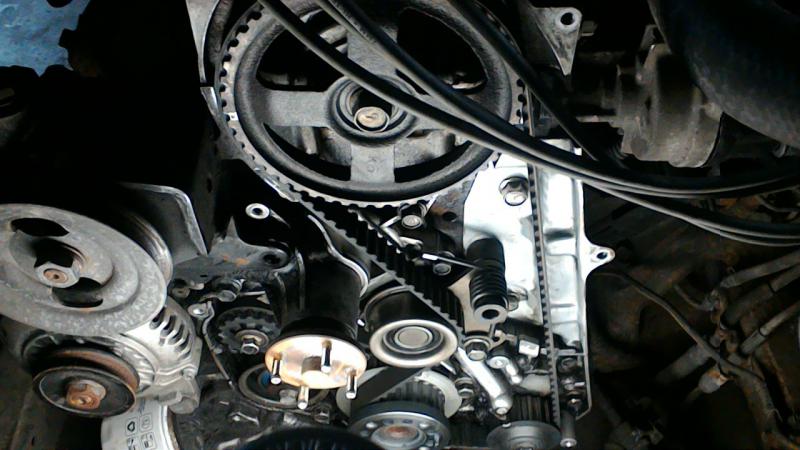

    Progress on day 2: on day 2 removed water pump, installed new coil, wires, plugs, rotor, and tail light assemblies. Progress day 3: Installed new water pump, radiator hoses, retimed engine (again lol), checked tps signal, installed new battery and got the truck to run but still running the same as before (super rich) so I pulled the ECU and found this pics below. looks like its time to rebuild the ECU ECU. Click image for larger version.

Name:	P_20150115_001133[1].jpg
Views:	93
Size:	71.0 KB
ID:	12672Click image for larger version.

Name:	P_20150115_001151[1].jpg
Views:	95
Size:	76.2 KB
ID:	12673

  5. #5

    Array
    Status
    Offline
    Join Date
    01-12-2015
    Posts
    36
    Location

    Washington, MI
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    4G64
    Here is how it sits right now as I clean the ECU either tomorrow or this weekend! Click image for larger version.

Name:	P_20150114_231139[1].jpg
Views:	91
Size:	55.1 KB
ID:	12674Click image for larger version.

Name:	P_20150114_231145[1].jpg
Views:	81
Size:	58.8 KB
ID:	12675Click image for larger version.

Name:	P_20150114_231155[1].jpg
Views:	89
Size:	58.4 KB
ID:	12676

  6. #6

    Array
    Status
    Offline
    Join Date
    03-21-2013
    Posts
    231
    Location

    Georgia
    Vehicle

    1984 Dodge D-50
    Engine

    4G63
    I like those little bikes......their cool.

    Your truck is exactly like mine...............curious what you mean about cleaning of the ECU?
    ~~~~~~My toys~~~~
    1984 Dodge D-50 (Daily driver, when raining)
    1990 Mitsubishi Mighty Max (Trying to figure out no power and sputtering)
    2006 Harley Davidson Heritage Softail (Rider when it's not raining and cold)
    1975 Honda CB750K5 (Rider when it's not raining and warm)
    1974 Honda CB350F1 (In paint for tins)
    1972 Honda CB175K6 (Just a rolling chassis, no engine)
    1972 Honda CB100K2 (Needs an engine, and rebuilding) (shhhh...if wife knew I had this, she be pizzzed)
    ~~~~~or headaches~~~~~

  7. #7

    Array
    Status
    Offline
    Join Date
    01-12-2015
    Posts
    36
    Location

    Washington, MI
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    4G64
    Quote Originally Posted by mitchi View Post
    I like those little bikes......their cool.

    Your truck is exactly like mine...............curious what you mean about cleaning of the ECU?

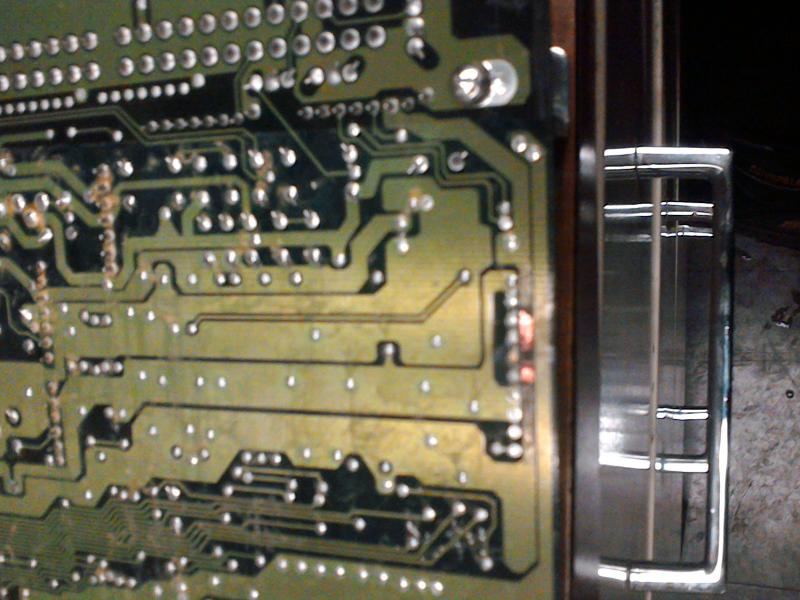

    I meant repair the ECU. On the underside of the board there is a point where the copper pathway is broken and on the top side it looks like a cap might be leaking slowly and there is a decent amount of corrosion on it that needs to be taken care of. So I guess that's where the cleaning comes in since who knows what else has a broken connection....LOL. Need to see If I can save it of not. I believe that is why I'm running so rich!

  8. #8

    Array
    Status
    Offline
    Join Date
    03-31-2014
    Posts
    147
    Location

    Carlisle, PA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    Looks like decent progress this far. Good find on the price also.

  9. #9

    Array
    Status
    Offline
    Join Date
    01-12-2015
    Posts
    36
    Location

    Washington, MI
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    4G64
    Thank you! Good news about the ECU to by the way. The electronics guy at my work is fixing it for me! Will have updates tomorrow or later tonight.

  10. #10

    Array
    Status
    Offline
    Join Date
    08-04-2014
    Posts
    82
    Location

    Charlotte NC
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    I.D.K.?
    RUCKLIFE!!!! TotalRuckus Much? I had to rid myself of my Ruckus. Local Law enforcement kept asking how a 50cc bike could run 62mph. PWJDM Stretch Kit and a 150cc motor doesnt look that big........ Welcome to the forum and Be Warned, These trucks are more additive that the Ruck's!!!

  11. #11



    Array
    Status
    Offline
    Join Date
    07-24-2012
    Posts
    2,357
    Location

    Washington State
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G63B
    Those plug wires 8 or 9 mm? They look huge...I'm wondering when the plug wire companies are going to stop making bigger and bigger wires. I remember the good ole days when they were 3-4mm and oh my god they worked too, lol. Marketing is everything nowadays.

    Great catch on the ECU, Never would of found it if you didn't look. Great job on details. Use to have a girlfriend that was a Ruckus, Them Italians are something else.

  12. #12

    Array
    Status
    Offline
    Join Date
    01-12-2015
    Posts
    36
    Location

    Washington, MI
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    4G64
    Quote Originally Posted by MIHIFISI View Post
    RUCKLIFE!!!! TotalRuckus Much? I had to rid myself of my Ruckus. Local Law enforcement kept asking how a 50cc bike could run 62mph. PWJDM Stretch Kit and a 150cc motor doesnt look that big........ Welcome to the forum and Be Warned, These trucks are more additive that the Ruck's!!!
    Haha yeppp and luckily mine is still a 50cc right now but it will do 50 no problem and I am building a 150cc ruck as well so we will see how that goes. Glad to be apart of the forum! TotalRuckus and my rucks are getting jealous of the Mighty Max!

  13. #13

    Array
    Status
    Offline
    Join Date
    01-12-2015
    Posts
    36
    Location

    Washington, MI
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    4G64
    Quote Originally Posted by BradMph View Post
    Those plug wires 8 or 9 mm? They look huge...I'm wondering when the plug wire companies are going to stop making bigger and bigger wires. I remember the good ole days when they were 3-4mm and oh my god they worked too, lol. Marketing is everything nowadays.

    Great catch on the ECU, Never would of found it if you didn't look. Great job on details. Use to have a girlfriend that was a Ruckus, Them Italians are something else.
    8mm I believe, they are pretty big and I've asked myself the same thing lol. The only reason I looked at the ECU was from looking on the forum and seeing that they cause issues. Otherwise I probably would of never looked there....So thanks you guys!!!

  14. #14

    Array
    Status
    Offline
    Join Date
    01-12-2015
    Posts
    36
    Location

    Washington, MI
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    4G64
    Well good news on the ECU!! I tested it after cleaning/ repair and it works!! The vehicle is running but before I put the ECU back in for good I need to re seal it and get rid of those rubycon capacitors! Posted below are before and after pics! (in order)
    Click image for larger version.

Name:	P_20150115_001151.jpg
Views:	85
Size:	76.2 KB
ID:	12680Click image for larger version.

Name:	P_20150116_011653.jpg
Views:	93
Size:	75.4 KB
ID:	12681Click image for larger version.

Name:	P_20150116_015334.jpg
Views:	94
Size:	76.6 KB
ID:	12682Click image for larger version.

Name:	P_20150116_035810.jpg
Views:	83
Size:	70.0 KB
ID:	12683

  15. #15

    Array
    Status
    Offline
    Join Date
    01-12-2015
    Posts
    36
    Location

    Washington, MI
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    4G64
    On a side note, anyone know the specs for the 3 rubycon capacitors?

  16. #16



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    there should be values on the sides of each capacitor that tell you what they are - for example 1000uF at 20 VDC. Just get those numbers and google them to buy them - highly unlikely RadioShak will have them. Try Digi-key or Great Plains electronics once you know what you need.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  17. #17

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    C103: 22uF @ 5V
    C104: 47uF @ 5V
    C105: 100uF @ 16V

    According to the rebuilt ECU in my lap.

    Yeah it's slow as hell at work today.
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  18. #18



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    and you just happened to have your ECU at work today - or was it bring your ECU to work day?!?
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  19. #19

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    I have random MItsubishi parts everywhere. You know those crazy cat ladies? I'm like that, except for truck and BMW parts.

    Click image for larger version.

Name:	20150116_163518.jpg
Views:	79
Size:	42.2 KB
ID:	12685

    These boxes contain most of a blue Sport interior that arrived today.
    I can help get your truck to pass California smog! PM me.
    California BAR Smog Inspector License #EO635469
    "Keep 'em on the road."

    See what I have for sale:
    http://stores.ebay.com/zims

  20. #20



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    And I am like that with 1st gen parts - if I ever get the parts I have installed, the upstairs of my garage would be 1/4 to 1/2 empty...
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  21. #21

    Array
    Status
    Offline
    Join Date
    01-12-2015
    Posts
    36
    Location

    Washington, MI
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    4G64
    Quote Originally Posted by noahwins View Post
    C103: 22uF @ 5V
    C104: 47uF @ 5V
    C105: 100uF @ 16V

    According to the rebuilt ECU in my lap.

    Yeah it's slow as hell at work today.
    Is that for a 4g64 ECU or is that for all ECU's?

  22. #22



    Array
    Status
    Offline
    Join Date
    07-24-2012
    Posts
    2,357
    Location

    Washington State
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G63B
    I am getting ford parts like that delivered. I'm just starting to think about that I have to install all this stuff too!

    You know we have a Thread all about the ECU and how to repair it here.


    OK, I found the documents for the computers. Here

    repair Mitsubishi ECMs
    repairMits_ECMS_ecm.zip

  23. #23



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    its fun to get the parts - quite another to get them all installed...
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  24. #24

    Array
    Status
    Offline
    Join Date
    01-12-2015
    Posts
    36
    Location

    Washington, MI
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    4G64
    Well I pulled the capacitors and C104 says 47uF @ 50v (in red) and C105 is 100uF @ 16v (in blue) C104 is that supposed to say 50v or does that mean 5v? pics below as well. The caps we definitely leaking! one even lost its leg!
    Click image for larger version.

Name:	NCM_0777.jpg
Views:	87
Size:	65.3 KB
ID:	12689Click image for larger version.

Name:	NCM_0778.jpg
Views:	101
Size:	45.7 KB
ID:	12690Click image for larger version.

Name:	Screenshot_2015-01-16-22-01-59.jpg
Views:	109
Size:	45.5 KB
ID:	12691Click image for larger version.

Name:	Screenshot_2015-01-16-22-10-17.jpg
Views:	89
Size:	34.8 KB
ID:	12692

  25. #25



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    go with what you find in there - the voltage and uF rating can be higher if it fits, but neither can be smaller. Not a suprize with Rubycon caps - they used the same ones in many coin op games in the same timeframe.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

Page 1 of 3 123 LastLast

Bookmarks

Bookmarks

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
