    2.0 /Weber install vacuum ?????

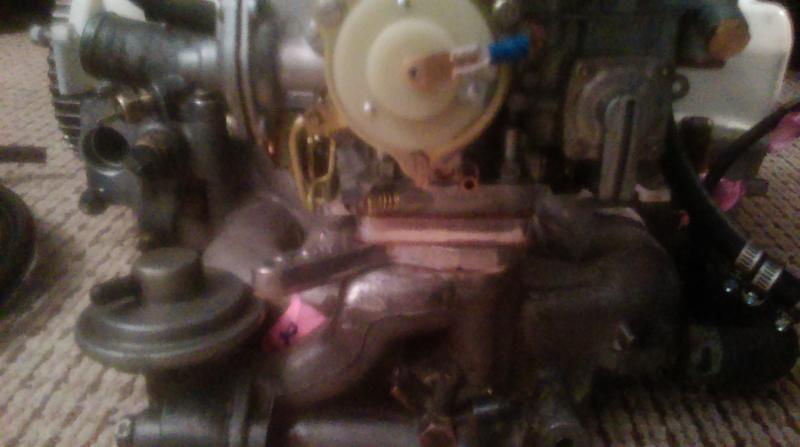

    As it shows Maybe some one can help me figure where the gold throttle bracket goes and some of the. vaccuum lines? I called pierce manifold s and he told me the L shaped bracket goes/mounts on the valve cover? I m not sure if I have this right or not ?
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	tmp_27819-IMAG01211716066147.jpg
Views:	55
Size:	27.7 KB
ID:	12164   Click image for larger version.

Name:	tmp_27819-IMAG0120816369169.jpg
Views:	63
Size:	37.0 KB
ID:	12165   Click image for larger version.

Name:	tmp_27819-IMAG01162042358805.jpg
Views:	48
Size:	44.3 KB
ID:	12166   Click image for larger version.

Name:	tmp_27819-IMAG0122-245181537.jpg
Views:	58
Size:	40.8 KB
ID:	12167   Click image for larger version.

Name:	tmp_27819-IMAG0118-1294158073.jpg
Views:	60
Size:	43.2 KB
ID:	12168


  2. #2



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,115
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    the gold bracket goes on top of the valve cover, and the throttle cable bolts to it. There should be 2 bolts where the old air cleaner bolted on where the bracket should drop over. Look at Geronimo's gallery pics to see how his is - his motor is a 2.6 but the mounting should be similar. The only vaccum lines you need are the dizzy vacuum advance to a ported vacuum port on the carb, and the large one from the manifold to the vacuum booster.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  3. #3

    Array
    Status
    Offline
    Join Date
    11-23-2013
    Posts
    344
    Location

    pa
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    G63B
    Ok took another look at it and the bracket fits but still not understanding how the throttle cable bolts to the bracket ? I looked at Geronimos pics and am having a diffacult time seeing them clearly?

  4. #4

    Array
    Status
    Offline
    Join Date
    11-23-2013
    Posts
    344
    Location

    pa
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    G63B
    Vaccum lines look like I have them correct?
    The pcv from the valve cover to the front/bottom of the carb.
    The rear vacuum line on the carb .... not hooked up yet...to the dizzy.
    The other side right of the valve cover to the breather filter on the carb .

    my gold bracket has no notches to bolt the throttle onto the bracket it's just a flat straight L shaped bracket with two big holes .**one which bolts onto the valve cover and I guess the other one bolts to nothing? There's also one small threaded hole ?

  5. #5



    Array
    Status
    Offline
    Join Date
    07-24-2012
    Posts
    2,357
    Location

    Washington State
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G63B
    Click image for larger version.

Name:	top.jpg
Views:	83
Size:	79.3 KB
ID:	12172


    This is a 2.0, but a weber is a weber.

  6. #6



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,115
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    where the notch is on the gold bracket there is a small hole - that is where the throttle cable goes. But I see a bigger problem - the carb is on backwards - the fuel inlet should be in the front of the carb, not the back. Is that a dges or dfav carb?
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  7. #7

    Array
    Status
    Offline
    Join Date
    11-23-2013
    Posts
    344
    Location

    pa
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    G63B
    http://www.ebay.com/itm/360598850204...%3AMEBIDX%3AIT

    This is the the kit I purchased . Brad that gold adapter plate is totally different then the one I have .lookat the the difference. pennyman if my carb is on backward then the one brad has is on backward as well?no seeing mine is set up the same .

  8. #8

    Array
    Status
    Offline
    Join Date
    11-23-2013
    Posts
    344
    Location

    pa
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    G63B
    Ok pennyman I see what your saying about the fuel inlet it needs to be moved to the back .It came stock to the front like that.thanks again for the help and pics.

  9. #9



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,115
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    the bowl position has to do with the floats - if they are in the back of the carb it can cause issues with fuel starvation on hard stops. The weber manual states that the bowls should be at the front of the carb. It also says that the primary barrel should be closest to the engine, but I never noticed a real difference either way.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  10. #10

    Array
    Status
    Offline
    Join Date
    11-23-2013
    Posts
    344
    Location

    pa
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    G63B
    Ok, Here are the other kits . Trying to figure out which one is the correct kit or would work the best?
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	tmp_21392-$(KGrHqJ_!joFCg!tKIEEBQpBfT0kvQ~~60_11588413872.JPG
Views:	29
Size:	9.9 KB
ID:	12196
    Attached Images

  11. #11

    Array
    Status
    Offline
    Join Date
    11-23-2013
    Posts
    344
    Location

    pa
    Vehicle

    1988 Mitsubishi Mighty Max
    Engine

    G63B
    And a better look at the bracket they sent me????
    I tried every which way to make that fit on top of the valve cover and nope..



  12. #12



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,115
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    I know that works on a 2.6, because that is what I have on Geronimo right now (big bracket). may have to make a bracket to use on your 2.0 for the cable mount.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980
