    4G52 into a 2nd Gen?

    Long story short: My G63B overheated twice because of a cooling system leak and I'm sure the head is warped. I found a professionally rebuilt 4G52 locally, most likely without the MCA jet head. It's narrow block and I have a KM132.

    Would it fit into my truck? Is the 4G52 a step backwards in terms of performance or reliability compared to the G63B? What about the clutch and flywheel?

    Is this a bad idea?

  2. #2



    Array
    Status
    Offline
    Join Date
    07-24-2012
    Posts
    2,357
    Location

    Washington State
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G63B
    all 4g52's are astron 1's.. the inlet flange is physically different to an astron 2..
    the 4g54 head will fit and it would lower your compression ratio. The bottom studs don't line up to the holes in the manifold.

    I you want a turbo, find a 2.6 sigma block and put a magna head on that... you could use a complete magna
    engine for standard compression but then you need to find a RWD timing chain cover so you can fit the water
    pump to the front of the engine and a welch plug for the old water pump outlet...and another one for the pump
    shaft that's part of the cam if you want to put your 4g52 cam and adjustable rockers in it... the 4g52 cam has
    a few extra degrees and is slightly retarded\.

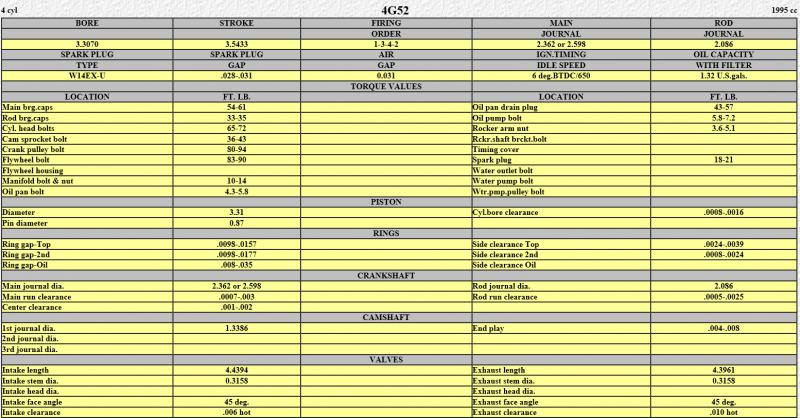

    4G52 specs
    Click image for larger version.

Name:	4g52 specs.jpg
Views:	246
Size:	91.3 KB
ID:	11559

  3. #3

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    Thanks Brad. I'd want to keep it NA. Would be really nice to get rid of all of the emissions crap and hang a DCOE sidedraft off of one of those aftermarket manifolds without all of the coolant passages and emissions junk in the way. And a maybe a set of DG headers.
    The G63B is just...ugly. This one looks nice. Less clutter. And I like the idea of chain driven timing. My BMW has a timing chain, too.
    The valve cover says Astron 80, if that means anything.
    Would it fit my transmission and engine mounts?

  4. #4



    Array
    Status
    Offline
    Join Date
    07-24-2012
    Posts
    2,357
    Location

    Washington State
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G63B
    a magna carby should bolt straight onto your manifold. Chains can get noisy as they get older and at times they can make a rattle noise until the oil pressure pumps up to tension them.

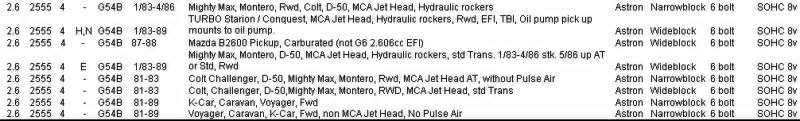

    Here is some Astron trany info that gives wide or narrow block
    Click image for larger version.

Name:	Astron.jpg
Views:	72
Size:	76.6 KB
ID:	11561

  5. #5

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    Great. Now there's an '86 Starion ESI-R for sale locally for $1400. So I could kitbash the two together and end up with a fully rebuilt, blown 4G52 with all of the accessories. And an LSD.

    This may end in tears.

  6. #6



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    why not use the whole starion drivetrain in the truck? BTW, the LSD won't work in the rear end of the truck - wrong size, but will work in the front diff of a 4wd.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  7. #7

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    I read somewhere you can fit it in only the 3.54 rear end. Must be wrong info.

  8. #8



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,118
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    they are both considered an 8" rear carrier, but they are 2 different sizes - the truck being beefier. If you swap the whole rear assembly into your truck it would work, although it is much too wide compared to the truck rear.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  9. #9

    Array
    Status
    Offline
    Join Date
    08-11-2012
    Posts
    1,199
    Location

    Richmond, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    G63B
    Has anyone done a Starion IRS into a truck before?

    For maximum drift monster carnage.

    Click image for larger version.

Name:	mr toads.jpg
Views:	64
Size:	89.5 KB
ID:	11595

  10. #10

    Array
    Status
    Offline
    Join Date
    04-24-2011
    Posts
    305
    Location

    Orlando, FL
    Vehicle

    1990 Mitsubishi Mighty Max
    Engine

    G64B
    I have seen a truck with a starion irs about ten years ago
