    4G64 2.4 Photographic Engine Reference

    Many's the time I needed to look at a photo to see what placement was proper. I offer the following photos of my own 4G64, absolutely stock and all components are in their proper places.

    The only contention is the placement of the ignition wires: in these photos they go over the radiator hose. I have since opted to place them under the hose, to minimize subjecting them to heat.

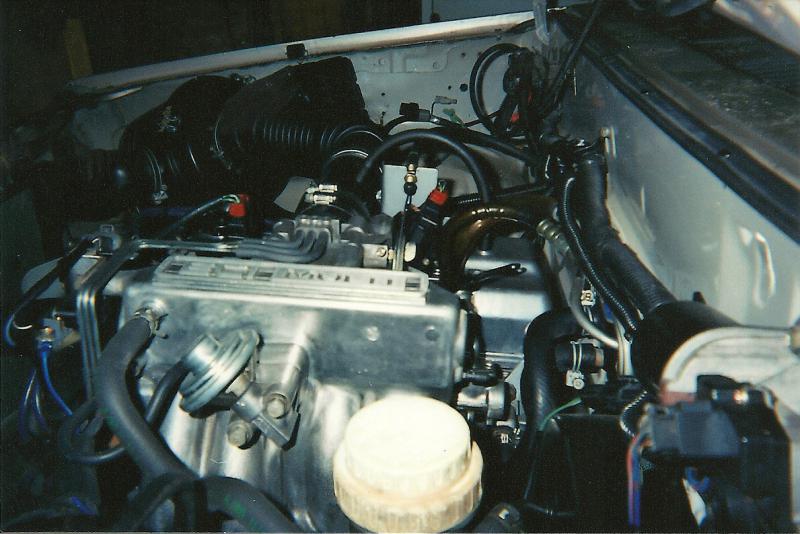

    Identification Tag on Firewall [v] (top of photo under red v) - Tells you your engine number (i.e. 4G64) and original paint code
    Click image for larger version.

Name:	scan0001.jpg
Views:	202
Size:	78.4 KB
ID:	8458

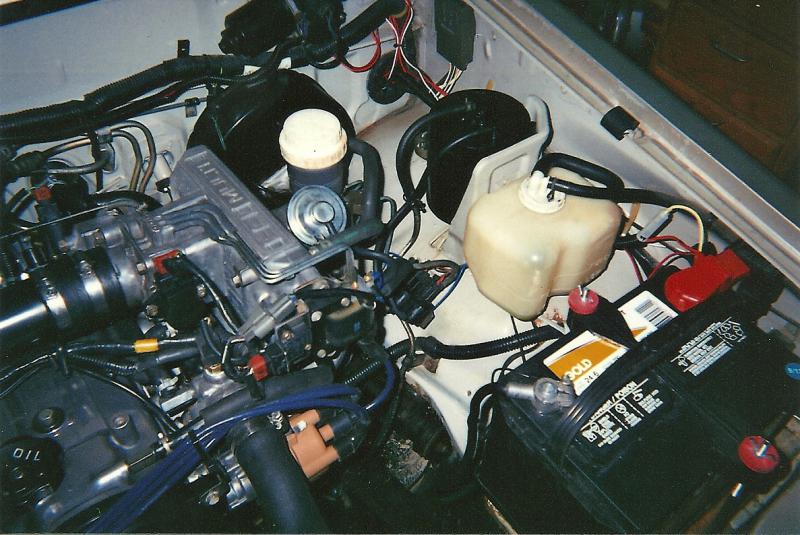

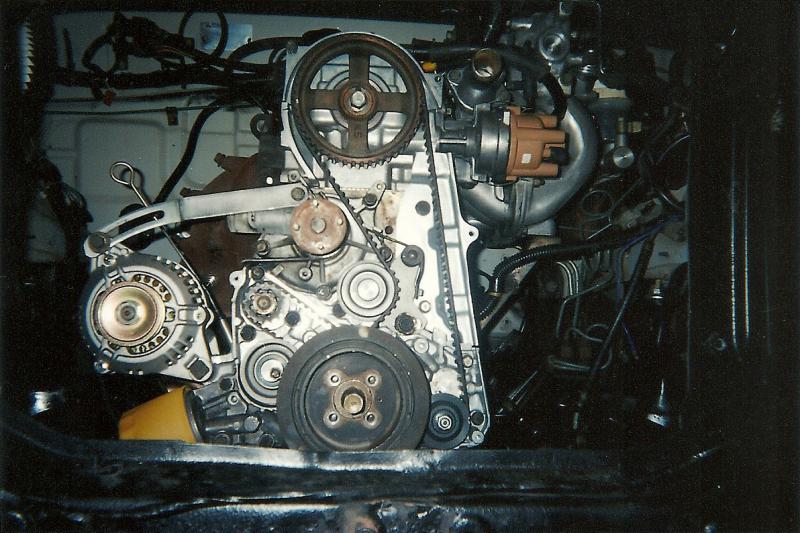

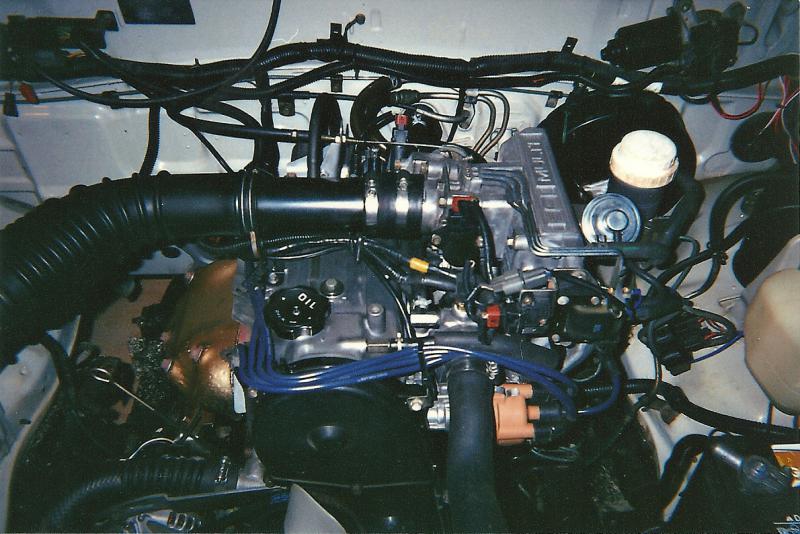

    General Engine Layout
    Click image for larger version.

Name:	scan0002.jpg
Views:	375
Size:	79.4 KB
ID:	8459 Click image for larger version.

Name:	scan0003.jpg
Views:	197
Size:	84.3 KB
ID:	8460

    Click image for larger version.

Name:	scan0004.jpg
Views:	169
Size:	65.5 KB
ID:	8461 Click image for larger version.

Name:	scan0004.jpg
Views:	311
Size:	89.8 KB
ID:	8462

    Timing Mark On Cylinder Head
    Click image for larger version.

Name:	scan0038.jpg
Views:	213
Size:	60.2 KB
ID:	8463

    Engine Layout
    Click image for larger version.

Name:	scan0025.jpg
Views:	189
Size:	83.2 KB
ID:	8464 Click image for larger version.

Name:	scan0012.jpg
Views:	208
Size:	82.4 KB
ID:	8465

    Arrow points to Silent Shaft Access Bolt
    Click image for larger version.

Name:	scan0035.jpg
Views:	188
Size:	87.3 KB
ID:	8466

    Oil Pump-Side Silent Shaft Access Cap [photo by Camoit]
    Name:  DSCN4906.JPG
Views: 662
Size:  13.1 KB

    Ignition Timing Jumper Connector Location
    Click image for larger version.

Name:	scan0007.jpg
Views:	172
Size:	51.2 KB
ID:	8468 Click image for larger version.

Name:	scan0048.jpg
Views:	142
Size:	82.1 KB
ID:	8469

    A variety of information is also available HERE
    Last edited by royster; 03-01-2014 at 10:44 AM.
    The greatest gift you have to give to the world is that of your own self~transformation.

  2. #2

    Array
    Status
    Offline
    Join Date
    12-21-2013
    Posts
    1,033
    Location

    Maurertown, Virginia
    Vehicle

    1990 Dodge D-50
    Engine

    4G64
    These photos may be of use to several members working on timing issues right now. This is the 2.4 engine, very similar to the 2.0.

    royster
    Last edited by royster; 04-09-2014 at 09:38 AM.

  3. #3

    Array
    Status
    Offline
    Join Date
    03-21-2013
    Posts
    231
    Location

    Georgia
    Vehicle

    1984 Dodge D-50
    Engine

    4G63
    Thanks royster......................
