    The Resurrection of Ol' Dirty Blue...My Build Thread

    Well I have been a member of this site for over two years now and have yet to post a build thread; and I know you all like pictures. So I figured is was about time to put it all in writing (as much as I can remember and have documented).

    The brief back story on the truck can be found in my introduction post:In Memorial No need to repeat this information.

    Since I am no mechanic (or at least wasn't 2 years ago), this is has been a learning experience. Most of the initial work that I did was more cosmetic. However as the years went by I went deeper into the engine to fix more and more issues as they arose.

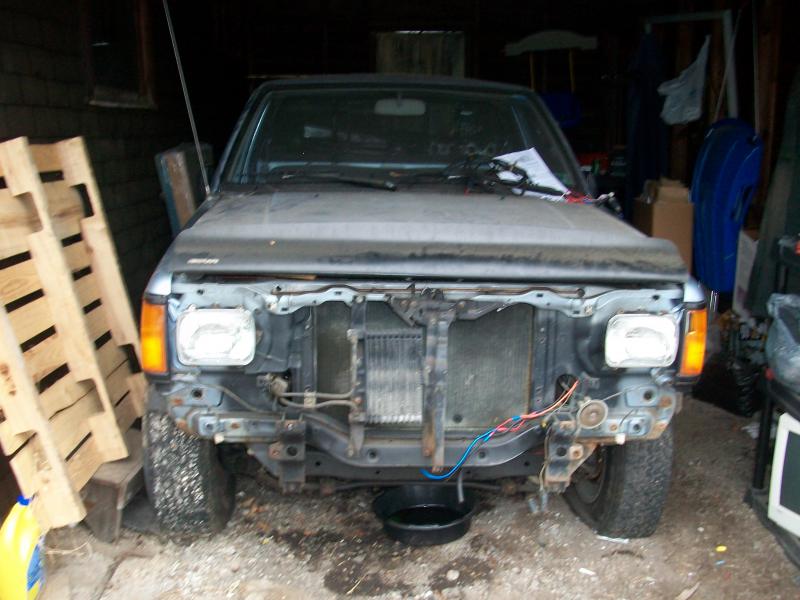

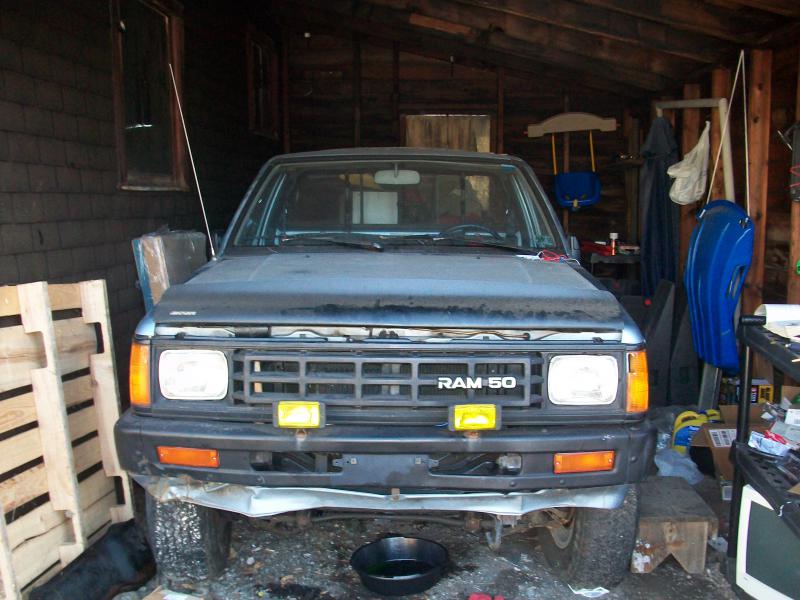

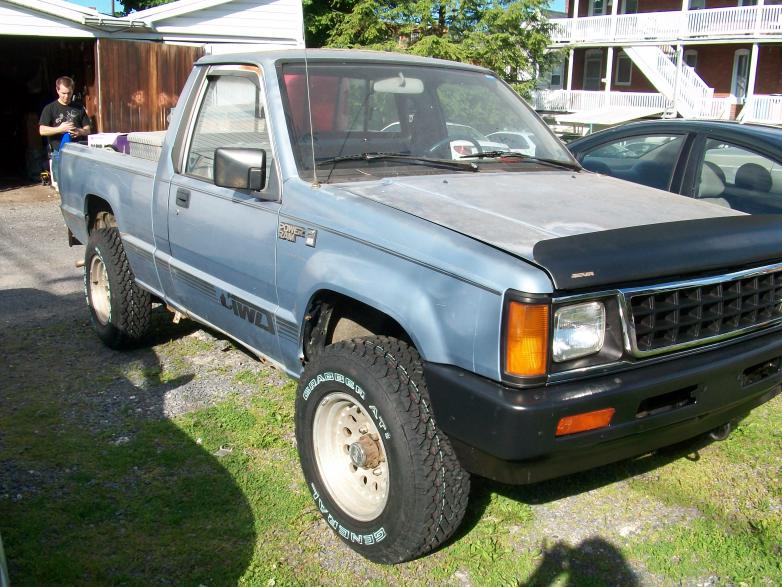

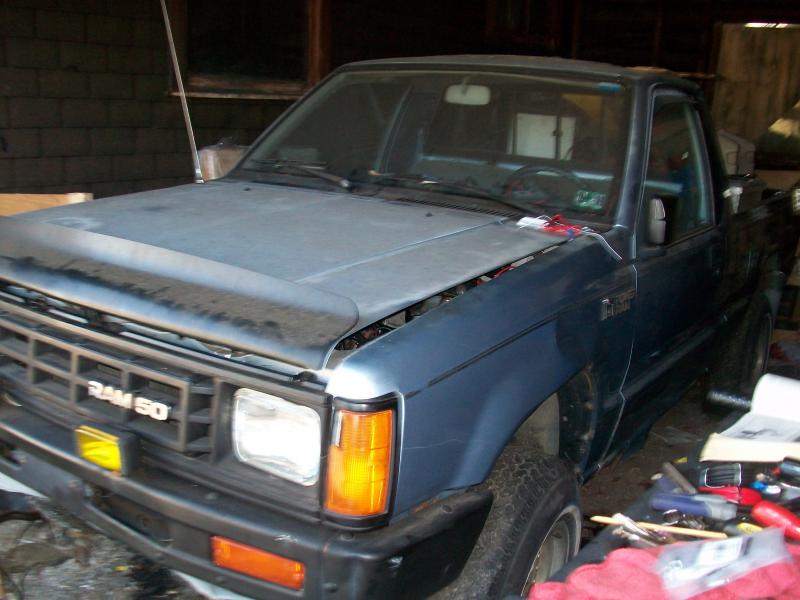

    First set of images are from the first year, in a rented tiny garage. This is the way Ol' Dirty Blue looked when she first came to me.

    Click image for larger version.

Name:	100_0790.jpg
Views:	124
Size:	74.7 KB
ID:	7303Click image for larger version.

Name:	100_0791.jpg
Views:	96
Size:	60.0 KB
ID:	7304Click image for larger version.

Name:	100_0792.jpg
Views:	133
Size:	85.4 KB
ID:	7305

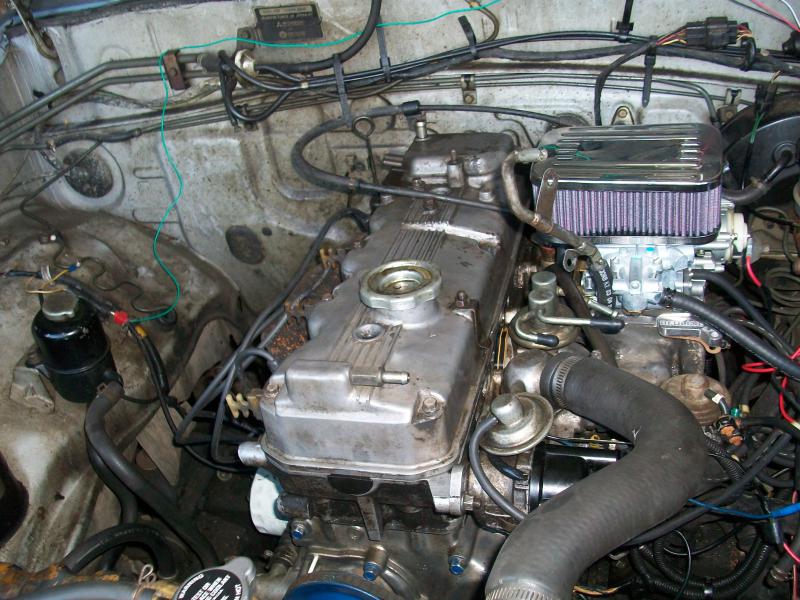

    After adjusting some timing issues, she still wasn't running right. So I elected to remove the Mikuni Carb since calibrating these can be tricky and opted for the Weber 32/36 DFEV conversion.

    Click image for larger version.

Name:	100_0793.jpg
Views:	1232
Size:	94.6 KB
ID:	7306

    Now that she was able to start up and run; though she smoked abit (burning oil). I decided to hold off on tackling the leaks in favor of more cosmetic changes.

    Click image for larger version.

Name:	100_0801.jpg
Views:	93
Size:	66.1 KB
ID:	7307Click image for larger version.

Name:	100_0805.jpg
Views:	85
Size:	79.2 KB
ID:	7308Click image for larger version.

Name:	100_0812.jpg
Views:	92
Size:	63.5 KB
ID:	7309

    Then came the gasket replacements and fan upgrade.

    Click image for larger version.

Name:	100_0802.jpg
Views:	110
Size:	99.4 KB
ID:	7310Click image for larger version.

Name:	100_0803.jpg
Views:	105
Size:	98.3 KB
ID:	7311Click image for larger version.

Name:	100_0804.jpg
Views:	125
Size:	92.7 KB
ID:	7312

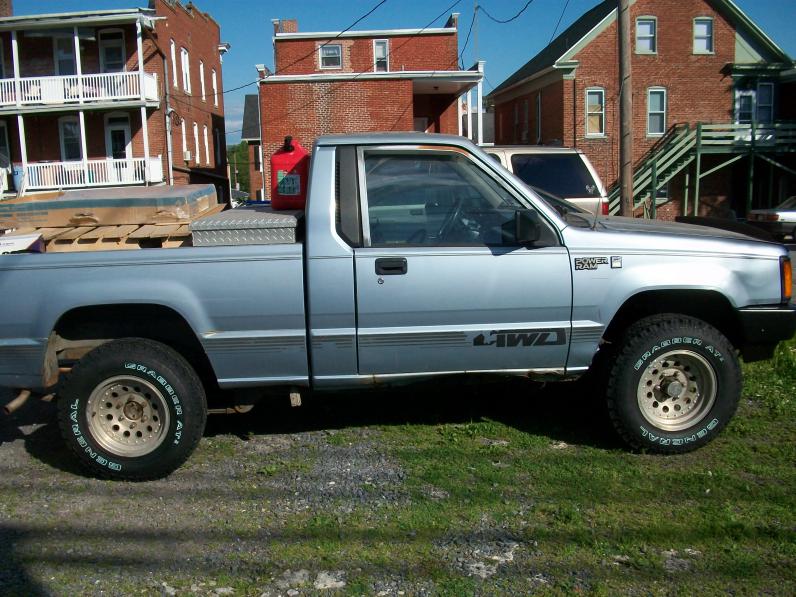

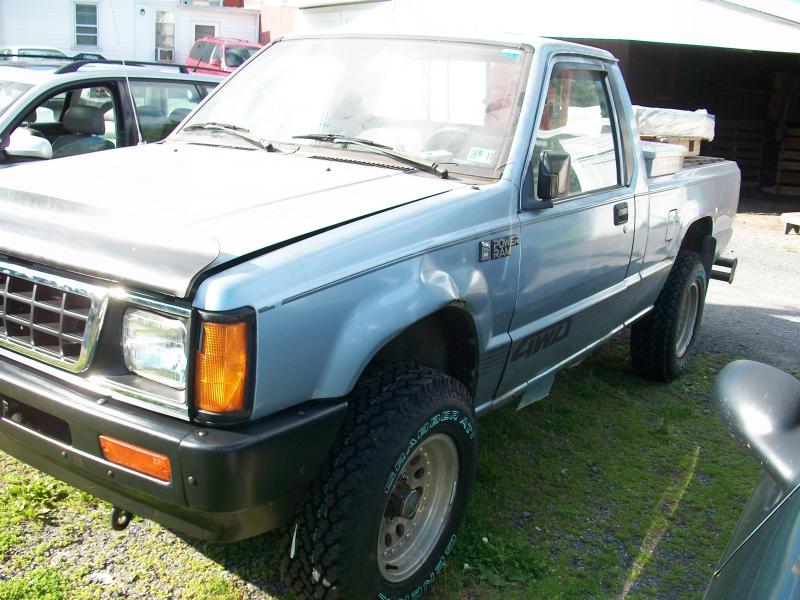

    Then she was almost ready to roll, though she still smoked abit. But she was still sitting on flat old tires...so new tires were ordered and she rolled out of the garage. Unfortunately, no test drive that day because she really didn't have much power. Plus getting in her in the sun allowed me to see the damage that years of road salt and sitting had done to the frame.

    Click image for larger version.

Name:	100_0813.jpg
Views:	93
Size:	99.1 KB
ID:	7313Click image for larger version.

Name:	100_0814.jpg
Views:	93
Size:	82.4 KB
ID:	7314Click image for larger version.

Name:	100_0815.jpg
Views:	95
Size:	98.6 KB
ID:	7315
    Click image for larger version.

Name:	100_0816.jpg
Views:	87
Size:	81.3 KB
ID:	7316Click image for larger version.

Name:	100_0817.jpg
Views:	101
Size:	79.1 KB
ID:	7317Click image for larger version.

Name:	100_0818.jpg
Views:	100
Size:	97.3 KB
ID:	7318

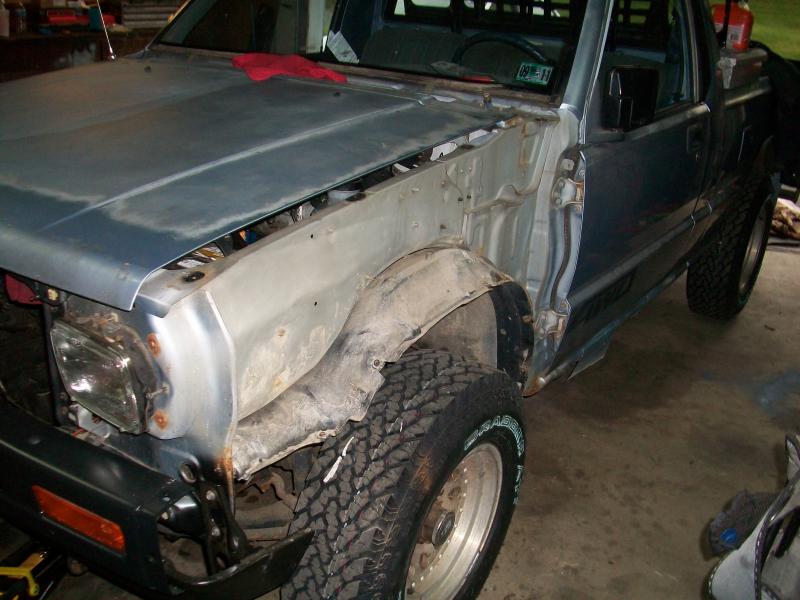

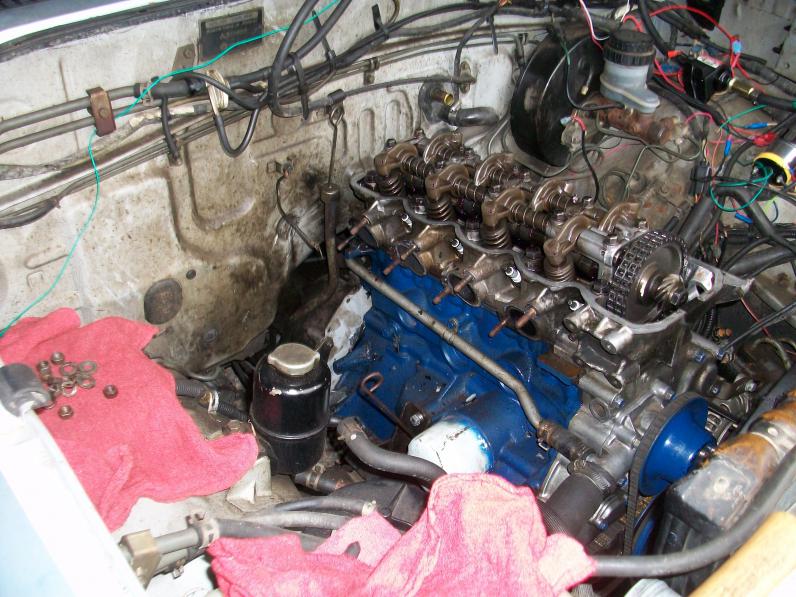

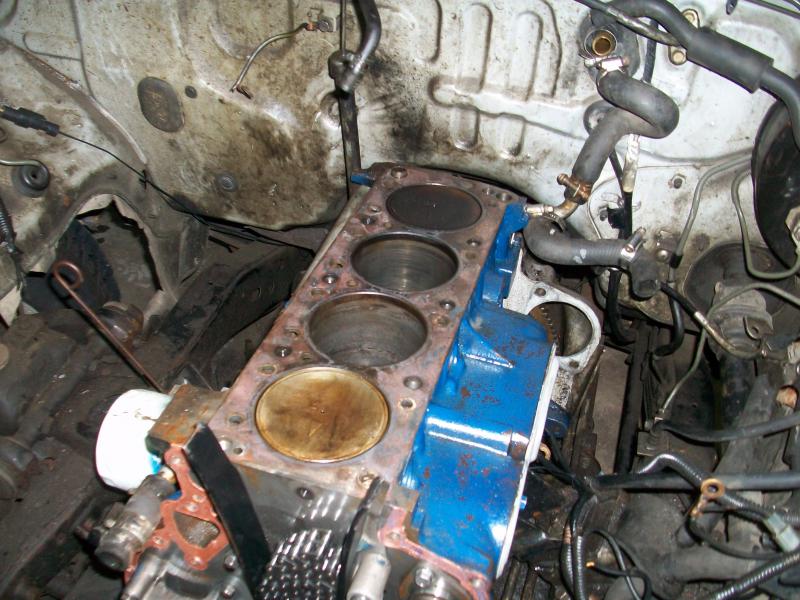

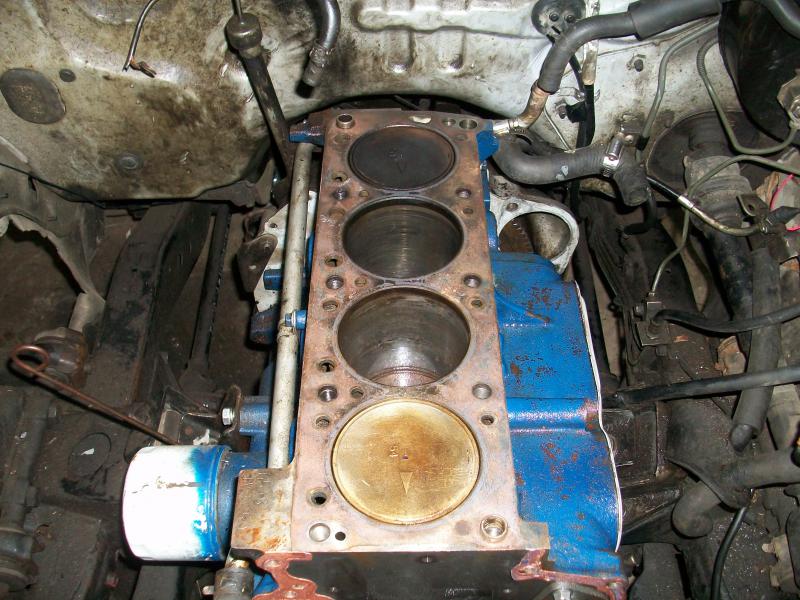

    Then we moved and I started sharing our neighbor's garage to really dig into the oil leak more aggressively. So first the head came off.

    Click image for larger version.

Name:	100_0820.jpg
Views:	110
Size:	89.3 KB
ID:	7319Click image for larger version.

Name:	100_0823.jpg
Views:	114
Size:	93.0 KB
ID:	7320

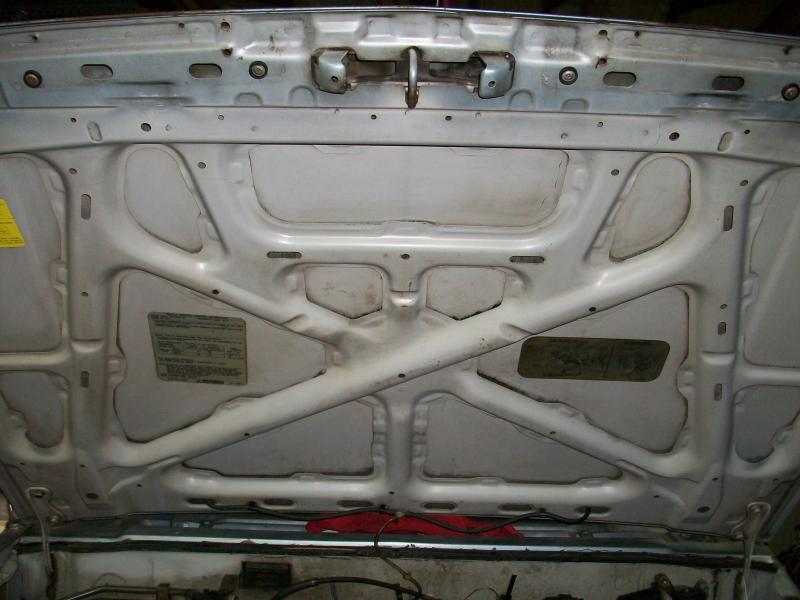

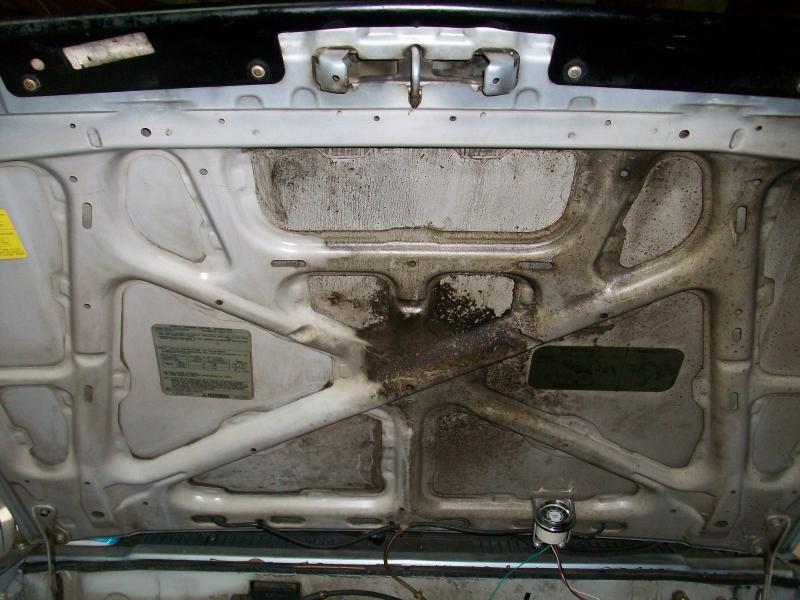

    Then as I waited for additional parts; valve lash adjusters, new valves (one exhaust valve was found to be bent), and more gaskets. I decided to clean under the hood and work on replacing the fenders.

    Click image for larger version.

Name:	100_0819.jpg
Views:	104
Size:	70.7 KB
ID:	7321Click image for larger version.

Name:	100_0821.jpg
Views:	93
Size:	65.6 KB
ID:	7322Click image for larger version.

Name:	100_0822.jpg
Views:	93
Size:	56.2 KB
ID:	7323

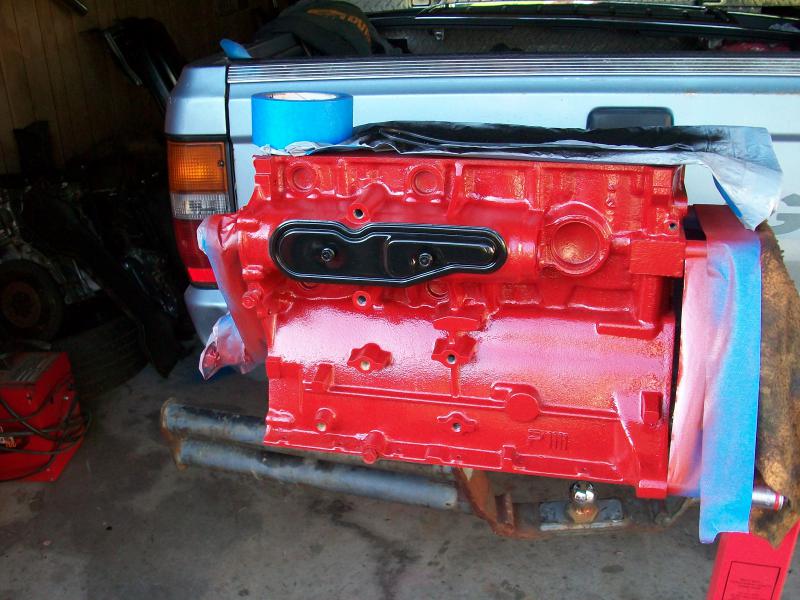

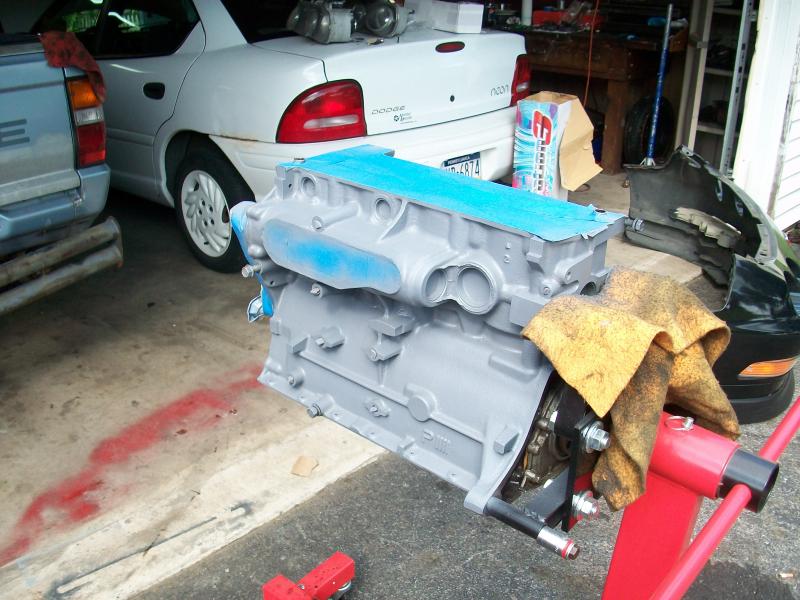

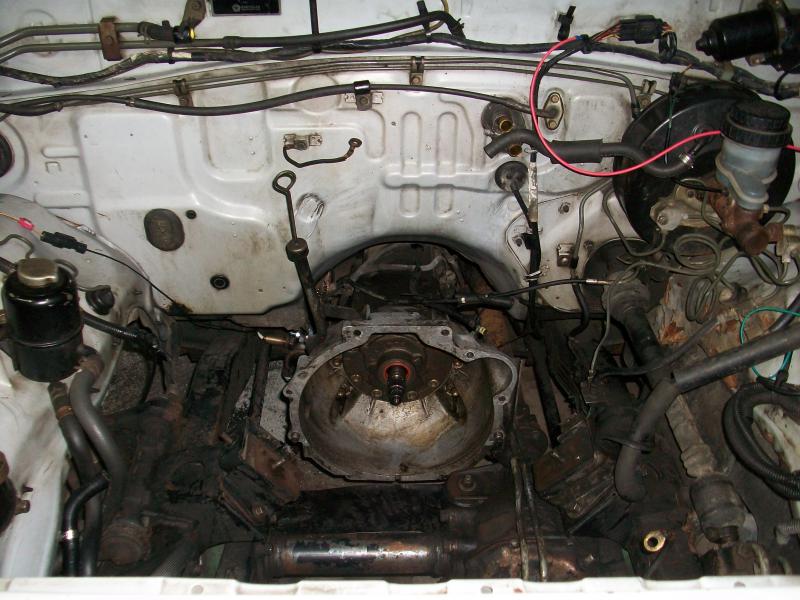

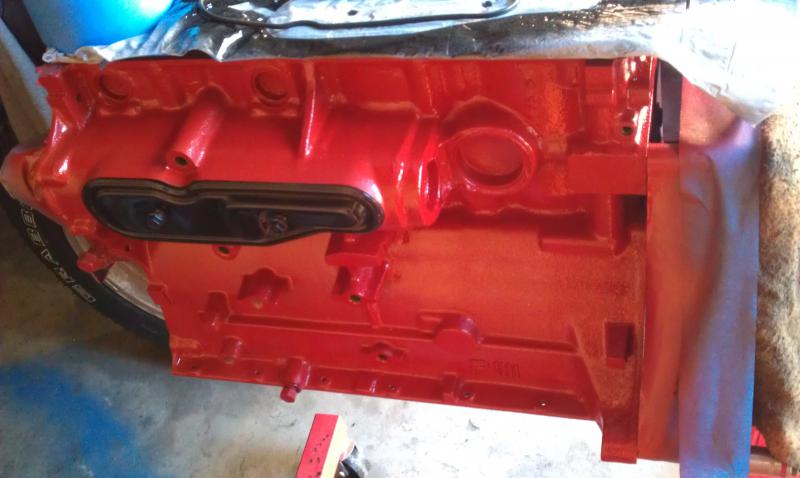

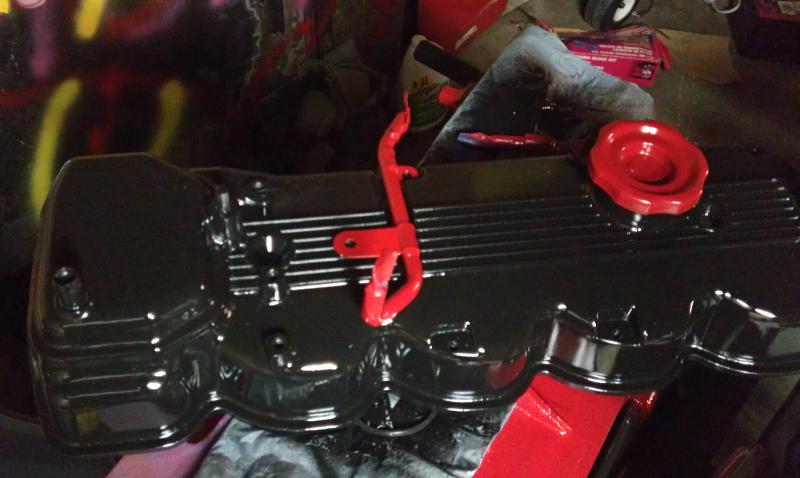

    Then, with the help of my more mechanically inclined neighbor, I decided to pull the motor and replace the rod bearings, re-ring the pistons, and lightly hone the cylinders. But figured, while it's out let's paint it up.

    Click image for larger version.

Name:	100_0842.jpg
Views:	92
Size:	80.8 KB
ID:	7324Click image for larger version.

Name:	100_0843.jpg
Views:	84
Size:	80.2 KB
ID:	7325Click image for larger version.

Name:	100_0844.jpg
Views:	90
Size:	78.5 KB
ID:	7326
    Click image for larger version.

Name:	IMAG0076.jpg
Views:	88
Size:	45.0 KB
ID:	7327Click image for larger version.

Name:	IMAG0077.jpg
Views:	89
Size:	54.5 KB
ID:	7328Click image for larger version.

Name:	IMAG0078.jpg
Views:	88
Size:	46.1 KB
ID:	7329

  2. #2

    Array
    Status
    Offline
    Join Date
    05-02-2011
    Posts
    41
    Location

    Waynesboro, PA
    Vehicle

    1987 Dodge Power Ram 50
    Engine

    G54B
    After a good paint job (IMO), everything went back in and was tested. Less smoke and she started to really come to life. She still ran a little rich so had to tweak the carb a bit.



    Last edited by Ram50-Newb; 12-08-2013 at 04:54 PM. Reason: Testing adding additional pics

  3. #3

    Array
    Status
    Offline
    Join Date
    04-10-2011
    Posts
    256
    Location

    WA
    Vehicle

    1990 Mitsubishi Mighty Max
    Engine

    6G72
    Sounds like a story with a happy ending, looking forward to the rest.
    1990 MM 4x4 3.0
    1991 MM 4x4 3.0 Diamonte
    1994 MM 2wd (work in progress)

  4. #4

    Array
    Status
    Offline
    Join Date
    05-02-2011
    Posts
    41
    Location

    Waynesboro, PA
    Vehicle

    1987 Dodge Power Ram 50
    Engine

    G54B
    Sorry for the large images on post #2, half of my photos were taken with our Kodak camera and the file size is too large to upload and link like those in my first post. I am only going to post two more pics due to size. I will on re-sizing the rest for a later post. Here is the motor set back into place with an upgraded Accel ignition coil, my temporary Mr. Gasket electric fuel pump, PaceSetter headers (which have not impressed me as of yet), and my wiring nightmare that still needs cleaned up today.

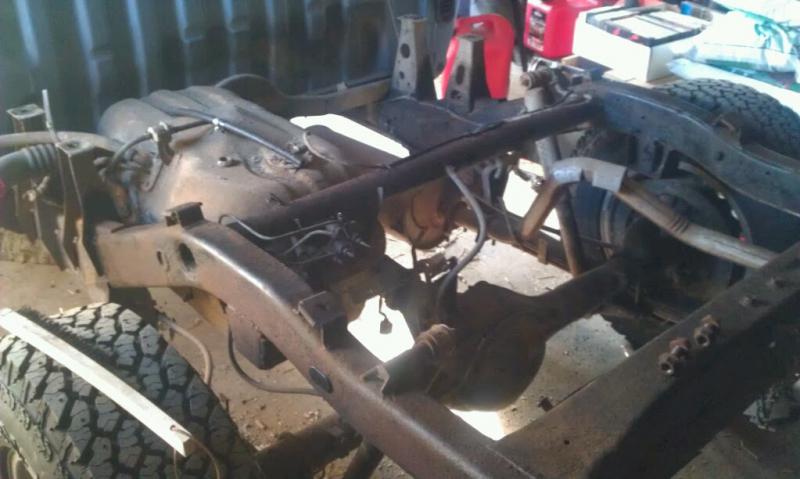

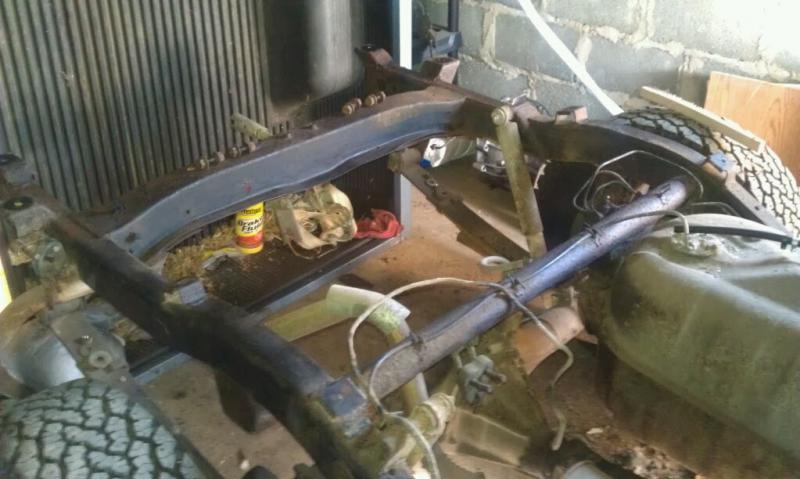

    The truck has basically been used as a farm truck for the last year, because of complications with getting the title / registration in my name. The most recent work being done now, is focusing on the rust removal from the back half of the frame. The pictures are little tight on the frame, because my space surrounding the truck is a bit small.

    Click image for larger version.

Name:	IMAG0232.jpg
Views:	107
Size:	53.8 KB
ID:	7340Click image for larger version.

Name:	IMAG0233.jpg
Views:	110
Size:	44.7 KB
ID:	7341Click image for larger version.

Name:	IMAG0234.jpg
Views:	134
Size:	48.5 KB
ID:	7342

  5. #5

    Array
    Status
    Offline
    Join Date
    05-02-2011
    Posts
    41
    Location

    Waynesboro, PA
    Vehicle

    1987 Dodge Power Ram 50
    Engine

    G54B

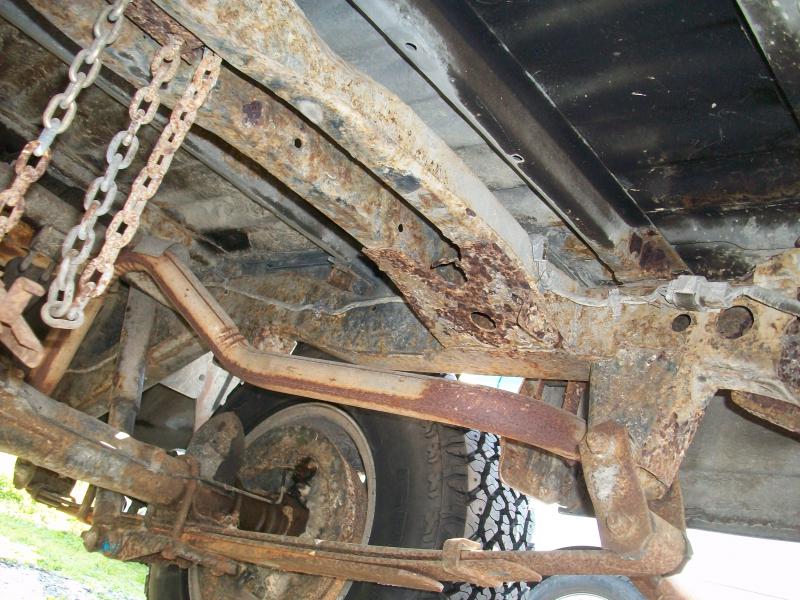

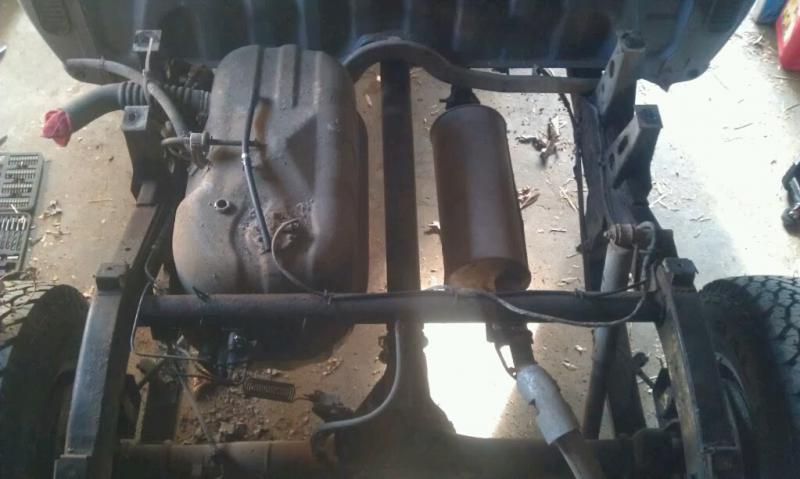

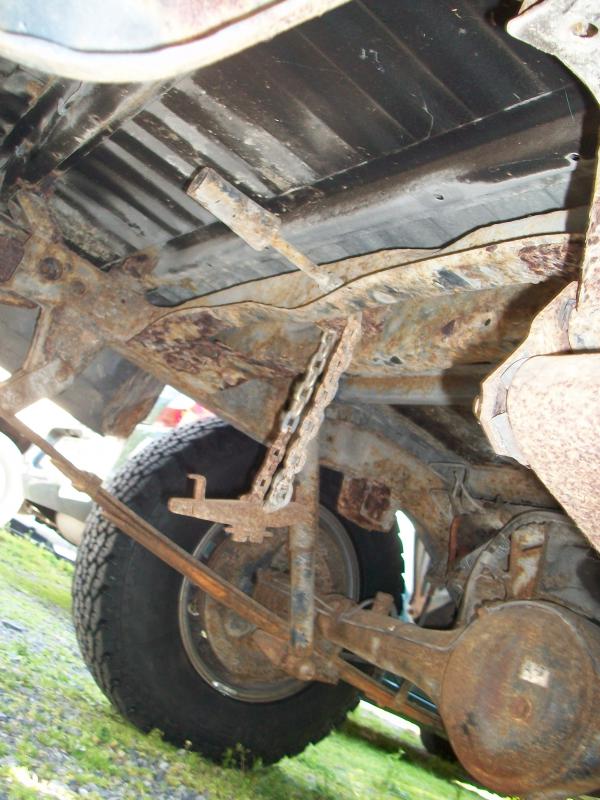

    So as I wait for the temperature to heat up so I can treat the frame rust, I decided this might be a good time to plan the install of the Carter P4070 fuel pump. Ideally, I'd like this pump mounted close to the tank (similar to Mopar_ja's Setup), but with the Gen2 it appears that the main fuel line hose is routed between the two frame brackets for the bed.

    So I guess the choices are remove and rerun the fuel and brake lines routed along the frame to accommodate the pump to be mounted in front of the tank on the inside edge of the frame. Or, determine if there is a way to use some creative engineering to mount the pump in between the bed supports and still have the fuel tank hose routed above the pump (body lift maybe). Any thoughts?

  6. #6

    Array
    Status
    Offline
    Join Date
    12-21-2013
    Posts
    1,033
    Location

    Maurertown, Virginia
    Vehicle

    1990 Dodge D-50
    Engine

    4G64
    Wow, Ol' Blue sure is inspiring! How much trouble was it to take the bed off? That is certainly the way to tackle that rust, and mine is just as bad. I want to arrest the rust, and also get some reinforcement welded on. If removing the bed isn't traumatic, that is certainly the way I'd like to go.

    I have no ideas to offer regarding the fuel pump placement. It's frikken' TIGHT in that area. My '90 has fuel injection, the pump is inside the tank, and the repair I had to make didn't allow for much fudging room. On my '89 parts truck, the fuel pump is right on the intake manifold, running off the cam.

    The repair to my tank involved doing something to connect the rusted metal outlet and return pipes to the fuel line...a leak brought my attention to the problem. In dropping the tank, I saw the lines were rusted and 'sweating". My first repair actually caused the pipes to break off. Broken off with only 1/4" stubs to work with, I used that PL S10 concrete caulk to adhere fuel line. When the caulking cured, I put hose clamps on. I also surrounded the area with Bondo, sort of like putting a cast on a broken arm. The repair was a success, but it made me keep my eye open for a replacement tank.

    Some parts are headed your way pretty soon: what shape are your sun visors in?

    That's a really suh-weeeeeet paint job, all 'round. Nice project truck!

  7. #7

    Array
    Status
    Offline
    Join Date
    05-02-2011
    Posts
    41
    Location

    Waynesboro, PA
    Vehicle

    1987 Dodge Power Ram 50
    Engine

    G54B
    Quote Originally Posted by royster View Post
    Wow, Ol' Blue sure is inspiring! How much trouble was it to take the bed off? That is certainly the way to tackle that rust, and mine is just as bad. I want to arrest the rust, and also get some reinforcement welded on. If removing the bed isn't traumatic, that is certainly the way I'd like to go.

    Some parts are headed your way pretty soon: what shape are your sun visors in?

    That's a really suh-weeeeeet paint job, all 'round. Nice project truck!
    The bed was easy removal, however if you plan on doing itself, I'd rig a pulley system; I did a make-shift attempt with ratchet straps. It worked until it was time to lower the bed . There are four bolts in the front of the bed, four in the back, and then just disconnect the wiring harness to the tail-lights and hoses from the fuel inlet down pipe; not sure the mechanic's term for that piece. Then the bed just lifts up, if you have the brackets in the four corners of the bed, just latch your chains to them and connect to the pulley system and up it goes.

    Sun-visors have some bubbling from the years of wear, but are still in pretty good shape. Thanks for the compliments on the truck, will be much nicer when she gets cleaned up and I can finally replace the sunroof. Having an aftermarket model sucks when they go obsolete and no one makes the glass anymore.

  8. #8

    Array
    Status
    Offline
    Join Date
    12-21-2013
    Posts
    1,033
    Location

    Maurertown, Virginia
    Vehicle

    1990 Dodge D-50
    Engine

    4G64
    Inspiring, thank you. I'd likely use a system similar to how I take my F-150 cap off: lift it up, support it, and drive from under it. I can do some of the work during winter, but again, you encouraged me to do it right, so this looks like a Spring project. It will allow me to tilt the bed up and easily access the under-side of it. Definitely inspired.

  9. #9

    Array
    Status
    Offline
    Join Date
    10-26-2013
    Posts
    232
    Location

    Olympia/wa
    Vehicle

    1990 Dodge Ram 50
    Engine

    4G64
    Hey! a fellow neon guy with a ram50! you on any neon forums? trucks lookin good!

  10. #10

    Array
    Status
    Offline
    Join Date
    05-02-2011
    Posts
    41
    Location

    Waynesboro, PA
    Vehicle

    1987 Dodge Power Ram 50
    Engine

    G54B
    Sorry Redneck - The neon belonged to a neighbor. He was letting me use space in his garage. However, I did enjoy assisting him with modding the neon. We changed the gear ratio, installed a Phantom Grip Unit in the Differential, and turbo'd it. It was a pretty fast little car.

    On another note, I've been toying with a few ideas for the truck once I start planning the paint job. I thought I'd share one with the forum folks. I also enjoy photo manipulation, so I decided to share this. Note the hood on the truck.

    Click image for larger version.

Name:	Ram50.JPG
Views:	88
Size:	47.3 KB
ID:	7739

  11. #11



    Array
    Status
    Offline
    Join Date
    07-24-2012
    Posts
    2,357
    Location

    Washington State
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G63B
    Nice Ram50, I'm a retired 25 year Digital Graphic Designer Local #583. Nice idea in the photo. Probably be easier to get cut vinyl at some sign shop to lay on hood instead of paint. You can always remove it and replace it and it will be much easier to produce perfectly.

  12. #12

    Array
    Status
    Offline
    Join Date
    05-02-2011
    Posts
    41
    Location

    Waynesboro, PA
    Vehicle

    1987 Dodge Power Ram 50
    Engine

    G54B
    You are correct Brad, I've been considering taking the logo to a local company that does automotive skins and custom decals. Figured it would make it easy, but at the same time, I like the challenge of trying to recreate something through painting. If I do attempt to paint it, free-hand or with fabricated templates, it will likely be on wood first.

    Thanks for the input, makes the ideas running in my head a little more manageable if I move toward the vinyl options. Once I get a good angled shot of the truck, I have another idea that I think will be perfect; I just like putting it in a visual format before committing.

    How well does the polling on this forum work? Once I get the frame rust taken care of, I plan on repainting the truck. Maybe I should post a few ideas and let the masses decide which is the best look.
