Thread: Doing An Alignment sort of....

  1. #1

    Array
    Status
    Offline
    Join Date
    08-24-2012
    Posts
    94
    Location

    San Diego, CA
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G64B

    Doing An Alignment sort of....

    I put my truck on the alignment machine the other day because the front tires wear on the inside tread pretty fast, I realized that I upper control is mounted to the inside of the frame. So I cant adjust it, should also note that all my suspension and steering bushings and ball joints are shot out. Is possible that the frame is bent or warped?

  2. #2

    Array
    Status
    Offline
    Join Date
    04-24-2011
    Posts
    305
    Location

    Orlando, FL
    Vehicle

    1990 Mitsubishi Mighty Max
    Engine

    G64B

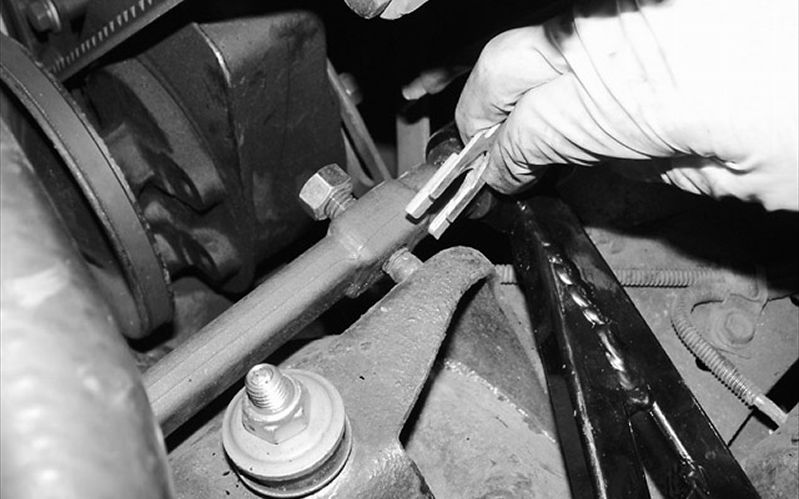

    you can adjust with shims, Click image for larger version.

Name:	0309vet_15z+1980_Chevrolet_Corvette+Camber_Shims_A_Arms.jpg
Views:	77
Size:	62.5 KB
ID:	7079 Click image for larger version.

Name:	0708tr_04_z+1967_chevy_c10_suspension_install+camber_shims.jpg
Views:	74
Size:	51.5 KB
ID:	7080 what alignment machine are you using

  3. #3


    Array
    Status
    Offline
    Join Date
    06-17-2011
    Posts
    195
    Location

    Portland, OR
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    Chevy V6
    It's the lower control arm bushings.

  4. #4

    Array
    Status
    Offline
    Join Date
    08-24-2012
    Posts
    94
    Location

    San Diego, CA
    Vehicle

    1986 Mitsubishi Mighty Max
    Engine

    G64B
    I don't remember what machine I think it is hunter winalignment something something dark side.... anyways if I shim it, it will only make it worse. So my lower control arm bushing should fix that then. Worth a shot. Thanks man.

  5. #5

    Array
    Status
    Offline
    Join Date
    11-22-2012
    Posts
    102
    Location

    Grants,NM
    Vehicle

    1985 Dodge D-50
    Engine

    Chevy V8
    be sure to get poly proformance type bushings.

  6. #6

    Array
    Status
    Offline
    Join Date
    11-22-2012
    Posts
    102
    Location

    Grants,NM
    Vehicle

    1985 Dodge D-50
    Engine

    Chevy V8
    just an update. energy suspension part number 5-3102g black or 5-3102r red.
    real easy to install.
