Thread: Cable Clutch routing

  1. #1

    Array
    Status
    Offline
    Join Date
    12-21-2012
    Posts
    181
    Location

    North West Florida
    Vehicle

    1994 Mitsubishi Mighty Max
    Engine

    4G64

    Cable Clutch routing

    Just to be safe I want to confirm something, Im replacing the clutch on my old 94 max for the new owner, the cable has a lot of play on it, I need a pic of the way it sites from the firewall down to the transmition. I would appreciate it a lot. It is adjustable, and I have done that as well, just want to make sure its not something simple. thanks. Its a 1994 mighty max with a 2.4L and annual trans.

  2. #2


    Array
    Status
    Offline
    Join Date
    04-04-2011
    Posts
    685
    Location

    Columbus, OH
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    Other
    It's pretty straightforward, the cable goes thru the firewall and arc's back to the transmission, no holes or brackets save for the anchor to the clutch arm.

    See Chapter 8 of the Haynes manual here http://www.mightyram50.net/vbulletin...er-216-Manuals

  3. #3

    Array
    Status
    Offline
    Join Date
    12-21-2012
    Posts
    181
    Location

    North West Florida
    Vehicle

    1994 Mitsubishi Mighty Max
    Engine

    4G64
    Thanks, thats what I was thinking it was. There is no resistance at all on the cable or the pedal after I installed the new clutch. Just trying to basic troubleshoot before I remove everything and look at the tranny and clutch again.

  4. #4


    Array
    Status
    Offline
    Join Date
    04-04-2011
    Posts
    685
    Location

    Columbus, OH
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    Other

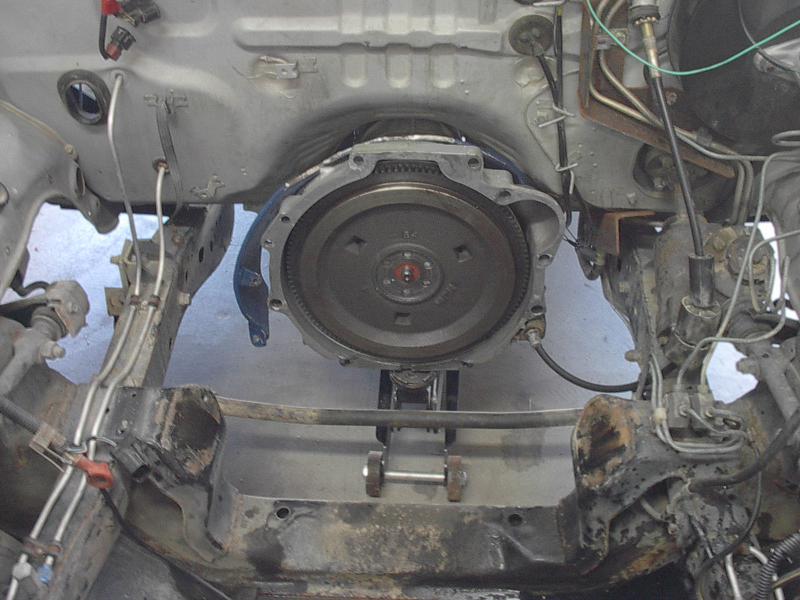

    here's a pix of what it should be doing without the motor installed (rare pix).

    Click image for larger version.

Name:	Flywheel Sheared bolts.jpg
Views:	97
Size:	68.9 KB
ID:	6029

    unless you missed something really big with the clutch, it shouldn't do that. The cable should go thru the bracket at the bottom drivers side of the tranny, and the adjuster nut should be tight to the rubber grommet at the firewall.


    Bonus Points - What's wrong with this picture?

  5. #5

    Array
    Status
    Offline
    Join Date
    12-21-2012
    Posts
    181
    Location

    North West Florida
    Vehicle

    1994 Mitsubishi Mighty Max
    Engine

    4G64
    Other than the flywheel being attached to the transmition?

  6. #6



    Array
    Status
    Offline
    Join Date
    03-16-2011
    Posts
    3,614
    Location

    Sacramento, CA
    Vehicle

    1979 Dodge D-50
    Engine

    Chevy V6
    The bellhousing shield or the oil on the frame.
    Members come and members go, But the board keeps track of them.
    Check out the Fear Monger by
    clicking HERE.

    The MightyRam50 site is sponsored in part by On Site Concrete Inc.

  7. #7


    Array
    Status
    Offline
    Join Date
    04-04-2011
    Posts
    685
    Location

    Columbus, OH
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    Other
    Sleeps gets it... Flywheel still on the Transmission. This Pix is from when I broke the Flywheel bolts off at 8100 RPM.

    found the weak spot.

  8. #8



    Array
    Status
    Offline
    Join Date
    03-16-2011
    Posts
    3,614
    Location

    Sacramento, CA
    Vehicle

    1979 Dodge D-50
    Engine

    Chevy V6
    I figured you were just checking some clearance thing. So the correct answer would have been the broken bolts in the flywheel.
    Members come and members go, But the board keeps track of them.
    Check out the Fear Monger by
    clicking HERE.

    The MightyRam50 site is sponsored in part by On Site Concrete Inc.

  9. #9


    Array
    Status
    Offline
    Join Date
    04-04-2011
    Posts
    685
    Location

    Columbus, OH
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    Other
    That would be accepted also

  10. #10

    Array
    Status
    Offline
    Join Date
    12-21-2012
    Posts
    181
    Location

    North West Florida
    Vehicle

    1994 Mitsubishi Mighty Max
    Engine

    4G64
    Yeah it threw me off at first, cause it almost looks normal. Lol. Yikes I say.

    On topic I did not find anything abnormal with the clutch or anything else when I took it back off. So last night I re-installed it and adjusted the cable alot, and I now have pressure on the entire pedal. I have not drive it yet, got a couple more bolts to finish tightening, but I think it was the problem. Ill know for sure when I drive it tonight or tomarrow.

    One last question, the trans gear oil, 85-90w, the approx amount I need? I cant DL that file from the link LSR mike posted.

  11. #11


    Array
    Status
    Offline
    Join Date
    04-04-2011
    Posts
    685
    Location

    Columbus, OH
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    Other
    Approximately 2.6 quarts

  12. #12

    Array
    Status
    Offline
    Join Date
    12-21-2012
    Posts
    181
    Location

    North West Florida
    Vehicle

    1994 Mitsubishi Mighty Max
    Engine

    4G64
    Thanks, and its all better. Works like a champ. Just needed a good adjustment. Maybe if I ever redo it I may go with a better clutch and a hydrolic set up.

  13. #13


    Array
    Status
    Offline
    Join Date
    04-04-2011
    Posts
    685
    Location

    Columbus, OH
    Vehicle

    1992 Mitsubishi Mighty Max
    Engine

    Other
    Good Job, now start saving for a Turbo...
