Thread: 1989 Power Ram 50 4x4

  1. #1

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B

    1989 Power Ram 50 4x4

    i am currently rebuilding one my two 89 Power Ram 50 4x4's. the one i am rebuilding has a three inch lift that was done wrong that i have to re-do. the motor went out on me the day before christmas last year and have finally got all my parts together for the rebuild.

    this where it starts
    Click image for larger version.

Name:	DSC048541.jpg
Views:	576
Size:	26.5 KB
ID:	396

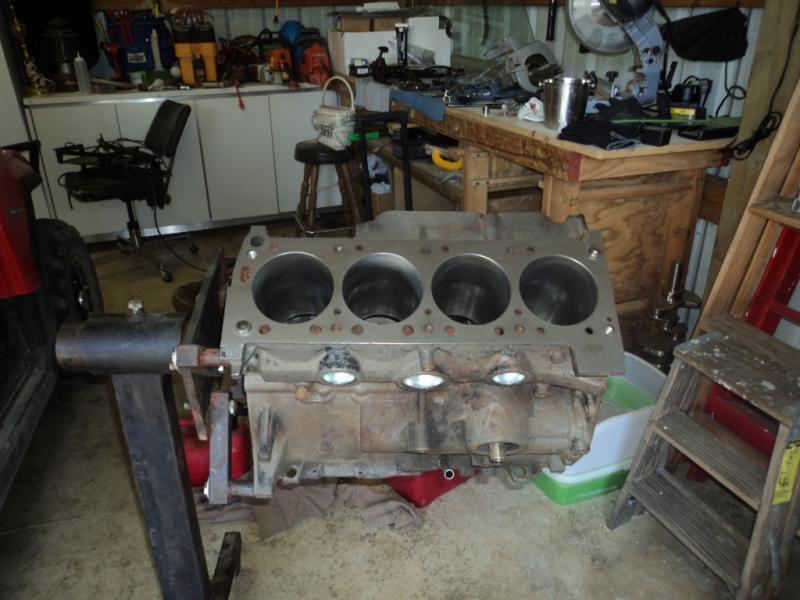

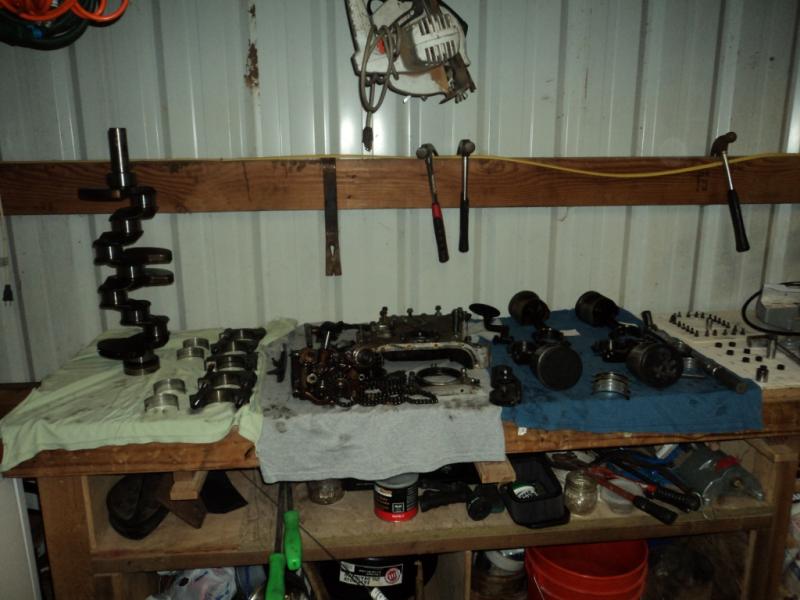

    here is the motor torn down
    Click image for larger version.

Name:	DSC053051.jpg
Views:	310
Size:	22.9 KB
ID:	397Click image for larger version.

Name:	1.jpg
Views:	230
Size:	21.5 KB
ID:	398
    Click image for larger version.

Name:	DSC053081.jpg
Views:	194
Size:	20.8 KB
ID:	400Click image for larger version.

Name:	DSC053091.jpg
Views:	164
Size:	18.9 KB
ID:	401
    here is what all the main bearings look like
    Click image for larger version.

Name:	DSC053111.jpg
Views:	201
Size:	94.1 KB
ID:	402

    next week the block, new rods and pistons, crank, flywheel, clutch, and front pulley go in to the machine shop to have the bore pushed 0.020 over and a full engine balance. i am going to have two pounds of metal removed from the flywheel as well as eliminating the balance shafts, hence having the motor balanced. i am also going ditributorless so you will get to see how i progress with that.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	DSC053161.jpg
Views:	134
Size:	57.8 KB
ID:	399

  2. #2


    Array
    Status
    Offline
    Join Date
    03-21-2011
    Posts
    777
    Location

    WA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T
    Nice work. It always takes time when you wanna do things the right way. When you rush, that's when mistakes are made. Keep us posted on progress. Gl with build.

  3. #3


    Array
    Status
    Offline
    Join Date
    03-26-2011
    Posts
    678
    Location

    Stafford, VA
    Vehicle

    1995 Mitsubishi Mighty Max
    Engine

    Chevy V8
    looks like a nice truck man. nice work. keep it up. welcome to the site.

  4. #4

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    here are some pictures of the transmission and clutch. thankfully i have a friend in the transmission repair field to help me on the rebuild.
    Click image for larger version.

Name:	DSC048651.jpg
Views:	302
Size:	25.6 KB
ID:	403Click image for larger version.

Name:	DSC048941.jpg
Views:	247
Size:	70.4 KB
ID:	404
    this is my center force center-fugial (i think that's how it's spelled) weighted clutch that i bought six years ago for my silver dodge. going to have it cleaned and getting a new dual friction plate and throw-out bearing
    Click image for larger version.

Name:	DSC048831.jpg
Views:	195
Size:	68.2 KB
ID:	405

    and this is what happens when inexperience and an ego come together on a three inch body lift.
    Click image for larger version.

Name:	DSC049021.jpg
Views:	206
Size:	24.5 KB
ID:	406Click image for larger version.

Name:	DSC049041.jpg
Views:	215
Size:	64.7 KB
ID:	407Click image for larger version.

Name:	DSC049051.jpg
Views:	208
Size:	62.1 KB
ID:	408

    here is a picture of my two trucks. the white and silver one on the left i've had for 11 years. the blue one i got last november.
    Click image for larger version.

Name:	DSC047902.jpg
Views:	263
Size:	81.3 KB
ID:	409

  5. #5


    Array
    Status
    Offline
    Join Date
    03-26-2011
    Posts
    678
    Location

    Stafford, VA
    Vehicle

    1995 Mitsubishi Mighty Max
    Engine

    Chevy V8
    2 is better than 1....sweet. i would love to have my bagged mighty max and a jacked up one that matched....that would be the sh!t

  6. #6

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    i'm rebuilding the motor and transmission in the white and silver one and putting them in the blue one. what's kinda cool with my trucks is that they were manufactured only 284 trucks from them each other and built in the same month. i though that was pretty nifty.
    the white and silver one now, my dad and i are gonna put a 1992 caddy 4.9 liter v8 (non northstar) in it. gonna put a turbo 350 tranny and a dana 300 transfer-case behind it. i'm gonna take off the front fender skins and take out some of the inner fender to accomidate some bigger tires. then the bed comes off and a smaller more functional box will be made and welded in place. but, that is for later.
    Last edited by PowerRam348; 05-06-2011 at 12:53 AM.

  7. #7


    Array
    Status
    Offline
    Join Date
    03-21-2011
    Posts
    777
    Location

    WA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T
    That caddi motor should be fun. I like the fuel milage of my 4 bangers though. So you will be going with a smaller bed? You can always modify what you have.

  8. #8

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    my white and silver one will hopefully make the rubicon trail in two years along with my buddy who has a highly modified CJ-8 scrambler. i've been dreaming about doing the rubicon in my dodge for years. i hope i get it done by then though. this has been a dream in progress for way too long. thanks for all the support and advice guys. it helps a lot.

  9. #9


    Array
    Status
    Offline
    Join Date
    03-26-2011
    Posts
    678
    Location

    Stafford, VA
    Vehicle

    1995 Mitsubishi Mighty Max
    Engine

    Chevy V8
    well i hope that dream comes true for you buddy. best of luck to you.

  10. #10


    Array
    Status
    Offline
    Join Date
    03-21-2011
    Posts
    777
    Location

    WA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T
    Have you been on that trail before? It would be cook if you could film you running it. Kind of like that vid of the off road racing that we have on the site.

  11. #11

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    my friend with the jeep runs it all the time with his club. i've gone 4 times and it only gets better every year. newer, cooler, and more exciting stuff shows up all the time to run the trail. i can't wait to start fabbing the truck and rebuilding the 4.9 liter that will go in it. but i gotta finish this one first.

  12. #12

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    got my ARP head studs and main studs yesterday. be dropping those off at the machine shop when i go into town later today.

  13. #13

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    gonna need a new crankshaft. mine has a crack on number 4 that goes almost all the way around where the rod connects. got a new crank that will be here tomorrow. gotta love my local K-necks auto parts store for having knowledgeable people that know where to find "hard to locate" stuff.

  14. #14

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    the machine shop is through working on my motor and i am picking it up at the end of the month. can't wait to put it together.

  15. #15

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    got my engine and internals from the machine shop today. gonna start putting it together tomorrow. i will post some pictures tomorrow too. good times ahead.

  16. #16



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,115
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    Did you get ARP rod bolts to go with all the other ARP stuff? Just asking, as I had the bolts , but the machine shop put the bottem end together on my conquest motor without them, so I got to pull them and change them out.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  17. #17

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    445
    Location

    Jacksonville, FL
    Vehicle

    1990 Mitsubishi Mighty Max
    Engine

    G54B-T
    Quote Originally Posted by pennyman1 View Post
    Did you get ARP rod bolts to go with all the other ARP stuff? Just asking, as I had the bolts , but the machine shop put the bottem end together on my conquest motor without them, so I got to pull them and change them out.
    Arp reccommends resizing the rod after installing new studs. Since they are a press fit....they slighly distort the open end of the rod.

  18. #18



    Array
    Status
    Offline
    Join Date
    03-20-2011
    Posts
    4,115
    Location

    Pittsburgh, PA
    Vehicle

    1980 Dodge D-50
    Engine

    G54B
    I didn't know that - glad you pointed that out before I did it - maybe I will leave well enough be.
    Pennyman1
    The best Dodge that Dodge never made
    Living the D-50 lifestyle since 1980

  19. #19

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    yes, the machine shop installed all my the arp studs; rods, crank mains, and head. the machine shop did a fantastic job on the motor and internals.

  20. #20

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    here she is...

    here are all my pieces and parts
    Click image for larger version.

Name:	00112.jpg
Views:	141
Size:	53.4 KB
ID:	1170Click image for larger version.

Name:	0291.jpg
Views:	143
Size:	65.7 KB
ID:	1173Click image for larger version.

Name:	0321.jpg
Views:	141
Size:	63.0 KB
ID:	1174Click image for larger version.

Name:	0311.jpg
Views:	145
Size:	69.7 KB
ID:	1175

    here is the block just painted
    Click image for larger version.

Name:	0331.jpg
Views:	151
Size:	52.3 KB
ID:	1171

    all my timing guide rails ready to install along with the front pulley, oil pick-up tube,rear main seal housing, distributer gear, the original oil filler cap, and my reference material.
    Click image for larger version.

Name:	0061.jpg
Views:	189
Size:	51.4 KB
ID:	1172

    here is the crank and pistons in the block.
    Click image for larger version.

Name:	0041.jpg
Views:	162
Size:	66.2 KB
ID:	1169Click image for larger version.

Name:	0021.jpg
Views:	147
Size:	43.5 KB
ID:	1176

    here is the oil pump and the timing gear set on the crank.
    Click image for larger version.

Name:	0051.jpg
Views:	137
Size:	60.8 KB
ID:	1167
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	0221.jpg
Views:	141
Size:	99.2 KB
ID:	1168
    Last edited by PowerRam348; 08-30-2011 at 02:47 AM.

  21. #21

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    here's some more pictures

    the plate that goes between the transmission and the back of the block
    Click image for larger version.

Name:	0022.jpg
Views:	134
Size:	43.8 KB
ID:	1192
    new head fully assembled
    Click image for larger version.

Name:	0042.jpg
Views:	137
Size:	54.6 KB
ID:	1194
    taping it off
    Click image for larger version.

Name:	0052.jpg
Views:	129
Size:	43.7 KB
ID:	1193
    painting
    Click image for larger version.

Name:	0062.jpg
Views:	136
Size:	78.6 KB
ID:	1200
    ready to install
    Click image for larger version.

Name:	0072.jpg
Views:	176
Size:	55.8 KB
ID:	1197
    valve cover
    Click image for larger version.

Name:	0012.jpg
Views:	121
Size:	93.6 KB
ID:	1195
    flywheel; balanced and lightened 2 pounds. was 35 pounds, now 33 pounds
    Click image for larger version.

Name:	0032.jpg
Views:	136
Size:	54.2 KB
ID:	1196
    clean and shiny intake. its going in to the machine shop to have the face trued up (on the off chance its not straight. it does have 200,000 miles on it) and the inside polished.
    Click image for larger version.

Name:	0082.jpg
Views:	142
Size:	63.0 KB
ID:	1199

    more pictures to come in a few days. thanks again for all the helpful info and input from everyone.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	0092.jpg
Views:	97
Size:	60.1 KB
ID:	1198

  22. #22

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    here are some pictures of my silver and white dodge torn down to the frame. this is my rubicon project.

    Click image for larger version.

Name:	0231.jpg
Views:	151
Size:	99.5 KB
ID:	1210Click image for larger version.

Name:	0261.jpg
Views:	149
Size:	98.8 KB
ID:	1211Click image for larger version.

Name:	0221.jpg
Views:	177
Size:	99.2 KB
ID:	1212Click image for larger version.

Name:	0251.jpg
Views:	269
Size:	98.9 KB
ID:	1213Click image for larger version.

Name:	0271.jpg
Views:	369
Size:	90.9 KB
ID:	1214Click image for larger version.

Name:	0241.jpg
Views:	145
Size:	98.3 KB
ID:	1215

  23. #23

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    cleaning all the original nuts and bolts and the carb base plates

    Click image for larger version.

Name:	0011.jpg
Views:	154
Size:	53.3 KB
ID:	1218Click image for larger version.

Name:	0091.jpg
Views:	162
Size:	60.0 KB
ID:	1223
    the carb; weber 32/36
    Click image for larger version.

Name:	0071.jpg
Views:	162
Size:	39.9 KB
ID:	1217
    head with valve cover
    Click image for larger version.

Name:	0061.jpg
Views:	161
Size:	59.9 KB
ID:	1219
    all my parts all painted and clean
    Click image for larger version.

Name:	0051.jpg
Views:	147
Size:	54.1 KB
ID:	1220
    rear main seal installed
    Click image for larger version.

Name:	0081.jpg
Views:	140
Size:	64.3 KB
ID:	1221
    ready to go. just need to get the intake and header back from the machine shop before it all goes together
    Click image for larger version.

Name:	0041.jpg
Views:	144
Size:	66.4 KB
ID:	1216
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	0101.jpg
Views:	134
Size:	61.2 KB
ID:	1222

  24. #24



    Array
    Status
    Offline
    Join Date
    03-26-2011
    Posts
    1,512
    Location

    Vacaville, CA
    Vehicle

    1989 Mitsubishi Mighty Max
    Engine

    4G63-T
    Wasn't really digging the orange at first but it is actually looking bad ass with all the shiny black and cleaned aluminum.
    Josh
    09 BMW 335i E92 Twin turbo
    89 Macrocab 4g63 Turbo swapped & Bagged: Build Thread

  25. #25

    Array
    Status
    Offline
    Join Date
    04-06-2011
    Posts
    215
    Location

    Portland, OR
    Vehicle

    1989 Dodge Power Ram 50
    Engine

    G54B
    the color scheme was actually my dads idea. he stopped by when i started painting everything (my color idea was to paint everything mopar blue) and said "what the hell, kid. i raised you better, paint it something cool and leave the alluminum shiny". i too was skeptical at the colors he suggested, but it really has turned out nice. i think my dad had a better idea than mine.

    the work i'm having done on the intake and header is; the intake is getting polished and the face trued if its warped a little. the header is the headmann header i put on this same motor 12 years ago in my automotive class in high school. i'm having it bead blasted, the pipes are getting welded at the face plate and the collector welded as well. the header wasn't leaking at all when i took it in, just getting it re-inforced at the critical areas. the intake and header should be done by the end of the week. and hopefully we'll start it at the end of next week. more pictures to come.

Page 1 of 6 123 ... LastLast

Tags for this Thread

Bookmarks

Bookmarks

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
