I want to wire this ignition coil, but it looks a bit different from the original one. Any ideas how I go about it? I have a 1988 Mitsubishi Mighty Max 4x4
Printable View
http://www.mightyram50.net/vbulletin...id=28211&stc=1
I want to wire this ignition coil, but it looks a bit different from the original one. Any ideas how I go about it? I have a 1988 Mitsubishi Mighty Max 4x4
Which type of coil are you replacing? Is it a transformer type, which is like the NGK replacement (and the original stock coil), or the cylindrical, oil filled coil used on 1st Gen trucks? If you’re replacing a stock transformer coil, attach the mount bracket and ceramic ballast resistor to the NGK coil. The wire connections are the same.
If you’re not sure, post a picture so all can see what you’re up against.
Here's an earlier thread with much discussion and a picture of how to wire the transformer type coil:
http://www.mightyram50.net/vbulletin...=ignition+coil

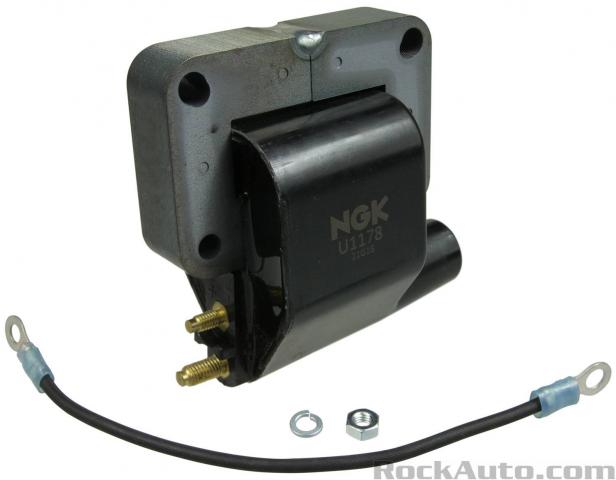

I uploaded the picture of what I'm trying to wire, but a mod modified it. Here it is again.
http://www.mightyram50.net/vbulletin...id=28216&stc=1
It is indeed the ngk brand ignition coil.
Huh weird, I'm the mod who fixed the image display in your first post, not sure why it isn't appearing there anymore, so thx for reposting.
Anyway, this link provided in the prior reply should cover everything you need:
http://www.mightyram50.net/vbulletin...on-coil-wiring
If you're replacing an original canister-style coil with this transformer-style coil, and if the new coil doesn't come with a mounting bracket or ballast resistor (looks like a pinky-sized white ceramic bar, external to the coil itself), that may explain some of the problems you're having.
I'd recommend a Herko B108 coil, comes with the bracket and ballast resistor included, cheap and easy to get off eBay:
https://www.ebay.com/sch/i.html?kw=herko+b108
BTW, I found the wire routing was easier/tidier when I disassembled the Herko's mounting bracket and then reassembled it with the coil flipped around facing the other direction.
Thank you so much guys. Thank you SubGothius for the tip about disassembling the mounting bracket on the herko brand coil. I figured the ngk one was a good brand. I've never had issues with their ignition coils or spark plugs. Is herko a reliable brand?

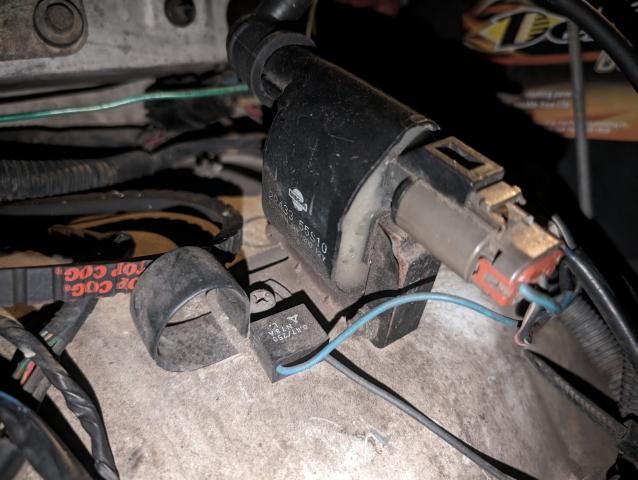

Btw, what are those things next to the ignition coil on either side? This is currently the ignition coil I have on the vehicle:
Attachment 28219
The one with the blue wire is a condenser and the other with the white wire is a noise filter. Together they suppress noises generated by the ignition circuit that could affect the quality of your radio's sound and reception.Quote:
Originally Posted by BJH324JH
Thank you for the valuable information. I was always curious what those things were next to the ignition coil. Now it's not so alien to me anymore. Thanks a lot.Quote:
Originally Posted by FMS88
It's interesting your original coil has that modular terminal block on it to connect the wiring, rather than the more generic/universal screw-post terminals shown on your replacement NGK coil, so there may be another "direct fit" model of coil that can accept that connector block directly.
I can't quite make out the part numbers stamped on the side of your old coil; could you take a better pic of those, or just type those in here?
Sure.Quote:
Originally Posted by SubGothius
http://www.mightyram50.net/vbulletin...id=28220&stc=1
Thanks for the pic, that Nissan p/n 22433 55s10 cross-refs to a Herko B018 (not B108) or NGK U1024, direct-fit plug'n'play replacement. Looks like you'll need to reuse the mounting bracket from your original coil.
Just out of curiosity, would it be possible to use the generic universal terminal type on my truck or does it have to be the plug-in type?Quote:
Originally Posted by SubGothius
You could, but you'd need to clip the connector plug off your wires to the coil, crimp suitable terminals onto those wires, and figure out how to connect them up.
That said, the proper plug'n'play NGK U1024 coil isn't much more expensive than that generic coil you got, about $30 or less shipped, so if you can still return that for a refund, I'd just do that and get the proper coil:
https://www.ebay.com/itm/305230004712
https://www.rockauto.com/en/moreinfo...4&cc=0&pt=7060
https://www.ngk.com/ngk-49045-u1024-ignition-coil
Yeah I just get the original one. Btw, why does it have a Nissan part number. Did Mitsubishi use Nissan ignition coils?Quote:
Originally Posted by SubGothius
Not sure if Mitsu just sourced those coils from Nissan in the first place, or maybe a PO already replaced the coil and found the original part no. cross-ref'd to that Nissan one they scored a deal on.
Hmmm that's what I'm thinking.Quote:
Originally Posted by SubGothius
