Ok, so I purchased a 1990 Mighty Max that sat for 15 years. I have since done a full tune up(plugs, wires, cap, rotor, oil change, air filter)and done the timing belt, water pump, and tensioner. I have it all back together and I am trying to find out what the timing degree is supposed to be at? It is currently running at what looks like 0 degrees, about an inch behind the 10 degree mark.
Any help would be amazing as this is my first Mighty Max and I really like it. :)
Tyler
First the cam belt timing should look like this.
http://www.mmeierle.com/images/Max/B...2005%20002.jpg
closer look at the bottom end http://www.mmeierle.com/images/Max/B...2005%20001.jpg
you have to make sure the balance shaft on the drivers side is in the correct position.
dowwn load this manual for instructions http://www.mmeierle.com/images/Max/1...2%20ENGINE.pdf
page C 34 has the instructions. You will want to save that manual for future reference.
The actual Timing procedure is a bit of a trick, since the computer controls the timing, you set the "BASE" timing by grounding the timing mode wire and setting the distributor to 3 to 7 degrees BTDC

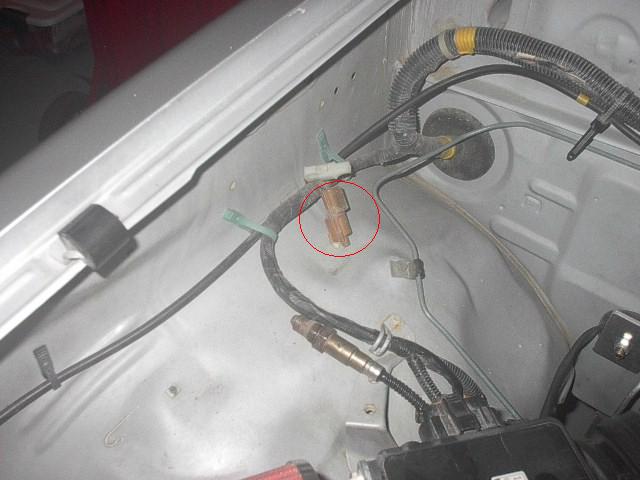

The timing mode wire is here...Attachment 11129 remove the cover and ground with a test lead or similar.
more information and procedures are available in the 216 manuals post here
http://www.mightyram50.net/vbulletin...er-216-Manuals
Good luck

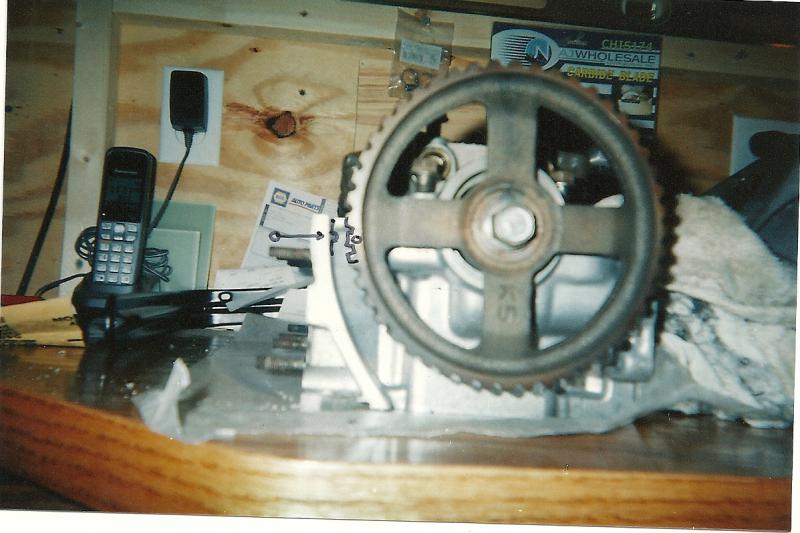

Excellent help, LSR Mike...I only point out that the illustrated engine does not show the B belt timing mark because it has been eliminated on that engine illustrated. I offer also the "nub" illustration for the head timing, which is a common mistake to overlook: some have used the top of the head for timing mark, and that is incorrect.
Attachment 11130

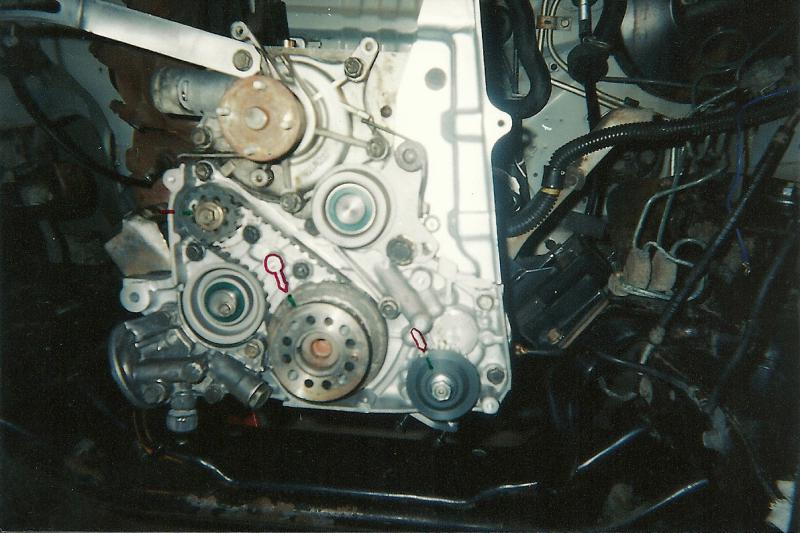

This is the best picture I have showing the B belt timing position...hope it is of some help.
Attachment 11131
One more note: be sure to pull the big belt from the crank to the cam, so that tension is on that side. When I first replaced that belt, I did the tension on the tensioner-side, and that's just plain wrong :)
I used a wire with alligator clips on each end to ground the timing module. There is only one prong inside the module, and you ground that to the firewal (there's another ground wire nearby). This WAS tricky, if you've never done it before, but if you didn't ground the module, it is exactly why you'd have a zero timing setting. I set my timing at 5-7 degrees TDC and it runs great.
One final note is to admit a mistake I made: in trying to hastily re-time the engine, in dim light, I actually clipped onto a plastic prong of the module instead of the metal! Be sure you're on the prong, use good lighting, and above all...take your time.
Thank you so much for the help. :) I got her set at 7 base. I did accidentally ground the wrong one at first as there are two plugs with caps right there. the wrong one you just have to replace a fuse. Freaked me out though. haha.
The cool thing about working on these trucks is you only need one experience to remember forever what to do and what not to do.
Hope your truck gives you happy service! :salute:
when checking them belts or replacing them, be sure your balance shafts are in the right positions. Give them a little roll and they will sort of glide on their own to their marks. It's a kind of...do it once and you'll know how the next time. Balance shafts counter each other to smooth the motor in the driver seat, but this is just one of those things that should be correct if belts are removed and re-installed.
Hello, the photograph scan0036.jpg shows the crankshaft pulley set in time but the notch is outside the mark you placed, isn't it the notch that defines the point? Or is there another point and I haven't noticed?
What is that fuse you mention? in what part is it located
